Extra Wide 96” - 2438mm Prepainted Aluminum Plate Van & Truck Cargo Body Material

Availability:

Quantity:



Inquire Add to Basket

Product Description

Extra Wide 96” - 2438mm Prepainted Aluminum Plate Van & Truck Cargo Body Material

Product Overview:

This pre-painted aluminum plate features an ultra-wide 96” - 2438mm design, specially developed for truck, van and trailer body manufacturing. It avoids material splicing, improving overall structural integrity and appearance.

Made of high-quality automotive-grade aluminum alloy, it is lightweight, impact-resistant and easy to process. Adopting advanced PE, HDP and PVDF coating technology, it boasts excellent anti-corrosion, UV resistance and weather durability with long-lasting color stability.

Available in multiple thicknesses, tempers and RAL standard colors, it complies with international quality and environmental standards. Custom specifications and surface finishes are supported, ideal for vehicle side panels, roofs and door panels.

Ultra Wide Color Coating Aluminum Coil-2

Product Parameter Table:

Parameter Category	Specifications
Product Name	2200mm Ultra-Wide Pre-painted Aluminium Plate2200
Alloy Grade	3003-H14, 5052-H32/H34, 5083-O/H111, 5754-O
Thickness	0.8mm - 3.0mm (Customizable)
Standard Width	2200mm (Max 2630mm optional)
Coating Type	PE, HDP, PVDF Fluorocarbon
Coating Thickness	Single:18-25μm; Double:25-40μm
Mechanical Property	Tensile:140-290MPa; Elongation≥10%
Color Standard	Full RAL Colors, Custom Color Matching
Execution Standard	ASTM B209M, EN 485-2, ISO 9001, RoHS
Application	Truck/Van/Trailer body panels, roof, door

Color Coated Aluminum Types:

Color Coated Aluminum Slit Coil, PE Paint

Ultra Wide Coating Aluminum Paint Performance:

Test Item		Paint
		PVDF		PE And Others
		With Varnish	Without Varnish
Paint Film Thickness, μ		≥22	≥30	≥18
Shine Tolerance		Shine≥80 Unit, ±10 Unit Allowed
		Shine≥20-80 Unit, ±7 Unit Allowed
		Shine<20 Unit, ±5 Unit Allowed
Pencil Hardness		≥1H
Abrasion Resistance, L/μm		≥5			--
T-bend		≤2T			≤3T
Impact Strength		50KG.CM Without Depainting And Crack
Adhesive Force (Class)		≥1
Boiling Water Resistance		Unvarying
Chemical Resistance	Acid Endurance	Unvarying
	Alkali Stability	Unvarying
	Oil Resistivity	Unvarying
	Resistance To Solvent	≥70			≥50
	Scrub Resistance	≥10000 Times Unvarying
	Dirt Resistance	≤15%			--
Salt Spray Resistance(class)		≥ 2 class			--

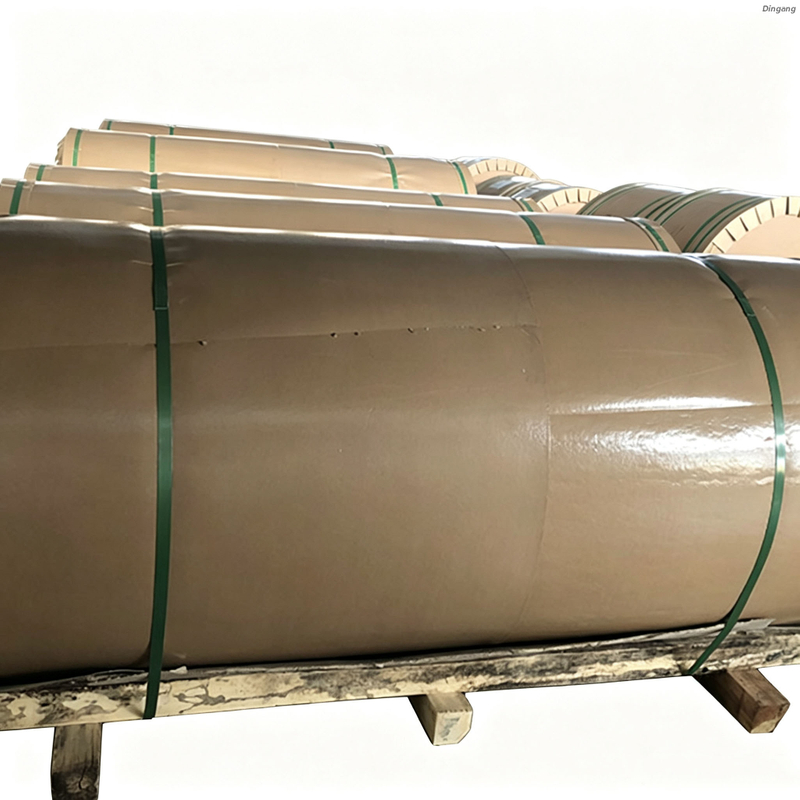

Ultra Wide Coating Aluminum Packing:

Export Standard Seaworthy Packing With Wooden Pallets In Horizontal Or Vertical (As Per The Requirements Of Clients)

Ultra Wide Coating Aluminum Appliance:

Ultra Wide Coating Aluminum are widely used in the truck body container and high speed train's trank.

If you have needs on the aluminum coil/sheet product,please contact us for more discussing.

Dingang Painted aluminum coil is definately your good choie in the production area.

Dingang - The Professional Manufacturer On The Aluminum Alloy Color Coating Aluminum Coil / Sheet Since 2002

Welcome to enquiry us if you have any demand on the coating aluminum coil / sheet material.

Changzhou Dingang Metal Material Co,Ltd.

Robert Tang (Sales Director)

Email: robert@cnchangsong.com

Phone: +0086 159 6120 6328 (whatsapp / wechat)
