High Gloss Orange PE Color Coated Aluminum Sheet / Coil for Truck & Trailer Body (3003 5052)

Color & Finish: High Gloss Orange (RAL 2004 / Custom RAL available, Gloss Level >80%)

Material & Alloy: Premium Aluminum Alloy (3003-H14 / 5052-H32)

Coating Type: High-Durability Polyester (PE) Coating

Thickness & Width: Thickness 0.8 mm – 2.0 mm | Width up to 1650 mm (Custom Cut-to-Size Available)

Application: Commercial Truck Body Panels, Cargo Trailer Cladding, RV Wall Sheets

Sales Model: Factory Direct Wholesale

MOQ: 3–5 Tons per Spec / Color (Sample Available upon Request)

Packaging: Eye-to-Sky or Eye-to-Wall Wooden Pallet Export Packing

Availability:

Quantity:



Inquire Add to Basket

Product Description

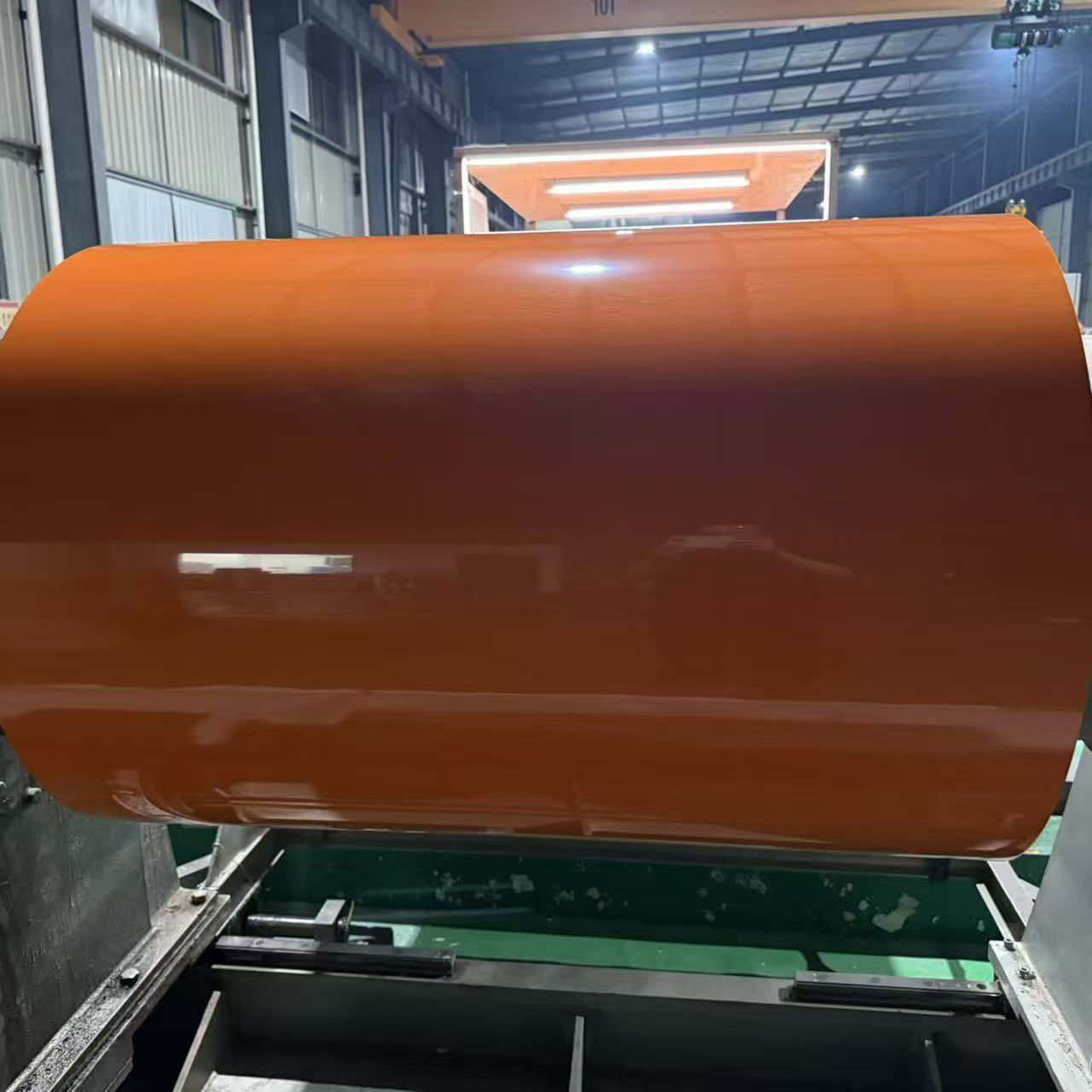

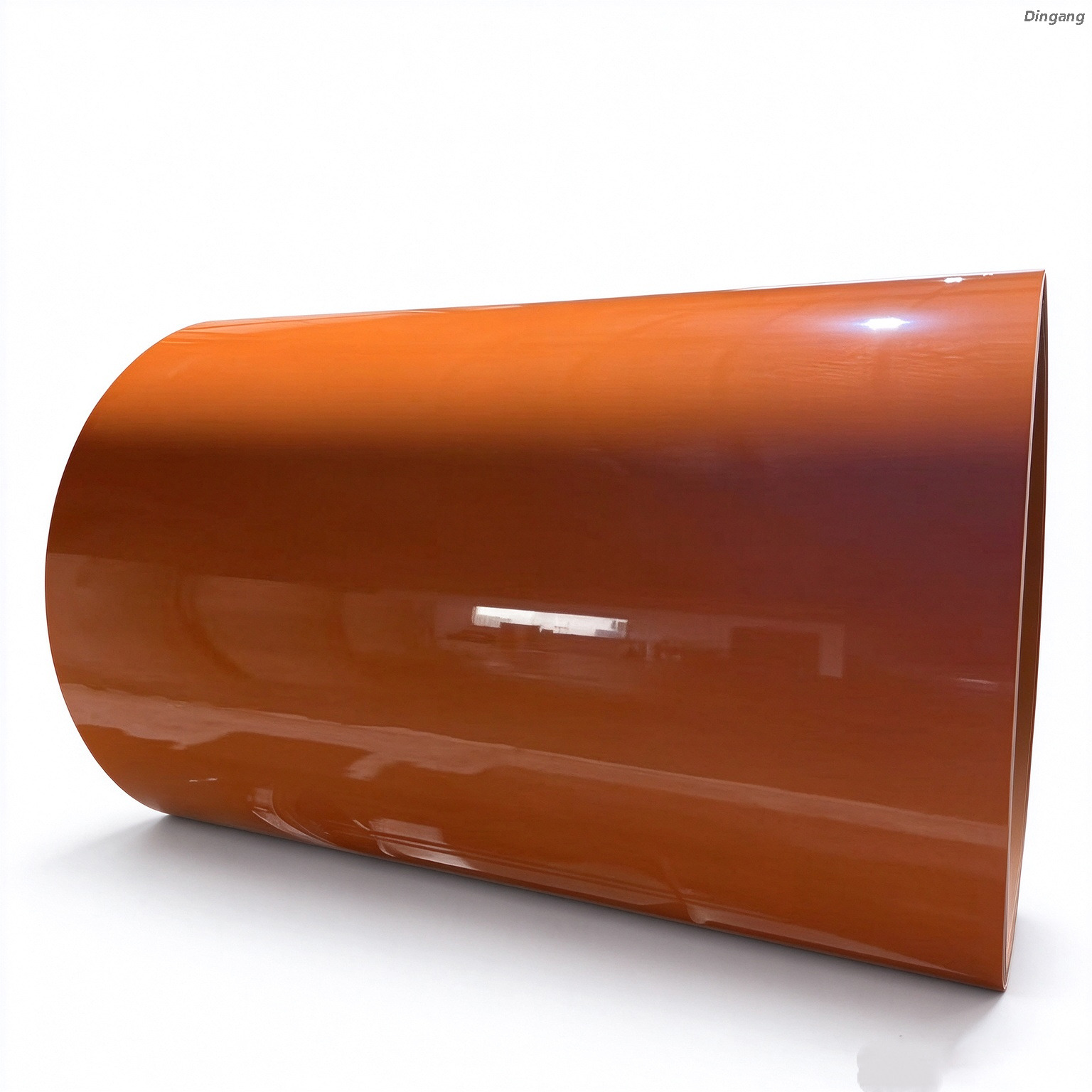

Premium High Gloss Orange PE Coated Aluminum Sheet for Truck & Trailer Body Building

Engineered specifically for the commercial vehicle manufacturing sector, our High Gloss Orange PE Coated Aluminum Sheet delivers a striking visual appeal combined with robust outdoor durability. Crafted from high-grade 3003 and 5052 aluminum alloys, this material offers superior formability for roll-forming, bending, and stamping operations without surface cracking.

The ultra-smooth high-gloss polyester (PE) coating provides exceptional color consistency, high gloss retention, and resistance to environmental exposure, chemical washing, and UV degradation. It serves as the ideal exterior cladding for box trucks, cargo trailers, RVs, and commercial fleet bodies.

High Gloss Finish: Gloss levels exceeding 80%–85% for an eye-catching, smooth vehicle exterior.

Superior Formability: Easy to bend, cut, and process without coating delamination.

Lightweight Strength: High strength-to-weight ratio helps reduce overall vehicle weight and improve fuel efficiency.

Corrosion Resistance: Pre-treated substrate ensures multi-year protection against rust and weathering.

Technical Specifications

Item	Technical Parameter
Product Name	High Gloss Orange PE Coated Aluminum Sheet / Coil
Base Alloy & Temper	3003-H14, 3105-H24, 5052-H32
Sheet Thickness	0.8 mm – 2.0 mm (0.032" – 0.080")
Standard Width	1000 mm, 1220 mm, 1250 mm, 1500 mm, or custom widths up to 1650 mm
Length	Sheet cut-to-length (e.g., 2440 mm, 3050 mm) or continuous coil
Color Code	Signal Orange / Custom RAL Colors (e.g., RAL 2004)
Gloss Level	High Gloss (>80 GU at 60°)
Coating System	Front: 18–25 μm PE; Back: 5–8 μm Wash Coat / Primer
Protective Film	50–80 μm UV-resistant protective PE film (custom branding available)
Standard Compliance	ASTM B209, EN 485, GB/T 3880

Product Details & Quality Inspection

Every batch of our prepainted aluminum coils and sheets undergoes stringent quality control procedures prior to shipment:

T-Bend Test: 0T–2T without cracking or flaking during extreme bending.

Impact Resistance: Meets standard vehicle panel impact standards.

Gloss Uniformity: Digital gloss meter testing across edge-to-center-to-edge parameters.

Coating Thickness Verification: Precise electromagnetic gauge checks.

Packaging & Logistics

To ensure your cargo arrives in prime condition, we utilize robust seaworthy export packaging tailored for international transport:

Packaging Types: Eye-to-Sky or Eye-to-Wall packing on solid wood or fumigated pallets.

Protective Layers: Moisture-proof plastic wrapping, craft paper barrier, edge protectors, and heavy-duty steel strapping.

Shipping Options: FCL (Full Container Load) via 20ft/40ft container or LCL (Less than Container Load) with protective wooden crates.

Port of Loading: Major Chinese main ports (Qingdao, Shanghai, Ningbo, Tianjin).

Payment Methods, Lead Time & After-Sales Support

Payment & Trade Terms

Trade Terms: FOB, CFR, CIF, DDP, EXW

Payment Terms: T/T (30% deposit, balance against B/L copy), L/C at sight.

Delivery Lead Time

Sample Availability: Standard color/spec samples shipped within 3–5 business days via express courier.

Bulk Production: 15–25 days upon deposit receipt.

After-Sales Warranty & Service

Quality Guarantee: Free replacement or financial compensation for any non-conformity verified upon arrival.
Technical Assistance: Remote or on-site processing recommendations for cutting, riveting, and installing panel sheets.
Traceability: Full Mill Test Certificate (MTC) according to EN 10204 3.1 provided with each shipment.

Why Partner With Us?

With over 20 years of specialization in aluminum coil coating and sheet processing, our factory operates state-of-the-art continuous coating lines and precision slitting machines. We export hundreds of metric tons of high-grade trailer panel stock monthly to North America, Europe, the Middle East, and Southeast Asia.

Whether you require standard dimensions or customized cut-to-size specs, our engineering team is ready to support your commercial vehicle manufacturing projects.

Contact us today for instant factory direct pricing and free sample kits!
