Why Most Large-Diameter Colored Aluminum Discs Adopt 3003 Substrate

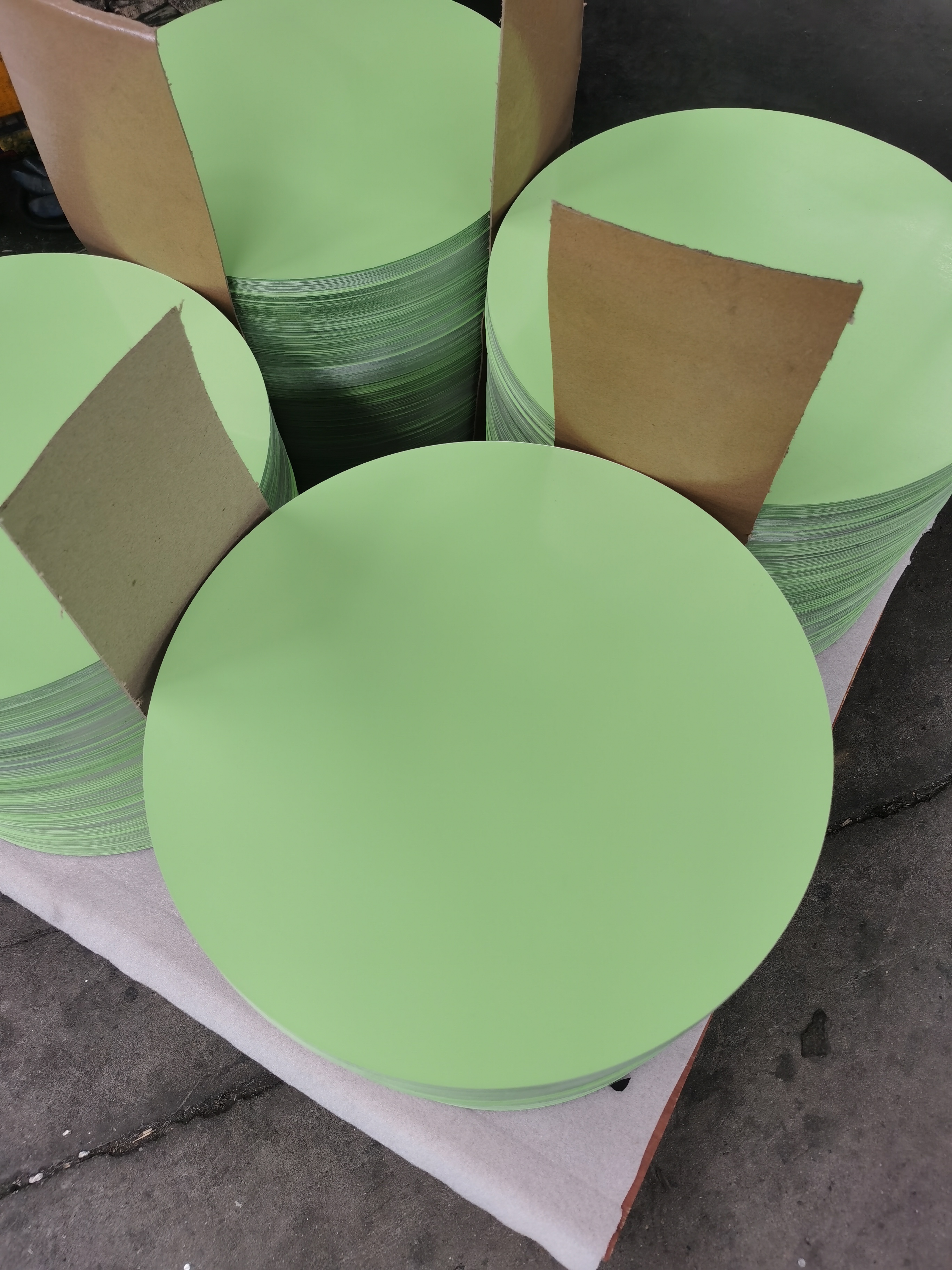

Large-diameter colored aluminum discs, generally defined as discs with diameters exceeding 500mm, are widely applied in outdoor signage, architectural ceiling decoration, large lighting reflectors and kitchenware forming. In industrial mass production, over 82% of such products select 3003 aluminum-manganese alloy as the base material instead of mainstream alternatives including 1060 pure aluminum and 5052 aluminum-magnesium alloys. This article analyzes the material selection logic from structural stability, coating compatibility, processing adaptability and comprehensive cost, explaining the irreplaceable advantages of 3003 substrate for large-diameter colored aluminum discs.

1. Enhanced Structural Rigidity for Anti-Deformation of Oversized Discs

Deformation Defects of 1060 Pure Aluminum Substrates

The core pain point of large-diameter aluminum discs is non-uniform stress deformation after blanking and surface coloring. Pure 1060 aluminum discs, the most cost-effective 1000-series material, have low tensile strength ranging from 75 to 90 MPa. For discs with diameters above 600mm, internal residual stress generated during die stamping will cause irreversible warpage and edge sagging after high-temperature coating curing.

Mechanical Performance Advantages of Manganese-Alloyed 3003 Aluminum

In contrast, 3003 alloy contains 1.0% to 1.5% manganese elements, which form dispersed Al₆Mn crystal particles inside the aluminum matrix. These particles hinder dislocation movement and improve tensile strength to 120–160 MPa, nearly 40% higher than 1060 aluminum. In actual production tests, 3003-H14 tempered discs with a diameter of 1000mm maintain flatness errors below 0.8mm after roller coating and 220℃ curing, while 1060 discs of the same size show flatness errors over 3mm. Unlike high-strength 5052 alloy, 3003 improves rigidity without losing ductility, avoiding brittle cracking at disc edges during large-scale blanking.

The core pain point of large-diameter aluminum discs is non-uniform stress deformation after blanking and surface coloring. Pure 1060 aluminum discs, the most cost-effective 1000-series material, have low tensile strength ranging from 75 to 90 MPa. For discs with diameters above 600mm, internal residual stress generated during die stamping will cause irreversible warpage and edge sagging after high-temperature coating curing. In contrast, 3003 alloy contains 1.0% to 1.5% manganese elements, which form dispersed Al₆Mn crystal particles inside the aluminum matrix. These particles hinder dislocation movement and improve tensile strength to 120–160 MPa, nearly 40% higher than 1060 aluminum.

In actual production tests, 3003-H14 tempered discs with a diameter of 1000mm maintain flatness errors below 0.8mm after roller coating and 220℃ curing, while 1060 discs of the same size show flatness errors over 3mm. Unlike high-strength 5052 alloy, 3003 improves rigidity without losing ductility, avoiding brittle cracking at disc edges during large-scale blanking.

2. Excellent Compatibility with Color Coating and Anodizing Processes

Uniform Surface Morphology for Consistent Coating Adhesion

Colored aluminum discs rely on two mainstream coloring technologies: pre-coil roller coating (PE/PVDF coating) and post-production anodizing dyeing, both of which have strict requirements on substrate surface uniformity. First, 3003 alloy has stable intergranular structure. Its manganese components inhibit secondary grain growth during hot rolling, eliminating surface striped patterns that often appear on 1060 large aluminum coils. Uniform surface roughness (controlled at 1.0–1.3μm) ensures consistent coating adhesion across the entire oversized disc surface, eliminating chromatic aberration on central and edge areas.

Superior Long-Term Color Fastness Performance

Second, 3003 shows superior color fastness after coloring. For outdoor PVDF coated discs, the salt spray resistance time of 3003 substrates exceeds 500 hours, 18% longer than 1060 substrates. In sulfuric acid anodizing dyeing, the compact oxide film formed on 3003 surface locks dye molecules more firmly. Long-term outdoor exposure tests prove that 3003 colored discs only have a color difference ΔE less than 1.5 after 5 years, meeting architectural outdoor decoration standards, while 1060 discs suffer obvious fading within 3 years. Additionally, 3003 contains negligible copper impurities, which prevents dark spot defects on light-color coated surfaces, a common failure for 6061 alloy substrates.

Colored aluminum discs rely on two mainstream coloring technologies: pre-coil roller coating (PE/PVDF coating) and post-production anodizing dyeing, both of which have strict requirements on substrate surface uniformity. First, 3003 alloy has stable intergranular structure. Its manganese components inhibit secondary grain growth during hot rolling, eliminating surface striped patterns that often appear on 1060 large aluminum coils. Uniform surface roughness (controlled at 1.0–1.3μm) ensures consistent coating adhesion across the entire oversized disc surface, eliminating chromatic aberration on central and edge areas.

Second, 3003 shows superior color fastness after coloring. For outdoor PVDF coated discs, the salt spray resistance time of 3003 substrates exceeds 500 hours, 18% longer than 1060 substrates. In sulfuric acid anodizing dyeing, the compact oxide film formed on 3003 surface locks dye molecules more firmly. Long-term outdoor exposure tests prove that 3003 colored discs only have a color difference ΔE less than 1.5 after 5 years, meeting architectural outdoor decoration standards, while 1060 discs suffer obvious fading within 3 years. Additionally, 3003 contains negligible copper impurities, which prevents dark spot defects on light-color coated surfaces, a common failure for 6061 alloy substrates.

3. Superior Adaptability to Full-Link Post-Processing

Balanced Formability for Secondary Cold Working

Large-diameter colored discs require multiple secondary processes including cutting, edge trimming, bending and surface embossing after coloring. As a non-heat-treatable reinforced alloy, 3003 balances formability and rigidity perfectly. In annealed O temper, its elongation reaches 20%, supporting deep bending and flanging without coating peeling. In semi-hard H14 temper, it retains 4% elongation to resist deformation during transportation and installation.

Stable Raw Material Rolling and On-Site Assembly Performance

From the perspective of coil production, 3003 aluminum coils have better rolling uniformity for ultra-wide raw materials used for large discs. Ultra-wide coils over 1250mm wide made of 1060 pure aluminum are prone to thickness deviation, leading to uneven coating thickness. 3003 manganese strengthening stabilizes plate thickness during cold rolling, controlling thickness tolerance within ±0.02mm. Besides, 3003 has good weldability for on-site splicing of oversized discs, which cannot be achieved by brittle high-strength aluminum alloys.

Large-diameter colored discs require multiple secondary processes including cutting, edge trimming, bending and surface embossing after coloring. As a non-heat-treatable reinforced alloy, 3003 balances formability and rigidity perfectly. In annealed O temper, its elongation reaches 20%, supporting deep bending and flanging without coating peeling. In semi-hard H14 temper, it retains 4% elongation to resist deformation during transportation and installation.

From the perspective of coil production, 3003 aluminum coils have better rolling uniformity for ultra-wide raw materials used for large discs. Ultra-wide coils over 1250mm wide made of 1060 pure aluminum are prone to thickness deviation, leading to uneven coating thickness. 3003 manganese strengthening stabilizes plate thickness during cold rolling, controlling thickness tolerance within ±0.02mm. Besides, 3003 has good weldability for on-site splicing of oversized discs, which cannot be achieved by brittle high-strength aluminum alloys.

4. Optimized Comprehensive Cost for Mass Industrial Application

Cost Gap Compared with 1060 Pure Aluminum

Although 3003 raw material costs are 7% higher than 1060 pure aluminum, it cuts overall production and after-sales costs significantly. For 1060 large discs, manufacturers need additional leveling and stress relief annealing processes to reduce warpage, increasing processing costs by 12%. Meanwhile, deformed 1060 colored discs have a defective rate of 9.2% in finished product inspection, compared with only 2.1% for 3003 discs.

Cost and Process Drawbacks of 5052 Aluminum Alternative

Compared with corrosion-resistant 5052 alloy, 3003 raw material costs are 15% lower. 5052 aluminum-magnesium alloy tends to produce magnesium oxide precipitates on the surface, which requires extra pickling before coating and raises pretreatment costs. For general atmospheric and coastal low-salt environments, 3003’s natural corrosion resistance plus organic coating fully meets service requirements, making over-investment in 5052 unnecessary.

Although 3003 raw material costs are 7% higher than 1060 pure aluminum, it cuts overall production and after-sales costs significantly. For 1060 large discs, manufacturers need additional leveling and stress relief annealing processes to reduce warpage, increasing processing costs by 12%. Meanwhile, deformed 1060 colored discs have a defective rate of 9.2% in finished product inspection, compared with only 2.1% for 3003 discs.

Compared with corrosion-resistant 5052 alloy, 3003 raw material costs are 15% lower. 5052 aluminum-magnesium alloy tends to produce magnesium oxide precipitates on the surface, which requires extra pickling before coating and raises pretreatment costs. For general atmospheric and coastal low-salt environments, 3003’s natural corrosion resistance plus organic coating fully meets service requirements, making over-investment in 5052 unnecessary.

5. Limitations and Applicable Boundaries

Failure Risks in Extreme Marine Service Scenarios

3003 substrates are not suitable for extreme marine environments with salt content above 3.5%. Under such conditions, chloride ions will erode the manganese-rich grain boundary phase of 3003, causing local coating blistering. In this scenario, 5052 substrate is still the priority choice. However, such extreme scenarios account for less than 5% of large-diameter colored disc market demand.

3003 substrates are not suitable for extreme marine environments with salt content above 3.5%. Under such conditions, chloride ions will erode the manganese-rich grain boundary phase of 3003, causing local coating blistering. In this scenario, 5052 substrate is still the priority choice. However, such extreme scenarios account for less than 5% of large-diameter colored disc market demand.

Conclusion

The popularity of 3003 substrate for large-diameter colored aluminum discs stems from its balanced comprehensive performance. It solves the deformation defect of 1060 pure aluminum in oversized specifications, avoids high costs and poor coating performance of 5052 and 6061 alloys, and matches the surface coloring and post-processing requirements of colored aluminum products. For conventional indoor and outdoor decorative large aluminum discs, 3003 remains the most cost-beneficial substrate choice in current aluminum alloy industrial systems.
