Why Plain Aluminum Foil is the Ultimate Substrate for Lamination & Coating Lines

For industrial converters, coating plants, and flexible packaging manufacturers, plain aluminum foil (bare aluminum foil) serves as an irreplaceable barrier substrate. Whether lamination involves extrusion with PE, solventless adhesives with PET films, or functional lacquers (NC/Epoxy/HSL), the consistency of the bare foil substrate directly dictates bond strength, coating uniformity, and processing speed.

Here is why high-quality plain aluminum foil remains the ultimate substrate for advanced coating and lamination lines.

1. High Surface Energy & Optimal Dyne Level

Superior coating adhesion and lamination peel strength require high surface wetting tension. Premium bare aluminum foil undergoes precise annealing to guarantee an optimal Dyne value (typically ≥ 32–34 dynes/cm).

Coating Advantage: Ensures uniform wetting of heat-seal lacquers, primers, and solvent-based or water-based inks without pinholing, crawling, or dewetting.

Lamination Advantage: Prevents delamination during high-speed extrusion or adhesive lamination processes.

2. Grade A Degreasing & Cleanliness Standard

Residual rolling oils on the foil surface cause severe lamination defects, including poor bond strength, blisters, and dry spots.

Grade A Water-Wetting Test: High-grade plain foil passes strict Grade A degreasing standards (100% water wetting across the surface).

Processing Efficiency: Complete oil-free surfaces eliminate the need for corona pre-treatment or secondary cleaning, maximizing line throughput on high-speed laminators.

Caption: Water-wetting test verifying Grade A oil-free surface quality on bare aluminum foil jumbo rolls.

3. Pinpoint Gauge Tolerance & Pinhole Control

In thin-gauge foil lamination (6.35μm to 12μm), pinholes and gauge variation disrupt barrier integrity and cause web breaks during unwinding.

Barrier Protection: Modern double-zero foil rolling mills achieve ultra-low pinhole counts, ensuring 100% light, oxygen, and moisture protection in retort pouches and pharma packaging.

Uniform Web Tension: Flat profile and precise thickness tolerance maintain smooth, wrinkle-free tension control across wide coating heads.

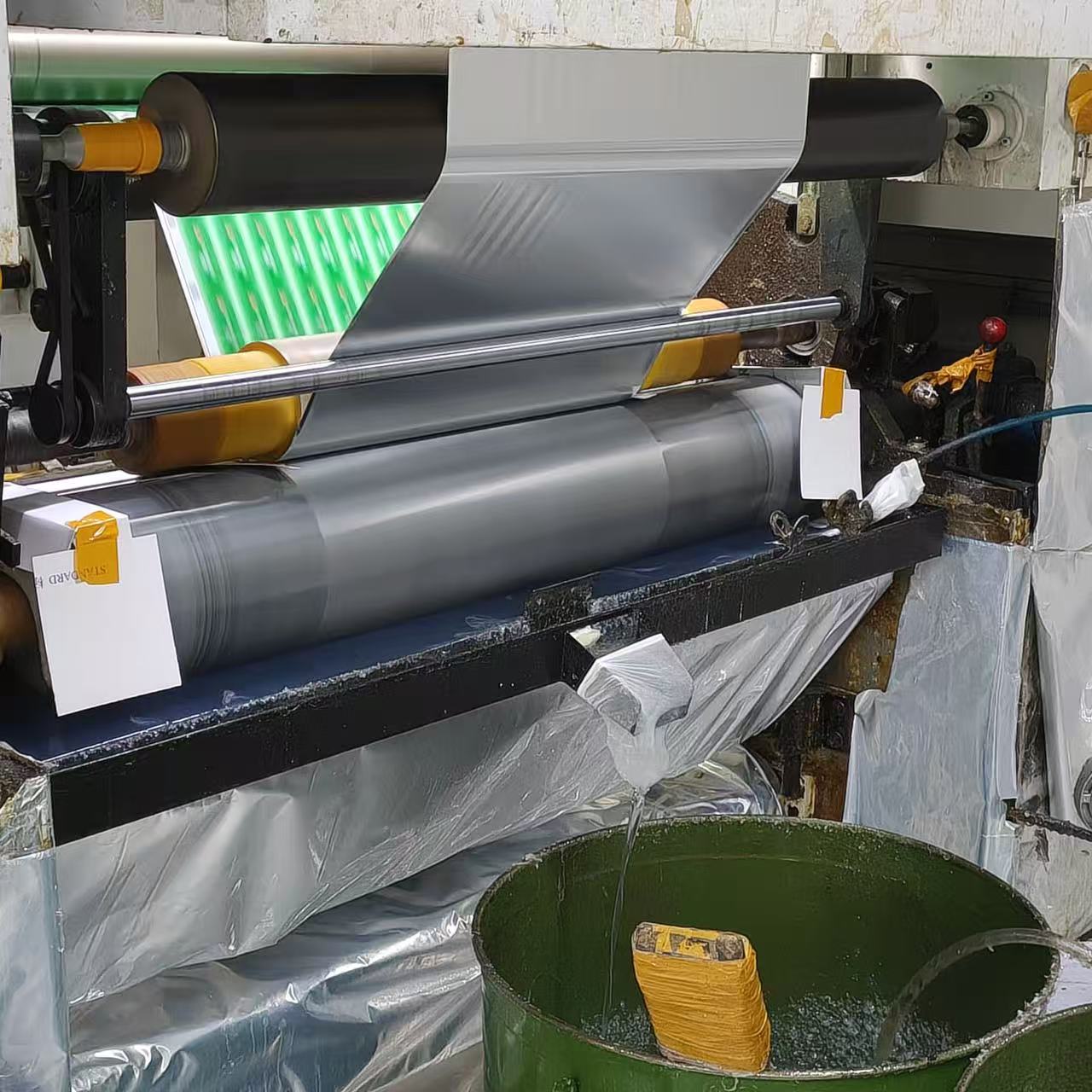

Caption: Plain aluminum foil substrate feeding smoothly through a high-speed industrial lamination line.

Substrate Quality Checklist for Converters

Surface Energy: Dyne level ≥ 32 dynes/cm for strong chemical adhesion.

Cleanliness: 100% Grade A degreased surface free of oil spots, dust, or residual lubricants.

Mechanical Integrity: High tensile strength and uniform gauge profile to prevent web breaks at speeds up to 400 m/min.

Looking for Premium Bare Aluminum Foil Substrates?

We manufacture high-performance 1235, 8011, and 8079 plain aluminum foil jumbo rolls tailored specifically for coating and lamination lines. Contact our technical team today for technical datasheets and test rolls!
