YS/T 431-2009: The Industrial Standard for Color Coated Aluminum

The YS/T 431-2009 standard was the primary "Non-Ferrous Metals Industry Standard" in China for coil-coated aluminum and aluminum alloy sheets and strips. It provided the technical framework to ensure that coated aluminum products met the rigorous demands of construction, home appliances, and transportation.

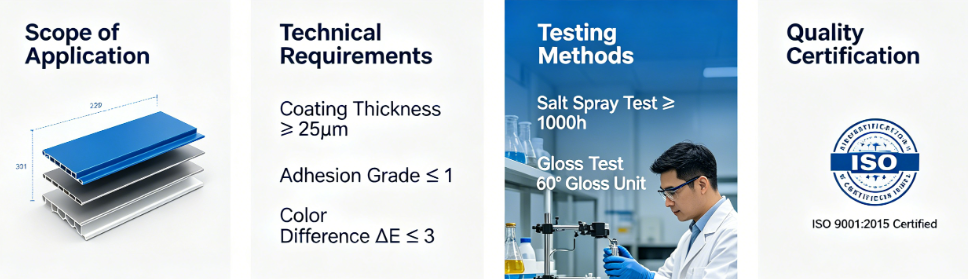

Scope and Applicability

The standard was designed specifically for aluminum materials produced via roll-coating lines.

Target Industries

Construction (facades/roofing), home appliances (refrigerators/washing machines), and transportation.

Exclusions

The standard explicitly stated it did not apply to aluminum products specifically designed for ceiling/suspension systems, which are typically covered by separate, specialized architectural standards.

Technical Requirements

To ensure commercial grade quality, the 2009 standard mandated strict adherence to mechanical and surface integrity:

Dimensional Precision

The standard dictated specific deviations for thickness, width, and length. It aligned closely with international benchmarks (like EN 485-4) to ensure global compatibility.

Thickness Control

Requirements were tightened significantly compared to the earlier 2000 version to meet the needs of modern high-speed roll-forming equipment.

Geometric Accuracy

Limits were defined for diagonal deviation and flatness, essential for preventing "oil-canning" in architectural panels.

Coating Performance

The standard defined the "Quality Passport" for the paint film:

Film Hardness

Measured via pencil test (GB/T 6739) to ensure the coating could withstand mechanical handling.

Impact Resistance

Verified using standardized impact tests (GB/T 1732) to ensure the finish would not shatter or delaminate under stress.

Adhesion

Evaluated through standardized cross-cut tests (GB/T 9286) to confirm the chemical bond between the aluminum substrate and the topcoat.

Coating Performance

The standard defined the "Quality Passport" for the paint film:

Film Hardness

Measured via pencil test (GB/T 6739) to ensure the coating could withstand mechanical handling.

Impact Resistance

Verified using standardized impact tests (GB/T 1732) to ensure the finish would not shatter or delaminate under stress.

Adhesion

Evaluated through standardized cross-cut tests (GB/T 9286) to confirm the chemical bond between the aluminum substrate and the topcoat.

Dingang Metal Material Co., Ltd.

Established in 2002 and based in Changzhou, Jiangsu Province, Changzhou Dingang Metal Material Co., Ltd. is a professional manufacturer specializing in high-quality Prepainted Aluminum Coil (Color Coated Aluminum Coil). With over 20 years of experience and six advanced coating production lines, Dingang has grown into a trusted supplier in the global market.

LEARN·MORE

Quality Documentation and Traceability

A critical component of this standard was the mandatory Quality Certificate accompanying every batch, which required:

Product Identification

Grade, temper, batch number, and net weight.

Technical Results

Lab-verified analysis of each item, including coating thickness and mechanical test outcomes.

Standard Reference

Explicit citation of "YS/T 431-2009" to ensure buyers could verify compliance.

The Evolution of Compliance

Understanding YS/T 431-2009 provides a necessary historical context for the quality benchmarks expected in the aluminum industry. As we move into 2026, transitioning to YS/T 431-2025 ensures that your procurement remains at the forefront of industrial performance, safety, and reliability.
