Are Micro-Tolerance 3003 Coated Aluminum Sheets Necessary for High-Precision AGV Stamping?

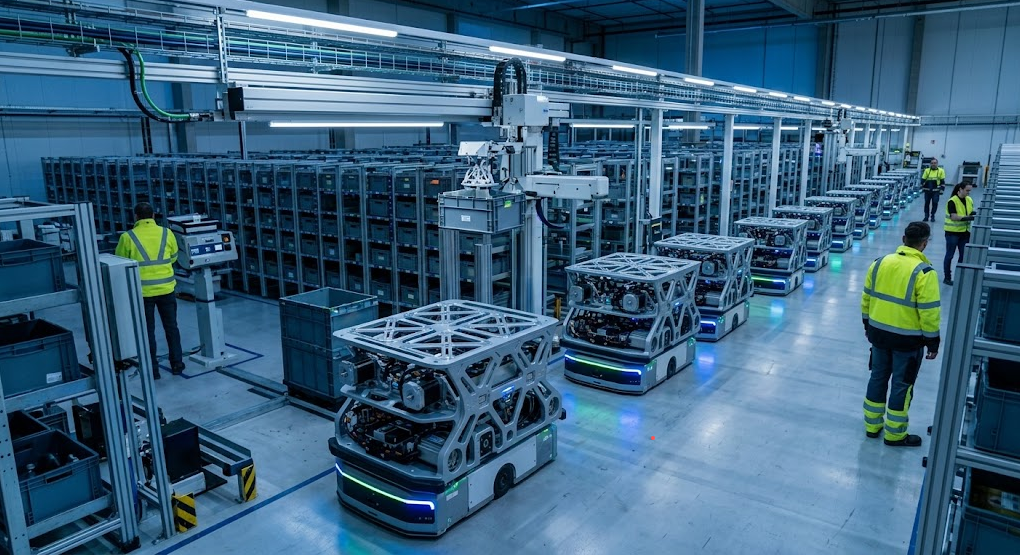

Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) operating in high-efficiency smart warehouses require lightweight chassis shells, battery access panels, and modular enclosures to maximize battery runtime and operational payload limits. Achieving high-precision deep drawing and progressive stamping for AGV shell components without causing surface cracking, paint flaking, or dimensional warping presents severe manufacturing challenges.

Utilizing micro-tolerance 3003 coated aluminum sheets (0.50 mm–3.00 mm, thickness tolerance ≤  ±0.005 mm) in H14 or H24 tempers provides the ideal balance of high formability, consistent springback control, excellent corrosion protection, and structural integrity needed for next-generation AGV shell stamping.

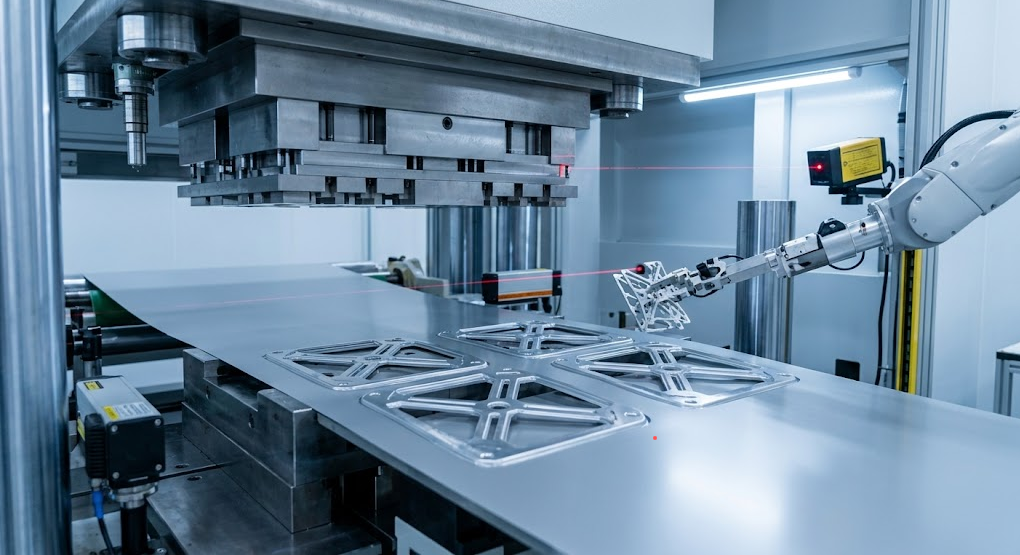

Thickness Variance & Die Wear in Progressive Stamping

High-speed automated stamping presses for AGV chassis panels require extreme material uniformity:

Tonnage Spikes & Die Jamming: Standard aluminum sheets with wider gauge tolerances (± 0.03 mm) cause erratic press loads during high-speed stamping, leading to accelerated progressive die wear or part jam-ups.

Springback Fluctuation: Inconsistent sheet thickness alters the neutral bend axis, causing variable springback angles that disrupt tight chassis assembly tolerances.

Limitations of Post-Painted & Bare Aluminum Sheets

Fabricating AGV body panels using raw aluminum or post-stamping powder coating introduces operational inefficiencies:

Standard Post-Painted Steel vs. Micro-Tolerance Pre-Coated 3003 Aluminum Panel

Secondary Coating Bottlenecks: Post-painting stamped panels requires manual loading, chemical pretreatments, and high-energy batch curing ovens, significantly increasing unit production costs.

Surface Orange Peel & Coating Flaking: Substandard coatings lack the elastic binders necessary to stretch with the aluminum substrate during deep drawing, causing micro-cracking and corrosion paths.

Technical Specification Matrix: Micro-Tolerance 3003 Coated Aluminum Sheets

The table below outlines key engineering specifications for 3003 coated aluminum sheets tailored for high-precision AGV shell stamping:

Performance Advantages in AGV Shell Stamping Applications

Elimination of Stamping Tool Wear & Die Clearance Spikes

Consistent Die Clearance: Maintaining micro-tolerances (≥ ± 0.005 mm) prevents variable friction and punch-to-die interference, reducing tool wear and eliminating costly press stoppages.

Predictable Springback Angle: Uniform thickness ensures consistent elastic recovery post-stamping, ensuring flat mating surfaces for AGV door panels and battery tray latches.

View More >>

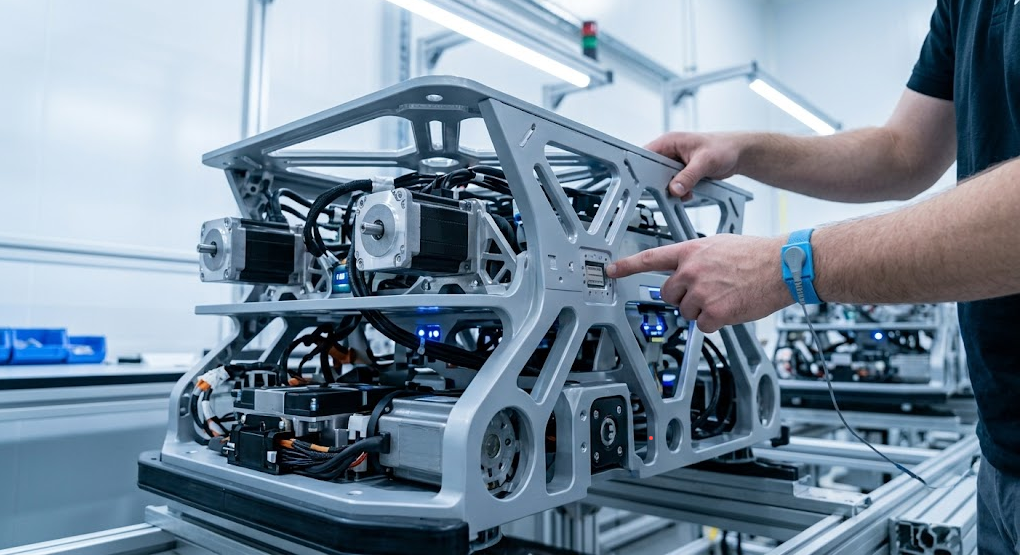

65% Weight Reduction vs. Steel for Extended Battery Range

Low Mass Density (2.73 g/cm³): Replacing cold-rolled steel (7.85 g/cm³) cuts AGV shell weight by roughly 65%, directly lowering wheel actuator energy consumption and extending battery shift life.

High Structural Impact Strength: Work-hardened 3003-H14 absorbs collision kinetic energy effectively, protecting internal LiDAR sensors, PLCs, and battery banks.

View More >>

Superior Scratch & Industrial Chemical Resistance

In-Line Stamping Protection: Protective PE films laminated over the pre-coated sheet prevent surface marring during high-speed blanking and robotic handling.

Resistance to Oils & Cleaning Solvents: Polymer coatings withstand factory floor environments, including hydraulic fluids, grease, and industrial washdowns without staining or peeling.

View More >>

3003 Manganese-Aluminum Alloy Dynamics

Selecting the proper aluminum alloy is critical for balancing formability against structural resilience:

3003 Alloy Composition (Al-Mn 1.2%): Adding manganese increases mechanical strength over pure 1000-series aluminum while maintaining high ductility and corrosion resistance.

Temper Selection (H14 vs. H24): Work-hardened (H14) or partially annealed (H24) tempers provide optimal tensile strength (Rₘ = 140 - 180 MPa) and yield strength ($Rₚ₀.₂ ≥ 115 MPa) for collision-durable AGV panels.

Continuous Polymer Coating Chemistry

High-Flexibility PVDF / PE Lacquers: Formulated with elastic polyurethane or modified polyester resins engineered to endure high shear stress during press forming.

Pre-Treatment Conversion Coating: A chromated or non-chromate chemical conversion layer ensures chemical bonding between the aluminum substrate and topcoat, preventing delamination.

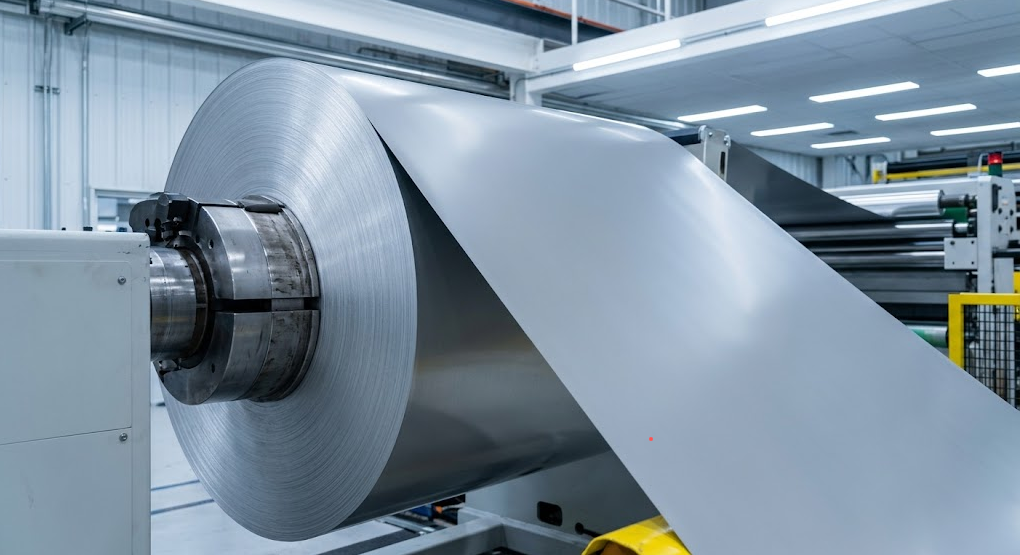

Cold Rolling & AGC Micro-Tolerance Control

Automatic Gauge Control (AGC): Advanced hydraulic AGC cold-rolling systems monitor strip thickness in real time, maintaining micro-tolerances down to ± 0.003 mm - ±0.005mm.

Surface Degreasing & Levelling: Tension levelling lines flatten residual internal stresses, preventing oil-canning or warping during die blanking.

Burr-Free Rotary Slitting & Blanking

Ultra-Sharp Rotary Shear Slitting: High-precision slitters cut master coils into custom-width strips with edge burrs strictly controlled under 5% of sheet thickness, eliminating edge cracking during drawing.

Continuous Reverse Roll Coating

Precision Coating Application: Dual-head reverse roll coaters apply primer (5μm) and topcoat (15μm - 20μm) uniformly across the entire web width.

Precision Oven Curing: Flotation ovens cure the coating at peak metal temperatures (210°C - 240°C), creating a flexible polymer network.

FAQ

Q1:Why is 3003 aluminum preferred over 1100 or 5052 for AGV shell stamping?

A:3003 alloy offers higher mechanical strength than pure 1100 aluminum due to its manganese content, while providing better elongation and lower cost compared to 5052 alloy, making it the most economical choice for medium-strength stamped shells.

Q2:Does the pre-applied coating crack or flake during deep drawing operations?

A:No. High-quality pre-coated aluminum uses flexible polymer lacquers cured under precise thermal profiles. They achieve T-bend ratings of ≤ 1T-2T and Grade 0 cross-hatch adhesion, stretching seamlessly alongside the aluminum substrate without flaking.

Q3:How does micro-tolerance control prevent progressive die wear?

A:Thickness variations in standard sheet metal cause irregular punch clearance and localized pressure spikes in progressive dies. Micro-tolerance sheets (≤ ± 0.005 mm) maintain constant press load distribution, extending tool die life.

Q4:What protective films are recommended for stamped pre-coated panels?

A:A 50–80 micron peelable polyethylene (PE) or poly-vinyl-chloride (PVC) film with medium-tack acrylic adhesive is applied inline to protect the mirror or matte coating surface during blanking, stamping, and assembly.

Q5:How should procurement teams submit an evaluation request?

A:Procurement teams should send target physical samples or technical drawings directly to Changzhou Dingang Metal Material Co., Ltd. Our engineering lab will perform composition testing, thickness verification, and coating bend analysis, returning a detailed technical proposal and competitive quotation.

Conclusion

Specifying micro-tolerance 3003 pre-coated aluminum sheets enables AGV design engineers and stamping specialists to streamline manufacturing, reduce shell weight, and eliminate secondary post-painting lines.

To optimize material selection for your AGV shell stamping project:

Mandate Micro-Tolerance Specifications: Require thickness tolerances within ≤ ± 0.005 mm to protect progressive dies and ensure consistent springback control.

Specify 3003-H14 or H24 for Deep Draw Stamping: Balance tensile yield strength (Rₘ = 140-185 MPa) with high elongation (≥ 12%) for complex enclosure geometries.

Partner with Certified Processing Specialists: Work with experienced aluminum manufacturers like Changzhou Dingang Metal Material Co., Ltd. to evaluate physical target samples, verify T-bend coating ratings, and secure precision-slit blanks.
