Can 5052 H32 Coated Aluminum Sheets Cut UAV Frame Weight by 20% Without Losing Rigidity?

In the rapidly expanding European commercial drone and unmanned aerial vehicle (UAV) market, payload capacity, flight endurance, and structural durability are critical design parameters. Commercial delivery drones, agricultural inspection UAVs, and defense reconnaissance platforms require chassis materials that minimize dead weight while resisting severe flight vibration, landing impacts, and environmental exposure.

Replacing traditional structural carbon steel, heavy zinc-plated enclosures, or thick unoptimized composite plates with precision-engineered 5052 H32 pre-coated aluminum sheets can achieve up to a 20% net chassis weight reduction without sacrificing structural rigidity, torsional stiffness, or electromagnetic shielding.

Structural Mass Reduction and Endurance Scaling

UAV flight endurance is inversely proportional to empty structural weight. Every gram saved on the airframe translates directly to additional battery capacity or sensor payload.

Replacing heavy steel brackets, zinc-plated battery trays, and dense composite covers with 1.0mm - 2.5mm 5052 H32 pre-coated aluminum sheets yields substantial flight performance gains:

Lower Inertia & Motor Power Draw: Decreases hover power consumption, extending battery discharge cycles and overall flight range.

Higher Payload Capacity (mₚₐᵧₗₒₐ = mₘₐₓ - mᵣₐₘₑ): Reduces frame weight (mᵣₐₘₑ), allowing heavier thermal cameras, LiDAR sensors, or delivery packages to be carried.

Vibration Attenuation: Lighter, highly rigid structural panels absorb high-frequency brushless motor vibrations, protecting delicate flight controller electronics and gimbal sensors.

Technical Specification Matrix: 5052 H32 UAV-Grade Coated Aluminum

The table below outlines technical parameters for 5052 H32 pre-coated aluminum sheets engineered for UAV frame structures:

Performance Advantages in UAV Frame Weight Reduction & Flight Rigidity

Dynamic Mass Reduction Without Sacrificing Frame Stiffness

Substituting traditional zinc-coated steel or thick solid composites with thin-gauge, ribbed 5052 H32 pre-coated aluminum sheets achieves significant weight efficiency:

20% Net Frame Weight Reduction: Drops dead mass across main body plates, arm mounting brackets, and battery enclosures while matching required torsional stiffness.

Enhanced Section Modulus via Stamping: Precision-embossed stiffening ribs increase panel Moment of Inertia (I), preventing panel flutter and oil-canning during high-speed forward flight.

View More >>

Fatigue Resistance Against Propeller Harmonic Vibration

Unmanned aerial vehicles experience severe cyclic loading and high-frequency harmonic vibrations from multi-rotor propulsion systems:

High Cyclic Fatigue Threshold: Withstands over 500 million stress cycles at 115 MPa, preventing micro-fractures around motor mount bolt holes.

Crack Propagation Immunity: Unlike brittle carbon fiber plates that can delaminate upon localized crash impacts, 5052 H32 exhibits high fracture toughness, bending under severe shock rather than shattering.

View More >>

Integrated EMI Shielding and Weather Resistance

Avionics flight controllers, GPS modules, and telemetry radios demand continuous protection against signal interference and harsh environmental conditions:

Inherent EMI/RFI Attenuation: Metallic 5052 aluminum serves as a natural Faraday cage, blocking high-frequency radio interference between ESC motor wires and sensitive receivers.

Chemical & Battery Fluid Immunity: Factory-applied polyurethane/epoxy coatings resist lithium-polymer (LiPo) battery electrolyte leaks, hydraulic fluids, and rain exposure without blistering or corroding.

View More >>

Mechanical Property Advantages for Aerostructures

The 5052 alloy strain-hardened to the H32 temper (magnesium-stabilized) delivers an ideal balance of tensile strength, ductility, and flexural rigidity:

High Yield & Tensile Strength: Yield strength (≥ 130 - 180 MPa) and ultimate tensile strength (215 - 265 MPa) prevent frame bending during high-G evasive maneuvers.

Flexural Rigidity via Geometry Optimization: By applying precision ribbing and flanging to 5052 H32 sheets, engineers achieve equivalent section modulus (Z) to steel at a fraction of the mass.

Exceptional Fatigue Life: Fatigue strength of 115 MPa resists cyclic flexing caused by propeller wash, gust loads, and rapid motor acceleration.

Substrate Degreasing & Chemical Pre-Treatment

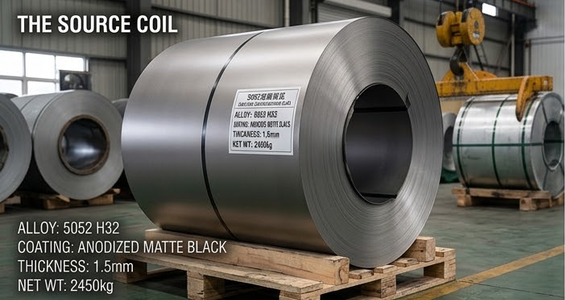

Raw 5052 H32 aluminum coils undergo multi-stage continuous cleaning, acid etching, and chromate-free zirconium-titanium passivating pre-treatment. This creates an anti-corrosive barrier and ensures high paint bonding strength.

Continuous Coil Coating & Thermal Curing

Under strict process control, functional primers and polyurethane/epoxy topcoats are applied via reverse roll coaters. The coated web passes through high-temperature flotation ovens where the resins crosslink into a dense, chemical-resistant protective film.

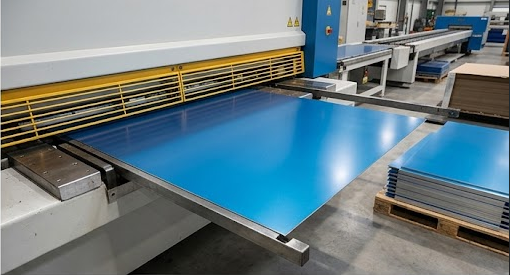

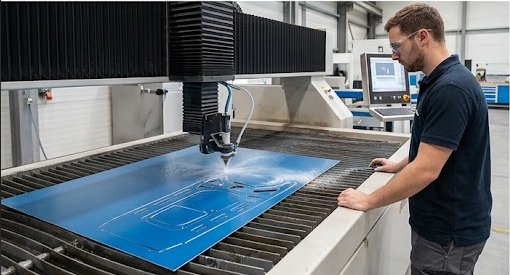

Precision CNC Fiber Laser Cutting & Bending

Pre-coated master coils are leveled and sheeted to custom dimensions. The flexible coating formulation allows high-speed CNC fiber laser cutting, turret punching, and press brake bending (1T - 1.5T bend radius) without micro-cracking or paint delamination along structural bends.

FAQ

Q1:Can 5052 H32 aluminum achieve a 20% weight reduction compared to carbon fiber drone frames?

A:While carbon fiber has a lower density, 5052 H32 aluminum allows thinner, flanged structural pressings that eliminate thick connecting hardware, multi-layer epoxy resins, and aluminum standoffs, often achieving an overall frame assembly weight reduction of up to 20% while cutting material costs substantially.

Q2:How does 5052 H32 perform against structural fatigue caused by motor vibration?

A:5052 H32 features an outstanding fatigue limit of 115 MPa. Its high fatigue resistance and excellent ductility absorb high-frequency motor harmonics without developing micro-cracks around fastener mounting points.

Q3:Will fiber laser cutting damage the pre-coated surface of 5052 H32 sheets?

A:No. Pre-coated sheets fitted with laser-compatible protective PE/Polypropylene films can be CNC fiber-laser cut cleanly using nitrogen assist gas. The coating remains intact right up to the cut edge without burning or peeling.

Q4:Does 5052 H32 require secondary heat treatment after press-brake bending?

A:No. The H32 temper provides optimal formability (1T - 1.5T bend radius) directly out of the box. It does not require post-forming solution heat treatment or artificial aging, streamlining manufacturing workflows.

Q5:How does pre-coated 5052 aluminum improve drone avionics performance?

A:The metallic aluminum core provides natural 360° electromagnetic shielding (EMI/RFI) for flight controllers and GPS sensors, while the factory polymer pre-coating protects the structure against LiPo battery acid, salt mist, and atmospheric humidity.

Conclusion

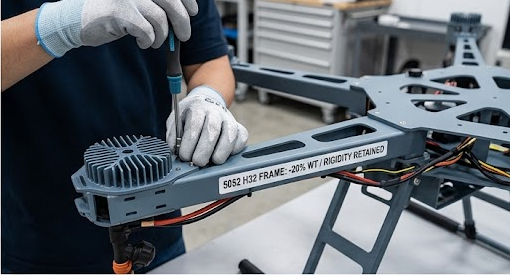

Upgrading UAV structural frames and avionics housings to 5052 H32 pre-coated aluminum sheets enables drone manufacturers to achieve a 20% weight reduction while maintaining high structural rigidity and fatigue strength.

To optimize material selection for your drone chassis design:

Select Alloy & Gauge by Structural Load: Use 0.8mm – 1.2mm 5052-H32 for avionics enclosures and top covers; specify 1.5mm – 2.5mm 5052-H32 with stiffening flanges for main center plates and arm attachment brackets.

Specify Protective Pre-Coating: Mandate a factory-applied matte polyurethane or anti-static epoxy coating to ensure chemical resistance, EMI shielding, and immediate assembly readiness without secondary painting.

Partner with Certified Coil Converters: Work with experienced suppliers like Changzhou Dingang Metal Material Co., Ltd. to secure precision-leveled, laser-ready pre-coated sheets with full material certifications.
