Can 5052-H34 Pre-Painted Aluminum Sheet Prevent Pressure Warping in 1MW Hydrogen Skids?

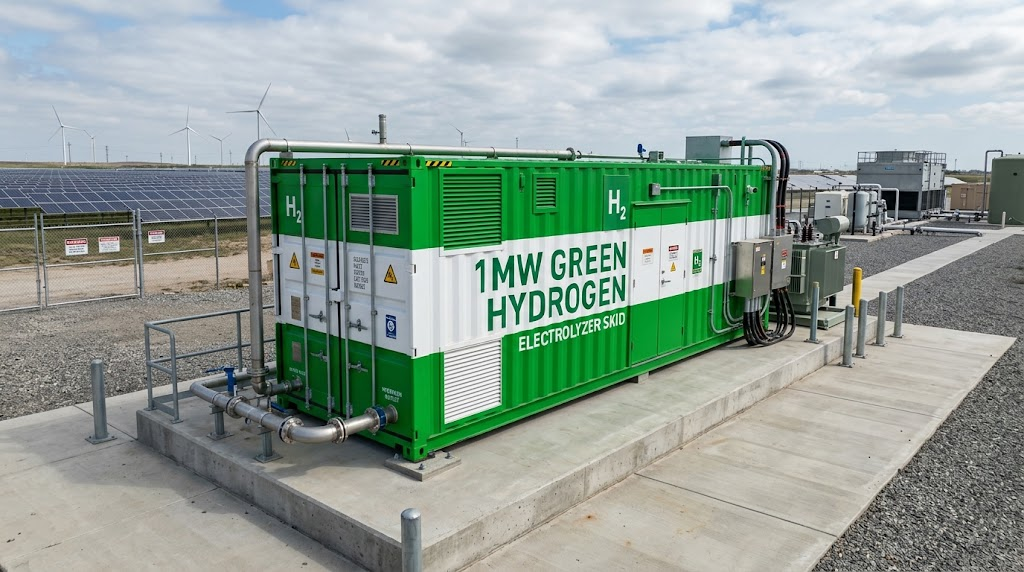

Across Europe, North America, the Middle East, and Asia-Pacific, nations are investing billions into multi-gigawatt green hydrogen infrastructure to secure energy sovereignty and decarbonize heavy industry. At the heart of this global energy transition are containerized 1MW proton exchange membrane (PEM) and alkaline electrolyzer skids.

However, system integrators and fabrication managers face an urgent engineering hurdle on the factory floor: severe panel oil-canning and negative-pressure warping under emergency ventilation.

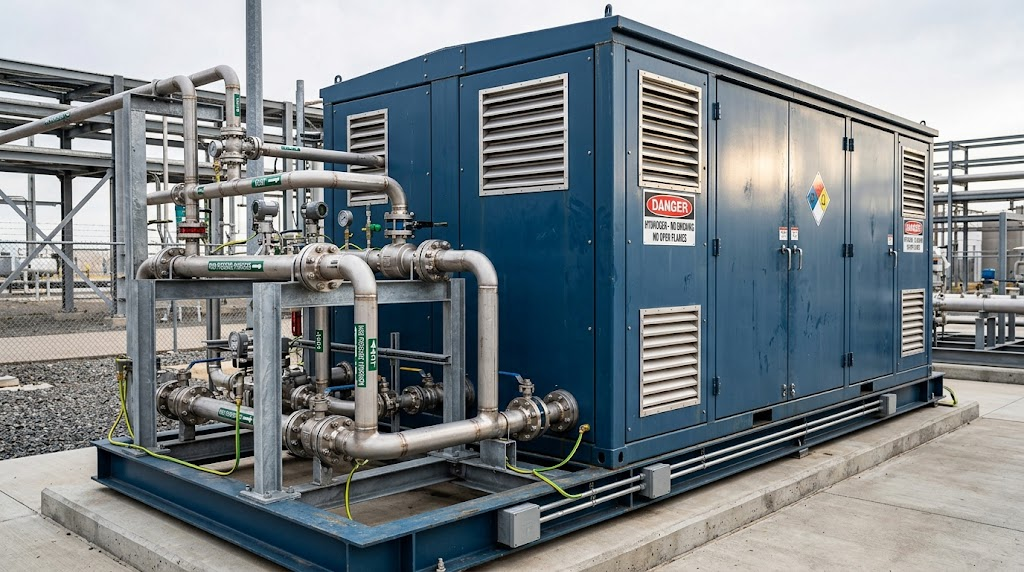

Because hydrogen has an extremely low ignition energy (0.02 mJ) and an exceptionally wide flammability range, safety codes require emergency ATEX exhaust fans capable of rapidly pulling 60 to 120 air changes per hour. When high-output roof blowers kick on, internal cabin pressure drops instantly, generating severe suction loads of -400 Pa to -1,000 Pa across wall bays. Standard architectural aluminum panels (such as 3003-H14) easily buckle inward under this dynamic suction. This visible "oil-canning" creates loud metallic popping, loosens perimeter weather seals, and lets outside moisture into classified electrical zones, triggering false alarms on hydrogen leak sensors. Conversely, switching to heavy stainless steel adds thousands of dollars in material surcharges, accelerates CNC punch tool wear, and risks exceeding highway weight limits for containerized freight.

5052-H34 pre-painted aluminum sheet delivers the exact commercial and mechanical balance modern skid builders require. By pairing work-hardened yield strength with factory-cured, formable polymer coatings, this material eliminates negative-pressure warping, protects expensive workshop tooling, cuts 3 to 5 days out of assembly schedules, and lowers total cladding weight by over 44% compared to stainless steel.

High-Yield Strength Without the Stainless Steel Weight Penalty

Skid enclosures require high flexural rigidity to resist continuous wind buffeting and powerful ventilation suction:

50% Higher Yield Resistance Than Standard Aluminum: Soft architectural sheets (such as 3003-H14) yield at roughly 120 MPa, meaning cyclic exhaust suction easily pushes them into permanent dishing. 5052-H34 provides a verified yield strength between 180 MPa and 215 MPa, absorbing dynamic suction pulses and returning instantly to a flat profile.

Overcoming the Weight Surcharge: At only 2.70 g/cm³, a rigid 2.0 mm 5052-H34 panel weighs roughly 5.4 kg/m²—less than half the weight of an equivalent steel panel. This weight difference protects the overall container weight budget, leaving valuable payload margin for heavy transformers, rectifiers, and water-treatment blocks.

Inherent Material Safety: Unlike high-strength ferritic steels that can suffer from catastrophic hydrogen embrittlement when exposed to fugitive gas leaks, aluminum alloys are naturally immune to hydrogen-induced structural cracking.

Factory Coil Coating vs. In-House Batch Painting

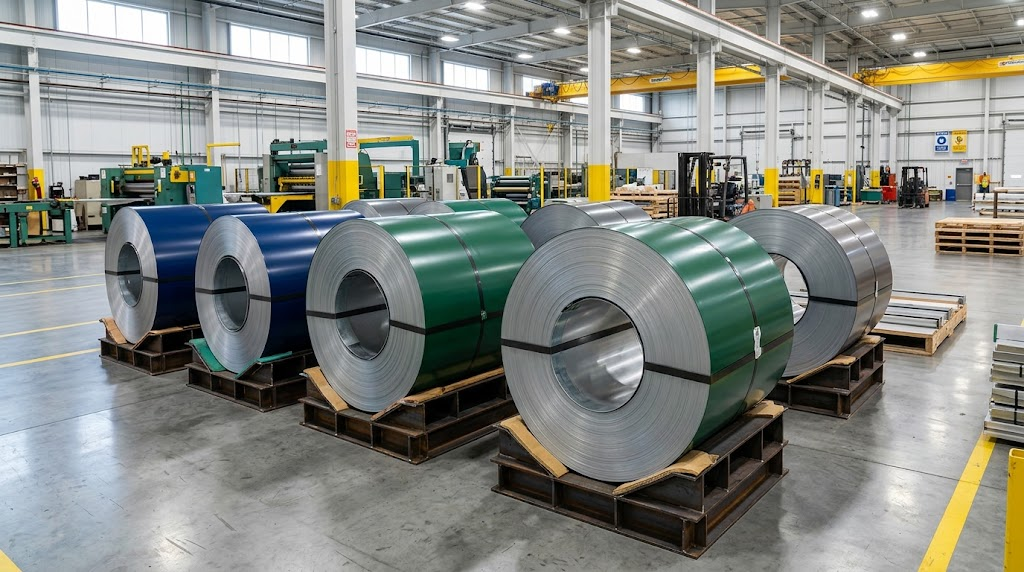

Consistent Factory-Applied Film: Automated coil coating applies a uniform 25 µm to 35 µm polymer shield across the entire coil, eliminating the drips, orange peel, and thin edge spots common to manual spray guns.

Built-In Acoustic Damping: The flexible polymer coating acts as an interfacial dampening layer, reducing the drum-skin drumming and rattling caused by high-capacity gas compressors and liquid pumps.

Technical & Commercial Benchmark

Global Clean Energy Vision & B2B Commercial Payoff

Powering Sovereign Energy Independence with Scalable Infrastructure

Enabling Domestic Modular Hydrogen Scaling: To fulfill national net-zero commitments and build independent energy networks, countries are constructing localized hydrogen generation stations. Utilizing high-performance, mass-produced pre-painted aluminum eliminates supply-chain choke points, allowing manufacturers to assemble and deliver modular skids ahead of contractual milestones.

Driving Down Levelized Cost of Hydrogen (LCOH): Every dollar saved in container fabrication, structural deadweight, and paint maintenance directly reduces overall project capital expenditure, helping green hydrogen compete against legacy fossil fuels on cost.

View More >>

Shop Floor Economics: High Throughput and Tooling Longevity

Eliminate the 3- to 5-Day Paint Booth Bottleneck: Moving large, assembled enclosures through a manual liquid paint booth creates severe scheduling delays. Pre-painted sheets move straight from the CNC punch press and press brake to final chassis assembly, speeding up production output.

Lower Tooling and Maintenance Costs: 5052-H34 punches and shears cleanly. Compared to tough 304 stainless steel, it reduces punch-tip chipping, minimizes burr-grinding labor, and extends the service life of expensive CNC tooling.

View More >>

Circular Economy & Environmental ESG Leadership

Infinitely Recyclable Clean Metal: Aluminum can be recycled repeatedly using only 5% of the energy required for primary smelting, providing an environmentally responsible structural solution that lowers the embodied carbon footprint of the plant.

20+ Years Maintenance-Free Service: High-performance coil-applied coatings resist chalking, blistering, and UV fading, eliminating recurring exterior maintenance costs and protecting skid resale value over decades of field service.

View More >>

Stopping the Failure Chain of Pressure Warping

In high-ventilation hydrogen bays, unreinforced or undersized panels trigger an expensive chain of field failures:

Center-Bay Flexing: Under sudden exhaust suction, thin or low-yield sheets pull inward toward the skid interior, producing loud metallic popping sounds.

Gasket Separation: As the sheet dishes inward, the perimeter edges pull away from the structural frame, dropping gasket compression and creating open gaps.

Moisture Intrusion & Sensor Tripping: Rain, road salt, and ambient dust enter through the compromised perimeter seal. This incoming air disturbs internal gas-concentration sensors, causing erratic readings and unexpected plant shutdowns.

The 5052-H34 Cassette Defense: Sizing 5052-H34 sheets into folded cassette trays provides the necessary stiffness to limit panel deflection to less than 2.0 mm under peak fan draw, maintaining consistent gasket compression and keeping the enclosure airtight.

Resistance to Fugitive Chemical Splatter

Immunity to Caustic Alkaline Aerosols: In alkaline water electrolysis (AWE) facilities, trace potassium hydroxide (KOH) mist can vent during maintenance cycles. The factory-cured polyurethane or PVDF finish acts as an impermeable chemical barrier, preventing lye droplet etching and white-rust oxidation.

Coastal Industrial Resilience: For hydrogen hubs located at coastal ports or offshore wind landing stations, 5052’s magnesium content prevents chloride pitting, ensuring panels remain clean and corrosion-free around fastener holes.

Tension-Leveling & Surface Passivation

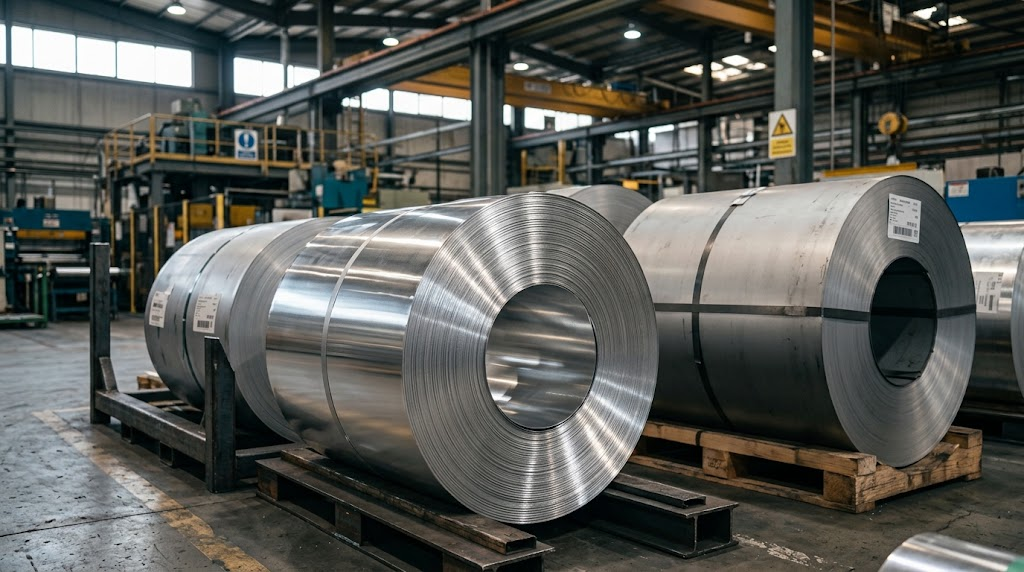

Zero Residual Coil Stress: 5052 coils undergo automated stretch-bend leveling under high line tension, eliminating crossbow and edge waves. Panels lay flat on CNC tables and will not curl, warp, or bind during laser cutting.

Nano-Conversion Chemical Pretreatment: Automated alkaline cleaning and inorganic titanium-zirconium passivation clean the substrate and build a microscopic chemical bond, ensuring paint stays attached during sharp workshop forming.

High-Precision Coil Coating & Tool-Friendly Forming

Automated Film Thickness Control: Precision reverse-roll coaters hold total dry film thickness to tight tolerances (±1.5 µm), ensuring batch-to-batch color consistency and uniform forming elasticity across entire production runs.

Formulated for High-Speed Louver Punching: The coating formulation stretches smoothly with the base metal, allowing CNC turret punch presses to stamp ventilation louvers and cutouts at production speed without edge chipping, tearing, or burring.

Quality Verification & Zero-Defect Forming Audits

1.5T Cold-Bend Certification: Master coils are tested to verify full 180° bending at 1.5 times the sheet thickness, ensuring fabricators can fold deep cassette return flanges without paint crazing or peeling along outer corners.

Pressure-Box Quality Audits: Representative production panels undergo cyclic pressure testing up to -1,200 Pa to verify zero permanent dishing, ensuring every batch meets the structural demands of emergency exhaust systems.

FAQ

Q1:Why does emergency ventilation cause thin container panels to buckle and pop?

A:Emergency ATEX roof fans pull massive air volumes (60 to 120 air changes per hour) to dilute fugitive hydrogen leaks. This rapid extraction generates a sudden internal suction spike of -400 Pa to -1,000 Pa. If panels lack adequate yield strength or stiffening geometry, this pressure difference pulls the panel center inward, creating visual oil-canning and loud metallic pops.

Q2:How does 5052-H34 prevent oil-canning better than standard architectural 3003-H14?

A:While both alloys have similar elasticity, 5052-H34 undergoes controlled strain hardening and thermal stabilization. This increases its yield strength to 180 MPa–215 MPa, roughly 50% higher than 3003-H14 (~120 MPa). This higher strength prevents dynamic fan suction from pulling the panel into permanent, wavy plastic deformation.

Q3:Does mechanical roll-embossing damage or crack the protective surface coating?

A:No, provided factory pre-painted coils with flexible, high-ductility coatings are specified. These coatings stretch along with the underlying aluminum during high-speed CNC turret punching, creating clean louver openings without edge flaking or micro-fissuring.

Q4:How does 5052-H34 aluminum compare to 304 stainless steel in total fabrication cost?

A:Switching from 1.2 mm stainless steel to 2.0 mm 5052-H34 cuts cladding weight by approximately 44% and eliminates in-house post-painting steps. It also reduces wear on CNC punch tooling and eliminates the burr-grinding labor required when fabricating stainless steel.

Q5:Why is a cassette-folded design recommended over flat riveted panels?

A:Flat panels held only by perimeter rivets flex easily across their center span under -1,000 Pa suction. Bending the sheet with 30 mm to 40 mm return flanges creates a structural box-tray that significantly increases bending resistance, keeping perimeter gaskets sealed without adding heavy interior framing.

Conclusion

To eliminate negative-pressure warping and maximize workshop productivity on your next hydrogen skid project:

Size Panel Thickness and Return Flanges to Bay Width: For unsupported panel spans up to 800 mm, specify 2.0 mm thickness with 30 mm to 40 mm perimeter return flanges to increase panel stiffness without adding heavy steel frames.

Specify 5052-H34 Stabilized Temper on Purchase Orders: Avoid soft architectural 3003-H14 or annealed 5052-O; mandate certified test reports confirming a minimum yield strength of 180 MPa and tension-leveled flatness.

Demand 1.5T Bend Certified Coating Formulations: Ensure the coil-coating supplier certifies flexible, thermoset polymer coatings capable of passing 1.5T cold bending and high-speed CNC louver punching without edge micro-cracking.
