Can Fire-Retardant Roller-Coated Plates Withstand Direct Molten Slag Splatter in Automated Plasma Cutters?

In the global heavy equipment and structural fabrication sectors, automated high-definition plasma cutting tables (operating at 300A to 800A) serve as the backbone of modern shipyard, mining vehicle, and structural steel manufacturing. These high-amperage systems pierce and sever thick carbon steel, stainless steel, and armor plate at rapid production speeds.

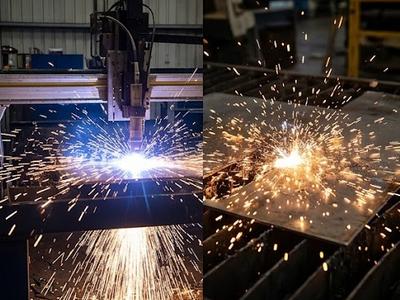

However, continuous high-power plasma cutting generates an aggressive operational environment directly beneath the cutting torch: incessant showers of molten metal slag and liquid iron dross ejected at temperatures between 1,200°C and 1,400°C.

Within downdraft extraction beds, internal partition chutes, and CNC cutting carriage enclosures, standard wall protection methods fail quickly:

Standard industrial paints and post-sprayed powder coatings burn, blister, and ignite on impact from glowing slag beads, creating dense toxic smoke, flaking off in sheets, and triggering factory fire alarms.

Bare mild steel or galvanized plates fuse metallurgically with molten iron dross, creating thick, stubborn slag accumulation that bridges downdraft ventilation louvers, burns out CNC servo motors with added deadweight, and requires hours of aggressive manual chisel-scraping.

Heavy cast iron or thick refractory plates add massive deadweight to modular cutting tables, dramatically increasing shipping costs and slowing down gantry crane positioning.

Fire-retardant roller-coated aluminum plates—combining high-thermal-conductivity structural aluminum alloys (such as 5052-H32 or 5754-H111) with factory-applied, ceramic-reinforced inorganic fire-retardant fluoropolymer (PVDF) or polysiloxane coatings—provide the engineered defense. Engineered for instant thermal dissipation and anti-stick dross shedding, these plates survive direct molten splatter, prevent burn-through, eliminate toxic paint smoke, and lower modular bed maintenance costs by over 50% compared to heavy welded steel liners.

Structural Aluminum Alloys as Rapid Heat Sinks

Plasma cutting table chutes and interior ventilation louvers require high flexural strength paired with rapid heat dissipation:

High-Conductivity 5052 and 5754 Substrates: Structural aluminum alloys deliver thermal conductivity between 140 W/m·K and 160 W/m·K—nearly ten times higher than structural carbon steel (~50 W/m·K) and twenty times higher than stainless steel (~16 W/m·K). When a glowing 1,400°C dross droplet strikes the plate, the aluminum core rapidly spreads the heat outward, keeping the surface temperature below the melting threshold.

Corrosion Resistance in Humid Water-Table Environments: Plasma tables often utilize water injection or water trays to suppress cutting fumes. Unlike carbon steel that quickly rusts when exposed to cutting mist, 5052/5754 marine-grade aluminum naturally resists moisture, preventing structural flaking and rust scale.

Massive Weight Reduction for Modular Gantry Tables: Modern high-definition plasma tables span lengths of 12 to 30 meters. Using 2.5mm or 3.0mm aluminum cladding removes metric tons of deadweight from modular downdraft segments, lowering shipping costs and allowing installation crews to set up cutting beds using standard shop forklifts.

Inorganic-Ceramic Roller-Coated Barrier Formulation

Standard organic paints break down immediately when exposed to molten metal. Industrial fire-retardant roller coatings utilize advanced surface chemistry:

Inorganic-Ceramic Micro-Particle Fillers: The thermoset resin matrix is heavily loaded with sub-micron silica, alumina, and mineral flame-retardant additives. Under intense local heat, these ceramic micro-particles form an insulative protective crust that prevents heat transfer to the base metal.

Non-Wetting Anti-Adhesion Surface: The factory-cured roller coating creates a dense, non-porous finish with low surface energy. Liquid molten slag cannot wet or adhere to the slick surface, preventing molten iron from welding itself onto the plate.

Technical Validation & Practical Performance

Sovereign Heavy Industry Vision & B2B Commercial Payoff

Fueling National Shipyards and Heavy Infrastructure

Empowering Modern Heavy Engineering: Sovereign shipbuilding, armored vehicle production, and renewable wind tower fabrication depend on high-throughput automated plasma cutting. Providing cutting table builders with fireproof, slag-resistant roller-coated aluminum liners ensures continuous, multi-shift production without unexpected maintenance shutdowns.

Advancing Workplace Safety & Environmental Standards: Eliminating toxic paint fumes and burning oil smells creates a cleaner, safer working environment that meets international industrial hygiene standards, protecting worker health and minimizing environmental liabilities.

View More >>

Factory Floor Economics: Zero-Scrap Forming and Rapid Assembly

Bypassing the In-House Spray Booth: Traditional chute manufacturing requires cutting steel, welding stiffeners, and sending bulky assemblies to a liquid paint booth—a process that creates days of scheduling delays. Pre-coated fire-retardant aluminum sheets move directly from CNC laser cutters and press brakes into final table assembly.

Extended Cutting Tool Life: Aluminum shears cleanly without work-hardening, significantly extending the life of CNC punch tools and eliminating the deburring labor required when fabricating heavy steel liners.

View More >>

Long-Term Fleet Reliability & Low Maintenance Overhead

Infinitely Recyclable Clean Metal: Aluminum is an infinitely recyclable material requiring only 5% of the energy needed for primary smelting during secondary refining. Specifying recyclable aluminum delivers a low-embodied-carbon structural platform that aligns with international sustainability standards.

Over 50% Reduction in Maintenance Labor: Because cooled dross cannot bond to the ceramic-reinforced roller coating, scrap collection teams simply empty bottom collection bins rather than spending hours chiseling slag off table walls.

View More >>

The Failure Sequence of Conventional Painted Steel Under Slag

In automated plasma cutting, unprotected or poorly painted liners fail through a predictable destructive cycle:

Paint Pyrolysis and Blistering: When molten cutting dross strikes standard painted sheets, trapped solvents and organic polymer chains vaporize instantly. The paint bubbles, burns away, and releases irritating smoke into the machine shop.

Metallurgical Fusion (Slag Sticking): Once bare metal is exposed, the molten steel dross bonds directly with the steel substrate, creating hardened metal mounds that grow with each cutting cycle.

Chute Clogging & Mechanical Jamming: Slag buildup blocks downdraft suction channels, reducing fume extraction efficiency and forcing operators to stop production every few hours to break off slag with air hammers and chisels.

The Roller-Coated Aluminum Defense: The fire-retardant roller-coated plate absorbs the kinetic energy of falling dross. Because the ceramic-polymer surface does not burn, melt, or wet with molten iron, the molten droplets quickly solidify and slide down into bottom scrap carts without sticking.

Resistance to Hot Sparks and Industrial Chemicals

Continuous Shower Resistance: During plate piercing, intense spark showers bounce off the roller-coated surface without dulling the finish or creating burnt spots.

Chemical Resistance to Cutting Additives: The cross-linked coating resists cutting water additives, anti-spatter chemical sprays, and industrial machine degreasers without peeling or softening over decades of operation.

Continuous Tension Leveling & Chemical Passivation

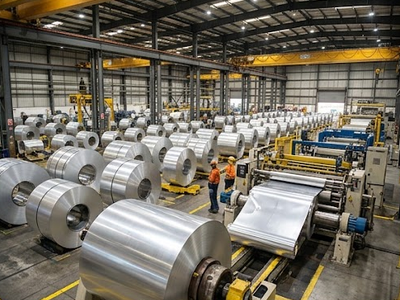

Stress-Relieved Tension Leveling: Aluminum master coils pass through automated tension-leveling lines to remove edge waves, crossbow, and residual rolling stresses, ensuring sheets stay completely flat during CNC laser profiling and turret punching.

Nano-Ceramic Passivation Pretreatment: Plates undergo automated cleaning to strip rolling oils, followed by an inorganic zirconium-titanium chemical conversion wash that raises surface wetting tension above 56 dynes/cm, ensuring permanent coating adhesion.

Automated Reverse-Roll Coating & Precision Film Control

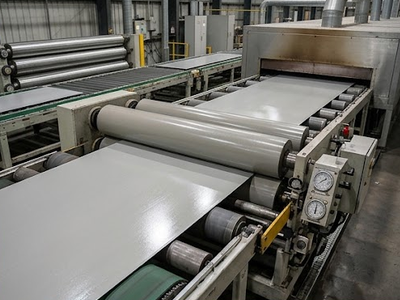

Reverse Roller-Coating Application: Fire-retardant primers and ceramic-loaded topcoats are applied in an automated cleanroom coil line, holding dry film thickness strictly within 25 µm to 35 µm (±1.5 µm tolerance).

Controlled Curing Curves: Coated strip passes through multi-zone catenary ovens with computerized temperature regulation, driving full resin cross-linking without reducing the work-hardened H32/H111 temper of the aluminum core.

Zero-Defect Bending & Molten Slag Impact Audits

1.5T Cold-Bend Verification: Production coupons undergo 1.5T 180° cold bending and cross-hatch tape-adhesion pulls to confirm that panel perimeter flanges and chute bends can be formed on CNC press brakes without paint cracking along edges.

Direct Molten Metal Droplet Testing: Witness samples undergo direct 1,200°C liquid metal pour and spark exposure testing to verify zero ignition, zero blistering, and clean slag shedding before pack-out.

FAQ

Q1:Can aluminum withstand molten steel slag without melting through?

A:Yes, provided fire-retardant roller-coated 5052 or 5754 aluminum is used. While molten steel leaves the plasma torch at 1,400°C, falling dross droplets carry limited thermal mass. The high thermal conductivity of aluminum (roughly ten times higher than steel) rapidly dissipates heat across the plate, while the ceramic-reinforced coating acts as an insulative barrier that stops molten metal from fusing.

Q2:What prevents molten dross from sticking to the roller-coated plate?

A:The factory-cured roller coating incorporates sub-micron ceramic particles and low-surface-energy resins. Molten iron cannot wet or chemically react with this non-porous inorganic surface, causing slag beads to cool quickly and slide into collection trays without sticking.

Q3:Does the coating ignite or release toxic fumes when struck by plasma sparks?

A:No. Fire-retardant roller coatings are formulated with non-combustible inorganic pigments and fire-retardant mineral additives. They will not ignite, burn, or generate toxic smoke, ensuring full compliance with workshop safety regulations.

Q4:How does using aluminum panels lower the overall cost of a plasma cutting table?

A:Switching from heavy steel to 2.5mm aluminum reduces liner weight by over 70%. This weight reduction cuts modular table shipping costs, simplifies shop assembly, and allows operators to move and clean scrap chutes without overhead cranes. Pre-coated sheets also eliminate off-line liquid painting, saving days of manufacturing time.

Q5:Will press-brake bending crack the fire-retardant coating on chute edges?

A:No, provided factory pre-coated coil stock certified for 1.5T bending is specified. The cross-linked polymer matrix flexes smoothly with the ductile aluminum substrate during CNC press-brake forming, leaving clean edges without peeling or flaking along folded corners.

Conclusion

To successfully implement fire-retardant roller-coated aluminum plates in automated plasma cutting tables:

Specify A1/A2 Non-Combustible Coating Systems: Mandate procurement specifications requiring inorganic ceramic-filled coatings certified to non-combustible building and machinery fire standards, strictly avoiding standard architectural polyesters.

Select 5052-H32 or 5754-H111 Alloy (2.5mm to 3.0mm Gauge): Specify structural marine-grade alloys to provide the optimal balance of flexural stiffness, water-mist corrosion resistance, and rapid thermal dissipation.

Mandate Pre-Coated 1.5T Bend Certified Stock: Ensure coil suppliers provide certified test reports confirming that pre-painted sheets can undergo 1.5T 90° box-pan brake bending without paint crazing or flaking along folded corners.
