Can Gold-Lacquered High-Purity Aluminum Foil Replace Titanium in PEM Electrolyzer Bipolar Plate Shields?

Scaling Proton Exchange Membrane (PEM) water electrolysis to gigawatt-scale green hydrogen production requires aggressive stack-level capital expenditure (CapEx) reduction. Bipolar plates (BPPs) and protective flow-field shields account for approximately 45% - 55% of total PEM stack manufacturing costs.

Traditionally, the industry has relied on Grade 1 or Grade 2 Titanium foil substrates coated with platinum-group metals (PGM) to survive the harsh anodic environment: continuous operating temperatures (60°C - 80°C), acidic perfluorosulfonic acid (PFSA) membrane contact (pH  1.0 - 3.0), high operating voltages (>1.8 V - 2.2 V vs. SHE), and oxygen evolution saturation. However, titanium foil comes with severe commercial drawbacks: high raw material market volatility, slow stamping speeds, severe die galling, and high hydrogen embrittlement risks.

Gold-lacquered high-purity aluminum foil—combining high-ductility, high-purity aluminum substrates (1000 series, ≥ 99.85% purity) with chemically resistant, pinhole-free conductive lacquers loaded with sub-micron gold pigments or PVD-coupled nanometer protective sealants—presents an alternative for flow-field shielding, gas diffusion layer (GDL) interfaces, and cathode-side plate protection. It provides ultra-low Interfacial Contact Resistance (ICR), blocks acidic fluoride-ion leaching, and reduces shield fabrication costs by more than 60% compared to titanium assemblies.

Structural Alloy Substrate Mechanics

Bipolar plate fluid-distribution foils and flow-field shields require high stamping conformability to form micro-channel flow paths (0.5 mm - 1.0 mm width/depth) without micro-tearing:

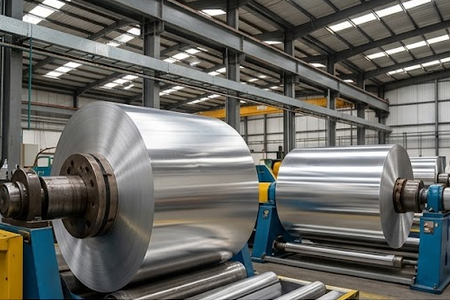

1085 High-Purity Aluminum Foil Core: Provides exceptional uniform elongation (>25% in fully annealed O-temper), enabling high-speed roll embossing and progressive die stamping into intricate serpentine or parallel flow patterns without tearing.

Elimination of Intermetallic Micro-Inclusions: Purity levels ≥ 99.85% minimize iron-silicon intermetallic phases (Al₃Fe), which are primary sites for localized galvanic pitting under electrical bias.

Thermal Conductivity & Heat Dissipation: High bulk thermal conductivity (>210 W/m·K, compared to just 16 W/m·K for Grade 2 Titanium) accelerates localized stack heat dissipation, reducing hot-spot degradation along the proton exchange membrane.

Conductive Gold-Lacquer Polymer Formulation

Uncoated aluminum forms an electrically resistive passivating oxide film (Al₂O₃) within milliseconds, causing stack electrical efficiency to plummet. The specialized gold lacquer prevents this passivation layer from building up:

Conductive Percolation Matrix: Formulated with high-purity, sub-micron metallic gold flakes embedded in a fluoropolymer/epoxy-phenolic resin carrier. The gold flakes maintain a continuous conductive pathway across the film thickness.

Fluoropolymer Chemical Inertness: The dense polymer binder resists swelling and degradation when exposed to warm acidic deionized water containing trace fluoride radicals (F⁻) generated by the degradation of PFSA membranes (e.g., Nafion).

Technical Validation & Practical Performance

The performance comparison below evaluates gold-lacquered high-purity aluminum foil against traditional PEM electrolyzer materials:

B2B Commercial Payoff & Engineering ROI for Stack Integrators

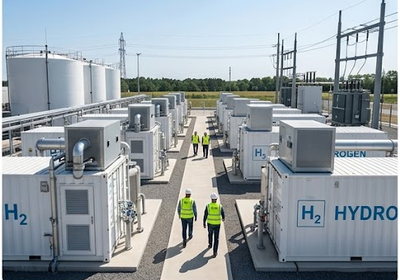

Drastic Stack CapEx Reduction & Megawatt Scaling

Over 60% Material Sourcing Savings: Shifting from thin-gauge titanium foil to continuous coil-coated aluminum foil eliminates one of the biggest material cost drivers in PEM stack bills of materials (BOM), supporting the industry's path toward $<$300/kW stack cost targets.

Minimal Noble Metal Loading: Continuous roll coating applies microscopic gold flakes only within the functional conductive topcoat, using a fraction of the precious metal mass required by traditional electroplated or sputtering processes.

View More >>

High-Throughput Stamping & Extended Die Tool Life

Elimination of Die Galling: Titanium is notorious for seizing against hardened tool steels, requiring expensive carbide dies and frequent press downtime. High-purity aluminum foil acts as a naturally compliant substrate, increasing stamping die service life by 5× - 8×.

Fast Progressive Stamping Speeds: Due to aluminum's high ductility and low springback, manufacturers can stamp micro-channel flow-field plates at high press speeds (>60 strokes/min), facilitating gigawatt-scale production lines.

View More >>

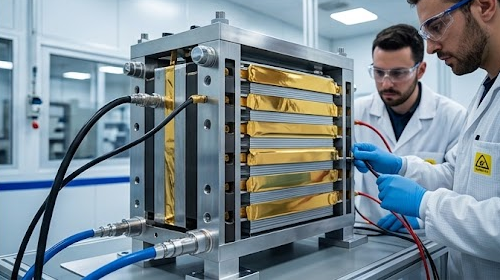

Long-Term Fleet Reliability & Stable Cell Efficiency

Zero Ohmic Degradation: By preventing the continuous growth of insulating oxide layers on the plate interface, the gold-lacquer barrier maintains steady cell operating voltages (<1.9 V at rated current density) across thousands of operational hours.

Reliable Hydrogen Gas Containment: On the cathode half-cell, the composite foil resists embrittlement under continuous high-pressure hydrogen exposure, avoiding the micro-cracking and gas crossover leaks that can compromise stack safety.

View More >>

Interfacial Contact Resistance (ICR) Stabilization

In a high-current-density PEM stack (1.5 A/cm² - 3.0 A/cm²), interfacial resistance translates directly into severe Ohmic voltage losses and excessive parasitic heating:

Suppression of Resistive Oxide Films: The conductive gold lacquer seals the aluminum surface, preventing native Al₂O₃ growth. Under standard GDL assembly compaction pressure (1.0 MPa - 1.5 MPa), ICR remains stable at ≤5.0 mΩ·cm², meeting strict US DOE electrolyzer targets.

Prevention of Cation Poisoning: If raw aluminum contacts the acidic circulating water, it releases aluminum cations (Al⊃3;⁺). These multi-valent ions have a much higher affinity for the sulfonic acid sites (-SO⁻₃) in the membrane than protons (H⁺), permanently poisoning the membrane and destroying proton conductivity. The pinhole-free lacquer creates an impermeable physical barrier that halts ion leaching.

Hydrogen Permeation Defense: On the cathode side of the cell, high-pressure dissolved hydrogen gas (30 bar - 50 bar) can induce severe hydrogen embrittlement in titanium plates over time. Aluminum's face-centered cubic (FCC) lattice, reinforced by the polymer barrier, does not suffer from hydride embrittlement.

Micro-Channel Stamping Resilience

Zero-Spall Flexibility: The thermoset lacquer matrix maintains high adhesion and flexibility, allowing 0T radius micro-channel bending and edge rib folding without flaking, peeling, or exposing raw aluminum edges to the flow channels.

Web Preparation & Surface Activation

Continuous Multi-Stage Ultrasonic Degreasing: Ultra-thin aluminum foil rolls pass through non-etch solvent and hot alkaline cleaning baths to strip residual rolling oils without roughening the base metal profile.

Organosilane / Conductive Nano-Pretreatment: An ultra-thin inorganic-organic conversion layer (10 nm - 25 nm) is applied in-line, raising surface wetting energy (≥ 58 dynes/cm) to establish covalent anchoring for the conductive lacquer without adding electrical contact resistance.

High-Precision Roll-to-Roll Coating Dynamics

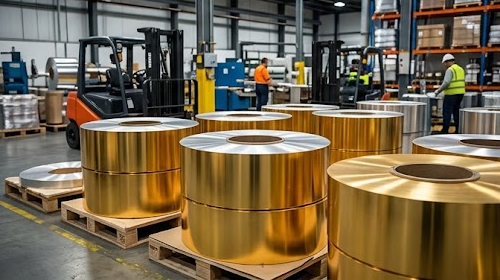

Micro-Gravure Web Coating: Continuous reverse-roll and micro-gravure coaters apply the conductive gold lacquer under cleanroom conditions (ISO Class 6), maintaining Dry Film Thickness (DFT) within 8μm - 15μm with a tight cross-web tolerance of ± 0.5μm.

Conductivity & Pinhole Audits: High-resolution optical sensors and continuous contact-resistance scanners inspect the moving web in real time, verifying uniform conductive filler distribution and the complete absence of micro-voids.

Thermal Curing & Formability Quality Assurance

Precision Curing Windows (220°C - 240°C PMT): Curing ovens run computer-controlled thermal profiles to cross-link the polymer resin completely without degrading the electrical percolation network or altering the annealed O-temper of the foil.

Acid Leaching & Cyclic Compression Audits: Finished coil samples undergo 1,000-hour immersion tests in synthetic acidic cell solutions (80°C, pH 2.0, 5 ppm F⁻) followed by ICP-MS testing to confirm zero trace aluminum ion release (<1μg/L).

FAQ

Q1:Can aluminum really survive the acidic environment inside a PEM water electrolyzer?

A:Bare aluminum would quickly corrode in the acidic environment (pH  1.5 - 3.0). However, with a pinhole-free, chemically cross-linked gold-lacquer barrier coating, the metal core is completely isolated from circulating deionized water, preventing acid attack and chemical dissolution.

Q2:What happens if trace aluminum ions leach into the PEM membrane?

A:If aluminum dissolves, Al⊃3;⁺ cations replace protons (H⁺) at the sulfonic acid sites of the perfluorosulfonic acid (PFSA) membrane. This dramatically reduces the membrane's proton conductivity, permanently lowering cell voltage efficiency. Using an impermeable, defect-free barrier coating is essential to prevent cation leaching.

Q3:Why is gold included in the lacquer, and does it make the foil too expensive?

A:Gold provides exceptional electrical conductivity and will not form an insulating oxide film. The gold is formulated as sub-micron flakes within a continuous roll-coated polymer matrix rather than a heavy solid plating. This uses minimal precious metal while maintaining low Interfacial Contact Resistance (≤ 5 mΩ·cm²).

Q4:How does stamping aluminum compare to stamping titanium for flow-field channels?

A:Titanium foil is hard, prone to high springback, and frequently galls expensive stamping dies. High-purity annealed aluminum foil (1085-O) is ductile and compliant, enabling intricate micro-channels to be stamped at much higher cycle speeds with significantly lower tooling wear.

Q5:How does aluminum's thermal conductivity benefit the electrolyzer stack?

A:Aluminum has a thermal conductivity over 210 W/m·K, compared to roughly 16 W/m·K for titanium. This helps transfer heat generated by high current densities into the cooling water channels quickly, eliminating hot spots that accelerate membrane thinning and degradation.

Conclusion

Gold-lacquered high-purity aluminum foil provides a practical, highly scalable, and cost-effective material alternative to thin titanium foils in PEM electrolyzer flow fields and bipolar plate assemblies.

To optimize material selection for electrolyzer stack development:

Target Cathode-Side and Fluid Distribution Layers First: Deploy gold-lacquered aluminum primarily on the cathode (hydrogen evolution) side and secondary flow-distribution shields where operating potentials are lower, reserving PGM-coated titanium for the highly oxidative anode face.

Specify Certified Low-ICR Formulations (≤5.0 mΩ·cm²): Require supplier validation of Interfacial Contact Resistance under standard stack compaction pressures (1.0{ MPa - 1.5MPa) with carbon paper GDLs.

Mandate Zero-Ion-Leaching Verification: Enforce strict ICP-MS chemical extraction testing in heated acidic test baths to guarantee aluminum cation concentrations remain below 1μg/L, safeguarding the proton exchange membrane against poisoning.
