Can Heavy-Gauge 5083 Marine-Grade Coated Plates Withstand 6,000-Meter Subsea Hydrostatic Pressures?

Deep-sea exploration, benthic oceanography, and abyssal subsea robotics require structural enclosures capable of operating at depths down to 6,000 meters. At these extreme depths, structures endure intense hydrostatic pressure exceeding 60 MPa (approximately 8,700 psi or 600 bar), paired with near-freezing seawater (1°C - 4°C), high dissolved oxygen levels, and aggressive chloride concentrations.

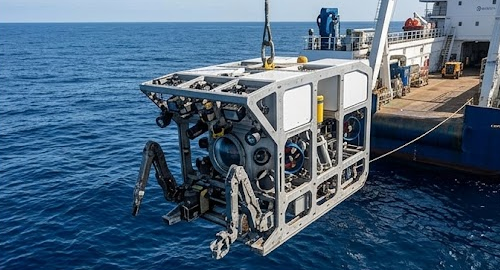

Subsea engineering teams historically relied on solid Grade 5 Titanium (Ti-6Al-4V) or precipitation-hardened nickel alloys (Inconel 718) for deep-water instrument pods and Remotely Operated Vehicle (ROV) structural skids. While these alloys resist buckling, their astronomical raw material expense, heavy deadweight requiring costly syntactic buoyancy foam, and severe machining tool wear create massive budget and schedule overruns. Heavy-gauge 5083 marine-grade coated aluminum plates—processed in stress-relieved, work-hardened tempers (H116 / H321) and protected by high-build subsea cross-linked epoxy/polyurethane barriers—deliver a cost-effective alternative. When calculated with proper wall-thickness-to-diameter ratios (t/D), they withstand 6,000-meter hydrostatic compressive loads without elastic collapse, prevent deep-sea crevice corrosion, and cut structural dry mass by up to 40% compared to titanium assemblies.

Compressive Strength & Buckling Mechanics of 5083-H116/H321

Subsea pressure vessels, cylindrical pods, and flat end-caps do not fail under tension; their primary failure mode is elastic buckling, plastic collapse, or localized yield under multi-axial triaxial compression:

Thick-Plate Wall Sizing (t/D Ratio): At 6,000 meters (P = 60 MPa), thin-wall shell formulas are invalid. Heavy-gauge 5083 plates machined into thick-walled pressure housings utilize thick-cylinder Lamé equations:

Designing with a thickness-to-diameter ratio (t/D ≈ 0.12 - 0.18) keeps maximum compressive peak stresses within the safe working limits of 5083-H116 (215 MPa minimum yield), providing a safety factor (SF ≥ 1.5 - 1.8).

Microstructural Homogeneity: Heavy-gauge plates processed through controlled hot-rolling and ultrasonic homogenization ensure uniform grain structure across the plate core, eliminating weak planes or internal micro-voids that could collapse under triaxial pressure.

Buoyancy Economics vs. Titanium: Titanium Grade 5 (4.43 g/cm) requires thick walls that often result in negative buoyancy, requiring syntactic foam costing upwards of 30 - 50 per liter. Aluminum (2.68 g/cm³) provides a much higher strength-to-submerged-weight ratio, drastically reducing expensive buoyancy foam requirements.

Subsea High-Build Coating Formulation

Under 60 MPa hydrostatic pressure, water molecules are driven into surface micro-porosities:

High-Solids Modified Epoxy-Phenolic Primer: Dense cross-linked resins adhere covalently to the metal, resisting water vapor diffusion under high hydraulic heads.

Elastomeric Polyurethane Topcoat: Flexible top layers absorb rough handling on shipboard launch-and-recovery cranes and prevent edge micro-fissuring during thermal contraction down to 1°C.

Technical Validation & Subsea Performance

The performance comparison below evaluates heavy-gauge 5083 marine-grade coated plate against traditional deep-subsea structural metals:

Commercial Payoff & Engineering ROI for Ocean Technology Firms

Substantial Fabrication & Project Cost Savings

60% to 75% Material Cost Reduction vs. Titanium: Replacing expensive titanium blocks with heavy-gauge 5083 plate frees up hundreds of thousands of dollars in prototype and production subsea instrument budgets.

Reduced Syntactic Buoyancy Foam Costs: Because aluminum's submerged density in seawater is much lower than steel or titanium, submersibles require significantly less expensive hollow glass microsphere syntactic foam to achieve neutral buoyancy, reducing overall vehicle size and thruster power needs.

View More >>

Rapid Machining & Low Workshop Tool Wear

3x Faster CNC Machining Speeds: 5083 aluminum machines at much higher cutting speeds and feed rates than titanium alloys, saving hundreds of hours of 5-axis CNC milling time per deep-sea pressure pod while eliminating premature tool breakage.

Dimensional Stability After Machining: Stress-relieved tempers (H116 / H321) ensure that deeply hollowed-out instrument housings, O-ring sealing grooves, and end-caps do not warp or lose circularity during heavy machining operations.

View More >>

Long-Term Fleet Reliability & Easy Maintenance

No Red Rust in Storage: Subsea instruments often sit in humid shipboard deck containers between deep-water missions. Coated 5083 plates do not develop rust stains or seize stainless steel fasteners, ensuring immediate readiness for mobilization.

Easy Field Refurbishment: Scratches from offshore recovery handling can be touched up on deck using standard marine-grade two-part epoxy repair compounds without requiring specialized vacuum chamber treatments.

View More >>

The Mechanics of Deep-Ocean Corrosion Defense

In deep abyssal plains, seawater is cold (1°C - 4°C) and saturated with dissolved oxygen. When mechanical fasteners and O-ring grooves create stagnant micro-cavities, unprotected metals face aggressive localized crevice corrosion:

The heavy-gauge coated 5083 system eliminates this failure pathway:

Hydraulic Pressure-Resistant Seal: The non-porous coating barrier prevents deep-sea water from migrating into microscopic metal grain boundaries under 60 MPa pressure.

Chromate-Free Conversion Layer: Chemically passivates the aluminum substrate, ensuring that even if external paint suffers mechanical abrasion from seabed debris, sub-film corrosion creep cannot spread laterally under the coating.

Flange & O-Ring Protection: Precision-coated sealing faces prevent differential aeration cells from forming beneath fluorocarbon (FKM) or nitrile O-rings, ensuring pressure-retaining joint reliability across multi-month benthic deployments.

Resistance to Biological Fouling & Anodic Dissolution

Marine Bio-Barrier: Resists deep-sea biofilm attachment, cold-water slime accretion, and sulfur-reducing bacterial attack near hydrothermal vents, ensuring clean recovery and washdown.

Surface Preparation & Deep-Anchor Profiling

Mechanical Grit Blasting & Chemical Etching: Heavy-gauge 5083 plates undergo automated abrasive blasting to create an angular surface profile of Rz 50μm - 75μm for high mechanical interlocking strength.

Zirconium-Titanium Nano-Passivation: Continuous automated passivation deposits an inorganic conversion layer, maximizing surface energy (≥ 56 dynes/cm) to eliminate interfacial moisture ingress under hydrostatic head.

High-Build Precision Application & Sealing Control

Plural-Component Airless Spray Application: Applies thick-film marine epoxy primers and polyurethane topcoats in controlled environmental chambers to maintain strict cure stoichiometry.

Dry Film Thickness (DFT) Calibration: Maintains a strict total coating profile of 250μm - 350μm, providing pinhole-free coverage without causing dimensional interference on precision O-ring sealing shoulders.

Ultrasonic Non-Destructive Testing & Hydrostatic Proofing

Full-Volume Ultrasonic C-Scan Inspection: Every heavy-gauge plate undergoes 100% volumetric ultrasonic inspection per AMS-STD-2154 Class A to guarantee zero internal voids, laminations, or micro-cracks before CNC milling.

Hyperbaric Chamber Testing Audits: Production witness coupons undergo cyclic hydrostatic pressure testing up to 75 MPa (125% proof pressure) to verify zero coating blister delamination or water micro-permeation.

FAQ

Q1:Can aluminum really withstand 6,000 meters of deep-sea pressure without collapsing?

A:Yes. At 6,000 meters, hydrostatic pressure is 60 MPa (8,700 psi). By specifying heavy-gauge 5083 plates with a calculated wall-thickness-to-diameter ratio (t/D ≥ 0.15), the compressive hoop and axial stresses remain well below the alloy's compressive yield strength, preventing buckling or plastic collapse.

Q2:Why choose 5083 aluminum over Grade 5 Titanium for subsea pressure housings?

A:While titanium is stronger, it is roughly 8 to 12 times more expensive and significantly harder to machine. 5083 aluminum delivers the required compressive resistance at a fraction of the cost, cuts CNC milling time by two-thirds, and saves weight in water—substantially reducing the need for expensive syntactic buoyancy foam.

Q3:How does the coating handle the extreme 60 MPa pressure without blistering?

A:The high-solids epoxy-polyurethane coating is applied over an automated nano-conversion layer with deep mechanical grit profiling. This achieves covalent and mechanical bonding that prevents water molecules from peeling the coating under intense hydrostatic pressure.

Q4:Will heavy-gauge 5083 plates warp during deep CNC milling of instrument pods?

A:No, provided they are ordered in properly stress-relieved marine tempers (H116 or H321). These plates undergo controlled stretching at the rolling mill to relieve internal residual stresses, ensuring tight dimensional tolerances across deep bores and O-ring seal faces.

Q5:How do you prevent galvanic corrosion between aluminum housings and stainless steel fasteners?

A:In deep seawater, stainless steel (such as 316L) in direct contact with aluminum creates a galvanic couple. Best practice involves using non-conductive Delrin or Tefzel isolation washers, marine anti-seize paste, and ensuring the aluminum's protective coating extends into counterbores.

Conclusion

Heavy-gauge 5083 marine-grade coated aluminum plates provide a mechanically viable, cost-effective, and lightweight structural material capable of withstanding 6,000-meter abyssal hydrostatic pressures.

To ensure success in deep-sea engineering projects:

Specify Certified Marine Tempers (5083-H116 or H321): Mandate ASTM B928 compliance to eliminate intergranular corrosion susceptibility along grain boundaries in deep, cold seawater.

Enforce Calculated Wall Thickness Sizing (t/D ≥ 0.15): Use thick-cylinder Lamé equations and finite element analysis (FEA) to ensure compressive hoop stresses remain below 65% of certified yield strength at 60 MPa pressure.

Mandate Full Volumetric NDT Inspection: Require ultrasonic testing per AMS-STD-2154 Class A on all plate stock over 40 mm thick to guarantee zero internal voids or inclusions that could act as stress concentrators.
