Can Precision-Slit Gold-Lacquered Foil Prevent Atomic Oxygen Erosion on Low-Earth Orbit Spacecraft?

Spacecraft operating in Low-Earth Orbit (LEO, 200 km - 1,000 km) face an exceptionally harsh space environment. The dominant atmospheric species at these altitudes—Atomic Oxygen (AO)—is generated by the photodissociation of molecular oxygen (O₂) under intense solar ultraviolet radiation. Spacecraft orbiting at hypervelocity speeds (~ 7.8 km/s) experience high-energy impacts (~ 4.5 eV - 5.0 eV) from these reactive oxygen radicals.

Unprotected polymers, thermal blankets, and carbon composites suffer rapid severe chemical erosion, material mass loss, surface roughening, and optical degradation under extended AO bombardment. Precision-slit gold-lacquered foil—combining high-purity aluminum or Kapton/polyimide substrates with space-grade, silicone-free gold fluoropolymer coatings or physical vapor deposited (PVD) gold/silica nano-layers—provides an impermeable atomic oxygen shield. It effectively blocks directional AO erosion, resists solar UV degradation, and delivers stable thermal emissivity and solar absorptivity over extended space missions.

Hypervelocity Chemical Erosion Mechanism in LEO

At orbital velocities (~ 7.8km/s), atomic oxygen impacts spacecraft ram-facing surfaces with sufficient kinetic energy to break organic chemical bonds:

Polymer Degradation Rates: Standard polyimides (Kapton) and epoxy composites erode at rates up to 3.0 × 10⁻⊃2;⁴ cm³/atom, leading to severe structural thinning an`d mechanical failure.

Atomic Oxygen Reaction Efficiency (Eᵧ): Measures the volume of material lost per incident oxygen atom. Materials intended for long-duration LEO missions must achieve an Eᵧ approaching zero.

Gold-Lacquer Protective Chemistry

Gold is intrinsically inert to atomic oxygen reaction because its oxidation enthalpy is extremely unfavorable under LEO energy states:

Inert Metallic Surface Matrix: Gold atoms (Au) do not readily form stable volatile oxides under 5 eV AO impacts, maintaining surface density and structural mass.

Cross-Linked Space-Grade Lacquer Matrix: High-purity gold pigments embedded in silicone-free, low-outgassing fluoropolymer or polyimide resin carriers form a dense barrier that blocks underlying aluminum or polymer substrates from chemical attack.

Technical Validation & Performance Standards

The performance matrix below outlines key space-flight qualification standards for precision-slit gold-lacquered spacecraft foil:

Key Professional Advantages in Aerospace Engineering

Superior Lifespan Extension for LEO Spacecraft

Protection for Long-Duration Missions: Extends the operational lifespan of LEO smallsats, CubeSats, and large space station modules from 2–3 years to well over 10–15 years without AO structural degradation.

Preservation of Thermal Integrity: Prevents drift in spacecraft equilibrium temperatures caused by erosion-induced changes in surface emissivity and absorptivity.

View More >>

Lightweight Thermal Protection & Flexible Integration

Minimal Mass Overhead: Ultra-thin foil construction (12μm - 50μm) adds negligible weight to the payload mass budget while providing complete AO shielding.

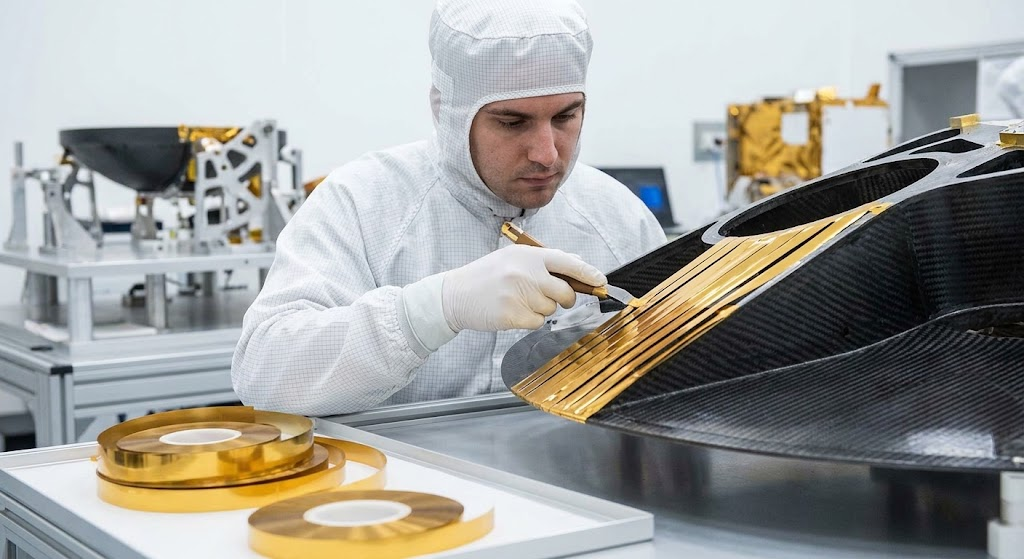

Precision Wrapping & Complex Geometries: Precision-slit narrow widths allow seamless automated spiral-wrapping around wiring harnesses, propellant lines, strut tubes, and irregular payload components.

View More >>

High Reliability Against Debris & UV Degradation

Resistance to Micro-Meteoroid Impact Creep: The flexible lacquered matrix prevents crack propagation if the foil suffers hypervelocity impacts from micro-meteoroids or orbital debris (MMOD).

High Chemical Inertness: Unaffected by hydrazine fuel vapors, atomic hydrogen, or solar flare radiation.

View More >>

Thermal Control & Radiation Protection Dynamics

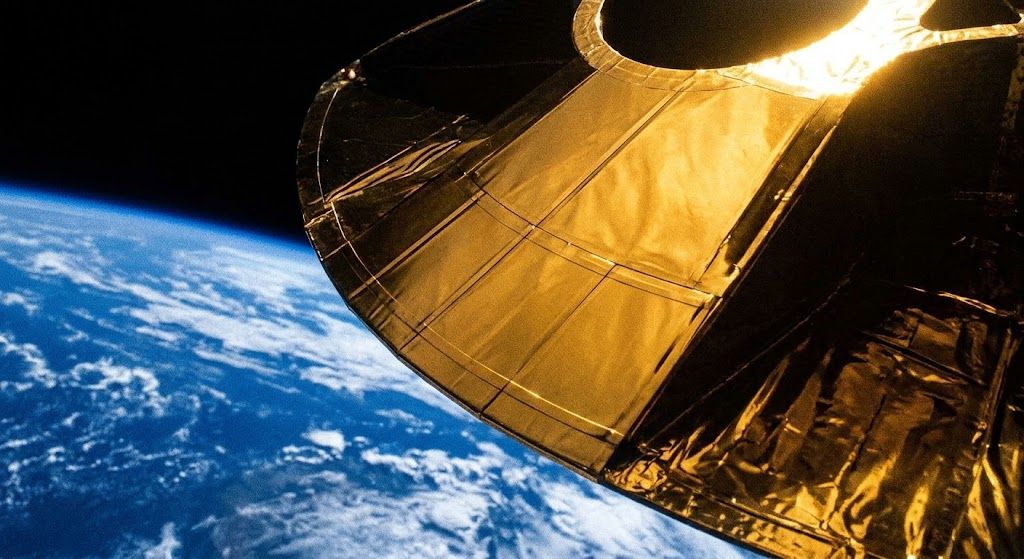

Multi-Layer Insulation (MLI) blankets and exterior structural panels rely on stable thermo-optical properties to maintain internal spacecraft electronics within operational temperature ranges:

Controlled Solar Absorptivity (α): Specially formulated gold lacquers deliver targeted absorptivity values (α ≈ 0.25 - 0.35), reflecting excess solar heat in high-irradiance LEO orbits.

High Infrared Emissivity (ε): The lacquered topcoat modifies raw metallic reflectivity to boost thermal emissivity (ε ≈ 0.60 - 0.80), allowing efficient passive heat dissipation into deep space.

VUV Radiation Stability: Resists vacuum ultraviolet (VUV, 10 nm - 200 nm) radiation embrittlement, preventing paint cracking or yellowing over multi-year mission lifetimes.

Outgassing & Micro-Contamination Prevention

ASTM E595 Compliance: Space-grade gold-lacquered foils are fully cured to meet NASA outgassing requirements: Total Mass Loss (TML < 1.0%) and Collected Volatile Condensable Material (CVCM < 0.10%). This prevents outgassed species from condensing onto optical sensors, solar cells, and star trackers.

Substrate Preparation & Vacuum Metallization

Ultra-Clean Substrate Pretreatment: High-purity aluminum foil (1000 / 8000 series) or space-grade polyimide film passes through multi-stage plasma cleaning to remove micro-contaminants and native non-uniformities.

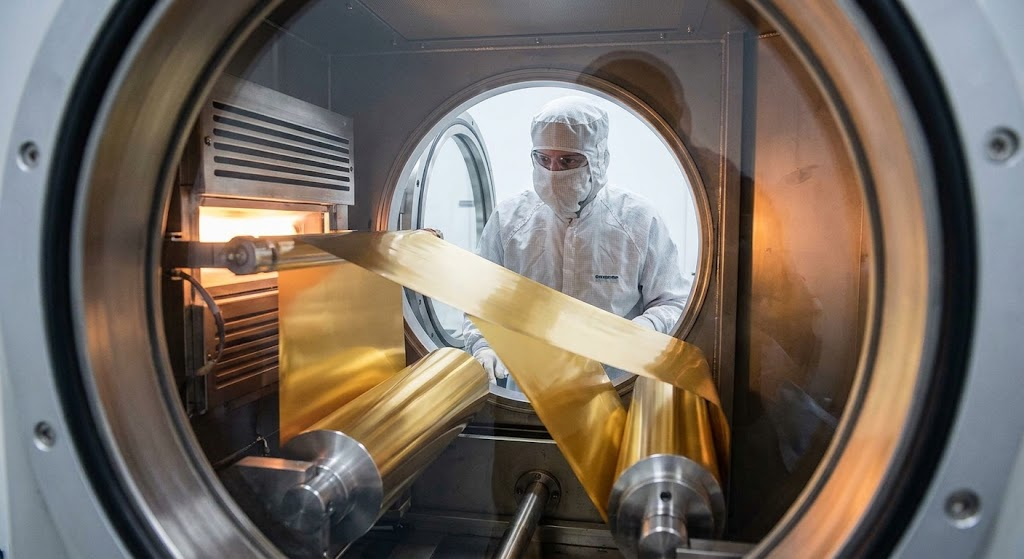

Continuous Roll-to-Roll Coating: High-precision coating apparatus applies the gold-pigmented fluoropolymer or PVD gold/dielectric stack under ultra-clean conditions (ISO Class 5 cleanroom).

Precision Slitting & Clean Edge Technology

Micro-Shear Precision Slitting: Wide-web coated foils are slit into narrow strips (3 mm - 50 mm) using razor-sharp tungsten carbide shear knives.

Zero-Burr & Anti-Shedding Control: Prevents micro-burrs, coating flaking, or metallic particulate generation along cut edges, guaranteeing pristine winding tension without damaging the delicate protective lacquer film.

Quality Assurance Audits

AO Simulation Chamber Testing: Every production lot undergoes ground-based atomic oxygen testing using radio-frequency (RF) plasma or laser-detonation AO beam facilities to verify erosion resistance.

Thickness & Optical Uniformity Checks: Non-contact optical gauges maintain coating thickness profiles within ± 0.5μm, ensuring uniform thermal performance across the entire roll.

FAQ

Q1:Why is atomic oxygen so destructive to spacecraft materials in LEO?

A:Atomic oxygen is generated when UV radiation breaks O₂ molecules apart. At LEO orbital speeds (~ 7.8 km/s), AO impacts spacecraft surfaces with 5 eV of kinetic energy, breaking organic chemical bonds and rapidly eroding unprotected polymers, carbon fiber, and paints.

Q2:How does gold-lacquered foil prevent atomic oxygen erosion compared to standard Kapton?

A:Gold is chemically inert and does not react with high-energy oxygen atoms. While standard Kapton erodes rapidly under AO exposure, the gold-lacquer coating acts as an impermeable barrier that completely blocks AO from contacting the underlying material.

Q3:What is the benefit of precision-slitting gold-lacquered foil for spacecraft manufacturing?

A:Precision-slit narrow widths (3 mm - 50mm) with clean, burr-free edges allow automated, wrinkle-free spiral wrapping around complex curved shapes, wiring harnesses, and thermal pipes without shedding metallic dust particles in optical cleanrooms.

Q4:Does gold-lacquered foil pass NASA and ESA vacuum outgassing requirements?

A:Yes. Space-grade gold lacquers utilize specialized low-outgassing polymer chemistry cured at high temperatures, easily passing ASTM E595 benchmarks with Total Mass Loss (TML) well below 1.0% and Collected Volatile Condensable Material (CVCM) below 0.10%.

Q5:Can gold-lacquered foil withstand the extreme thermal cycling of LEO orbits?

A:Yes. LEO spacecraft experience rapid temperature swings (from -120°C in eclipse to +120°C in sunlight every 90 minutes). The high adhesion strength and matched thermal expansion of the lacquer matrix prevent micro-cracking, flaking, or peeling under thermal shock.

Conclusion

Precision-slit gold-lacquered foil is an exceptionally effective, flight-proven material solution for preventing atomic oxygen erosion and managing thermal control on Low-Earth Orbit spacecraft.

To optimize material selection for spacecraft thermal protection:

Specify Space-Qualified Standards (ASTM E595 / ASTM E2089): Mandate certified ground-based AO beam exposure data and low-outgassing testing (TML < 1.0%,CVCM < 0.10%).

Select Appropriate Substrate Core: Choose high-purity aluminum foil for maximum thermal conductivity, or polyimide film for applications requiring high dielectric breakdown voltage and tear resistance.

Enforce Precision Edge Slitting Quality: Require cleanroom shear slitting to eliminate burrs and particle shedding that could contaminate sensitive satellite optics or solar arrays.
