Application of Color-Coated Aluminum Coils in Louver Shutters

Color-coated aluminum coils have become the mainstream material for modern louver blinds. With four core advantages—“lightweight yet high-strength, rich color options, weather-resistant durability, and easy maintenance”—they have completely replaced traditional metal and wooden louver blinds. They are widely used in architectural applications for sunshading, ventilation, and light control.

I. Core Advantages of Color-Coated Aluminum Coil Shutters

1. Balance of Lightweight and High Strength

Lightweight: With a density of just 2.7 g/cm³, it weighs one-third as much as steel. For the same area, it is approximately 65% lighter than color-coated steel sheets, significantly reducing installation complexity and structural load pressure.

High Strength: Through alloying treatment (3003/3004/5052 series), bending strength reaches 180-220MPa, delivering excellent wind resistance suitable for high-rise buildings.

Resistant to Deformation: Maintains stable shape even in ultra-thin specifications (0.15-0.2mm), preventing sagging during long-term use.

2. Superior Weather Resistance and Protective Properties

Waterproof and moisture-resistant: Dense surface coating + natural corrosion resistance of aluminum substrate, suitable for humid environments like bathrooms and kitchens

UV resistance and aging resistance: Premium coating blocks 99% of UV rays, maintaining vibrant colors for over 10 years without fading

Acid and alkali corrosion resistance: Maintains stable performance in harsh environments like acid rain and industrial pollution, with a service life of 10-25 years (Depending on coating type)

3. Endless Possibilities in Color and Design

Rich Color Palette: Customizable with over 100 solid, metallic, and pearlescent hues

Diverse Textures: High-gloss, matte, woodgrain, and stone-effect finishes to complement various architectural styles

Personalized Customization: Unique textures and translucency achieved through embossing, perforation, and other techniques

4. Environmental Sustainability

100% recyclable: High recycling rate for scrap aluminum, meeting green building standards

Low VOC emissions: Premium coatings are eco-friendly and non-toxic, ensuring healthier indoor environments

II. Parameters for Color-Coated Aluminum Coils for Venetian Shutters

1. Alloy Series Selection

Alloy Series	Characteristics	Applications
3003 Series	Moderate strength (140-180MPa), good ductility, high cost-effectiveness	Standard indoor/outdoor blinds, market mainstream (over 70% share)
3004/3105 Series	Higher strength (180-220MPa), excellent fatigue resistance	Large blinds, high-frequency lifting systems
5052 Series	Exceptional corrosion resistance, salt spray resistance, high strength	Coastal areas, high humidity or industrial environments
1060/1100 Series	Soft and easy to process, low cost	Small blinds, decorative blinds /

2. Thickness Specifications

Curtain-style louvers: 0.12–0.21 mm, lightweight and flexible, suitable for manual/electric curtain blinds

Sunshade louvers: 0.3–0.5 mm, balanced rigidity and lightweight, suitable for external sunshade systems

Large outdoor louvers: 0.6–0.8 mm, high strength, strong wind load resistance, suitable for industrial plants and commercial buildings

3. Coating System (Determines Service Life and Appearance

Coating Type	Lifespan (Outdoor)	Salt Spray Resistance	Price	Recommended Applications
PE	5-8 years	1000-2000 hours	Low	Indoor or mild climate regions
HDP	8-12 years	2000-3000 hours	Medium	General outdoor environments, preferred for cost-effectiveness
PVDF	15-25+ years	5000+ hours	High	Coastal, high-pollution, or premium architecture

III. Color-Coated Aluminum Roll Blinds vs. Blinds Made of Other Materials

Characteristics	Color-coated aluminum coil blinds	PVC blinds	Wooden blinds
Weight	Extremely light (0.15-0.8kg/㎡)	Light, but heavier than aluminum	Heavy (3-5kg/㎡)
Water resistance	★★★★★ Excellent, does not mold	★★★★ Good, but not heat-resistant	★★ Poor, prone to deformation and mold
Temperature Resistance	★★★★★ Withstands 120℃	★★ Deforms above 60℃	★★★ Flammable, limited heat tolerance
Weather Resistance	★★★★★ 10-25 years without fading	★★ Fades and ages within 3-5 years	★★ Requires regular maintenance, prone to rot
Strength	★★★★★ High, withstands wind pressure and impact	★★★ Average, prone to bending	★★★ Moderate, prone to cracking
Color Options	★★★★★ Hundreds of colors, long-lasting	★★★ Limited, prone to fading	★★★ Natural hues, can be stained
Maintenance Difficulty	★★★★★ Wipe with damp cloth	★★★ Requires periodic cleaning to prevent aging	★★ Requires periodic painting for maintenance
Price	★★★ Mid-high (high long-term cost-effectiveness)	★★ Low (short-term cost advantage)	★★★★ High (premium feel)
Environmental Friendliness	★★★★★ 100% recyclable, low VOC	★★ Difficult to degrade, polluting	★★★ Natural material, but involves tree felling

Color-coated aluminum roll blinds offer superior overall performance, making them particularly suitable for humid, high-temperature, and high-UV environments. PVC blinds are low-cost but have a short lifespan. Wooden blinds provide an attractive texture but require high maintenance costs, making them suitable only for dry indoor environments.

IV. Application Scenarios and Selection Guide for Color-Coated Aluminum Coil Shutters

1. Indoor shutters

Living Room / Bedroom: 3003 Series + 0.15-0.2mm + PE/HDP Coating + Matte/Soft-Gloss Finish, lightweight and aesthetically pleasing, light-dimming and privacy-enhancing

Kitchen & Bath Areas: 3003/5052 Series + 0.2-0.3mm + HDP/PVDF Coating + Easy-Clean Treatment, Moisture-Resistant, Mold-Proof, Oil-Stain Resistant

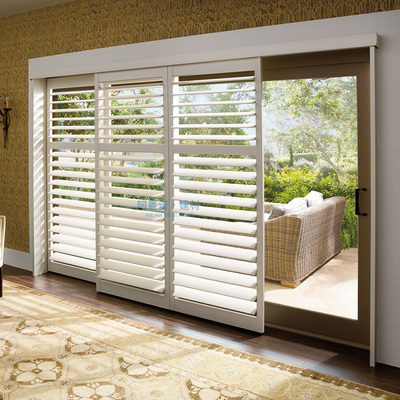

t014798f4bfac45c55c

2. Architectural External Shading Systems

Commercial Buildings: 3004 Series + 0.4-0.6mm + PVDF Coating + Metallic/Solid Colors, Enhances Architectural Aesthetics, Energy-Efficient Shading

High-Rise Buildings: 5052 Series + 0.5-0.8mm + Fluorocarbon Coating, High Wind Resistance, Weather Durability, Extended Service Life

Awnings / Canopies: 3003 Series + 0.6mm + High-Reflectivity Coating, reflects heat to lower indoor temperatures

t048da238ae230bdbb2

3. Special-Function Louvers

Ventilation Louvers: Perforated design balances ventilation and privacy

Rainproof Louvers: Special 45° beveled design + drip groove effectively blocks rain penetration

Thermal Blinds: Double-layer hollow structure + thermal insulation coating, for significant energy savings

Motorized Blinds: 3005/3105 series + 0.3mm + uniform coating (≥80μm), lightweight with excellent balance, ideal for motorized operation

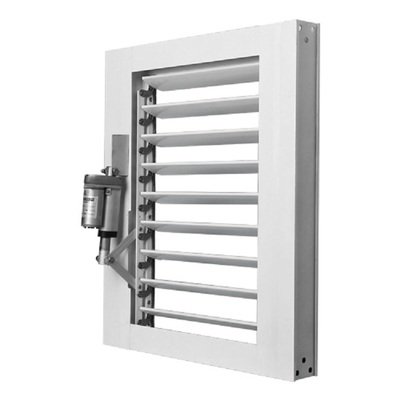

t01a3212365881656e2
