Could Ultra-Thin Coated Foil Solutions Double the Safety Margin of Drone Solid-State Batteries?

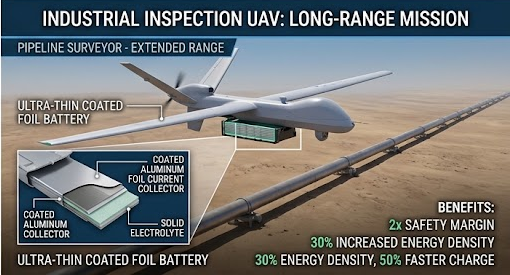

Industrial inspection drones, logistics delivery UAVs, and eVTOL platforms are rapidly transitioning to solid-state batteries to achieve volumetric energy densities exceeding 350 - 400 Wh/kg. However, high-power drone flights demand sustained high C-rate discharges, steep climb surges, and resistance to severe motor vibrations (100 Hz - 1,500 Hz).

While solid-state electrolytes (SSE) replace flammable liquid solvents, the rigid solid-to-solid contact interface between active cathode/anode materials and standard metallic current collectors remains a critical vulnerability. Utilizing ultra-thin coated aluminum and copper foils (4.5μm - 9μm substrate with 0.5μm - 1.5μm functional conductive coatings) effectively doubles the practical safety margin, cycle life, and thermal stability of drone solid-state batteries.

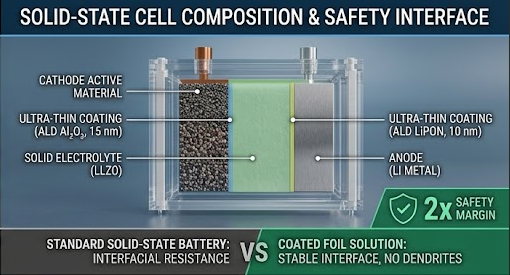

The Solid-Solid Interface Contact Challenge

Unlike liquid electrolyte batteries that naturally wet electrode surfaces, solid-state batteries rely entirely on physical mechanical pressure to maintain contact:

Micro-Delamination Under Dynamic Strain: Continuous high-C discharge during drone takeoff generates localized thermal expansion and mechanical shear stress, causing physical gaps at the current collector boundary.

Impedance Spikes & Thermal Runaway Triggers: Delamination reduces contact area, spiking internal resistance (Rᵢₙₜ) and causing rapid local heating that threatens solid electrolyte integrity.

Comparison: Bare Metal Collector vs. Ultra-Thin Coated Foil

Current Collector Foil Systems

The matrix below compares bare collectors against ultra-thin coated foils for drone solid-state battery cells:

Key Professional Advantages in Drone Solid-State Battery Applications

Elimination of Micro-Delamination Under Flight Vibration

High-Frequency Vibration Absorption: The viscoelastic carbon/binder matrix acts as an internal shock absorber, preventing motor vibrations (100 Hz - 1,500 Hz) from shaking cathode active materials loose from the collector foil.

Shear Strain Relief During Thermal Cycling: Absorbs lateral expansion strain during high-rate discharge cycles, maintaining unbroken electrical pathways throughout flight missions.

View More >>

Suppression of Dendrites & Localized Thermal Hotspots

Ultra-Uniform Electric Field Distribution: Smooth nano-coatings cover micro-asperities on thin foils, ensuring uniform ion flux across the solid-state electrolyte boundary.

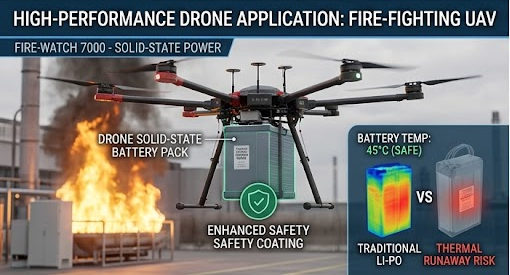

Hotspot Prevention During Burst Discharge: Prevents localized current concentration, reducing peak operating temperatures by 5°C - 12°C during full-throttle drone takeoffs.

View More >>

Maximized Flight Payload & Extended Range

Dead-Weight Reduction: Replacing thick bare foils with ultra-thin 4.5μm - 6μm coated collectors reduces inactive cell mass by up to 8%.

Increased Useful C-Rate Output: Lower interfacial impedance allows drone batteries to sustain continuous 5C–10C discharge rates without hitting thermal voltage cutoff limits.

View More >>

Carbon/Graphene Nano-Conductive Networks

Ultra-thin functional coatings utilize functional nano-carbons suspended in heat-resistant polyimide or PVDF binders:

Sub-Micron Thickness Precision: Applied at thicknesses of 0.5μm - 1.5μm per side, ensuring high electron transport without sacrificing cell energy density.

Low Interface Resistance: Conductive carbon networks bridge the microscopic topography of thin foils, lowering interfacial contact resistance by up to 80%.

Chemical Passivation Against Solid Electrolytes

Sulfide / Halide Degradation Protection: Sulfide-based solid electrolytes (Li₁₀GeP₂S₁₂) can react with bare copper or aluminum at high states of charge. Conductive carbon/resin coatings form an inert barrier that stops chemical corrosion.

Substrate Cleaning & Micro-Surface Activation

High-Speed Corona Discharge Treatment: Ultra-thin aluminum (9μm) and copper (4.5μm) foils undergo online corona or plasma treatment to raise surface energy (>52 dynes/cm).

Ultrasonic Degreasing: Removes surface rolling oils to ensure flawless wetting of water-based carbon nano-slurries.

Micro-Gravure Roll Coating & Precision Drying

Micro-Gravure Coating Precision: High-precision gravure rollers apply ultra-thin functional slurry with sub-micron wet film uniformity (± 0.1μm).

Multi-Zone Tension-Controlled Flotation Drying: Low-tension flotation ovens cure the conductive layer without stretching or wrinkling fragile ultra-thin foils.

Precision Slitting, Cleanroom Inspection & Vacuum Packaging

Laser Slitting & Edge Burr Control: Coated foils are slitted using micro-shear or laser cutters, maintaining strict edge burr limits (≤ 1μm) to prevent short circuits inside solid-state stack cells.

Dry Room Hermetic Packaging: Finished rolls are vacuum-sealed in aluminum foil moisture barrier bags with desiccants inside Class 1,000 cleanroom environments.

FAQ

Q1:Why do solid-state batteries need coated foils more than traditional liquid batteries?

A:Solid-state batteries lack liquid electrolytes to fill microscopic surface gaps. Coated foils provide a flexible, conductive buffer layer that maintains continuous physical and electrical contact across the solid-solid interface during cell expansion and contraction.

Q2:Does adding a coating layer increase the weight of ultra-thin foils?

A:The coating adds only 0.5μm - 1.5μm of lightweight nano-carbon per side (<1.5 g/m²). This minimal mass is far offset by reducing the metallic substrate thickness from 12μm to 6μm, yielding a net cell weight savings of 5%–8%.

Q3:How do coated foils prevent dendrites in lithium-metal solid-state batteries?

A:The nano-conductive primer smooths out microscopic foil surface roughness and micro-burrs, creating a completely uniform electrical field. This prevents localized current concentration that causes lithium dendrite nucleation.

Q4:What is the maximum continuous discharge rate enabled by ultra-thin coated foils?

A:By reducing interfacial impedance (Rᵢₙₜ) by up to 80%, ultra-thin coated foils enable solid-state cells to sustain continuous high discharge rates of 5C to 10C without premature voltage drop or severe thermal buildup.

Q5:How are ultra-thin coated foils protected against tearing during battery winding or stacking?

A:High-tensile substrate alloys (e.g., hard-temper 1235/8011 aluminum or high-strength electrodeposited copper) combined with closed-loop tension-controlled slitting prevent foil tearing during high-speed automated stacking operations.

Conclusion

Adopting ultra-thin coated foil solutions solves the critical solid-solid interface challenge, effectively doubling the safety margin and operational reliability of solid-state drone batteries.

To optimize material selection for drone battery manufacturing:

Mandate Micro-Gravure Carbon-Coated Foils: Specify 0.5μm - 1.0μm nano-carbon primer coatings on 9μm aluminum (cathode) and 4.5μm - 6μm copper (anode) foils.

Require 180° Peel Strength Testing (>350 N/m): Ensure cell manufacturers verify electrode-to-foil adhesion before and after dynamic vibration testing.

Audit Surface Roughness & Burr Limits (≤ 1m): Strictly enforce laser slitting standards to guarantee zero foil burrs that could breach ultra-thin solid electrolyte layers.
