Can Conductive Coated Aluminum Strips Provide Better EMI Shielding for Next-Gen AI Supercomputers?

As next-gen Artificial Intelligence (AI) cluster architectures (such as multi-kW GPU/NPU racks, high-frequency optical interconnects, and high-density liquid-cooled compute blades) scale past 100 GHz operational frequencies, high-power switching noise and localized radio frequency interference (RFI) become major operational threats. High-performance conductive coated aluminum strips address these challenges at the structural, enclosure, and busbar levels.

Compared to traditional untreated aluminum or heavy plated copper solutions, conductive coated aluminum strips provide significantly superior Electromagnetic Interference (EMI) shielding, lower interfacial transfer impedance, higher thermal resilience, and substantial weight savings for next-generation AI supercomputers.

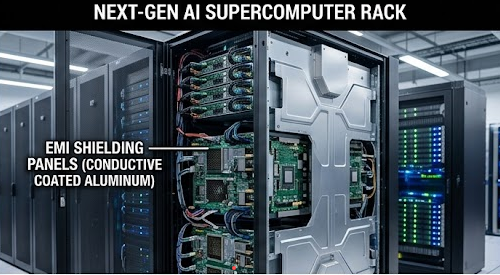

High-Density Compute Architecture & Frequency Scaling

Modern AI supercomputing racks incorporate ultra-dense GPU blades operating with transient currents exceeding thousands of amperes (1000 A+) at low voltages (<1 V):

High C-Rate Power Delivery Noise: Fast-switching point-of-load (PoL) converters introduce high-frequency switching harmonics and electromagnetic noise (10 MHz - 10 GHz).

Aperture & Seam Slot Leakage: At operating frequencies above 40 GHz (e.g., PCIe Gen 6/7 and 800G/1.6T optical transceivers), slot apertures as tiny as 1.5 mm become resonant slot antennas, causing massive cross-talk and data packet degradation.

Comparison: Bare Aluminum Strip vs. Conductive Coated Aluminum Strip

EMI Shielding Strip Solutions

The matrix below compares traditional shielding materials against conductive coated aluminum strips for AI supercomputer applications:

Key Professional Advantages in AI Supercomputer Applications

Broadband EMI Attenuation across Multi-Gigahertz Bands

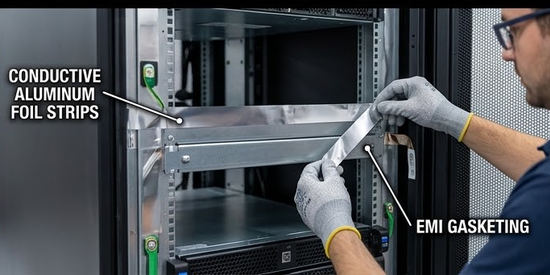

Elimination of High-Frequency Leakage: Continuous conductive coated strips applied along cabinet joints and card-cage slots eliminate RF leakage up to 100 GHz, safeguarding sensitive optical transceiver signals from cross-talk.

Low Transfer Impedance: Smooth surface conductivity maximizes reflection loss and skin-effect absorption across broadband frequencies.

View More >>

Thermal Management & Grounding Integration

Dual Thermal-Electrical Path: Operates as a flexible, high-conductivity grounding busbar and thermal bridge, aiding localized heat dissipation from high-power ASIC voltage regulator modules (VRMs).

Vibration-Resilient Interfacial Contact: Absorbs mechanical vibrations caused by high-RPM server fans and liquid coolant pumps without losing continuous electrical grounding contact.

View More >>

Massive Mass Reduction for High-Density Racks

65% Weight Savings over Copper: Replacing copper shielding strips with conductive coated aluminum reduces total rack weight substantially, enabling higher compute density without exceeding data center floor load capacity limits.

View More >>

Advanced Conductive Polymer & Nano-Metal Systems

Conductive coatings for current-carrying or structural aluminum strips rely on multi-phase conductive networks suspended in high-temperature polymers:

Nano-Silver & Nickel-Clad Graphite Fillers: Provide ultra-high surface conductivity, allowing electromagnetic waves to be reflected and absorbed rapidly via the skin effect at sub-micron depths.

Flexible Polyimide/Resin Binders: Maintain continuous electrical contact even under dynamic thermal cycling (-40°C to +150°C) and physical compression along cabinet seams.

Suppression of Galvanic Coupling

Bimetallic Passivation: Direct contact between bare aluminum and copper chassis or nickel plating creates galvanic couples (>0.15 V potential difference), leading to rapid oxidation. Conductive organic/inorganic coatings isolate the core alloy, preventing interface degradation in high-humidity cleanrooms or direct-to-chip liquid cooling environments.

Substrate Pre-Treatment & Oxide Layer Etching

Chemical Deoxidization & Acid Etching: Strips natural, non-conductive aluminum oxide (Al₂O₃) layers from 1000 (e.g., 1050/1060), 3000, or 5000 series aluminum alloys.Online Continuous Chromate-Free Conversion: Applies an ultra-thin passivation film to preserve surface conductivity prior to primary functional coating deposition.

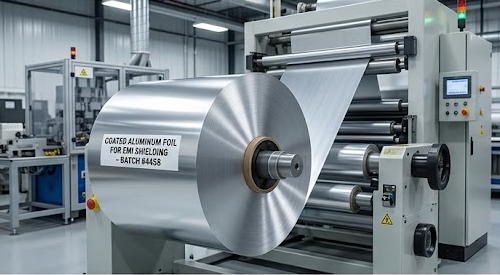

Continuous Roll-to-Roll Precision Coating

Precision Slot-Die / Micro-Gravure Application: Applies functional conductive coatings (2μm - 15μm dry film thickness) with high axial thickness precision (± 0.2μm).

Infrared & UV Dual-Curing: High-speed thermal or photochemical curing locks conductive filler networks into place, ensuring zero flaking during automated punching and bending operations.

Precision Slitting, Tension Control & Packaging

Burr-Free Precision Slitting: High-precision rotary carbide shears ensure edge burrs remain below ≤ 3μm, preventing electrical shorting across tightly packed server backplanes.

Anti-Static Moisture Barrier Packaging: Slit strips are coil-wound with interleave films and hermetically sealed to preserve pristine surface contact resistance during transit.

FAQ

Q1:Why are conductive coated aluminum strips superior to standard anodized aluminum for EMI shielding?

A:Anodized aluminum forms an insulating oxide layer (Al₂O₃) that blocks electrical continuity and degrades EMI shielding performance. Conductive coated aluminum strips replace this oxide with an electrically conductive, low-resistance layer, ensuring continuous grounding and optimal EMI attenuation (>85 dB).

Q2:How do conductive coatings handle thermal cycling inside high-power AI server racks?

A:High-performance conductive coatings utilize flexible polymer binders (such as polyimides or acrylic resins) engineered to match the coefficient of thermal expansion (CTE) of the aluminum substrate, preventing cracking or delamination during temperature spikes up to 150°C.

Q3:Can conductive coated aluminum strips be used in liquid-cooled supercomputers?

A:Yes. The inert conductive coating acts as a physical and chemical barrier against dielectric fluids, water-glycol mixtures, and atmospheric moisture, preventing galvanic corrosion and preserving grounding performance in immersion or direct-to-chip liquid cooling environments.

Q4:How does the weight of conductive coated aluminum compare to traditional copper shielding?

A:Aluminum has a density of approximately 2.7 g/cm³, compared to copper's 8.96 g/cm. Utilizing conductive coated aluminum yields approximately a 65% - 70% mass reduction while providing comparable electromagnetic shielding effectiveness.

Q5:What is the typical surface contact resistance achieved by these coated strips?

A:Precision conductive coated aluminum strips achieve ultra-low surface contact resistance of less than 0.003 - 0.005 Ω cm² under moderate contact pressure, making them ideal for high-frequency grounding and low-loss EMI gaskets.

Conclusion

Conductive coated aluminum strips represent a critical material upgrade for AI supercomputer enclosures, delivering superior broadband EMI shielding, low contact resistance, and significant weight savings.

To optimize material selection for supercomputer manufacturing:

Specify Micro-Gravure Conductive Polymer/Metal Coatings: Mandate 3μm - 8μm silver- or nickel-graphite coated aluminum strips for server chassis seams and busbar grounding interface strips.

Require Low Contact Resistance Verification (<0.005 Ω): Ensure suppliers test interfacial resistance under low compressive loads (<0.5MPa) according to ASTM D257/IEEE-299 standards.

Audit Edge Burr Control (≤ 3μm): Enforce strict shear slitting tolerances to prevent short circuits in high-density rack backplanes and liquid-cooling cold plate boundaries.
