Why is Micro-Flatness Essential in Coated Aluminum Plates for Wafer Handling Robot Shells?

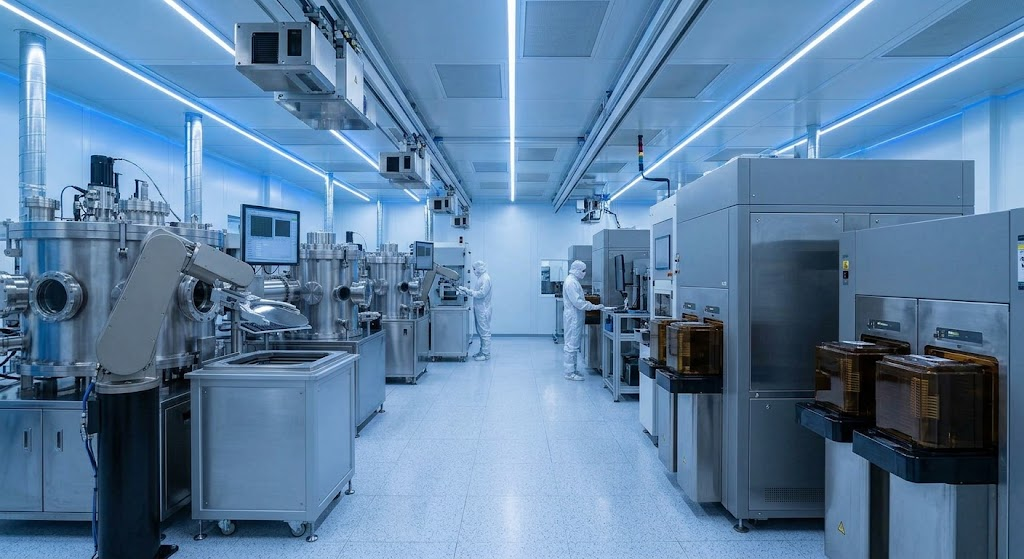

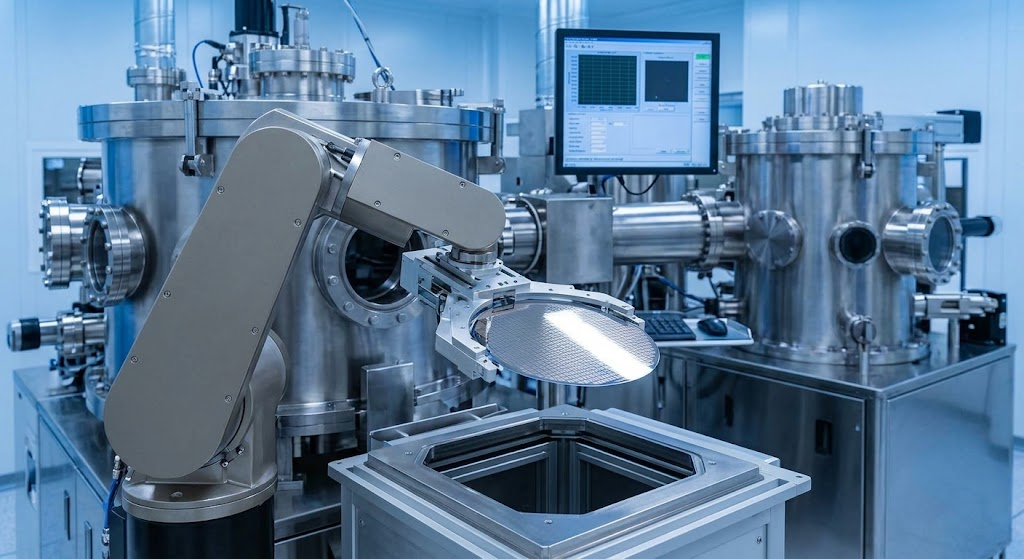

Semiconductor fabrication plants (fabs) rely on automated wafer handling robots to transfer ultra-thin, highly fragile silicon wafers between photolithography, etching, and chemical mechanical planarization (CMP) process tools. Operating inside high-vacuum chambers and ISO Class 1 to Class 5 cleanrooms, these end-effectors and robotic arm enclosures execute extreme acceleration and deceleration profiles with sub-micron positional accuracy.

Any micro-warping, residual internal stress, or surface non-flatness in the robot's outer structural shell causes dynamic vibrational modes, airflow turbulence inside laminar cleanroom chambers, and end-effector alignment drift. Transitioning to micro-flat coated aluminum plates (utilizing stress-relieved, precision-milled alloys such as 5052-H111, 6061-T651, or 7075-T651 with specialized anti-static or low-outgassing protective coatings) ensures absolute structural coplanarity, vibration damping, and cleanroom compliance.

Structural Warping, End-Effector Drift, and Wafer Misalignment

Wafer handling robotic arms move multi-thousand-dollar silicon wafers at high speeds:

Positional Magnification: A tiny micro-flatness defect (~ 0.3 mm) at the arm housing base translates into multi-millimeter positional deviations at the extended end-effector tip, causing catastrophic wafer drop or cassette collision.

Resonant Harmonic Amplification: Non-flat shell covers vibrate under sudden start-stop torque profiles. These parasitic vibrations propagate through the robot chassis, disturbing delicate wafer seating.

Aerodynamic Turbulence & Cleanroom Outgassing

Non-planar shell surfaces compromise cleanroom environmental controls:

Standard Sheet Metal Shell vs. Micro-Flat Coated Aluminum Plate

Cleanroom Airflow Disruption: Micro-waviness on robotic arm shells causes micro-vortices in vertical laminar airflow streams, trapping airborne particulates around exposed silicon wafers.

Outgassing Contamination: Uncoated or poorly finished metal covers shed microscopic oxide dust or trap rolling oils, outgassing organic molecules in vacuum load-locks.

 Wafer Robot Shell Materials

The table below compares key engineering parameters for materials used in semiconductor wafer handling robot housings:

Key Advantages in Wafer Handling Robot Shells

Sub-Micron Wafer Placement & Zero Yield-Loss Transfer

Absolute Coplanarity: High planarity eliminates frame twist during high-speed arm extension, ensuring end-effectors align perfectly with wafer cassette slots without mechanical binding.

Elimination of Wafer Chipping: Smooth, shock-free robotic motion prevents brittle silicon wafer edges from striking guide pins, reducing wafer yield loss during transfer.

View More >>

Suppressed Vibration & Rapid Settling Times

High Damping Capacity: Stress-relieved aluminum plates dissipate structural resonance quickly, shortening the vibration settling time required before a wafer can be safely moved.

Dynamic Balance at High Acceleration: Micro-flat plates maintain structural balance under high angular acceleration (>2 g), preventing localized inertia forces from misaligning sensors.

View More >>

Laminar Cleanroom Airflow & Vacuum Sealing Integrity

Turbulence-Free Airflow: Smooth, micro-flat shell profiles allow down-draft cleanroom air to glide over the robot housing without creating micro-vortices that carry dust particles onto wafers.

Hermetic O-Ring & Vacuum Sealing: Flat perimeter mating faces provide uniform compression across O-ring joints, preventing gas leaks and vacuum degradation inside vacuum load-lock transfer modules.

View More >>

Substrate Selection & Stress-Relief Metallurgy: 6061-T651 & 5052-H11

Eliminating internal material stress is essential before precision CNC milling:

6061-T651 Precision Milled Plate: Stretching the aluminum alloy by 1%–3% after solution heat treatment relieves internal residual stresses. This guarantees zero material movement, bowing, or warping during complex CNC pocketing for lightweight robot shells.

5052-H111 Annealed Substrate: Offers superior intrinsic corrosion resistance and toughness for robotic housings operating around aggressive CMP slurries or chemical etching vapors.

Advanced Anti-Static & Low-Outgassing Coating Systems

Conductive Anodized or Static-Dissipative Coatings: Surface resistivities held within 10⁶ - 10⁹ Ω/sq rapidly bleed off electrostatic charges, preventing electrostatic discharge (ESD) damage to sensitive wafer microcircuits.

Low-VOC Functional Polymeric/Inorganic Lacquers: Applied in controlled cleanroom coating lines to provide a non-porous chemical barrier that survives repeated isopropyl alcohol (IPA) wipe-downs without flaking.

Substrate Stress-Relieving & Dual-Face Precision Milling

Thermal Stress-Relief Annealing: Cast or rolled aluminum slabs undergo controlled thermal soaking to normalize internal grain structures prior to surface finishing.

Dual-Face Diamond Milling: High-speed fly-cutters mill both top and bottom plate faces simultaneously, achieving surface roughness parameters of Ra ≤ 0.2μm and micro-flatness wthin ≤ 0.1 mm/m.

Precision Cleanroom Coating & Curing

Automated Cleanroom Spray/Roller Coating: Applies ultra-uniform protective coatings (10μm - 25μm) under closed-loop film thickness control to maintain strict surface flatness.

Vacuum-Assisted Thermal Oven Curing: High-temperature baking drives off volatile solvents completely, ensuring full resin cross-linking that meets stringent aerospace and vacuum outgassing standards.

CNC Precision Machining, Inspection & Cleanroom Packaging

5-Axis Precision Milling: Robot arm shell mounting points, cable routing channels, and sensor ports are machined using high-precision CNC routers without inducing mechanical stress.

Laser Interferometer Flatness Inspection & Cleanroom Vacuum Packing: Every plate undergoes 3D laser scanning to verify planarity compliance before being cleaned, interleaved with lint-free paper, and vacuum-sealed in anti-static VCI bags.

FAQ

Q1:Why is micro-flatness more critical for wafer handling robot shells than general industrial robot covers?

A:Wafer handling arms extend up to two meters to position silicon wafers with sub-micron accuracy inside cassette slots. Micro-flatness errors at the housing base expand exponentially down the arm length, causing end-effector misalignments and wafer edge damage.

Q2:How does 6061-T651 prevent warping during extensive CNC pocketing?

A:6061-T651 undergoes controlled stretching (1%–3%) after heat treatment, relieving internal residual stresses. When metal is machined away to lightweight the robot shell, the plate remains flat without bowing or twisting.

Q3:What coating thickness is recommended to maintain micro-flatness on precision aluminum plates?

A:Coating thickness should be strictly maintained between 10μm- 25μm using automated closed-loop spraying or roller coating. Non-uniform coating thickness alters surface coplanarity and compromises sensor mounting datums.

Q4:How do micro-flat coated aluminum shells help meet ISO Class 1 cleanroom standards?

A:Micro-flat plates streamline cleanroom down-draft airflow, preventing micro-vortices that trap airborne particles. Additionally, low-outgassing coatings prevent metal flaking and stop organic vapor emissions inside vacuum chambers.

Q5:What protective packaging is required for shipping precision micro-flat aluminum plates?

A:Plates are interleaved with acid-free, non-scratch paper, wrapped in VCI anti-corrosion barrier film with desiccants, vacuum-sealed inside cleanroom bags, and packed flat in heavy-duty non-fumigation wooden cases to avoid transit warpage or impact damage.

Conclusion

Specifying micro-flat coated aluminum plates for wafer handling robot shells ensures maximum positional accuracy, dynamic vibration damping, and total cleanroom reliability.

To optimize material selection for your semiconductor transfer robotics program:

Specify Stretcher-Leveled T651 Tempers: Mandate 6061-T651 or 7075-T651 stress-relieved plates to guarantee dimensional stability during multi-axis CNC machining.

Mandate Sub-Micron Flatness & Roughness Limits: Require laser interferometer verification confirming flatness tolerances within ≤ 0.1mm/m and surface roughness Ra ≤ 0.2μm.

Verify ASTM E595 Vacuum Outgassing Compliance: Ensure static-dissipative or protective functional coatings meet strict aerospace vacuum outgassing benchmarks (TML < 0.10%, CVCM < 0.01%).
