Is Salt Fog Corrosion Ruining Offshore Inspection Drones? How Does PVDF Coating Fix It?

Offshore oil rigs, wind turbines, and marine shipping vessels rely on unmanned aerial vehicles (UAVs) for autonomous visual and ultrasonic structural inspections. Operating in harsh marine environments exposes these inspection drones to constant salt fog, high humidity, wind-driven ocean spray, and intense UV radiation.

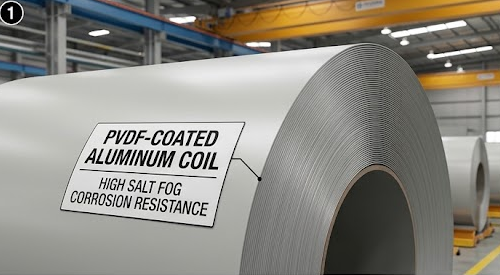

Salt fog—a highly corrosive aerosol of sodium chloride (NaCl), magnesium, and calcium salts—rapidly degrades conventional drone frame materials. Raw or poorly protected aluminum alloys suffer severe pitting and filiform corrosion, while carbon fiber frames experience galvanic corrosion at metallic fasteners and motor mounts. Transitioning to PVDF (Polyvinylidene Fluoride) coated aluminum plates and coils provides a highly durable, chemical-resistant barrier that halts marine corrosion, extends drone lifespan, and ensures flight safety.

The Electrochemistry of Salt Fog Degradation

Offshore inspection drones operate inside an aggressive electrochemical reaction zone:

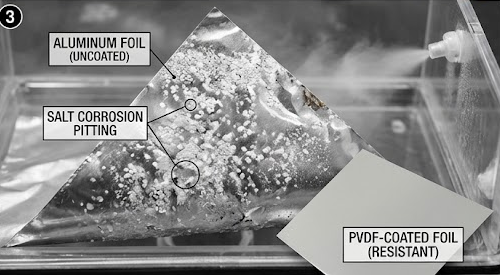

Pitting & Filiform Corrosion: Microscopic salt aerosol droplets settle on aluminum frames, breaking down natural oxide films to form deep pits Al⊃3;⁺ dissolution) that compromise structural yield strength.

Galvanic Corrosion at Fastener Mating Planes: Carbon fiber drone frames paired with aluminum motor mounts create strong galvanic couples, accelerating metal degradation in conductive salt fog environments.

Failure Modes of Traditional Frame Coatings

Standard Anodized/Standard Painted Frame vs. PVDF Coated Aluminum

Micro-Pores in Anodized Layers: Standard anodized coatings contain microscopic pores that trap salt ions, leading to localized pitting under ocean conditions.

UV Degradation & Paint Chalking: Standard polyurethane or epoxy coatings degrade under marine UV radiation, creating micro-cracks that allow salt fog to reach the metal substrate.

Marine Drone Frame Coatings

The table below compares technical parameters of standard coatings vs. PVDF coated aluminum for marine inspection drones:

Key Advantages in Offshore Inspection Drones

FAQ

Q1:Why is salt fog more destructive to inspection drones than regular ocean saltwater spray?

A:Salt fog consists of airborne microscopic droplets (1μm - 10μm) that remain suspended in air currents. These micro-droplets penetrate narrow drone chassis gaps, motor mounts, and screw threads, evaporating into concentrated salt deposits that accelerate pitting corrosion.

Q2:How does PVDF coating prevent galvanic corrosion between carbon fiber arms and aluminum mounts?

A:PVDF fluoropolymer films act as a non-conductive dielectric barrier (>10⊃1;⊃2; Ω·cm). Applying PVDF-coated aluminum between carbon fiber plates and metallic fasteners stops electron transfer, eliminating galvanic corrosion couples.

Q3:Can PVDF pre-coated aluminum sheets undergo CNC milling without paint edge peeling?

A:Yes. Factory-applied PVDF coil coatings feature high flexible cross-link adhesion (5B cross-hatch rating). When cut using sharp carbide CNC routers under proper feed rates, the coating yields clean edges without chipping, peeling, or delaminating.

Q4:How does PVDF coating compare to anodizing for offshore marine aluminum?

A:Anodized oxide layers contain inherent micro-pores that allow salt ions to reach the underlying aluminum over time. PVDF is a dense, non-porous fluoropolymer resin film that completely blocks salt moisture ingress, offering over four times the salt spray resistance of standard anodizing.

Q5:How are PVDF coated aluminum sheets packaged for export to maritime drone factories?

A:Sheets are laminated with UV-resistant low-tack protective PE film, interleaved with moisture-proof paper, vacuum-sealed in VCI anti-corrosion barrier packaging, and secured flat in heavy-duty non-fumigation wooden cases.

Conclusion

Switching from standard anodized or powder-coated frames to PVDF pre-coated marine-grade aluminum plates reliably protects offshore inspection drones against salt fog corrosion.

To optimize material selection for your marine UAV manufacturing program:

Specify 70% Fluoropolymer (PVDF) Resin Systems: Mandate PVDF coil coatings containing at least 70% Kynar 500® or Hylar 5000® resins to ensure maximum marine chemical resistance.

Select Marine-Grade 5052 or 6061 Substrates: Utilize 5052-H32 for bent chassis covers and battery housings; select 6061-T6 for high-stress structural motor arms.

Verify ASTM B117 Salt Spray Testing Compliance: Require material suppliers to provide certified test reports verifying > 2,000 hours of continuous salt fog exposure without blistering or under-film corrosion creep.
