Is It Worth Upgrading from Steel to 5052 Coated Aluminum Plates for Heavy-Duty AGV Chassis?

Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) operating in heavy-manufacturing plants, automotive assembly lines, and logistics warehouses are under constant pressure to extend duty cycles, reduce battery degradation, and increase net payload capacity. Traditionally, structural steel plates (such as Q235, Q355, or A36) have been the go-to material for heavy-duty AGV chassis due to their low raw material cost and high tensile strength.

However, steel's high mass density (7.85 g/cm³) imposes severe energy efficiency penalties. Heavy steel chassis consume excessive battery power during acceleration and braking cycles, requiring larger battery packs, longer charging downtime, and heavier drive motors. Transitioning to 5052 coated aluminum plates—a marine-grade aluminum-magnesium alloy (2.68 g/cm³) featuring pre-applied corrosion-resistant and anti-scratch coatings—provides a 65% chassis mass reduction. This upgrade significantly boosts operating range, lowers drive motor wear, and delivers a fast Return on Investment (ROI) despite higher upfront material costs.

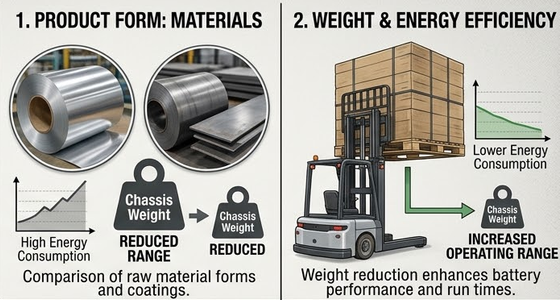

The Hidden Energy Cost of Steel Deadweight

In automated material handling, every kilogram of parasitic chassis weight reduces operational efficiency:

Inertial Energy Losses during Acceleration/Deceleration: AGVs perform thousands of start-stop maneuvers daily. Accelerating a heavy steel frame drains peak current from lithium-ion batteries, accelerating cell thermal degradation.

Drive Component Strain: Heavier frames require larger drive wheel motors, heavy-duty gearboxes, and reinforced suspension systems, increasing overall bill-of-materials (BOM) cost and maintenance frequency.

The Economic Shift: Steel vs. Pre-Coated 5052 Aluminum

Heavy Structural Steel Chassis vs. 5052 Pre-Coated Aluminum Chassis

Battery Duty-Cycle Extension: Reducing chassis dry weight enables OEMs to either downsize battery capacity for lower initial cost or maintain battery size to achieve multi-shift operational runtimes.

Elimination of Paint Booth Bottlenecks: Post-weld spray painting of large steel chassis frames is slow and environment-intensive. Pre-coated aluminum plates bypass paint booths entirely.

Structural Chassis Materials

The table below compares key engineering parameters for structural materials used in heavy-duty AGV chassis manufacturing:

Key Performance Advantages in AGV/AMR Chassis Applications

Maximized Payload Capacity & Range Extension

Increased Net Payload: Lowering structural chassis deadweight translates directly into higher payload capacity, allowing smaller AGVs to haul heavier factory pallets.

25%+ Duty-Cycle Boost: Less chassis mass means lower energy consumption per kilometer, extending operating time between charging cycles and boosting warehouse throughput.

View More >>

Accelerated Manufacturing Lead Times & Cost Savings

Direct Assembly from CNC Cutting: Pre-coated 5052 aluminum sheets are laser-cut, bent, and assembled directly into the AGV frame using mechanical fasteners or rivets, cutting production cycle times by up to 40%.

Zero Painting CapEx: Eliminates capital investments, maintenance costs, and environmental compliance headaches associated with operating in-house paint booths.

View More >>

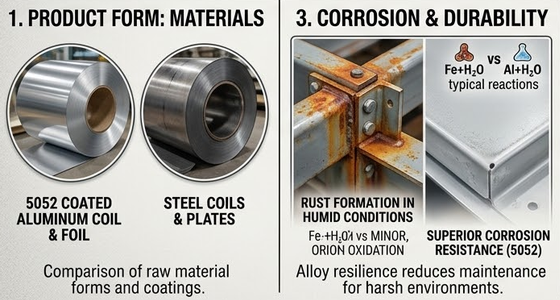

Long-Term Corrosion Resistance & Low Maintenance

No Flaking or Under-Film Rust: Unlike steel, which corrodes beneath paint scratches, 5052 aluminum naturally forms a protective oxide layer if scratched, preventing rust creep.

Durable Industrial Aesthetics: Factory-applied coatings keep AGV fleets looking professional even in harsh manufacturing environments subject to impacts and chemical spills.

View More >>

Substrate Metallurgy: Marine-Grade 5052-H32 / H34

5052 aluminum is an Al-Mg alloy (~ 2.2% - 2.8% Mg) designed for high structural toughness and workability:

High Strength-to-Weight Ratio: Yield strength of 5052-H32 (≥ 193 MPa) provides robust structural rigidity for load-bearing bottom plates, motor mounting sub-frames, and outer protective cowlings.

Excellent Workability & Crack Resistance: Unlike harder 6061-T6 alloys that can crack during tight-radius bending, 5052 handles cold forming, deep drawing, and laser cutting with ease.

Factory-Applied Functional Coating Systems

Polyurethane (PU) / High-Durable Polyester (HDP) Topcoats: Applied via reverse roll-coating under strict cleanroom conditions, offering 20μm - 30μm of scratch-resistant, impact-absorbing armor.

Chemical & Acid Immunity: Pre-coated finishes protect the underlying aluminum substrate against battery electrolyte leaks, hydraulic fluid spills, grease, and aggressive cleanroom cleaning agents.

Substrate Cleaning & Micro-Chemical Conversion

Multi-Stage Surface Etching: Raw 5052 coils undergo high-pressure alkaline cleaning and deoxidizing baths to create a pristine metallic surface.

Titanium-Zirconium Conversion Coating: Replaces traditional chromate treatments with an eco-friendly nanometer conversion layer that forms covalent bonds with organic paint resins.

Continuous Roller Coating & Curing

Closed-Loop Precision Coating: Automated roll coaters ensure uniform coating thickness (± 1μm) across the entire plate width, preventing thin spots that cause premature corrosion.

High-Temperature Flotation Oven Curing: Thermally cross-links paint polymers to guarantee high coating flexibility, allowing plates to undergo 90-degree CNC press-brake bending without cracking or delaminating.

CNC Fiber Laser Cutting, Bending & Clean Packaging

High-Speed Fiber Laser Processing: Pre-coated 5052 plates cut cleanly under nitrogen assist gas, producing burr-free edges without thermal damage to the surrounding painted surface.

Protective Film Lamination & Export Packing: Sheets are laminated with low-tack, UV-resistant protective PE film and packed in heavy-duty wooden skids with VCI anti-corrosion barrier wrap.

FAQ

Q1:Is 5052 aluminum strong enough to replace steel in heavy-duty load-bearing AGV chassis?

A:Yes. While structural steel has higher raw yield strength, 5052-H32 aluminum (≥ 193 MPa) provides more than enough strength when structural stiffeners, formed flanges, and ribbed geometry are incorporated into the chassis design. The result is a rigid chassis that weighs 65% less than steel.

Q2:Can pre-coated 5052 aluminum plates be bent without damaging the painted surface?

A:Yes. High-quality coil coatings use flexible cross-linked polymers engineered to survive tight radius press-brake bending (≤ 1T-2T). The paint stretches smoothly around bend lines without cracking, flaking, or losing adhesion.

Q3:How do pre-coated aluminum plates handle welding during AGV chassis assembly?

A:While pre-coated plates can be spot-welded or TIG-welded by removing paint at joint locations, the industry best practice is using mechanical joining—such as structural rivets, Huck bolts, or self-clinching nuts. This preserves the factory coating, speeds up assembly, and avoids thermal distortion.

Q4:How does upgrading to 5052 aluminum lower the total cost of ownership (TCO) for AGV end-users?

A:Weight reduction lowers power consumption, extends lithium battery lifespan, reduces tire and drive-motor wear, and increases payload capacity per trip. Over the AGV's operational lifespan, these energy and maintenance savings far outweigh the higher initial material cost of aluminum.

Q5:What packaging is used to protect pre-coated 5052 plates during international transit?

A:Plates are laminated with low-tack UV-resistant protective PE film, interleaved with moisture-proof paper, wrapped in VCI anti-corrosion barrier film with desiccants, and secured flat on heavy-duty non-fumigation wooden skids for export delivery.

Conclusion

Upgrading from heavy structural steel to 5052 pre-coated aluminum plates is highly cost-effective for heavy-duty AGV chassis manufacturing, balancing dramatic weight savings with streamlined production workflows.

To optimize material selection for your AGV/AMR manufacturing program:

Specify 5052-H32 for Formed Chassis Panels: Select 5052-H32 temper for bent chassis plates, motor covers, and battery compartments to ensure high formability without micro-cracking.

Mandate Factory-Applied Flexible Coatings: Require high-durability polyester (HDP) or polyurethane coil coatings rated for a T-bend rating of ≤ 1T-2T to ensure paint integrity across sharp press-brake bends.

Use Structural Mechanical Fastening & Riveting: Pair pre-coated aluminum plates with structural blind rivets, self-clinching fasteners, or bolt-together assembly to maximize production speed without burning off protective coatings through welding.
