Why Does Coating Peel Off Humanoid Robot Shells Under High Frequency Vibration?

Humanoid robots—operating in industrial assembly lines, disaster response, and logistics handling—experience complex dynamic stresses. High-speed servo motors, harmonic drive gearboxes, and bipedal foot impacts generate continuous high-frequency vibrations (100 Hz - 2,000 Hz) throughout the robot's outer shell and limb covers.

When standard rigid industrial coatings or poorly pre-treated paints are applied to aluminum (such as 6061-T6 or 5052-H32) or composite robot shells, these high-frequency micro-vibrations trigger rapid film delamination, micro-cracking, and paint peeling. Preventing coating failure requires understanding the shear stress dynamics at the paint-metal interface and transitioning to vibration-resistant, highly flexible polyurethane or epoxy coil/spray coatings with nanometer pre-treatment conversion layers.

Dynamic Resonance & Interfacial Shear Stress

Humanoid robot shells act as sounding boards for internal motor frequencies:

Micro-Flexing and Standing Waves: High-frequency harmonic drives create localized standing waves across thin shell covers. These micro-deflections generate cyclic shear stresses directly at the coating-substrate boundary.

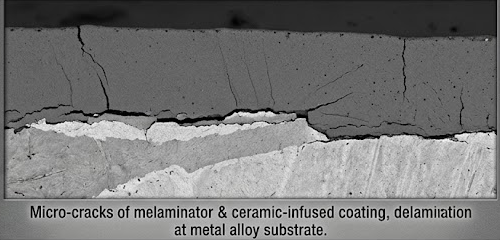

Interlayer Delamination: If paint layers lack sufficient viscoelastic damping, repetitive mechanical cycles fracture the mechanical anchor points, causing the film to blister and flake off.

Thermal & Modulus Mismatch (Δ E and Δ α)

Vibration combines with thermal expansion to accelerate coating failure:

Rigid Industrial Coating vs. Flexible Vibration-Resistant Coating

Elasticity Mismatch: Rigid epoxy or standard powders have a high elastic modulus (E). Under vibration, the aluminum substrate flexes while the brittle paint cannot, causing immediate stress concentration and cracking.

Interfacial Micro-Voids: Poor surface preparation leaves microscopic oil or air voids beneath the paint film, providing initiation points for dynamic stress cracks.

Coating Systems Under Vibration

The table below compares technical parameters of standard industrial paint vs. vibration-resistant flexible coatings for robotic shells:

Key Advantages in Humanoid Robot Shells

Dynamic Vibration Damping & Zero Delamination

Acoustic Energy Dissipation: Flexible viscoelastic coatings act as thin-film vibration dampers, absorbing high-frequency motor harmonics before they cause structural resonance.

Zero Edge Flaking: Superior cross-linked adhesion prevents paint peeling along CNC-cut mounting holes, sensor openings, and panel joints during continuous robot operation.

View More >>

Lightweight Aesthetics & Scratch Resilience

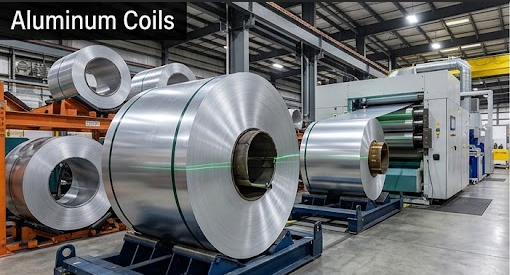

Consistent Ultra-Thin Film Thickness: Pre-coated aluminum coil processes ensure uniform paint thickness (20μm - 30μm), avoiding heavy paint drips that add unnecessary deadweight to moving robot limbs.

Impact & Abrasion Protection: Elastomeric formulations resist scratching and chipping during limb collisions, tool contact, or high-speed bipedal falls.

View More >>

Chemical Protection Against Hydraulic & Lubricant Leaks

Immunity to Motor Oils & Greases: Prevents chemical softening or bubbling when exposed to joint gear lubricants, hydraulic oils, or industrial cleaning solvents.

Corrosion Resistance: Fully sealed polyurethane/HDP barrier coatings prevent moisture ingress, protecting raw aluminum substrates against filiform corrosion in outdoor environments.

View More >>

Substrate Metallurgy & Conversion Layers

Achieving zero-peeling performance starts at the metallic surface boundary:

Chemical Conversion Pre-Treatment: Raw aluminum alloys naturally form a weak, powdery oxide layer. Replacing this with a dense titanium-zirconium conversion layer forms strong chemical covalent bonds with organic paint resins.

Alloy Selection (5052 vs. 6061): Marine-grade 5052 aluminum provides superior intrinsic surface ductility, providing an optimal foundation for vibration-resistant coatings.

Viscoelastic & Elastomeric Polymer Formulations

Polyurethane-Modified Polyols (PU): Viscoelastic polyurethane coatings exhibit high elongation-at-break (>100%) and low glass transition temperatures (T��), allowing the paint to stretch and recover rapidly during vibration.

Fluoro-Elastomer & Polyurea Hybrid Finishes: Applied via continuous roll-coating or automated precision sprayers to provide extreme abrasion resistance, high impact toughness, and flexibility under intense mechanical shock.

Substrate Surface Activation & Chemical Etching

Alkaline Degreasing & Acid Micro-Etching: Removes rolling oils, silicon residues, and weak natural oxides to expose a clean, high-energy aluminum surface.

Nanometer Zirconium Pre-Treatment: Creates a uniform chemical anchor layer (20 nm - 50 nm) that maximizes inter-coat adhesion and stops under-film oxidation creep.

Continuous Roller/Spray Coating & Thermal Cross-Linking

Dual-Layer Primer & Topcoat Application: A flexible polyurethane primer (5μm - 10μm) absorbs vibration energy, while a hard, chemical-resistant topcoat (15μm - 25μm) shields against scratches and oil spills.

Flotation Oven Thermal Curing: Precision oven baking ensures complete polymer cross-linking without leaving trapped solvents that create microscopic internal voids.

Ultrasonic Testing, CNC Machining & Clean Packaging

Cross-Hatch & Ultrasonic Adhesion Testing: Manufactured sheets undergo rigorous cross-hatch tape testing (ASTM D3359 5B standard) and high-frequency acoustic bath testing to verify zero coating flaking.

Low-Tack Film Lamination & Export Packing: Pre-coated sheets are laminated with protective PE film, interleaved with acid-free paper, and packed in non-fumigation wooden cases to ensure scratch-free arrival.

FAQ

Q1Why do standard powder coatings peel off robot arm covers so quickly?

A:Standard powder coatings cure into rigid, high-modulus polymer networks with low elongation-at-break (<5%). High-frequency vibrations from servo motors induce cyclic interfacial shear stresses that quickly fracture the brittle paint film, leading to rapid peeling.

Q2:How does a flexible polyurethane primer prevent vibration delamination?

A:Flexible polyurethane primers possess viscoelastic properties that absorb high-frequency vibrational energy. Acting as a mechanical shock absorber between the aluminum substrate and topcoat, the primer dissipates dynamic stress waves before they can break interfacial bonds.

Q3:Can pre-coated aluminum sheets with flexible coatings be CNC machined without edge chipping?

A:Yes. Pre-coated aluminum sheets using high-adhesion polyurethane coatings feature a 5B cross-hatch rating. When routed with sharp carbide tools at high RPMs, the paint cuts cleanly without micro-chipping or flaking along the cut edges.

Q4:How does surface oil contamination cause paint peeling during robot manufacturing?

A:Rolling oils or machining fluids left on raw aluminum act as physical barrier contaminants, preventing paint resins from forming molecular bonds with the metal substrate. Unbonded paint film pockets easily blister and peel under cyclic vibration.

Q5:What protective packaging is required for shipping pre-coated aluminum sheets for robot shells?

A:Pre-coated sheets are laminated with low-tack UV protective PE film, vacuum-packed with desiccants in VCI anti-corrosion barrier bags, interleaved with neutral paper, and shipped flat in heavy-duty non-fumigation wooden cases.

Conclusion

Eliminating coating peel-off on humanoid robot shells requires switching from rigid post-fabrication paints to high-adhesion, viscoelastic pre-coated aluminum plates and flexible coatings.

To optimize material selection for your humanoid robotics program:

Mandate Pre-Coated Flexible Polyurethane (PU) Systems: Specify flexible polyurethane or high-durability polyester (HDP) coatings engineered for extreme flexibility (≤0T-1T bend rating).

Require Chemical Conversion Pre-Treatment: Ensure raw aluminum substrates undergo titanium-zirconium nanometer conversion to guarantee ASTM D3359 5B cross-hatch adhesion ratings.

Validate Under Accelerated Vibration Testing: Subject pre-coated shell prototypes to multi-axis acoustic vibration testing (100 Hz-2,000 Hz for 100+ hours) to verify zero paint delamination prior to mass production.
