Can Coated Aluminum Replace Carbon Fiber in Drone Frame Manufacturing to Cut Costs by 40%?

Unmanned Aerial Vehicle (UAV) manufacturers—producing commercial delivery drones, agricultural sprayers, and industrial inspection quadcopters—face intense pressure to lower unit production costs without sacrificing structural integrity, payload capacity, or flight times. Historically, carbon fiber reinforced polymer (CFRP) has been the dominant frame material due to its exceptionally high strength-to-weight ratio. However, expensive raw carbon fibers, labor-intensive autoclave curing cycles, and high scrap rates make CFRP frames a major cost bottleneck.

Transitioning to high-strength coated aluminum alloys (utilizing aerospace-grade 2024, 6061, or 7075 pre-painted sheets and coils with specialized corrosion-resistant and anti-vibration coatings) allows UAV manufacturers to achieve up to a 40% reduction in total frame manufacturing costs. By leveraging automated stamping, CNC routing, and fast roll-to-roll coil coating, aluminum offers a cost-effective, scalable, and crash-resistant alternative for mass-produced commercial drones.

Composite Manufacturing Bottlenecks in CFRP Frames

Carbon fiber drone frames carry heavy cost penalties across raw material sourcing and assembly steps:

High Raw Material & Processing Overhead: Carbon fiber prepreg requires expensive precursor chemicals, specialized cold-storage transportation, and lengthy autoclave press cycles.

Labor-Intensive Preform Layup: Manual labor or slow automated fiber placement (AFP) limits daily frame production output, driving up labor costs per unit.

The Economic Case for Coated Aluminum Frame Stamping

High-strength pre-coated aluminum sheet metal reverses these cost bottlenecks:

Carbon Fiber (CFRP) Frame vs. Coated Aluminum Frame Economics

Raw Material Cost Savings: Aerospace-grade aluminum alloy sheet costs roughly 10%–15% of structural CFRP raw materials per kilogram.

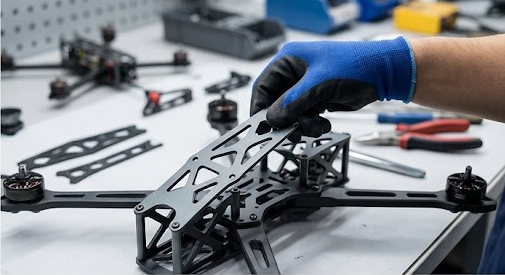

High-Speed Stamping & Milling: Automated CNC routers and stamping presses process complete drone arms, motor mounts, and chassis plates in seconds rather than hours.

 Drone Frame Material Comparison

The table below compares key engineering and cost parameters between Carbon Fiber and Coated Aluminum in drone frame manufacturing:

Key Advantages in Drone Frame Manufacturing

Achieving the 40% Manufacturing Cost Reduction

Elimination of Post-Fabrication Paint Lines: Pre-coated aluminum sheets arrive ready for stamping and milling, cutting capital expenditure on manual spray booths and drying ovens.

Drastic Reduction in Scrap Costs: Off-cut aluminum scrap from CNC routing is 100% recyclable with high scrap-metal return value, unlike non-recyclable cured carbon fiber waste.

View More >>

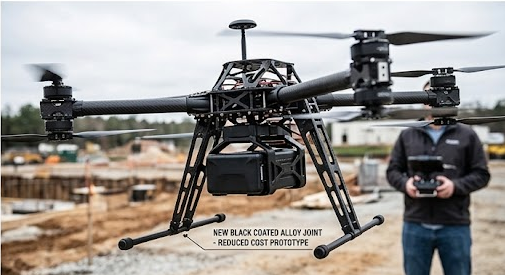

Crash Energy Absorption & Structural Repairability

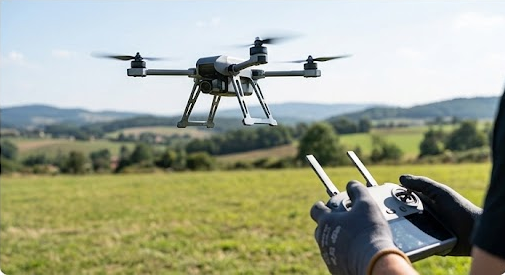

Plastic Deformation Energy Dissipation: In high-speed crash landings, aluminum frame arms bend and absorb kinetic energy, protecting expensive gimbal cameras, flight controllers, and batteries.

Field Repairability: Bent aluminum frame components can often be straightened or replaced cheaply, reducing fleet maintenance downtime for commercial drone operators.

View More >>

Integrated EMI Shielding & Weather Resilience

Inherent Faraday Cage Protection: The metallic aluminum chassis blocks external RF interference and motor electrical noise, improving GPS lock accuracy and telemetry link reliability.

All-Weather Chemical Protection: Factory-applied coatings protect the structural frame against fertilizer corrosion in agricultural spraying drones and salt corrosion in marine inspection missions.

View More >>

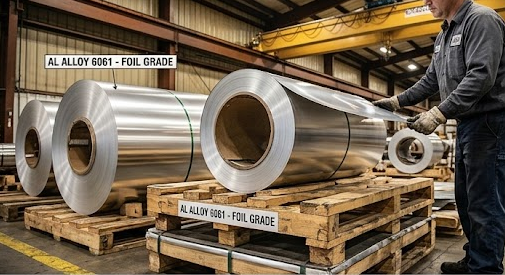

Substrate Alloy Selection: 2024-T3, 6061-T6 & 7075-T6

Selecting the appropriate aluminum alloy balances structural stiffness, yield strength, and total weight:

6061-T6 Structural Alloy: Offers balanced yield strength (≥ 240 MPa), high formability, and superior corrosion resistance for utility drone chassis plates.

7075-T6 High-Yield Alloy: Delivers extreme tensile yield strength (≥ 500 MPa)—rivaling structural steel—making it suitable for high-stress motor arms and landing gear struts.

Protective & Functional Coil Coating Chemistry

Fluorocarbon (PVDF) / Polyurethane (PU) Hard Coats: Applied continuously via roll-coaters to protect raw aluminum against UV exposure, agricultural chemicals, and saltwater spray.

Anti-Vibration Damping & Conductive Coatings: Specialized elastomeric bottom coats dampen motor harmonic vibrations, while conductive surface primers preserve EMI grounding across metal chassis panels.

Coil Cleaning & Pre-Treatment

Multi-Stage Automated Degreasing: Removes all rolling lubricants and oxidation films through sequential chemical wash stages.

Non-Chromate Conversion Layer: Applies a zirconium-based nanometer conversion coating to optimize paint adhesion and prevent filiform corrosion along raw metal cut edges.

Continuous Roller Coating & High-Velocity Curing

Closed-Loop Precision Coating: Roller coaters apply uniform primer and topcoat film thicknesses (15μm - 35μm) across the entire aluminum coil width.

Flotation Oven Curing: High-velocity heated air ovens cure the coating in seconds without physical roll contact, ensuring a void-free, highly durable surface.

CNC Router Milling, Stamping & Clean Packaging

High-Speed Fiber Laser & CNC Milling: Blank plates and frame arms are cut with tight edge burr limits (≤5% of gauge), eliminating manual deburring.

Protective Film Lamination & Packing: Finished pre-coated aluminum sheets are laminated with low-tack PE protective film and packaged flat in wooden cases for export delivery.

FAQ

Q1:Will switching from carbon fiber to aluminum significantly increase overall drone weight?

A:While aluminum has a higher density (2.70 g/cm³) than carbon fiber (1.55 g/cm³), strategic CNC pocketing, thinner wall gauges, and high-yield alloys (7075-T6) allow engineers to design aluminum frames that are only 10%–15% heavier overall, while reducing manufacturing costs by 40%.

Q2:Can pre-coated aluminum sheet withstand CNC routing without paint flaking along cut edges?

A:Yes. Space- and aerospace-grade polyurethane and PVDF coil coatings feature flexible cross-linked binders. When routed with sharp carbide tools at high RPMs, the coating yields clean cut edges without chipping, peeling, or micro-flaking.

Q3:How does aluminum compare to carbon fiber in terms of motor vibration damping?

A:Carbon fiber is stiff and can amplify motor harmonics into flight controller gyroscopes. Coated aluminum exhibits better intrinsic material damping, which can be enhanced by applying elastomeric dampening coatings on interior frame mating surfaces.

Q4:Is pre-coated aluminum suitable for agricultural spraying drones exposed to chemicals?

A:Yes. Advanced PVDF and PU coil coatings provide excellent chemical barrier protection against harsh pesticides, liquid fertilizers, and humidity, preventing surface pitting and chemical corrosion.

Q5:How are pre-coated aluminum sheets packaged to prevent scratching during shipment?

A:Sheets are laminated with a low-tack, UV-resistant protective PE film, vacuum-packed with desiccants in VCI anti-corrosion wrap, interleaved with neutral paper, and shipped flat in heavy-duty non-fumigation wooden cases.

Conclusion

Replacing carbon fiber with coated aluminum sheets and coils in commercial drone frame manufacturing provides a reliable path to cutting overall production costs by up to 40%.

To optimize material selection for your UAV manufacturing program:

Match Alloy Grade to Frame Component Stress: Utilize 6061-T6 for main chassis plates and utility covers; specify high-yield 7075-T6 or 2024-T3 for high-stress motor arms and landing gear legs.

Specify Pre-Coated Coil Stock for Scalability: Purchase pre-painted aluminum sheet stock with high T-bend ratings (≤ 1T-2T) to ensure coatings do not crack or delaminate during bending and CNC stamping operations.

Optimize Weight via Strategic Lightweighting: Incorporate topological pocketing and truss-style cutouts during CNC routing to minimize aluminum mass while preserving structural rigidity.
