Does Micro-Embossed Coated Foil Enhance Gas-Liquid Flow Distribution Inside High-Pressure Water Electrolyzers?

As global industrial powers accelerate multi-gigawatt green hydrogen infrastructure to secure energy independence and decarbonize heavy manufacturing, high-pressure water electrolysis (operating at 30 bar to 50 bar) has become the gold standard. High-pressure operation eliminates the need for external mechanical hydrogen compressors, saving millions of dollars in downstream capital equipment and parasitic electricity consumption.

However, operating at high current densities under high pressure introduces a severe fluid dynamics bottleneck: two-phase gas-liquid maldistribution. As oxygen and hydrogen gases evolve rapidly on catalyst surfaces, micro-bubbles coalesce into dense gas curtains that cling to flat bipolar plates and flow screens. This "bubble pinning" blocks liquid water from reaching the reaction layer, creating localized hot spots, accelerating membrane degradation, and triggering steep cell voltage penalties. Historically, stack builders relied on expensive CNC-milled titanium mesh or flat platinum-group-metal (PGM) coated titanium foils, which fail to guide gas evacuation efficiently and carry volatile raw material price surcharges.

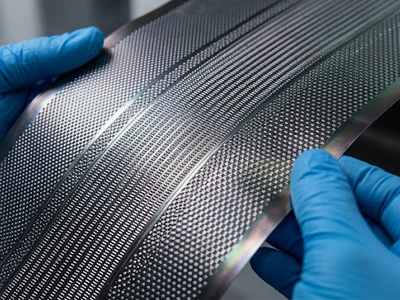

Micro-embossed coated aluminum foil delivers a proven, high-throughput manufacturing solution to this challenge. Produced via continuous, high-precision coil embossing and finished with chemically inert, conductive protective lacquers, this engineered foil incorporates continuous micro-capillary flow tracks. It forces rapid bubble detachment, ensures uniform electrolyte replenishment, eliminates parasitic cell overpotentials, and cuts flow-distribution component costs by over 60% compared to titanium assemblies.

High-Purity Aluminum Foil as a Structural Flow Substrate

High-pressure electrolyzer cells demand dimensional uniformity and high thermal conductivity across tight cell pitches:

1000/8000 Series High-Purity Core: Annealed and stabilized aluminum foil (gauges from 0.08 mm to 0.3 mm) provides exceptional elongation and surface ductility, allowing precise micro-groove or stucco embossing patterns without micro-tearing or pinhole generation.

Rapid Heat Transfer Against Localized Hot Spots: Aluminum delivers bulk thermal conductivity over 210 W/m·K—more than thirteen times higher than Grade 2 Titanium (~16 W/m·K). Under high-current-density operation, the foil pulls heat away from gas-pocket zones instantly, protecting the membrane-electrode assembly (MEA) from localized thermal thinning.

Immunity to High-Pressure Hydrogen Embrittlement: Unlike ferritic stainless steels that suffer catastrophic embrittlement under 30 bar to 50 bar wet hydrogen exposure, aluminum's face-centered cubic lattice remains completely ductile and crack-resistant across decades of pressurized service.

Functional Conductive & Inert Barrier Coatings

Raw metal must never contact acidic or alkaline electrolyte streams directly:

Pinhole-Free Conductive Polymer Matrices: For cathode-side and bipolar interfaces, conductive lacquers embedded with sub-micron metallic particles maintain low Interfacial Contact Resistance (ICR under 5 mΩ·cm²), preventing the formation of native, non-conductive aluminum oxide films.

Alkali/Acid Chemical Isolation: For alkaline or AEM water systems, specialized thermoset polymer barriers resist continuous hot electrolyte immersion (60°C to 80°C) without swelling, blistering, or flaking, ensuring long-term chemical containment.

Technical Validation & Practical Performance

Global Clean Energy Vision & B2B Commercial Payoff

Powering Sovereign Green Hydrogen Independence

Unlocking Domestic Gigawatt Manufacturing: The global transition to clean hydrogen requires mass-producible, domestic equipment supply chains. Moving away from scarce, high-cost titanium to scalable, coil-processed aluminum removes a major supply bottleneck, empowering manufacturers to scale local electrolyzer production rapidly.

Lowering Levelized Cost of Hydrogen (LCOH): By eliminating cell bubble blanketing, micro-embossed foils reduce stack electrical consumption. Paired with a 60%+ reduction in flow-distribution component costs, this advancement helps project developers reach grid-parity green hydrogen targets years ahead of schedule.

View More >>

Workshop Throughput & Zero-Die-Wear Economics

Bypassing the Stamping Press Bottleneck: Fabricating flow fields traditionally requires heavy progressive stamping presses that suffer from high tool wear and die chipping. Micro-embossed foil arrives pre-patterned and pre-coated on coils, allowing fabricators to shear and laser-cut directly for immediate stack assembly.

Reduced Scrap and Edge Cracking: High-ductility aluminum foil conforms to cell boundaries without springback, cutting edge trimming scrap from typical 15% stamping rates down to under 2%.

View More >>

Fleet Longevity & Maintenance-Free Operations

Infinitely Recyclable Green Metal: Aluminum is one of the world's most recycled industrial metals, requiring only 5% of the energy needed for primary production when recycled. Utilizing recyclable aluminum aligns with European and global corporate ESG mandates, eliminating the high embodied carbon of titanium.

Prevention of Premature Membrane Failures: By ensuring continuous liquid coverage and rapid heat dissipation, the embossed surface prevents the localized hot spots that cause pinhole membrane breaches, enabling stacks to run 40,000 to 60,000 hours without maintenance.

View More >>

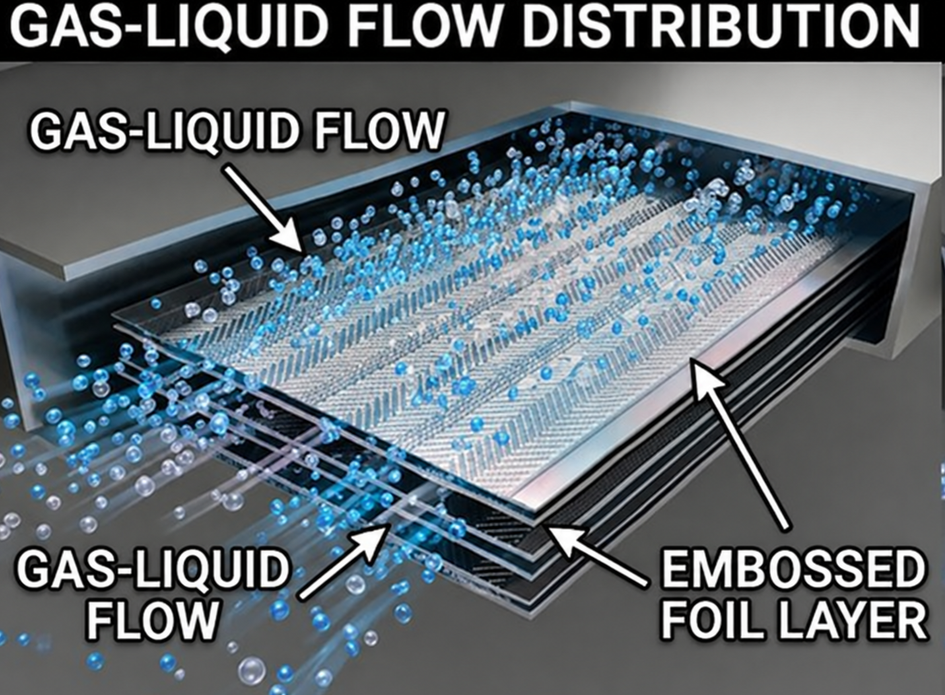

The Physics of Bubble Pinning vs. Micro-Channel Ejection

In high-pressure electrolysis, bubble behavior dictates cell electrical efficiency:

The Stagnant Boundary Trap: On flat foil surfaces, surface tension causes evolving gas bubbles to flatten and stick. These micro-bubbles merge into an insulating gas layer that covers active catalyst areas, driving up electrical resistance and spiking cell voltage.

Capillary-Driven Bubble Departure: The three-dimensional peaks and valleys of micro-embossed foil create localized Laplace pressure gradients. Liquid electrolyte is drawn into the micro-troughs via capillary action, rolling gas bubbles off the surface and ejecting them into the bulk circulation stream.

Prevention of Starvation & Dryout: By maintaining continuous liquid wetting pathways beneath the departing bubbles, the embossed structure ensures that deionized water or dilute lye reaches catalyst sites evenly across the entire active area, eliminating mass-transport starvation.

Pressure Drop & Flow Uniformity Across Large Cell Formats

Balanced Hydraulic Manifolding: As stack formats scale past 1,000 mm × 1,000 mm, flat foils cause fluid channeling where liquid bypasses cell corners. Micro-embossed textures create engineered, isotropic micro-flow resistance that balances fluid distribution evenly across the entire plate surface without requiring oversized circulation pumps.

Continuous Coil Degreasing & Nano-Pretreatment

Multi-Stage Non-Etch Degreasing: Ultra-thin coil stock passes through continuous cleaning lines to strip residual rolling lubricants, ensuring a pristine substrate for coating adhesion.

Automated Nano-Passivation: Applies an inorganic zirconium-titanium conversion layer across the web, raising surface wetting tension above 56 dynes/cm to establish permanent bonding before mechanical forming.

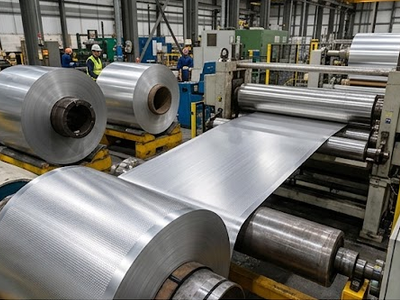

High-Precision Roll-to-Roll Embossing & Coating Application

Synchronized Micro-Embossing Cylinders: High-precision laser-engraved calender rolls impart consistent micro-textures (depth tolerances within ±2 µm) across strip widths up to 1,600 mm without pinching or thinning the base foil.

Continuous Reverse-Roll Lacquering: Liquid barrier or conductive coatings are applied in-line inside filtered cleanrooms, holding dry film thickness strictly within 8 µm to 15 µm to deliver complete coverage over embossed peaks and valleys alike.

Zero-Defect Forming & Hydrodynamic Verification

Zero-Micro-Fracture Flexibility Audits: Finished coil lots undergo 0T to 1T tight-crease testing and optical microscopy to verify that the protective coating has not cracked or micro-crazed along the sharp radii of the embossed peaks.

Two-Phase Contact Angle Audits: Production witness coupons undergo contact angle and bubble-detachment testing in pressurized fluid chambers to verify high wetting velocity and instant gas-release performance before final slitting.

FAQ

Q1:How does a micro-embossed surface improve gas evacuation compared to a flat sheet?

A:On flat surfaces, bubbles cling due to surface tension, forming large gas blankets that block fluid contact. The peaks and valleys of micro-embossed foil create capillary channels that draw liquid beneath the bubbles, peeling them off the plate surface and ejecting them into the main fluid flow.

Q2:Can aluminum foil withstand the high pressure (30 bar to 50 bar) inside an electrolyzer?

A:Yes. The pressure inside an operating electrolyzer is balanced hydrostatically across the cell stack. The foil acts as an internal flow-guiding and shielding membrane supported by structural bipolar plates, meaning it experiences differential fluid flow forces rather than unsupported pressure rupture loads.

Q3:Does mechanical roll-embossing damage or crack the protective surface coating?

A:No, provided factory pre-coated stock with flexible thermoset polymer systems is used. The coating is formulated to undergo 0T to 1T deformation, stretching with the aluminum substrate during embossing without micro-fissuring, flaking, or losing adhesion.

Q4:How does switching from titanium to micro-embossed aluminum lower production costs?

A:Micro-embossed aluminum reduces raw material costs by over 60%, eliminates the need for expensive progressive stamping dies, and arrives pre-patterned on continuous coils. This allows manufacturers to cut parts to size and assemble them immediately, saving weeks of fabrication time.

Q5:Why is aluminum's high thermal conductivity an advantage in high-pressure cells?

A:Operating at high current densities generates significant localized heat. Aluminum conducts heat over thirteen times faster than titanium (210 W/m·K vs. 16 W/m·K), dissipating localized hot spots into circulating fluid loops to prevent thermal degradation of the adjacent membrane.

Conclusion

To successfully integrate micro-embossed coated aluminum foil into high-pressure electrolyzer production:

Select Pattern Profile Sized to Fluid Viscosity: Specify embossed texture depths between 25 µm and 75 µm depending on cell pressure and electrolyte velocity to balance capillary wetting against flow shear forces.

Mandate Pre-Coated Coil Delivery: Require fully cured, factory-applied coatings on embossed coils to eliminate in-house batch cleaning, spraying, and baking operations.

Require 100% Spark-Tested Zero-Pinhole Certification: Ensure supplier documentation confirms continuous non-destructive spark porosity testing across the embossed web to guarantee complete barrier isolation against chemical attack.
