How Do UV-Cured Coated Aluminum Plates Prevent Scratches on Al Human-Machine Interfaces?

Human-Machine Interfaces (HMIs) installed on industrial control panels, medical devices, automated machinery, and smart kiosk terminals face continuous mechanical interaction. Operators using tool tips, gloved hands, keys, and stylus pens create severe localized friction on front bezels and display housings. Uncoated or standard anodized aluminum surfaces quickly succumb to unsightly micro-scratches, abrasive wear, and chemical staining from industrial cleaners, oil, and sweat.

Transitioning to UV-cured coated aluminum plates (typically using high-purity alloys such as 1050, 3003, or 5052 with instantaneous UV-cross-linked acrylic or acrylate-polyurethane hard coats) offers an exceptional surface protection solution. These advanced polymer networks deliver high pencil hardness (≥ 3H - 6H), high impact elasticity, chemical resistance, and crystal-clear optical transparency.

Abrasive Wear & Mechanical Scratches

HMI front bezels and display frames in factory settings encounter relentless surface abuse:

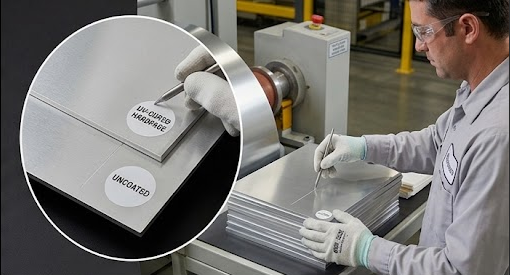

Point-Contact Abrasion: Operator keys, metal stylus tips, and abrasive dust particles exert concentrated shear stress that easily gouges soft aluminum metal (Mohs  2.5 - 3).

Friction Micro-Crazing: Repetitive wipe-down cleaning with dirty shop rags drags micro-particulates across the surface, creating fine spider-web scratches that dull gloss levels over time.

Chemical Staining & Fingerprint Contamination

Factory environmental hazards shorten HMI aesthetic and functional life:

Standard Anodized Aluminum vs. UV-Cured Coated Aluminum Plate

Alkaline & Solvent Etching: Aggressive cleaning agents, industrial greases, and cutting fluids alter raw or low-grade coated aluminum, causing discoloration and dulling.

Sebaceous Oil Accumulation: Fingerprint oils react with delicate surface finishes, leaving smudges that hinder operator readability under bright factory lighting.

HMI Surface Protection Materials

The table below compares key performance parameters of protective options used for Al HMI housings:

Performance Advantages in Al Human-Machine Interfaces

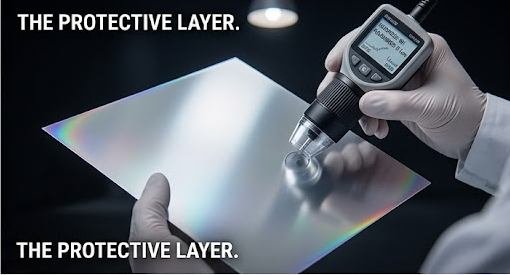

Long-Term Optical Clarity & Scratch Protection

High Surface Hardness: Resists sharp tool contact and continuous finger/stylus tapping, preventing surface haze and maintaining clear visual aesthetics on industrial touch panels.

Taber Abrasion Resilience: Maintains high clarity and gloss retention even after thousands of operational cycles in dirty industrial environments.

View More >>

Chemical Resistance & Easy Cleaning

Disinfectant & Solvent Immunity: Standard industrial alcohol (IPA), acetone, industrial coolants, and harsh sanitizers wiped across the UV-cured face cause zero degradation, clouding, or coating softening.

Hydrophobic & Oleophobic Options: Specialty additives lower surface energy, allowing liquids to bead and preventing oil smudges from adhering to the interface faceplate.

View More >>

High Production Efficiency & Dimensional Precision

Zero Heat Deformation: Cold UV curing preserves micro-flatness on thin aluminum plates (0.5 mm - 3.0 mm), ensuring flawless alignment with internal LCD screens and capacitive touch sensors.

Rapid Cycle Times: Instant cross-linking enables high-speed roll-to-roll or sheet-to-sheet production lines, dramatically lowering lead times compared to batch thermal processing.

View More >>

UV-Curing Photopolymerization Mechanism

Unlike traditional thermally cured coatings that rely on solvent evaporation and extended baking ovens, UV-cured hard coats undergo rapid photo-initiated polymerization:

Acrylate Oligomers & Monomers: Form a dense, rigid 3D polymer web across the aluminum substrate within milliseconds of high-intensity UV exposure.

100% Solid Formulations: Eliminates volatile organic compounds (VOCs) and pinhole defects caused by evaporating solvents, yielding a dense, defect-free protective barrier.

Substrate Alloy Selection: 1050, 3003 & 5052

Choosing the correct aluminum alloy base optimizes both structural flatness and visual clarity:

5052-H32 Alloy: Delivers high yield strength and marine-grade corrosion resistance for ruggedized outdoor or marine HMI enclosures.

1050 / 1070 High-Purity Alloy: Preferred for brushed or mirror-finish bright HMI bezels requiring optimal optical reflection beneath transparent UV hard coats.

Surface Cleaning & Primer Pre-Treatment

Multi-Stage Ultrasonic Degreasing: Removes all rolling oils and contaminants from the aluminum plate to guarantee maximum interface bonding.

Adhesion-Promoting Silane Pre-Treatment: Establishes molecular-level chemical bonds between the inorganic aluminum oxide surface and the organic UV topcoat.

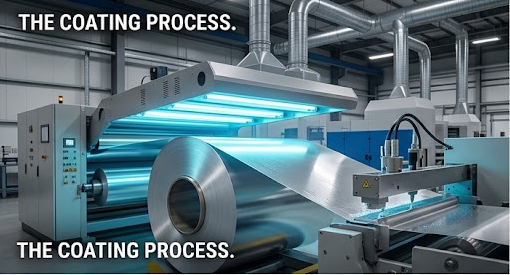

Precision Precision Coating & UV Curing Line

Reverse Roll / Slot-Die Coating: Applies an ultra-precise coating thickness (5 μm - 15 μm) across the entire aluminum plate width with sub-micron uniformity.

High-Intensity UV LED Curing Chamber: High-power UV-LED modules (365 - 395 nm) instantly cure the resin at ambient room temperatures, completely eliminating heat-induced panel warping or temper loss.

CNC Machining & Panel Stamping

Flake-Free CNC Laser Cutting & Routing: High coating elasticity allows clean precision edge milling, drill-hole punching, and display window cutouts without edge chipping or delamination.

Protective Film Application: A low-tack, UV-stable PE protective film is applied immediately after curing to shield the finished plate during CNC processing, packing, and shipment.

FAQ

Q1:What makes UV-cured coatings harder than conventional thermal paint coatings on aluminum?

A:UV curing utilizes high-intensity UV radiation to trigger extremely rapid photopolymerization. This process forms a much tighter, highly cross-linked 3D molecular network compared to thermally dried coatings, yielding higher pencil hardness (≥ 3H-6H) and superior abrasion resistance.

Q2:Can UV-cured coated aluminum plates be bent or stamped without the coating cracking?

A:Yes. Modern UV formulations balance hardness with flexible oligomer segments. Plates engineered for post-fabrication forming can undergo precision CNC bending, punch routing, and light stamping without micro-cracking or flaking along the form radius.

Q3:Does the UV coating yellow or degrade over time under direct sunlight?

A:No. High-grade UV-cured acrylic and polyurethane coatings are formulated with aliphatic resins and UV stabilizers (HALS). They offer high resistance to photo-oxidation, preventing yellowing, chalking, or loss of optical clarity even under continuous outdoor UV exposure.

Q4:How does UV curing protect thin aluminum plates from thermal warping?

A:Conventional coating ovens heat aluminum plates to over 180°C-220°C, which can induce thermal stress, expansion, and warping in thin sheet metal. UV curing is an instant "cold" curing process that generates negligible thermal load, keeping the aluminum plate perfectly flat.

Q5:How are UV-cured aluminum plates packed to prevent damage during export transit?

A:Plates are protected with a low-tack, anti-UV PE protective film, interleaved with moisture-proof paper, wrapped in anti-corrosion VCI material with desiccants, and packed flat in heavy-duty non-fumigation wooden crates to prevent scratching or moisture staining during ocean shipping.

Conclusion

Specifying UV-cured coated aluminum plates for Al HMI housings ensures optimal scratch prevention, extreme chemical durability, and long-lasting optical performance.

To optimize material selection for your HMI enclosure project:

Specify Target Pencil Hardness Based on Field Environment: Mandate a minimum ≥ 3H hard coat for general industrial controls, and ≥ 5H-6H for harsh outdoor or heavy machinery panels.

Select Substrate Alloy by Formability Requirements: Choose 5052-H32 for strong structural bezels; opt for 1050/1070 or 3003 for high-clarity brushed panels.

Validate Abrasion & Chemical Compliance: Require test certification confirming compliance with ASTM D3363 (Pencil Hardness), ASTM D5402 (Solvent Rubs), and ASTM D3359 (Grade 0 Adhesion).
