How Does High-Yield Strength 5083 Coated Plate Prevent Structural Deformation Under Blast Pressures?

Engineering managers and defense procurement leads face a persistent trade-off when designing naval bulkheads, offshore living quarters, and tactical shelters: balancing structural blast survivability against deadweight penalties. Conventional structural steel sheets provide mass, but excessive deadweight elevates ship centers of gravity, increases fuel burn, and creates severe secondary fragment (spall) risks if seams fail. Conversely, standard commercial aluminum grades often deform plastically or tear at weld lines under dynamic overpressures exceeding hundreds of kilopascals.

High-yield strength 5083 coated aluminum plate—engineered in work-hardened marine tempers (H116 / H321) and paired with an energy-absorbing elastomeric polyurea/polyurethane barrier—solves this operational bottleneck. The material system maintains structural envelope integrity under severe shock waves, prevents catastrophic rupture, and delivers over 55% weight savings compared to traditional armored steel panels, eliminating the risk of brittle failure during high-impulse blast events.

High-Yield 5083-H116/H321 Substrate Performance

Procuring structural plates for blast-critical envelopes requires predictable deformation rather than sudden brittle failure:

High Dynamic Strength Margin: While standard architectural aluminum yield strengths hover near 110 MPa, certified marine 5083-H116 / H321 guarantees static yield strength exceeding 215 MPa and dynamic yield strengths approaching 280 MPa - 310 MPa  during explosive events.

Zero Ductile-to-Brittle Transition: Unlike carbon steels that can crack catastrophically in sub-zero marine conditions, 5083 retains ductile elongation (>12%) across temperature extremes, eliminating brittle shattering during Arctic naval operations.

Structural Mass Optimization: At a density of 2.68g/cm³ (one-third the mass of structural steel), engineering teams can design thicker, stiffer plate sections that resist buckling while reducing overall vessel or shelter deadweight.

Multi-Layer Protective Coating System

The surface protection system uses heavy-duty elastomeric chemistry tailored for rapid impulse events:

Energy-Absorbing Elastomeric Matrix: High-tensile polyurea/polyurethane polymers with failure elongation exceeding 350% flex under pressure, preventing coating flaking.

Acoustic Shock Decoupling: The coating acts as an acoustic impedance cushion, dampening high-frequency pressure waves before they pass into the structural aluminum substrate.

Technical Validation & Performance Standards

The engineering performance matrix below highlights the performance advantages of high-yield 5083 coated plate against conventional blast-protection materials:

Commercial & Engineering Advantages for Major B2B Contractors

Lower Total Cost of Ownership (TCO) & Payload Optimization

Direct Weight Savings of 55%+: Shaving tons of structural deadweight off naval superstructures or offshore topside modules lowers vessel centers of gravity, increases cargo payload limits, and reduces lifetime fuel consumption.

Elimination of Repainting Cycles: Unlike painted carbon steel that requires ongoing rust maintenance in marine splash zones, 5083 coated plate offers a 25+ year service life without structural degradation.

View More >>

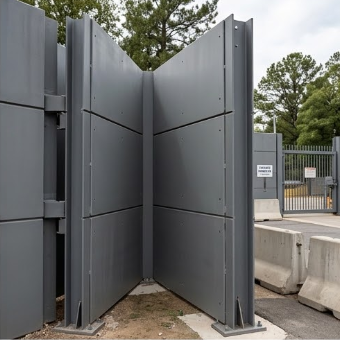

Streamlined Fabrication & Modular Field Assembly

Favorable Weldability Profile: 5083-H116/H321 welds easily using standard GMAW/GTAW techniques (5183 / 5356 filler alloys), allowing shipyard fabrication crews to build modular blast walls without specialized preheating steps.

Pre-Coated Field Processing: Factory-applied coatings eliminate the bottleneck of post-assembly painting booths, allowing contractors to meet tight project delivery milestones.

View More >>

Multi-Threat Resilience & Crew Safety

CBRN Decontamination Resistance: The elastomeric outer finish resists harsh decontamination washes, industrial fuels, and hydraulic oils without swelling or softening.

Acoustic & Vibration Damping: The thick composite layer absorbs mechanical vibration and airborne noise from ship engines and offshore drilling systems, improving crew working conditions.

View More >>

Mitigation of Dynamic Blast Overpressure

When an explosive event triggers a supersonic shock front, panels experience severe peak overpressures followed by a vacuum suction phase. The 5083 coated plate manages this energy through a staged response:

Shock Dispersion: The strike-face elastomeric coating absorbs initial high-frequency pressure peaks, distributing localized point-impact energy across the entire plate surface.

Plastic Membrane Stretching: As the core plate reaches its yield point, the 5083 alloy stretches uniformly, transforming destructive kinetic energy into harmless plastic strain energy rather than tearing at panel margins.

Internal Spall Containment: If extreme blast pressures compromise the primary weld zone, the high-tensile backing layer acts as a safety catch-net, preventing sheared metal fragments from injuring personnel inside the enclosure.

Corrosion Prevention & Bond Durability

Anti-Delamination Pretreatment: Utilizing an automated chromate-free zirconium-titanium conversion layer ensures the blast coating maintains adhesion (Class 0 cross-hatch) even through violent structural deflection.

Sub-Film Defense in Salt Air: Protects the metal substrate against marine chloride attack, preventing hidden corrosion thinning that could compromise blast resistance over decades of deployment.

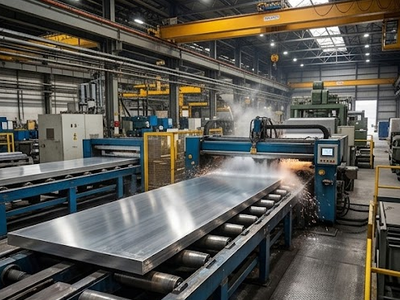

Surface Preparation & Nano-Conversion Pretreatment

Mechanical Profiling & Degreasing: Heavy-gauge plates undergo automated grit blasting and chemical cleaning to remove residual mill scale, creating an anchor profile of Rz 45μm - 65μm.

Zirconium-Titanium Passivation: Micro-thin nano-conversion layers are applied to stabilize surface energy (≥ 56 dynes/cm), ensuring long-term chemical bonding between the aluminum plate and protective primer.

Automated Plural-Component Coating Application

High-Pressure Precision Spray: Automated spray rigs apply high-solids elastomeric coatings at temperatures above 65°C and pressures exceeding 2,000 psi.

Film Thickness Uniformity: In-line ultrasonic thickness gauges confirm precise dry film profiles—typically 1.5mm - 3.0 mm on the exterior threat face and 1.0mm - 1.5 mm on the interior liner.

Quality Assurance & Structural Traceability

Non-Destructive Bond Audits: Ultrasonic scanning validates complete coating adhesion across the plate surface, ensuring zero voids or delamination pockets before delivery.

Batch Traceability & Hardness Audits: Every production run includes certified mechanical tensile tests, Shore D hardness measurements, and chemical batch verification to support defense project quality audits.

FAQ

Q1:Why replace traditional blast-resistant steel with 5083 coated aluminum plate?

A:5083 coated aluminum plate reduces structural mass by over 55% compared to steel while matching or exceeding blast deflection resistance. This weight reduction lowers a vessel's center of gravity, improves fuel economy, and eliminates the rust problems common to steel in marine environments.

Q2:How does 5083 aluminum behave differently from steel during an explosive event?

A:Aluminum features a face-centered cubic lattice that maintains ductility without a brittle transition point, even in extreme cold. Under high strain rates, the 5083 alloy work-hardens rapidly, absorbing blast energy through controlled plastic stretching without tearing at structural seams.

Q3:What is the primary safety function of the elastomeric coating during a blast?

A:The coating serves two roles: it compresses to blunt and spread the initial shock-wave peak across the plate, and its high tensile elongation (>350%) on the rear face acts as an elastic net to contain metal fragments if overpressures breach structural seams.

Q4:Can 5083 coated plate be welded during shipyard modular fabrication?

A:Yes. Plates are welded using standard marine MIG/TIG processes with 5183 or 5356 filler wires. Joint margins can be pre-masked at the mill for clean welding, followed by simple spray touch-up on site to restore the continuous blast barrier.

Q5:How does this material help offshore platform and naval vessel procurement budgets?

A:While initial metal costs are higher than plain carbon steel, the system reduces life-cycle costs by lowering structural support needs, cutting installation labor, eliminating ongoing corrosion repainting, and improving overall operational efficiency.

Conclusion

High-yield strength 5083 coated aluminum plate provides an optimal combination of lightweight structural integrity, plastic energy dissipation, and anti-spall safety for blast-resistant environments.

To align procurement with mission-critical requirements:

Specify Certified Marine Tempers (5083-H116 or H321): Mandate ASTM B928 compliance to eliminate intergranular corrosion susceptibility and ensure consistent dynamic yield performance.

Require Multi-Layer Dual-Face Coating Configurations: Specify a minimum of 2.0 mm elastomeric polyurea on the threat face for shock dispersion and 1.0mm on the interior face for complete spall containment.

Demand Certified Dynamic Shock & NDT Data: Require mill test reports with ultrasonic C-scan delamination audits and dynamic strain-rate test verification prior to shipment.
