How Does Mirror-Finish Anodized Foil Prevent Laser Beam Scattering Inside Precision Interferometer Paths?

High-precision optical metrology systems—including Fabry-Pérot cavities, heterodyne displacement interferometers, and space-based gravitational wave testbeds—measure sub-nanometer positional shifts using coherent laser wavelengths (532 nm, 633 nm, 1064 nm). Within these tight optical corridors, stray light control determines overall measurement accuracy.

Conventional black coatings or rough sheet-metal baffles present severe liabilities in vacuum-sealed beam tubes: airborne micro-particulates, high vacuum outgassing, and wide-angle diffuse scattering that contaminates sensitive photodetectors. Conversely, unanodized raw aluminum generates specular glare and oxidizes over time, distorting beam wavefronts. Mirror-finish anodized foil—combining high-purity, ultra-smooth aluminum substrates (1000 series, ≥ 99.85% purity) with nanometer-controlled optical anodizing and sub-micron dielectric interference sealing—solves these measurement challenges. It directs grazing-angle reflections along controlled paths, reduces wide-angle Bidirectional Reflectance Distribution Function (BRDF) scatter, and provides a lightweight, particulate-free barrier that maintains high interferometer signal-to-noise ratios (SNR).

High-Purity Aluminum Substrate Performance

Preventing optical scatter starts with the base metal's atomic uniformity:

1085 / 1090 High-Purity Optical Alloys: Formulated with aluminum purity exceeding 99.85% - 99.90% and minimal iron and silicon content (Fe < 0.05%, Si < 0.03%). This eliminates intermetallic inclusions that cause surface micro-pits during rolling and polishing.

Zero Grain-Boundary Scattering: Cold-rolling on high-precision bright-finishing rolls establishes a uniform crystalline surface, ensuring an ultra-low root-mean-square roughness (Rq ≤ 20 nm) across the foil web.

Thin-Gauge Mass & Structural Flexibility: Gauges from 50μm to 150μm allow engineering teams to line complex, tight-radius beam tube interiors without bulky mounting hardware, saving space inside compact optomechanical assemblies.

Optical Anodic Oxide Barrier Architecture

Standard industrial anodizing creates rough, porous oxide layers that scatter laser light. Optical-grade mirror anodizing uses a controlled electrochemical approach:

Barrier-Dominant Nanometer Anodic Film: Electrolytically grown thin-film aluminum oxide (Al₂O₃, typically 0.5μm - 1.5μm) seals the metal without altering the smooth substrate profile.

Dielectric Refractive Index Tuning: The clear anodic layer has an index of refraction (n ≈ 1.65 - 1.70) that can be paired with inorganic interference seals to optimize reflection or absorption at specific laser operating lines (e.g., He-Ne 632.8 nm).

Technical Validation & Practical Performance

The performance comparison below evaluates mirror-finish anodized foil against alternative laser beam containment materials:

Performance Parameter

Standard Black Painted Baffle

Bare Rolled Aluminum Foil

Mirror-Finish Anodized Foil

Impact on Interferometer Systems

Surface Roughness (Ra)

Rough (>1.2μm)

Moderate (0.15 - 0.30μm)

Ultra-Smooth (≤ 0.015μm / 15 nm)

Lowers diffuse scatter down to sub-nanometer noise limits

Particulate Shedding Risk

High (Flakes off over time)

Low (Risk of metal slivers)

Zero (Inorganic bonded oxide)

Protects beam splitters and mirrors from contamination

UHV Outgassing Performance

Poor (High VOC & binders)

Good

Excellent (NASA/ESA outgassing pass)

Maintains ultra-high vacuum (10⁻⁸ Torr) clean environments

Optical Haze over Time

Fades / Degrades

Forms white oxidation haze

Immune (Sealed inorganic ceramic film)

Prevents drift in baseline calibration over years of use

Lining Formability ($0\text{T}$ Bend)

Cracks at bends

Good

High (Flexible thin-gauge foil)

Wraps smoothly inside narrow cylindrical beam tubes

B2B Commercial Payoff & Engineering ROI for Metrology Builders

Lower Total Cost of Ownership & Faster Alignment

Reduced Optomechanical Calibration Time: Clean beam reflection paths eliminate spurious interference fringes, reducing calibration and alignment times on production test benches.


Elimination of Sensor Contamination Rework: Flaking baffle materials can ruin multi-thousand-dollar optical elements. Non-shedding anodized foil keeps components clean, avoiding costly cleanroom teardowns and rework.

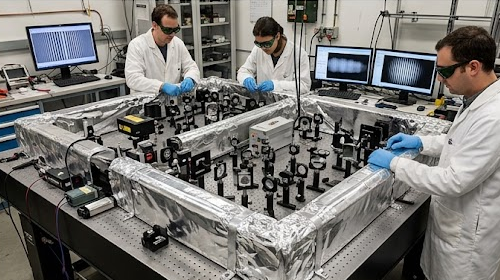

Clean Workshop Assembly & Flexible Integration

Flexible Precision Wrapping: Thin-gauge foil (50μm - 100μm) cuts cleanly with laser plotters or steel-rule dies, allowing fast installation around complex tube bends, sensor apertures, and shutter mounts.


Consistent Batch-to-Batch Optical Uniformity: Continuous coil anodizing delivers uniform specular gloss across large production runs, ensuring repeatable measurement performance across mass-produced instruments.

Long-Term Metrology Calibration Stability

Zero Vacuum Drift: Non-outgassing properties prevent condensation onto photodiode windows during multi-year vacuum operation, eliminating sensor calibration drift.


Chemical & Cleanroom Wipe-Down Resilience: The dense anodic surface withstands wiping with isopropyl alcohol (IPA) and optical solvents during assembly, allowing easy maintenance without surface damage.

The Mechanics of Stray Light Suppression

In coherent laser metrology, stray light degrades measurement accuracy by interfering with the primary reference beam:


Suppression of Phase Noise: High surface roughness produces high diffuse scatter, creating random spatial noise that causes phase jitter on detector chips. Reducing σ down to≤ 15 nm lowers Total Integrated Scatter to near zero.

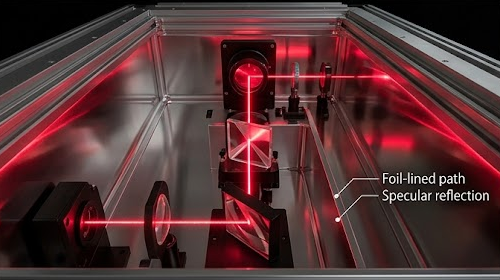

Deterministic Grazing Reflections: When stray laser wings strike the lining at shallow angles (>75° - 85°), the mirror-smooth anodized foil guides the reflections down the tube into optical traps, preventing backscatter into the interferometer cavity.


Prevention of Oxidation Haze: The sealed anodic film prevents environmental oxidation, preventing the milky micro-haze that typically forms on bare aluminum exposed to cleanroom air over time.

Particle-Free & Thermal Stability

Zero Particulate Generation: Unlike carbon-black or painted baffle liners that shed micro-flakes under thermal expansion, the inorganic anodic oxide layer is integral with the metal substrate, eliminating particle drop-out onto expensive beam splitters and mirrors.

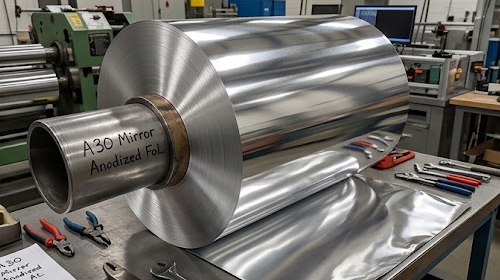

Pre-Treatment & Continuous Chemical Brightening

Multi-Stage Ultrasonic Solvent Degreasing: Foil coils pass through automated vapor degreasing to remove all rolling oils without mechanical contact that could scratch the bright surface.


Electropolishing & Chemical Brightening: High-precision acid baths electrochemically dissolve microscopic surface asperities, producing a mirror specular gloss profile exceeding 85% - 90% at 60°.

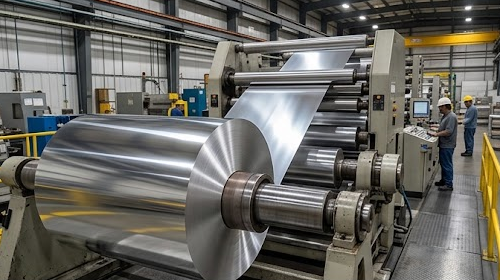

Continuous Coil Anodizing & Pore Densification

Reel-to-Reel Precision Anodizing: Automated coil lines maintain steady current density and bath temperatures (± 0.5°C), growing an anodic oxide layer with uniform thickness (± 5%) across the entire coil width.


Sub-Micron Non-Porous Sealing: High-purity deionized water sealing at 98°C hydrates and swells the anodic pore mouths, creating a flat, non-porous surface that resists chemical staining.

Cleanroom Winding & Optical Scatter Quality Audits

ISO Class 5 Cleanroom Slitting: Slitting and rewinding take place under laminar airflow conditions, applying clean peel-off protective films to prevent airborne contamination.


BRDF Scatter Verification: Production batches undergo goniophotometric Bidirectional Reflectance Distribution Function (BRDF) testing to confirm low scatter levels at target laser wavelengths (632.8 nm and 1064 nm).

FAQ

Q1:Why not use matte black absorptive foil instead of mirror-finish foil inside beam paths?

A:Matte black coatings absorb head-on light, but at shallow grazing angles, they produce diffuse scatter that reflects back onto photodetectors and creates phase noise. Mirror-finish anodized foil specularly reflects grazing-angle beam wings down the tube into dedicated optical traps.

Q2:How does surface roughness directly affect laser interferometer accuracy?

A:Surface roughness (Ra > 50 nm) causes diffuse scattering where light bounces in random directions. When scattered rays recombine with the main measurement beam, they create spurious interference fringes and phase jitter, degrading sub-nanometer positional readings.

Q3:Does the anodized oxide layer crack when the foil is bent into narrow tube shapes?

A:No, provided thin optical gauges (50μm - 100μm) are used. Thin anodic films (0.5μm - 1.0μm) flex smoothly with the ductile aluminum substrate during bending without crazing or flaking.

Q4:Can this foil withstand routine cleanroom solvent wipe-downs?

A:Yes. The pore-sealed anodic oxide film resists common optical solvents, including high-purity isopropyl alcohol (IPA), acetone, and ethanol, allowing cleanroom technicians to wipe down assemblies without dulling the surface.

Q5:How does continuous coil-anodized foil compare to hand-polished sheet pieces?

A:Hand-polished sheets suffer from variable surface roughness, edge roll-off, and inconsistent anodic thicknesses. Continuous coil anodizing provides automated, closed-loop process control, delivering uniform optical gloss and consistent low scatter performance across entire production runs.

Conclusion

Mirror-finish anodized aluminum foil provides an effective, reliable, and clean material solution for laser beam path enclosures in precision optical interferometers.

To optimize material selection for optomechanical design:

Specify High-Purity Substrate Stock (1085 Alloy): Ensure base metal purity exceeds 99.85% to prevent intermetallic micro-inclusions from creating scatter points.

Mandate Low-Scatter Optical Anodizing (Ra ≤ 15 nm): Require goniophotometric BRDF test verification at operational laser wavelengths (532m, 633 nm, or 1064 nm) to confirm minimal wide-angle scatter.

Enforce Cleanroom Packaging Standards: Specify cleanroom slitting and double-bagged nitrogen-purged packaging with static-dissipative protective masking films to prevent particulate contamination during transport and assembly.
