Is 5052-H34 Pre-Painted Aluminum Sheet Rigid Enough to Prevent Pressure Warping in 1MW Hydrogen Skids?

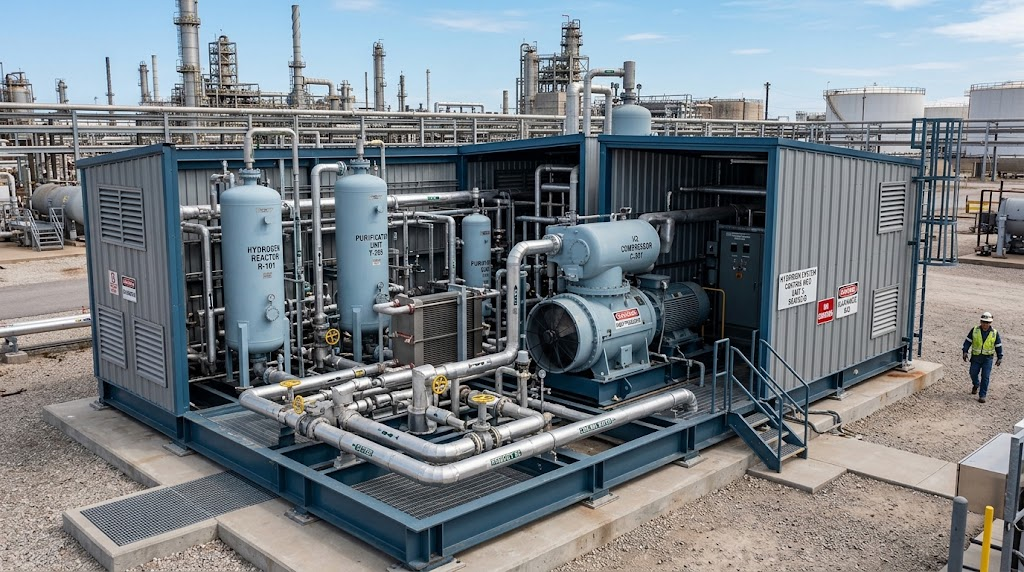

Containerized 1MW proton exchange membrane (PEM) and alkaline electrolyzer skids operate under rigorous ventilation and safety protocols. Because hydrogen has an exceptionally low ignition energy (0.02 mJ) and a wide flammability range (4% to 75% in air), classified walk-in skids and power-rectifier bays require emergency ATEX exhaust blowers that cycle between 60 and 120 air changes per hour.

When large extraction fans kick on, the enclosure interior experiences a sudden differential suction pressure between -400 Pa and -1,000 Pa across wall bays. Standard architectural aluminum sheets (such as 3003-H14) frequently suffer from oil-canning—loud, elastic buckling that pops panels inward, pulls perimeter seals away from the frame, and allows moisture or dust to breach classified electrical zones. Conversely, heavy 304 stainless steel panels overburden skid highway transport limits.

5052-H34 pre-painted aluminum sheet—engineered in the strain-hardened and stabilized H34 temper with a continuous factory coil coating—solves this operational challenge. When fabricated into cassette-folded panels, it eliminates pressure warping, resists fugitive electrolyte mist, and cuts exterior cladding weight by more than 40% compared to stainless steel.

Structural Properties of 5052-H34 Alloy Substrate

Skid exterior cladding must resist continuous flexural fatigue caused by cooling fan pressure cycling and emergency exhaust surges:

Work-Hardened & Stabilized Temper (H34): 5052 is an aluminum-magnesium alloy (2.2% to 2.8% Mg). In the half-hard, stabilized H34 condition, its yield strength reaches 180 MPa to 215 MPa—nearly double that of annealed alloys (5052-O at ~90 MPa) and roughly 50% higher than standard 3003-H14. This higher elastic limit prevents permanent dishing under cyclic suction.

Overcoming the Stainless Steel Weight Penalty: Aluminum has a density of 2.70 g/cm³, approximately one-third that of steel. Specifying a 2.0 mm 5052-H34 panel delivers higher flexural stiffness than a 1.2 mm stainless steel sheet while reducing panel weight by more than 40% per square meter.

Immunity to Hydrogen Embrittlement: Trace fugitive hydrogen leaks around valves can cause hydrogen-induced cracking in high-strength ferritic steels. Aluminum features a face-centered cubic crystal lattice that is completely immune to hydrogen environment embrittlement, ensuring intrinsic material safety.

Coil-Coated Protective Finish & Acoustic Damping

Durable Weathering Barrier: Coils receive an automated 25 µm to 35 µm coating of super-durable polyester or PVDF fluorocarbon, creating a dense barrier against outdoor UV degradation and industrial atmospheric corrosion.

Vibration and Resonance Damping: The polymer coating matrix acts as an acoustic micro-damper across the sheet surface, suppressing panel humming and rattling caused by high-pressure centrifugal exhaust blowers and circulating pumps.

Technical Validation & Practical Performance

B2B Commercial Payoff & Engineering ROI for Skid Integrators

Lower Total Cost of Ownership (TCO) & Transport Savings

Elimination of Road Transport Overweight Permits: A 1MW containerized skid housing heavy transformers, rectifiers, and balance-of-plant skids often approaches 30 metric tons. Switching from steel cladding to 2.0 mm 5052-H34 cuts 600 kg to 800 kg of deadweight, avoiding specialized road-haul permits.

Reduced Substructure Stiffener Costs: By utilizing 5052-H34's yield strength combined with cassette return flanges, fabricators eliminate the need to weld secondary steel angle-iron stiffeners behind every wall bay.

View More >>

Bypassing the Paint Shop Bottleneck & Lowering Tooling Wear

3 to 5 Days Shorter Delivery Cycles: Fabricating panels from pre-painted coil stock eliminates the multi-day queue for post-assembly spray painting and oven drying, allowing sheets to move straight from the press brake to the assembly frame.

Lower CNC Tooling Costs: 5052-H34 shears cleanly without the severe tool friction, burring, and die chipping caused by punching through 304 stainless steel.

View More >>

Enclosure Reliability & Safety System Precision

Zero Gas-Sensor False Alarms: Warp-free panels maintain continuous compression on perimeter door and wall gaskets, preventing outside wind drafts from entering the skid and disturbing calibrated hydrogen sensors.

20+ Year Outdoor Weathering: Factory-cured coatings resist chalking, fading, and peeling in outdoor chemical processing yards, preserving the skid's aesthetic quality and resale value.

View More >>

How Negative-Pressure Suction Causes Enclosure Leaks

When emergency hydrogen purge fans activate, rapid air displacement creates internal suction that triggers panel failure in three progressive stages:

Center-Bay Elastic Dishing: An unreinforced panel span (wider than 800 mm) bows inward under negative pressure, creating visual oil-canning and popping noises.

Perimeter Edge Pull-In: As the center of the panel dishes inward, the outer edges pull inward toward the center, reducing compression on weatherstripping gaskets from 40% down to less than 10%.

Loss of Enclosure Sealing: The relaxed gasket allows external rainwater, dust, and wind into the skid, diluting airflow across internal hydrogen sensors and causing false alarms or safety shutdowns.

Cassette Stiffening & Chemical Mist Defense

Cassette Return-Flange Stiffening: Fabricating 5052-H34 sheets with 30 mm to 40 mm return flanges creates a structural box-tray geometry. This edge geometry increases the panel's section modulus, keeping central deflection under 2.0 mm during peak fan suction and maintaining full perimeter gasket compression.

Resistance to Alkaline Electrolyte Mist: In alkaline water electrolysis (AWE), trace potassium hydroxide (KOH, 25% to 30% concentration) aerosol can escape during venting. The cross-linked polymer coating prevents caustic droplets from contacting and pitting the underlying aluminum.

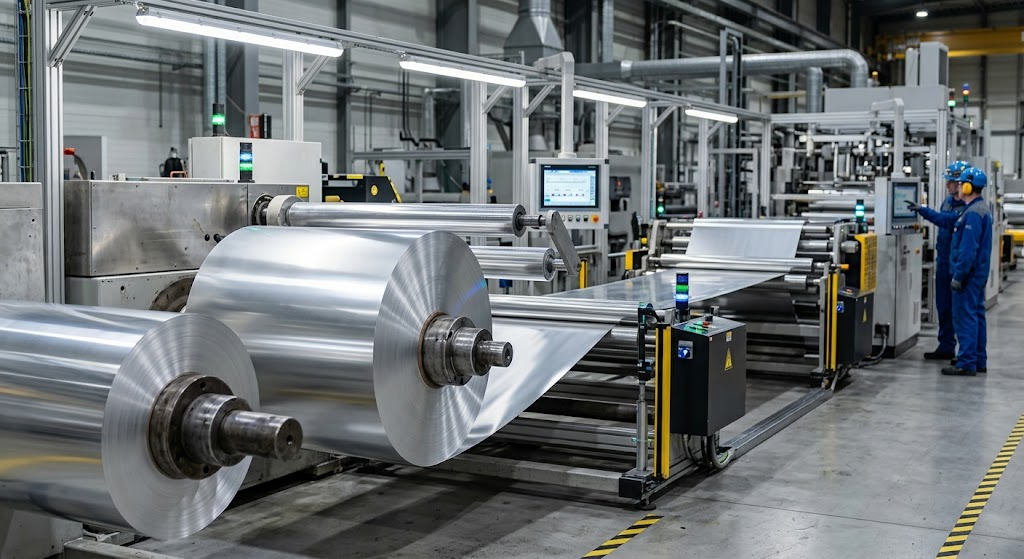

Tension Leveling & Chemical Passivation

Continuous Stretch-Bend Leveling: Coils pass through automated tension-leveling lines to eliminate residual coil curvature, crossbow, and edge waves, ensuring sheets lay flat during laser cutting and CNC shearing.

Zirconium-Titanium Nano-Passivation: Chemical micro-etching is paired with an inorganic conversion layer, raising surface wetting tension above 56 dynes/cm to ensure permanent paint adhesion during sharp forming operations.

Automated Coil Coating & Louver Punching Compatibility

Precision Reverse-Roll Application: Primer and topcoat layers are applied continuously in an enclosed line, holding dry film thickness strictly within 25 µm to 35 µm (±1.5 µm tolerance) for consistent color and elasticity.

Formulated for High-Speed Louver Punching: The cross-linked coating maintains high ductility, allowing CNC turret punch presses to shear and form intake louvers without edge chipping, micro-fissuring, or paint peeling.

Cold-Bend Assurance & Pressure-Box Quality Audits

1.5T Cold-Bend Verification: Every production master coil undergoes 1.5T 180° cold-bend testing and cross-hatch adhesion pulls, verifying that the sheet can be bent into tight corner flanges without paint delamination.

Cyclic Pressure-Box Quality Audits: Sample panels are mounted to a pressurized test frame and subjected to 1,000 suction pulses at -1,200 Pa to verify that deflection recovers elastically with zero permanent distortion.

FAQ

Q1:Why does emergency ventilation cause oil-canning in hydrogen container panels?

A:Emergency ATEX roof exhaust fans pull large air volumes (60 to 120 air changes per hour) to dilute hydrogen leaks. This rapid extraction generates a sudden internal negative pressure surge (up to -1,000 Pa). If wall panels are too thin or made from softer alloys, this differential pressure causes the panel center to dish inward.

Q2:What makes 5052-H34 more rigid than 3003-H14 if both are aluminum alloys?

A:While both alloys have similar elastic moduli, 5052-H34 undergoes strain-hardening and thermal stabilization. This increases its yield strength (180 MPa to 215 MPa) by roughly 50% over 3003-H14 (~120 MPa), preventing dynamic air suction from pushing the panel into permanent plastic deformation.

Q3:Will punching ventilation louvers in pre-painted 5052-H34 crack the paint?

A:No, provided flexible coil coatings certified for 1.5T bending are specified. The thermoset polymer coating stretches along with the metal during high-speed CNC punching and louver drawing, preventing paint chipping or edge peeling.

Q4:How does 5052-H34 aluminum compare to 304 stainless steel in cost and weight?

A:Switching from 1.2 mm 304 stainless steel to 2.0 mm 5052-H34 cuts cladding weight by approximately 44% (5.40 kg/m² vs. 9.60 kg/m²), lowering overall container weight. Pre-painted aluminum also eliminates the high labor and material costs of post-painting stainless steel.

Q5:Does 5052-H34 aluminum face hydrogen embrittlement risks around hydrogen equipment?

A:No. Hydrogen environment embrittlement affects high-strength ferritic steels under mechanical stress. Aluminum has a face-centered cubic lattice that does not absorb or trap hydrogen atoms, making it safe for hydrogen generation bays.

Conclusion

To prevent negative-pressure warping in 1MW containerized hydrogen skids:

Size Gauge and Flange Depth to Bay Width: For unbraced panel spans up to 800 mm wide, specify 2.0 mm thickness with continuous 30 mm to 40 mm perimeter return flanges to increase flexural stiffness.

Lock in 5052-H34 Stabilized Temper: Avoid 3003-H14 or fully annealed 5052-O; require mill test certificates confirming minimum 180 MPa yield strength and stretch-bend leveling for zero residual camber.

Mandate 1.5T Bend Certified Coatings: Require coil suppliers to verify flexible coating formulations capable of undergoing 1.5T 180° hem folding and high-speed louver punching without edge micro-cracking.
