Is 5754-H22 High-Rigidity Coated Aluminum Strip Tough Enough for Rapid-Cycle Laser Shutter Louvers?

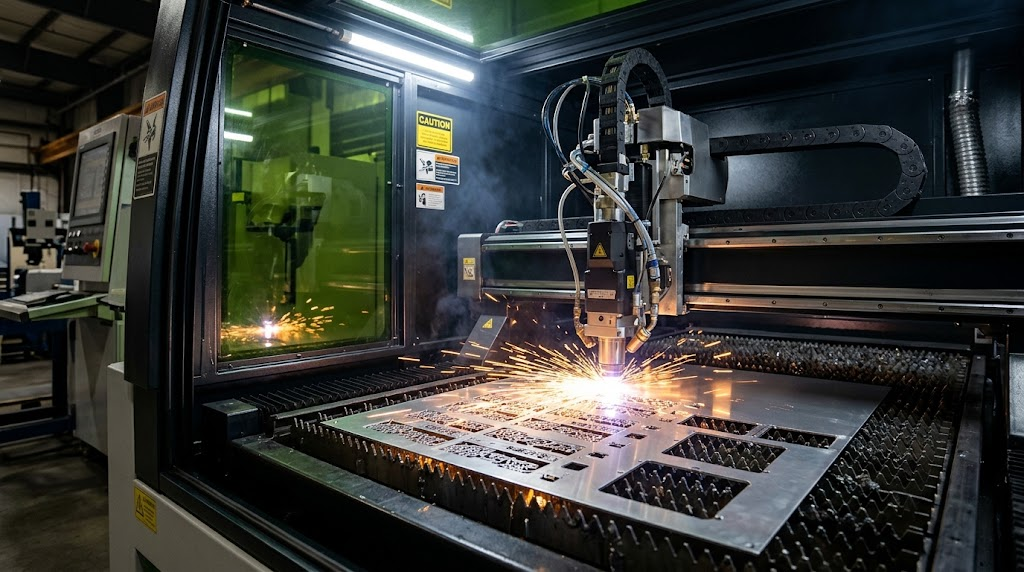

As high-precision photonics, automated battery welding, and semiconductor micromachining accelerate worldwide, industrial laser integrators are pushing beam-delivery speeds to unprecedented levels. In automated Class 4 multi-kilowatt laser cells, mechanical shutter louvers and fast-acting optical beam dumps must actuate within tens of milliseconds, opening and closing hundreds of times every hour across multi-shift production cycles.

This relentless motion creates an intense mechanical dilemma: balancing ultra-low rotational inertia against high-cycle flexural fatigue.

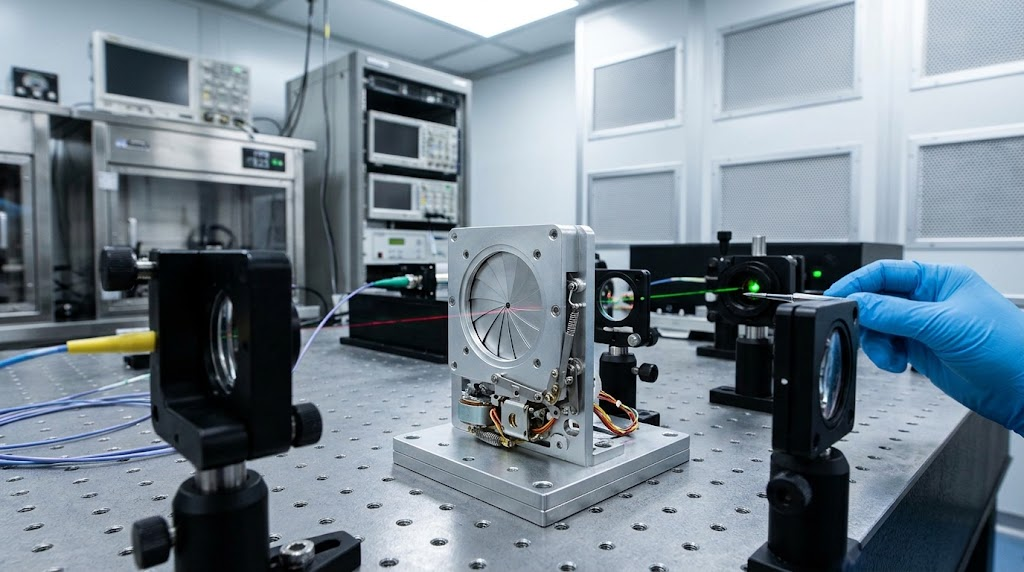

To prevent stray beam leakage between weld pulses, shutter blades and louver slats must snap open and shut instantly under high angular acceleration. Traditional material choices create severe production liabilities:

Spring steel and stainless steel strips carry three times the density of aluminum. This massive inertial mass strains servo actuators, overheats drive coils, causes mechanical bounce on hard stops, and forces equipment builders to oversize motors and gearboxes.

Overly soft aluminum alloys (such as 1050 or 3003-H14) lack flexural yield strength. Under high-speed air-cylinder or voice-coil deceleration, thin slats suffer dynamic flutter, warp along their mounting hinges, and fail prematurely from fatigue cracking.

Precipitation-hardened alloys (like 6061-T6) are brittle during continuous reverse flexing and prone to edge micro-fractures when punched or notched into louver geometries.

Uncoated or mill-finish bare strips act as optical mirrors, creating dangerous specular reflections that scatter stray multi-kilowatt laser energy into adjacent camera sensors and wiring channels.

5754-H22 high-rigidity coated aluminum strip delivers the verified engineering answer. By pairing magnesium-stabilized structural alloy chemistry with a strain-hardened, partially annealed H22 temper and a factory-cured non-reflective, heat-dissipating barrier coating, this material delivers high cyclic fatigue toughness, eliminates shutter inertia, resists stray beam thermal flash, and reduces total louver drive assembly costs by over 45% compared to steel alternatives.

Alloy Metallurgy & Work-Hardened H22 Performance

Fast-acting laser shutter louvers require a material that resists both dynamic bending stresses and sudden inertial deceleration:

Magnesium-Solid-Solution Matrix (5754 Alloy): Containing 2.6% to 3.6% magnesium, 5754 provides natural structural toughness and high strain-hardening capacity. Unlike heat-treated alloys that can suffer localized stress-corrosion cracking, 5754's non-heat-treatable microstructure provides uniform mechanical properties across the entire coil width.

The H22 Temper Advantage (Strain-Hardened & Partially Annealed): The H22 temper strikes the exact balance required for dynamic mechanisms: it delivers an elevated yield strength (130 MPa to 170 MPa) to resist permanent bending, while retaining high elongation (12% to 16%). This partial annealing relieves microscopic internal rolling stresses, preventing the edge micro-fracturing that causes brittle T6 alloys to snap under repetitive cyclic impacts.

Minimizing Kinetic Mass in Fast Servos: Because kinetic energy scales directly with moving mass, replacing steel shutter louvers with lightweight 5754-H22 aluminum strip drastically lowers mechanical strain on bearings, pivot pins, and magnetic linear actuators, allowing machine designers to downsize drive components and reduce electrical power draw.

Factory-Applied Functional Optical Coating

Standard post-assembly wet paints flake off under rapid shutter movement. Factory-applied coil coatings provide a superior optical and mechanical interface:

Non-Reflective Diffuse Surface Topography: The factory-cured matt coating incorporates mineral matting agents that disperse stray near-infrared laser light (1064nm to 1080nm), preventing dangerous specular reflections from bouncing into sensitive machine-vision lenses.

Interfacial Vibration Damping: The microscopic polymer-ceramic coating layer acts as a mechanical dampener across the strip surface, absorbing acoustic vibrations and suppressing the high-frequency ringing caused by sudden hard-stop louver impacts.

Inorganic-Ceramic Roller-Coated Barrier Formulation

Standard organic paints break down immediately when exposed to molten metal. Industrial fire-retardant roller coatings utilize advanced surface chemistry:

Inorganic-Ceramic Micro-Particle Fillers: The thermoset resin matrix is heavily loaded with sub-micron silica, alumina, and mineral flame-retardant additives. Under intense local heat, these ceramic micro-particles form an insulative protective crust that prevents heat transfer to the base metal.

Non-Wetting Anti-Adhesion Surface: The factory-cured roller coating creates a dense, non-porous finish with low surface energy. Liquid molten slag cannot wet or adhere to the slick surface, preventing molten iron from welding itself onto the plate.

Technical Validation & Practical Performance

Sovereign High-Tech Vision & B2B Commercial Payoff

Powering Sovereign Advanced Manufacturing and Photonics

Enabling Domestic High-Speed Automation: Nations worldwide are accelerating domestic manufacturing in microelectronics, electric vehicle powertrains, and precision medical devices. Replacing heavy, imported steel components with domestic, high-precision coated aluminum strip removes supply-chain choke points and allows automation builders to deliver faster, more energy-efficient laser processing machines.

Advancing Workplace Safety and Cleanroom Compliance: Eliminating paint flaking and reducing motor heat allows laser machinery to meet stringent international cleanroom standards (ISO Class 5/6), qualifying machines for high-value semiconductor and medical device production contracts.

View More >>

Factory Floor Economics: High Stamping Yields and Zero Paint Queues

Bypassing the Off-Line Paint Shop: Fabricating shutter louvers from pre-coated strip stock eliminates post-stamping batch degreasing, manual racking, liquid spray painting, and oven drying. Stamped parts move directly from the progressive die to final assembly, cutting production lead times by 3 to 5 days.

Extended Tooling Life: 5754-H22 shears cleanly without the intense tool wear and punch-chipping common to stamping hardened spring steels. This extends progressive stamping die life by up to five times and dramatically lowers tool-maintenance overhead.

View More >>

Long-Term Fleet Reliability & Low Warranty Overhead

Infinitely Recyclable Clean Metal: Aluminum can be recycled infinitely using only 5% of the energy needed for primary smelting. Deploying recyclable aluminum delivers a low-carbon manufacturing solution that aligns with global corporate ESG mandates.

Multi-Year Maintenance-Free Service: The corrosion-proof alloy core and wear-resistant coating ensure shutter louvers maintain their physical shape, surface gloss, and optical absorption properties over tens of millions of cycles, eliminating field warranty claims and unscheduled machine downtime.

View More >>

Stopping the Failure Chain of Rapid Shutter Actuation

In high-speed automated production cells, unoptimized shutter blades follow a rapid path to mechanical failure:

Inertial Torque & Pivot Bending: Under millisecond acceleration pulses, heavy steel or soft aluminum slats flex across their mounting span. Over tens of thousands of cycles, this repetitive flex causes pivot holes to elongate and slats to drag against the frame.

Dynamic Flatter & Optical Light Leaks: As soft slats lose structural flat-plane memory, they develop wavy edges. When closed, these warped slats fail to seal flush against mechanical stops, allowing stray laser radiation to escape past the shutter perimeter.

The 5754-H22 Rigid-Strip Defense: The high flexural modulus and work-hardened matrix of 5754-H22 resist dynamic whipping. The slats snap closed flat against precision seals, maintaining an optical barrier across millions of continuous actuations.

Thermal Dissipation Against Stray Beam Scatter

Rapid Conduction of Diffuse Beam Energy: When a shutter blade intercepts scattered laser energy or defocused pilot beams, aluminum’s bulk thermal conductivity (140 W/m·K to 160 W/m·K) dissipates thermal energy instantly across the slat, preventing localized thermal hot spots that blister conventional paints.

Resistance to Industrial Coolant & Lubricant Mists: Machine-tool shutters operate inside enclosures filled with cutting fluid mists and fine metallic dust. The factory-cured thermoset coating resists chemical softening and abrasion, keeping the louver surface clean and non-stick over years of multi-shift operation.

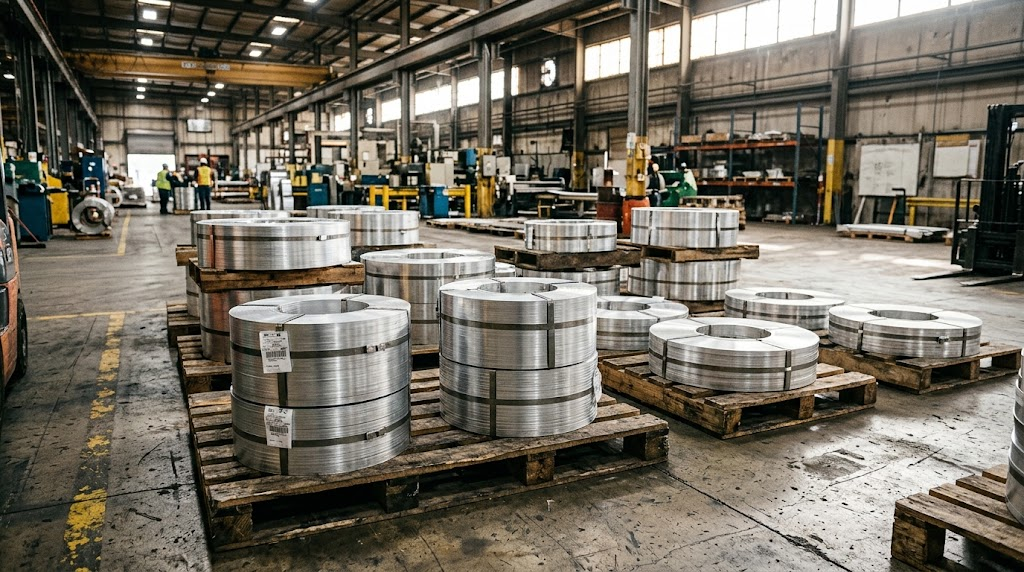

Continuous Tension Leveling & Edge Slitting Precision

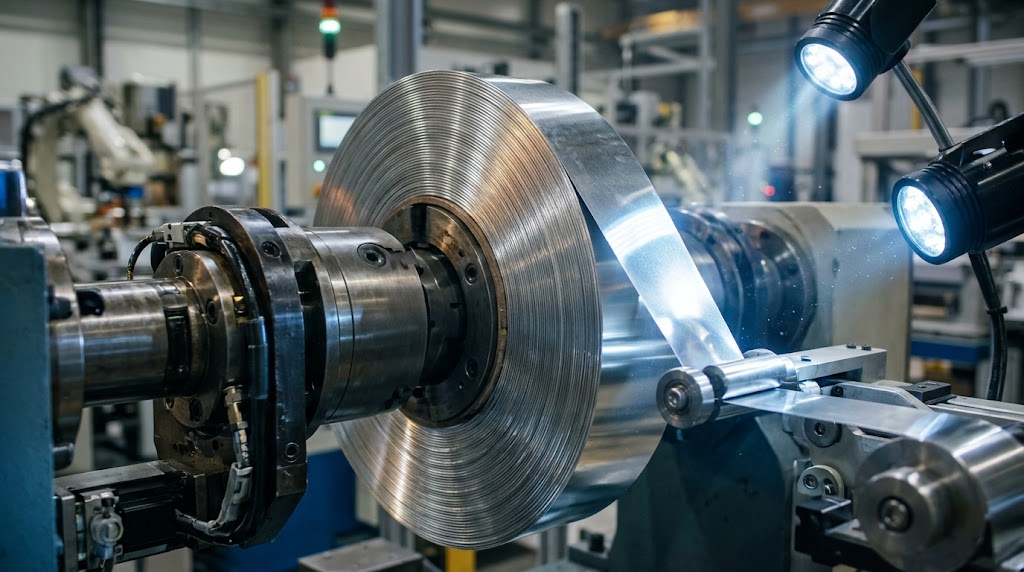

Continuous Multi-Roll Tension Leveling: Coils pass through stretch-bend leveling equipment to eliminate longitudinal crossbow, coil set, and edge waves. Slit strips remain flat upon uncoiling, preventing binding inside automated high-speed stamping dies.

Carbide Rotary Slitting with Near-Zero Burr: Master coils are slit into narrow widths using precision rotary carbide knives. Edge burr height is held strictly below 5% of metal thickness, eliminating microscopic tear notches that could propagate into fatigue cracks during high-frequency shutter vibration.

High-Precision Reverse-Roll Cleanroom Coating

Automated Film Application: Liquid primer and matt topcoats are applied in an enclosed cleanroom coil line, holding dry film thickness strictly within 20 µm to 30 µm (±1.5 µm tolerance).

Controlled Curing Curves: Computer-monitored catenary ovens achieve full polymer cross-linking without altering the mechanical H22 temper or reducing the fatigue life of the aluminum substrate.

Zero-Defect Forming Audits & Dynamic Cycle Audits

0T-1T Hinge Curl Verification: Slit strip samples undergo 180° tight-radius hem bending and circular hinge curling to confirm that mounting loops can be formed in progressive dies without paint micro-cracking or edge delamination.

Multi-Million Cycle Fatigue Audits: Production witness coupons are mounted on high-frequency pneumatic test rigs and cycled through 5,000,000 rapid flap actuations to verify zero mechanical deformation, zero pivot elongation, and zero coating flaking.

FAQ

Q1:Why is 5754-H22 preferred over 6061-T6 for rapid-cycle shutter louvers?

A:While 6061-T6 has higher static yield strength, it is relatively brittle and prone to micro-cracking along cut edges under repetitive, high-frequency shock deceleration. 5754-H22 is strain-hardened and partially annealed, giving it high fatigue toughness and elongation that absorbs cyclic deceleration shocks without snapping.

Q2:How does switching from spring steel to aluminum reduce shutter actuation time?

A:Aluminum has approximately one-third the density of steel (2.68 g/cm³ vs. 7.85 g/cm³). Lowering the mass of the moving shutter blades cuts rotational inertia significantly, allowing the actuator to accelerate and decelerate faster while eliminating mechanical bounce on hard stops.

Q3:Will stamping mounting hinges and holes crack the pre-applied coating?

A:No, provided strip stock with flexible coil coatings certified for 0T to 1T bending is specified. The coating matrix flexes alongside the ductile aluminum substrate during progressive die forming, allowing clean hinge curling and hole punching without paint flaking.

Q4:Can 5754-H22 withstand scattered laser energy without melting?

A:Yes, for scattered or defocused beam energy. Aluminum conducts heat over twenty times faster than stainless steel. The aluminum core rapidly conducts thermal energy away from the surface impact point across the entire slat, preventing localized overheating while sensor loops initiate a machine shutoff.

Q5:How does pre-coated aluminum strip reduce overall machine build costs?

A:Using pre-coated strip allows shutter components to be stamped directly into finished parts, eliminating in-house liquid painting, baking, and handling steps. It also reduces wear on stamping dies compared to steel and allows the use of smaller, less expensive servo drive motors.

Conclusion

To successfully implement 5754-H22 coated aluminum strip in high-speed laser shutter louvers:

Specify Certified 5754-H22 Temper on Purchase Orders: Avoid uncertified general-purpose alloys or brittle T6 tempers; require mill test certificates confirming tensile strength between 220 MPa and 270 MPa, yield strength between 130 MPa and 170 MPa, and elongation ≥ 12%.

Mandate Factory-Slit Burr-Free Edges (< 5% Metal Thickness): Ensure strip purchasing agreements mandate precision rotary carbide slitting to eliminate edge micro-notches that could serve as stress-concentration points during cyclic flapping.

Require 1T Flexible Coating Certification: Verify that the supplier’s pre-applied coating system passes 0T to 1T reverse impact and hem-bend testing without micro-cracking, guaranteeing that hinge curling operations will not cause coating delamination.
