Is Micro-Perforated Pre-Painted Aluminum the Solution for Heat Ventilation in High-Altitude Receiver Panels?

Across the globe, sovereign nations are expanding strategic high-altitude infrastructure. From deep-space tracking arrays and radio telescopes on alpine plateaus to high-altitude solar thermal receivers, stratospheric communication relays, and border surveillance radar domes, these facilities operate in severe environmental conditions. At elevations between 2,500 and 5,000 meters above sea level, optical and electronic receiver modules generate immense internal thermal loads while operating in an environment that actively resists cooling.

The central challenge is a thermodynamic dilemma: extremely low atmospheric air density drastically reduces natural convective heat dissipation, while intense unattenuated solar radiation and extreme ultraviolet exposure cook exterior panel surfaces.

Standard industrial approaches quickly fail in these remote, freezing alpine microclimates:

Solid metal enclosures trap internal heat, cooking sensitive RF transceivers and optical sensors because thin mountain air cannot carry away thermal energy.

Motorized cooling fans and active HVAC systems freeze up, suffer bearing seizure in sub-zero blizzards, consume massive amounts of remote site power, and require expensive helicopter maintenance flights.

Coarse steel meshes allow wind-driven snow, volcanic dust, and driving sleet to blow directly onto internal electronic circuitry.

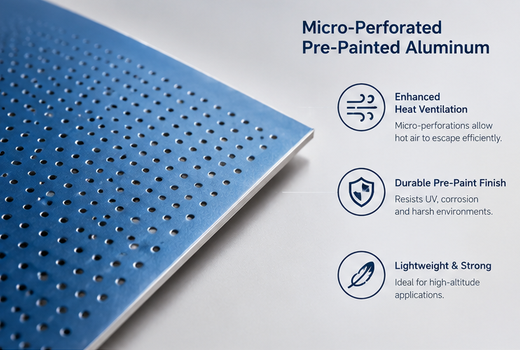

Micro-perforated pre-painted aluminum solves this problem. Engineered from durable, thermally conductive aluminum alloys (such as 3003-H14 or 5052-H32) and finished with specialized high-emissivity, UV-resistant coil coatings, these panels incorporate millions of precision micro-apertures. They generate passive, self-sustaining buoyant convective drafts in thin air, vent internal heat without moving parts, block driving wind-blown precipitation, and cut panel manufacturing costs by more than 45% compared to stainless steel or titanium assemblies.

Structural Aluminum Alloys as High-Altitude Heat Sinks

High-altitude receiver stations operate under extreme diurnal thermal swings, shifting from intense daytime solar baking (+45°C to +60°C on metal skins) down to cryogenic night freezes (-40°C or colder):

High-Conductivity Alloy Substrates (3003 / 5052 Series): Aluminum alloys deliver bulk thermal conductivity ratings between 140 W/m·K and 180 W/m·K—over ten times higher than stainless steel (~16 W/m·K). This rapid lateral thermal conduction pulls localized heat away from concentrated internal amplifiers and distributes it evenly across the outer skin, preventing focal hot spots.

Thermal Contraction and Expansion Resilience: Aluminum’s ductile crystalline structure flexes smoothly under violent day-to-night temperature swings, preventing fastener fatigue and edge cracking in environments where brittle composites fracture.

Low Structural Weight for Remote Mountain Transport: At only 2.70 g/cm³, lightweight aluminum panels slash enclosure weight by over 60% compared to steel. This weight reduction simplifies transport on mountain access roads, lowers foundation concrete requirements on fragile alpine permafrost, and allows personnel to assemble panels using hand tools.

High-Emissivity, Radiative-Cooling Pre-Painted Finish

Standard paints trap heat inside the receiver cavity. Advanced pre-painted aluminum utilizes specialized radiative-cooling surface formulations:

High Thermal Infrared Emissivity: The factory-cured PVDF or super-durable polyurethane topcoat is loaded with inorganic ceramic pigments that achieve high thermal infrared emissivity (emissivity values above 0.90). This allows the panel skin to radiate thermal energy directly into the cold high-altitude sky.

High Solar Reflectance (Cool-Skin Performance): Specially tuned reflective pigments reflect the near-infrared portion of sunlight, keeping the exterior skin significantly cooler than bare or dark-painted metals even under intense solar flux.

Technical Validation & Practical Performance

Sovereign Technological Vision & B2B Commercial Payoff

Fueling National Defense, Telemetry, and Space Tracking

Empowering Strategic Border and Space Infrastructure: High-altitude tracking radar, deep-space observatories, and mountain telecom nodes form the backbone of modern national security and scientific sovereignty. Utilizing reliable, self-cooling micro-perforated aluminum ensures uncompromised sensor uptime in harsh frontier terrains where grid power is scarce and equipment access is difficult.

Decarbonizing Remote Operations: Eliminating power-hungry active cooling fans and climate-control systems allows remote receiver stations to run entirely on compact solar-battery setups, reducing overall site footprint and fuel-supply logistics.

View More >>

Factory Floor Economics: High Throughput and Tooling Longevity

Bypassing Post-Punching Spray Paint Bottlenecks: Traditional fabrication requires punching bare metal, transporting parts to an off-line liquid spray booth, and manually baking each panel—a process that clogs micro-holes with paint drips. Using pre-painted coil stock with flexible, punch-stable coatings delivers finished parts straight off the press, cutting manufacturing cycle times by 3 to 5 days.

Extended Punch Tool Life: Aluminum’s moderate hardness reduces tool friction and eliminates the punch-tip breakage common to perforating stainless steel, saving thousands of dollars in annual tooling replacement costs.

View More >>

Long-Term Mountain Reliability & True Maintenance-Free Service

Infinitely Recyclable Clean Metal: Aluminum can be recycled repeatedly using only 5% of the energy required for primary production. Specifying recyclable aluminum aligns with global environmental mandates and minimizes the environmental footprint in protected alpine reserves.

Elimination of Emergency Helicopter Call-Outs: Active cooling fans represent the single most common failure point in unstaffed mountain electronic pods. Replacing moving parts with passive micro-perforated breathing panels prevents unexpected outages, saving tens of thousands of dollars in emergency service helicopter flights.

View More >>

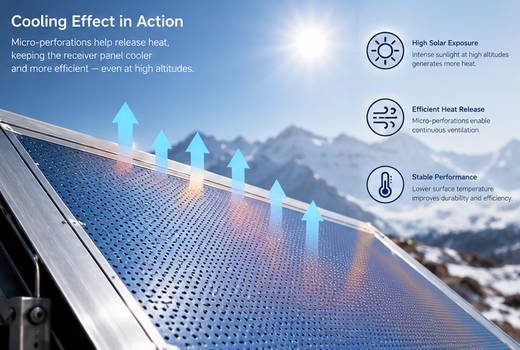

Harnessing the Solar Chimney Effect in Thin Atmospheres

At elevations above 3,000 meters, atmospheric pressure drops below 700 hPa. The micro-perforated panel turns this challenging environment into a natural cooling engine:

Thermal Density Differential: As internal electronics and solar radiation warm the air inside the receiver enclosure, the internal air becomes less dense than the cold ambient mountain air.

Capillary Buoyancy Draft: The micro-perforations along the lower perimeter draw in cold ambient air, while the heated internal air rises and exhausts continuously through the upper micro-perforations, creating a self-sustaining natural chimney draft.

Elimination of Motorized Fans: This passive draft operates continuously without electricity, control sensors, or moving mechanical parts, eliminating the primary point of failure in remote high-altitude receiver stations.

Weather Ingress Defense & Condensation Breathing

Surface-Tension Precipitation Barrier: Precision micro-holes (diameters smaller than 1.2 mm) exploit liquid surface tension and airflow resistance to block wind-blown snow, freezing mist, and heavy raindrops from penetrating the interior chamber.

Barometric Breathing and Freeze-Thaw Prevention: High-altitude installations undergo severe daily barometric pressure swings that force sealed enclosures to "breathe" moisture past gaskets. Micro-perforated panels provide open vapor diffusion paths, allowing condensation to evaporate before it can pool and freeze into destructive ice wedges.

Continuous Tension-Leveling & Optical Pretreatment

Elimination of Residual Internal Stress: Aluminum coils pass through multi-roll tension-leveling lines under precise strip tension. This process eliminates edge waves and coil crossbow, ensuring that the sheet remains flat after millions of micro-holes are punched across its surface.

Nano-Ceramic Chemical Passivation: The aluminum strip undergoes automated degreasing and an inorganic titanium-zirconium conversion wash, raising surface wetting tension above 56 dynes/cm to ensure permanent paint adhesion around punched hole edges.

High-Speed Micro-Perforation & Edge Burr Control

Automated CNC Roller / Punch Pin Tooling: Continuous micro-perforation is carried out with precision carbide pins, maintaining tight diameter tolerances (0.8 mm to 1.2 mm, ±0.05 mm) and pitch spacing without distorting the surrounding sheet.

Clean-Edge Shearing Without Tool Clogging: The balanced temper of 3003-H14 or 5052-H32 shears cleanly without gummy burr formation, preventing raw burrs from bridging holes or peeling back the paint film.

Coil Coating Flexibility & UV/Thermal Cycling Verification

High-Flexibility Reverse-Roll Coating: Factory coil lines apply a 25 µm to 35 µm flexible PVDF or polyurethane coating system before or during processing. The formulation delivers high flexibility, allowing perforated panels to undergo 1.5T box-pan bending without paint crazing or edge lifting.

Accelerated High-Altitude Climate Testing: Production lots undergo Xenon-arc intense UV exposure (AAMA 2605 compliant) and 1,000 thermal-shock freeze-thaw cycles (-40°C to +80°C), validating zero paint peeling, zero chalking, and zero edge blistering around the perforations.

FAQ

Q1:Why can't we just rely on standard cooling fans inside high-altitude receiver pods?

A:In high-altitude environments (above 3,000 meters), air density is 30% to 40% lower, which severely reduces fan cooling efficiency. Furthermore, mountain temperatures drop well below -30°C, causing fan motor lubricants to freeze and leading to bearing seizure. Replacing fans with passive micro-perforated ventilation eliminates these mechanical failure modes entirely.

Q2:Will wind-driven mountain snow and rain penetrate the micro-perforations?

A:No, provided hole diameters are kept below 1.2 mm to 1.5 mm. At these dimensions, the natural surface tension of water droplets combined with the outward buoyant air pressure prevents rain and driving snow from entering. Incoming moisture hits the slick, hydrophobic pre-painted surface and runs harmlessly down the panel face.

Q3:Does punching millions of micro-holes cause the pre-painted coating to chip or flake?

A:No, provided factory-cured coil stock with flexible, high-ductility coatings is specified. Formulated for high elongation, these thermoset coatings shear cleanly alongside the aluminum substrate during high-speed CNC punching, leaving crisp margins without flaking, peeling, or micro-cracking.

Q4:How does micro-perforated aluminum compare to stainless steel mesh for receiver cladding?

A:Stainless steel wire mesh is heavy, difficult to frame, and allows wind-blown snow and dust to pass freely into internal electronics. Micro-perforated aluminum is over 60% lighter, incorporates integrated box-pan structural flanges, and blocks weather ingress while enabling passive thermal ventilation.

Q5:Can the coating withstand intense high-altitude ultraviolet radiation without chalking?

A:Yes. Pre-painted aluminum finished with factory-applied PVDF fluoropolymer systems provides carbon-fluorine molecular bonds that resist ultraviolet photodegradation. These coatings are certified to withstand decades of high-altitude solar exposure without chalking, color shifting, or embrittlement.

Conclusion

To successfully implement micro-perforated pre-painted aluminum panels on your next high-altitude project:

Size Open-Area Ratio and Hole Diameter to Local Air Density: For installations above 3,000 meters, specify hole diameters between 1.0 mm and 1.2 mm with a total open-area ratio between 12% and 18%, balancing air-buoyancy draft with weather-shedding surface tension.

Mandate AAMA 2605 Certified PVDF Coil Coatings: Ensure purchasing agreements require high-durability fluoropolymer coatings formulated with high-emissivity ceramic pigments to guarantee resistance against extreme high-altitude UV radiation.

Verify Clean-Sheared 1.5T Box-Pan Formability: Require suppliers to provide mill test certificates confirming tension-leveled strip flatness and coating flexibility capable of undergoing 1.5T 90° box-tray perimeter bending without paint crazing along outer corners.
