What Protects Autonomous Underwater Vehicle (AUV) Thin-Foil Ballast Tanks from Deep-Sea Crevice Corrosion?

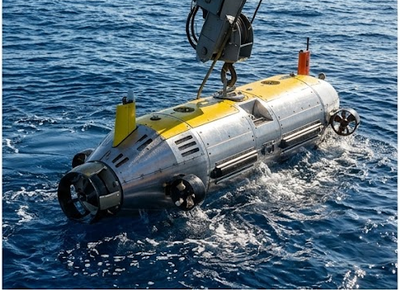

Long-range Autonomous Underwater Vehicles (AUVs) and deep-sea gliders rely on Variable Buoyancy Systems (VBS) to cycle between surface telemetry and benthic depths without running thrusters. At the core of these systems are internal fluid bladders and thin-foil ballast tanks that compress and expand hydraulic mineral oil or intake ambient seawater to adjust vehicle density.

Because vehicle endurance hinges on strict payload weight budgets, these ballast bladders cannot be built from heavy titanium or thick-walled composites. Designers utilize ultra-thin, high-ductility aluminum barrier foils (1000 / 8000 series, gauges between 50μm - 150μm). However, deep-ocean operating conditions create a distinct failure mechanism: deep-sea crevice corrosion. Trapped, stagnant seawater inside micro-gaps—such as mechanical mounting flanges, ultrasonic seam welds, and valve clamp seats—undergoes rapid deoxygenation, acidifying the local fluid and triggering localized micro-pitting that can perforate thin foil membranes within single mission cycles.

Engineered multi-layer coated barrier foils—combining high-purity aluminum substrates with cross-linked organosilane conversion layers and hydrophobic, high-elasticity fluoropolymer or modified epoxy-phenolic topcoats—prevent this failure mode. They seal micro-capillaries, isolate metal surfaces from stagnant chloride ions, and provide reliable, maintenance-free buoyancy cycling across multi-month autonomous survey missions.

Structural Substrate: High-Ductility 1000 / 8000 Alloy Foil

AUV variable buoyancy bladders require high hermetic integrity against gas and oil permeation while flexing through thousands of depth cycles:

1235 / 8011 High-Purity Aluminum Core: Provides high elongation (>15% - 20%) and zero pinhole porosity, allowing complex bag folding, pleating, and bladder inflation without fatigue tearing.

Hermetic Fluid Barrier: Unlike pure polymer bladders (such as polyurethane or TPU) that slowly absorb water or allow hydraulic oil vapors to permeate over months, aluminum foil provides a complete physical barrier to fluids and gases.

Minimal Displacement Overhead: Weighing less than 350 g/m², thin-gauge foil bladders add negligible deadweight to internal dry bays, leaving valuable payload space for side-scan sonars, sub-bottom profilers, and lithium-ion battery banks.

Specialized Crevice-Barrier Coating Chemistry

Standard industrial lacquers crack when folded or soften under prolonged water immersion. Marine-grade thin-foil systems utilize high-barrier, flex-tolerant coatings:

Modified Epoxy-Phenolic / Fluoroelastomer Matrix: Formulated with flexible, highly cross-linked polymer chains that stretch and recover during bladder cycling while resisting water absorption under high hydrostatic pressure.

Hydrophobic Low-Wetting Surface: High contact angles repel water droplets and prevent stagnant moisture film formation inside mechanical clamp joints during surface maintenance

Technical Validation & Practical Performance

The performance comparison below highlights the operational advantages of coated aluminum barrier foil against alternative AUV buoyancy bladder materials:

B2B Commercial Payoff & Engineering ROI for AUV Developers

Maximizing Mission Duration & Survey Reliability

Elimination of Mission-Abort Pinholes: In deep-sea survey operations, an in-service pinhole leak inside an internal buoyancy bladder can flood the vehicle's dry bay, resulting in emergency aborts or loss of the vehicle. Coated foil eliminates this crevice pitting risk.

Extended Deployment Cycles: Coated foil ballast systems maintain structural integrity over 6- to 12-month autonomous benthic missions, eliminating the need for frequent dry-dock inspection and servicing.

View More >>

Streamlined Assembly & High Fabrication Yields

Fast Thermal Sealing & Ultrasonic Welding: The coating is engineered with clean-release margins or thermal-weldable chemistries that integrate smoothly with industrial heat-sealing equipment, reducing manual assembly scrap rates in vehicle workshops.

Consistent Batch-to-Batch Formability: Precise coil thickness tolerances and uniform coating profiles allow automated bladder folding and pleating without coating delamination or edge fraying.

View More >>

Low Lifecycle Maintenance for Commercial Fleets

Reduced Refurbishment Overhead: Between offshore survey campaigns, technicians can inspect and flush ballast systems without finding white rust or seized clamp interfaces, shortening port turnaround times.

Direct Component Cost Savings: Replacing expensive custom-machined titanium bellows or multi-layer elastomer bladders with roll-formed coated aluminum foil bladders reduces unit manufacturing costs by up to 50%.

View More >>

The Mechanics of Crevice Corrosion in Subsea Gaps

Crevice corrosion develops where thin foil leaves overlap, sit under mechanical retention rings, or press against structural mounting plates. When seawater enters these narrow gaps (<0.1 mm), stagnant conditions initiate a self-catalyzing degradation cycle:

Differential Aeration Cell Formation: Outside the gap, oxygenated seawater supports the normal passivating oxide film. Inside the gap, stagnant oxygen is rapidly consumed, turning the shielded aluminum into an active local anode.

Acid Chloride Attack: Migration of negatively charged chloride ions (Cl⁻) balances the local electrical charge, forming aluminum chloride, which hydrolyzes into hydrochloric acid. In unprotected foil, this rapid localized acidification causes pinhole perforation within weeks.

Barrier Coating Interception: The applied cross-linked coating isolates the aluminum substrate from electrolyte contact, preventing the electrochemical circuit from completing inside the crevice. Even if water becomes deoxygenated within a mechanical gap, the metal underneath remains isolated from chemical attack.

Weld-Seam & Flange Transition Protection

Ultrasonic Seam Overcoat: During bladder assembly, foil edges are joined via ultrasonic welding or thermal-adhesive sealing. Specialized edge-coat formulations flow into seam root gaps, eliminating micro-capillary voids where stagnant water could pool.

Web Preparation & Nano-Conversion Pretreatment

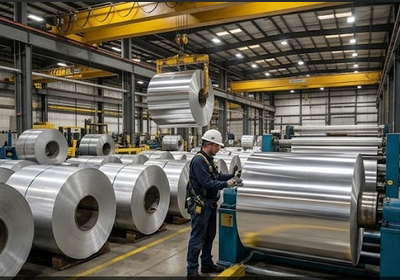

Continuous Web Degreasing: Ultra-thin aluminum foil rolls pass through automated corona and solvent-cleaning stations to eliminate rolling lubricants and contamination, ensuring a pristine anchor surface.

Organosilane Nano-Conversion: Applies an ultra-thin inorganic-organic conversion layer (15 nm - 30 nm) across the continuous moving web, raising surface wetting energy (≥ 56 dynes/cm) to establish covalent bonding with subsequent primer layers.

Automated High-Precision Web Coating Dynamics

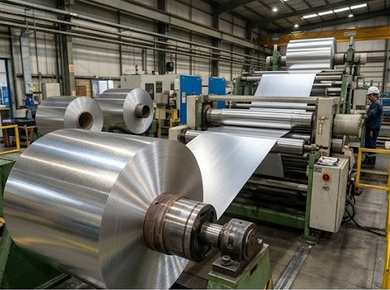

Micro-Gravure / Reverse Roll Coating: Applies high-precision primer and barrier coats across the foil web under cleanroom conditions (ISO Class 6), maintaining Dry Film Thickness (DFT) within 12μm - 18μm.

Zero Pinhole Quality Verification: In-line optical scanners and continuous high-voltage spark detectors scan the moving web to ensure zero micro-voids, bubbles, or uncoated edge margins before rewinding.

Thermal Curing & Cyclic Flex Testing

Tension-Controlled Thermal Curing: Precision multi-zone ovens cure the polymer coating to full cross-linking density while controlling web tension to prevent foil wrinkling or edge stretching.

Gelbo Flex & Crevice Immersion Audits: Finished coil samples undergo Gelbo flex-durability testing (>1,000 cycles) followed by immersion in deoxygenated, low-pH synthetic seawater to verify zero crevice pitting, blistering, or delamination.

FAQ

Q1:Why is crevice corrosion more dangerous than general corrosion in AUV ballast tanks?

A:General corrosion thins metal uniformly at a predictable rate over time. Crevice corrosion is localized and attacks deep inside stagnant gaps—such as under clamp flanges or along folded seams—where trapped water acidifies. In thin foils (50μm - 150μm ), this localized pitting can cause through-thickness pinhole leaks within weeks.

Q2:Why not use pure polymer or rubber bladders instead of aluminum foil?

A:Pure polymer bladders (such as TPU or nitrile rubber) slowly absorb seawater under high hydrostatic pressure and allow hydraulic oil vapors to permeate through the bladder walls over multi-month deployments. Aluminum foil provides an impermeable physical barrier that keeps buoyancy calculations stable and prevents fluid cross-contamination.

Q3:How does the coating withstand continuous expansion and contraction during buoyancy cycling?

A:The coating uses high-elasticity thermosetting resins (such as modified epoxy-phenolics or fluoroelastomers) formulated for high elongation. It flexes with the ductile aluminum foil during bladder inflation and deflation without micro-cracking or peeling away from the metal.

Q4:Can coated aluminum foil be heat-sealed or welded into leak-tight bladders?

A:Yes. The coated foil can be manufactured with a weldable thermoplastic inner layer or joined using continuous ultrasonic seam welding. This allows automated roll-to-roll fabrication of custom three-dimensional bladders and bellows.

Q5:What happens inside the crevice if seawater gets trapped under a mounting clamp?

A:Without protection, trapped seawater loses its dissolved oxygen and acidifies as chloride ions accumulate, attacking the aluminum. With the barrier coating in place, the electrolyte cannot touch the metal surface, preventing the chemical reaction that causes crevice corrosion.

Conclusion

Sulfide-resistant coated aluminum provides a practical, high-performance, and cost-effective alternative to nickel superalloys for deep-sea hydrothermal plume monitoring pods.

To optimize procurement for volcanic vent projects:

Target the Plume Dispersion Zone, Not the Vent Throat: Use coated aluminum for plume tracking, boundary monitoring, and water-column sniffing instruments (2°C - 80°C); reserve titanium or superalloys for probes inserted directly into the 350°C hydrothermal orifice.

Mandate Inorganic / Ceramic-Hybrid Coating Formulations: Eliminate standard marine polyurethanes; specify cross-linked polysilazane or ceramic-fluoropolymer matrices rated for continuous exposure to pH  2.0 - 4.0 fluids.

Require 100% Spark-Tested Zero-Pinhole Certification: Ensure the coating manufacturer provides electrical spark porosity testing to guarantee zero micro-voids where acid gases could contact the aluminum base
