Why Are Hydrogen Train Builders Switching to Impact-Resistant Pre-Painted Plates for Under-Carriage Shields?

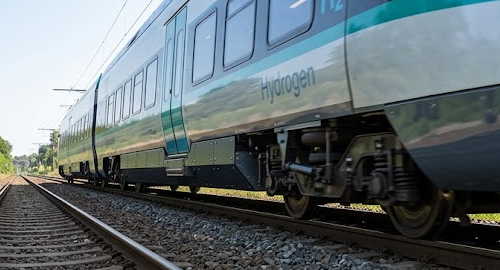

Rolling stock manufacturers engineering next-generation hydrogen fuel cell multiple units (H2-EMUs / HMUs) face severe design constraints along the vehicle belly. Under-carriage spaces must house high-pressure hydrogen storage cylinders (350 bar - 700 bar), balance-of-plant distribution manifolds, and delicate fuel cell power modules. During high-speed mainline operations (140 km/h - 160 km/h+), the lower train belly takes continuous punishment from flying railway ballast (crushed granite track gravel), ice blocks shed from bogies, high-velocity road dirt, and corrosive de-icing brine spray.

Traditional stainless steel or galvanized carbon steel belly plates create a major problem: heavy deadweight that limits onboard passenger and fuel capacity, combined with brittle under-body paint that chips on first stone impact, causing rapid rust and frequent depot maintenance. Impact-resistant pre-painted aluminum plates—combining high-strength, fatigue-resistant structural aluminum alloys (5000 / 6000{ series) with tough, energy-absorbing polyurethane-polyurea or modified fluoropolymer coil coatings—solve these under-carriage challenges. This composite material shields fuel-cell piping from ballast impact without denting or cracking, shrugs off winter de-icing chemicals, and slashes structural tare weight by over 55%.

High-Toughness 5000/6000-Series Aluminum Core

Ballast shields for hydrogen trains need high dynamic toughness to absorb high-velocity impact energy without cracking or transferring shock into fuel manifolds:

5083-H111 / 6082-T6 Structural Substrates: Provide high yield strength (>210 MPa) and excellent elongation (>12% - 14%), allowing the plate to flex under dynamic stone impacts without brittle fracture or weld-line tearing.

Axle Load Management: Railway line limits (typically 17t - 20 t per axle on regional routes) leave tight margins once heavy hydrogen pressure vessels and traction batteries are installed. Aluminum plates (2.70 g/cm³) reduce shield weight by hundreds of kilograms per carriage compared to steel (7.85 g/cm³).

Fatigue Resistance Under Rail Vibration: Withstands continuous high-frequency vibration from track joints and bogie motion, preventing stress-corrosion cracking around mounting bolt holes.

Impact-Damping Coating Chemistry

The pre-applied exterior finish uses flexible, high-build polymer formulations tailored for harsh mechanical wear:

High-Elongation Polyurethane-Polyurea Matrix: Offers high tensile elasticity (>200% elongation at break) that cushions gravel strikes like a rubber shock-pad, keeping the coating from flaking or peeling.

Gravel-Shedding Micro-Texture: Smooth surface profiles reduce gravel catching and stop winter slush, ice, and rail grime from packing against the chassis, reducing unneeded winter running weight.

Technical Validation & Practical Performance Matrix

The performance matrix below compares impact-resistant pre-painted aluminum plates against traditional rail under-carriage materials:

Commercial Payoff & Fleet Efficiency for Train Builders

Lower Total Cost of Ownership (TCO) & Range Expansion

Weight Offsets for Hydrogen Storage: Cutting under-carriage shield weight by 55%+ frees up hundreds of kilograms across a 2-car or 3-car trainset. This margin allows extra high-pressure fuel tanks, increasing route operational range without exceeding maximum axle weight limits.

Elimination of Mid-Life Depot Repainting: Traditional steel shields require regular removal, rust-scraping, and repainting during major overhaul cycles (every 4–6 years). Pre-painted aluminum stays corrosion-free for 25+ years, saving significant maintenance labor.

View More >>

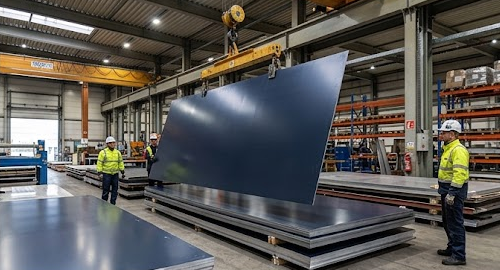

Smooth Workshop Processing & High Manufacturing Yields

Fast CNC Machining & Cold Forming: Panels shear cleanly, bend smoothly on CNC press brakes, and punch without edge micro-cracking or paint lifting, reducing workshop scrap rates and rework hours.

Pre-Coated Delivery Advantage: Factory-finished plates eliminate the bottleneck of moving oversized, complex under-body parts through in-house paint spray booths, accelerating final train assembly schedules.

View More >>

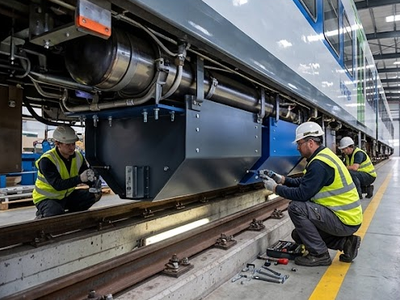

Enhanced Protection for Hazardous Fuel Infrastructure

Secondary Puncture Defense: Tough, flexible aluminum shields absorb stone strikes and track debris impacts, keeping sharp gravel from damaging delicate hydrogen sensors, valves, and manifold lines.

Ice Shedding in Winter Conditions: Low-surface-energy topcoats prevent heavy ice buildup from sticking to the train belly in sub-zero winter conditions, preventing ice blocks from dropping onto tracks at high speeds.

View More >>

The Mechanics of High-Speed Ballast Deflection

When high-speed regional trains pass over loose track ballast, turbulent aerodynamic suction kicks granite stones against the vehicle belly at speeds up to 200 km/h:

The impact-resistant pre-painted aluminum plate neutralizes this destructive cycle through a multi-tier defense:

Shock Cushioning & Elastic Rebound: The tough topcoat absorbs and deflects the localized kinetic strike, preventing micro-fissuring and avoiding exposed bare metal.

Dynamic Plate Deflection: The ductile aluminum core flexes elastically to distribute the remaining impact energy across structural frame ribs, protecting high-pressure hydrogen supply lines mounted directly above.

De-Icing Salt & Moisture Isolation: The continuous polymer barrier keeps track condensation and aggressive road brine away from the aluminum surface, preventing under-film corrosion creep and pitting.

Resistance to Hot Brake Dust & Chemical Splatter

Chemical & Thermal Stability: Resists hot metallic brake dust particles (≤ 120°C), hydraulic fluids, and track-cleaning solvents without softening, blistering, or losing color integrity over years of service.

Substrate Cleaning & Micro-Etch Pretreatment

Continuous Multi-Stage Degreasing: Heavy-gauge aluminum plate stock passes through automated alkaline washing and acid micro-etch baths to strip rolling lubricants and clean the anchor surface.

Zirconium-Titanium Conversion: A uniform, chromate-free conversion film is deposited across the metal surface, optimizing surface energy (≥ 56 dynes/cm) for permanent coating adhesion during high-impact strikes.

Automated High-Build Roll & Spray Coating Dynamics

Dual-Head Reverse Coating System: Applies a flexible anti-corrosion primer followed by a high-build impact-resistant topcoat with automated thickness regulation.

Strict Thickness Control: Maintains dry film thickness (typically 40μm - 80μm for coil-coated sheet, or up to 1.5 mm for heavy spray-applied belly armor), ensuring complete, even protection without thin spots.

Thermal Curing & Drop-Weight Quality Verification

Controlled Curing Curves: Computer-controlled ovens bring plates to exact Peak Metal Temperatures (235°C - 245°C PMT), ensuring full polymer cross-linking without compromising the underlying alloy's mechanical temper.

Stone-Strike Simulation Audits: Production lots undergo rigorous drop-weight impact testing (>50 J) and high-pressure gravelometer testing to confirm zero paint chipping or delamination before release.

FAQ

Q1:Why are hydrogen trains more sensitive to under-carriage shield weight than diesel trains?

A:Hydrogen trains carry heavy pressurized fuel tanks (350 bar - 700 bar), cooling loops, and battery packs. To avoid exceeding strict railway axle weight limits on regional lines, every structural component—especially large belly shields—must be as lightweight as possible.

Q2:How does the impact-resistant coating stop ballast stones from chipping the paint?

A:The coating is formulated with high-elongation polyurethane-polyurea polymers that act like a dense rubber cushion. When flying gravel strikes the shield at high speed, the coating flexes elastically and rebounds instead of shattering or flaking like brittle enamel paints.

Q3:Can these pre-painted plates be bent and shaped without the paint cracking?

A:Yes. The coating system is engineered for industrial roll-forming and press-braking (1T - 2T bend radius). Fabricators can cut, punch, and bend custom under-carriage aerodynamic cowlings and access hatches without coating delamination.

Q4:Will winter de-icing salts corrode pre-painted aluminum shields?

A:No. The chemical conversion pretreatment and cross-linked polymer topcoat form an impermeable seal. Even in slush, de-icing brine, and road wash, the aluminum will not develop red rust, preventing corrosion creep around mounting brackets.

Q5:What happens if an extremely large piece of track debris dents the shield?

A:Because 5000 and 6000-series aluminum alloys have high plastic deformation capacity, the plate will dent and absorb the kinetic energy rather than snapping or puncturing. The flexible coating stretches with the metal, keeping the protective barrier intact over the deformed area.

Conclusion

Impact-resistant pre-painted aluminum plates provide an ideal combination of structural weight savings, impact toughness, and zero-maintenance corrosion protection for hydrogen train under-carriage shields.

To optimize material selection for hydrogen rolling stock projects:

Specify High-Ductility Rail-Grade Alloys (5083-H111 or 6082-T6): Ensure the substrate provides high dynamic yield strength and elongation (>12%) to absorb ballast impacts without cracking.

Mandate Certified High-Elongation Coatings (≥ 200% Elongation): Specify multi-layer polyurethane or polyurea topcoats formulated to withstand high-velocity gravelometer testing without chipping.

Require Integrated Edge & Fastener Protection: Ensure mounting holes and cut edges are protected with compatible non-conductive isolation washers and edge sealants to prevent galvanic reactions with structural steel bogie mounts.
