Why Do Anion Exchange Membrane (AEM) Hydrogen Stacks Demand Chemically Inert Coated Aluminum End Plates?

The worldwide race toward clean energy independence has positioned Anion Exchange Membrane (AEM) water electrolysis at the forefront of green hydrogen generation. By combining the cost advantages of earth-abundant, PGM-free catalysts with the dynamic flexibility of membrane-based systems, AEM technology is poised to scale sovereign green hydrogen projects across heavy industry, grid balancing, and zero-carbon transport.

However, stack integrators face a critical mechanical and chemical dilemma at the ends of the stack: the structural clamping end plates. In a multi-kilowatt or megawatt AEM stack, end plates must sustain heavy tie-rod torque to deliver uniform sealing compression across hundreds of cells, preventing high-pressure hydrogen and oxygen leaks. Simultaneously, internal manifolds circulate warm dilute alkaline electrolytes (typically 1% potassium hydroxide,KOH, or sodium bicarbonate, NaHCO₃, at 60°C to 80°C).

Bare aluminum is naturally amphoteric; contact with alkaline lye causes rapid chemical dissolution, releasing hydrogen gas and destroying cell geometry. Conversely, solid stainless steel or nickel-alloy end plates add massive deadweight, increase CNC milling cycle times, and place excessive loads on container frames. Chemically inert coated aluminum end plates—combining high-yield structural aluminum plate (6000 / 5000 series) with dense, pinhole-free alkali-resistant fluoropolymer or epoxy-ceramic hybrid barrier coatings—provide the optimal engineering solution. They isolate the aluminum core from alkaline attack, stop stray electrical currents, eliminate clamping deflection, and reduce stack structural weight by over 60% compared to stainless steel.

Structural Plate Selection for High-Torque Clamping

AEM electrolyzer stacks require continuous, uniform mechanical pressure to maintain electrical contact and prevent combustible gas crossover:

High-Yield Structural Alloys: Certified 6061-T6 and 5083 plate stock provides high yield strength (240 MPa to 275 MPa), providing the structural rigidity needed to prevent center bowing when perimeter tie-rod bolts are torqued down to full clamping preload.

Overcoming the Stainless Steel Weight Penalty: At approximately one-third the density of steel (2.70 g/cm³ vs. 8.00 g/cm³), thick aluminum plates cut structural end plate mass by more than 60%. This weight savings allows multi-stack configurations to be mounted inside standard containerized enclosures without triggering expensive floor reinforcement or heavy crane rental costs.

Dimensional Parallelism Across Heat Cycles: High-purity structural aluminum maintains plate flatness across operating temperature swings from cold startup (15°C) to peak continuous operation (80°C), preventing perimeter gasket relaxation and seal gaps.

Factory-Applied Chemical Barrier Finish

Bare aluminum reacts immediately with alkaline chemicals. The factory-cured barrier system completely neutralizes this chemical vulnerability:

Dense Alkaline-Resistant Polymer-Ceramic Formulation: Formulated specifically to resist continuous contact with warm alkaline electrolyte solutions (pH 9.0 to 14.0) without swelling, softening, or blistering over tens of thousands of operating hours.

Integrated Electrical Insulation: The non-conductive barrier provides high surface dielectric breakdown strength, eliminating stray leakage currents through the tie-rods and ensuring plant personnel safety without requiring separate insulating sheets.

Technical & Commercial Benchmark

Global Energy Vision & B2B Commercial Payoff

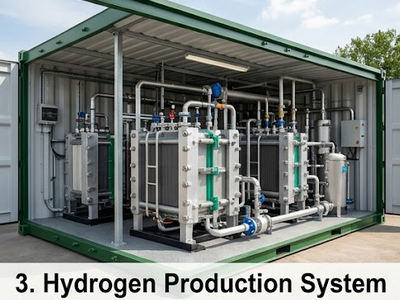

Powering Sovereign Green Hydrogen Independence

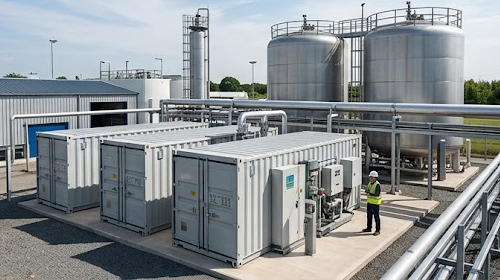

Enabling Domestic Multi-Megawatt Production: Global economies are building domestic green hydrogen facilities to decarbonize industrial manufacturing. Replacing expensive, hard-to-source superalloy plates with precision-coated aluminum removes supply-chain bottlenecks, helping integrators commission multi-megawatt electrolyzer plants on predictable schedules.

Driving Down Levelized Cost of Hydrogen (LCOH): Slashing structural end-plate procurement and machining costs by over 50% helps stack manufacturers achieve aggressive capital expenditure targets, bringing green hydrogen closer to cost parity with fossil fuels.

View More >>

Shop Floor Economics: High Machining Yields and Fast Assembly

3x Faster CNC Milling Turnaround: 6061-T6 and 5083 aluminum machine cleanly at high speeds without the work-hardening, severe tool wear, and chatter marks common to cutting heavy stainless steel plates.

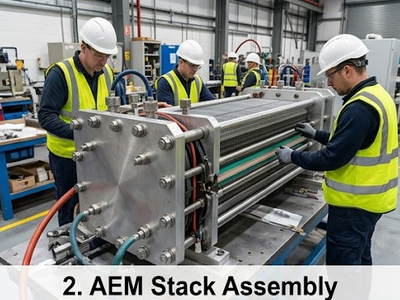

Lower Handling & Assembly Crane Costs: Lightweight aluminum plates allow assembly technicians to move and align end plates using standard shop hoists, eliminating the need for heavy overhead cranes during stack stacking and tie-rod torquing.

View More >>

Long-Term Fleet Reliability & Low Warranty Overhead

Infinitely Recyclable Green Metal: Aluminum can be recycled infinitely with only 5% of the energy needed for primary production. Using recyclable aluminum aligns with corporate ESG mandates and lowers the embodied carbon footprint of clean energy installations.

Zero Maintenance Over Decades of Service: Chemical barrier coatings prevent localized corrosion and gasket degradation, allowing AEM electrolyzers to operate continuously over 40,000 to 60,000 hours without structural plate refurbishment.

View More >>

Stopping the Failure Chain of Alkaline Corrosion

In an unshielded AEM electrolyzer, exposure to alkaline fluids triggers a rapid failure cascade:

Chemical Etching of Bare Metal: If warm KOH solution breaches unsealed manifold ports, hydroxide ions attack bare aluminum, eroding the metal surface and creating hydrogen gas pockets beneath the gasket.

Seal Relaxation & Gas Leaks: As the sealing shoulder degrades, O-ring compression drops, allowing flammable hydrogen and oxygen to escape into the container enclosure and triggering emergency plant shutdowns.

The Inert Barrier Solution: The continuous, factory-applied coating forms an impermeable shield between the electrolyte stream and the metal core. Even under turbulent manifold flow at 80°C, the coating stays tightly bonded, keeping sealing faces smooth and gaskets leak-free.

Galvanic Isolation & Stray Current Protection

Elimination of Bi-Metallic Corrosion: AEM cell frames feature nickel-plated bipolar plates, copper busbars, and stainless steel fittings. The non-conductive barrier coating prevents electrical contact between dissimilar metals, eliminating galvanic corrosion in moist equipment rooms.

Five-Axis CNC Machining & Micro-Etch Cleaning

Precision CNC Manifold Milling: Heavy aluminum plate stock undergoes high-speed machining to carve internal O-ring grooves, tie-rod bolt holes, and fluid ports to tight mechanical tolerances (±0.02 mm) before surface coating.

Automated Ultrasonic Degreasing: Machined plates pass through ultrasonic cleaning lines to strip coolants and oils from deep blind holes, creating an active anchor surface for permanent coating adhesion.

Automated Cleanroom Coating Application

Multi-Axis Robotic Spraying: Liquid-barrier coatings are applied using automated robotic spray systems inside filtered cleanroom booths, maintaining uniform film coverage across complex internal manifold ports.

Controlled Film Thickness Management: Dry Film Thickness (DFT) is held strictly between 40 µm and 65 µm, providing pinhole-free barrier protection while maintaining flat sealing shoulders for leak-free gasket seating.

Quality Verification & Pinhole Testing

100% High-Voltage Spark Testing: Every finished end plate undergoes non-destructive electrical holiday testing to verify zero pinholes or micro-voids across internal manifold bores and O-ring sealing grooves.

Alkaline Immersion Verification: Production witness coupons undergo continuous hot-soak testing in 10% KOH at 85°C for 500 hours, validating zero blistering, peeling, or weight loss before final pack-out.

FAQ

Q1:Why can't bare aluminum be used for AEM electrolyzer end plates?

A:AEM electrolyzers circulate a dilute alkaline electrolyte (typically 1% KOH or NaHCO3). Bare aluminum is an amphoteric metal that dissolves rapidly in alkaline environments, reacting to form soluble aluminate and hydrogen gas. A chemically inert coating is required to isolate the metal from the electrolyte.

Q2:What makes 6061-T6 aluminum stiff enough to replace heavy stainless steel end plates?

A:6061-T6 provides a yield strength exceeding 240 MPa. While steel has a higher modulus of elasticity, increasing the aluminum plate's thickness slightly delivers equal flexural rigidity while still cutting total plate weight by more than half, preventing center bowing under tie-rod clamping loads.

Q3:Will the protective coating crack or peel under heavy tie-rod bolt torque?

A:No. The coating formulation uses high-adhesion primers and flexible polymer-ceramic resins designed for compression service. When bolts are tightened, the coating withstands compressive loads exceeding 100 MPa around bolt washers and gasket faces without flaking, crazing, or delaminating.

Q4:How does switching from stainless steel to coated aluminum lower manufacturing costs?

A:Aluminum cuts CNC milling time by approximately two-thirds, dramatically reducing tool wear and machining labor. Additionally, lighter plates lower shipping costs, ease assembly ergonomics, and eliminate the need for heavy-capacity shop cranes.

Q5:How does the coating prevent electrical ground faults in multi-cell stacks?

A:The polymer-ceramic coating is non-conductive, offering high dielectric breakdown resistance (> 15 kV/mm). This isolates the stack's active electrical potentials from external structural frames, preventing stray ground currents and protecting operating personnel.

Conclusion

To select and specify chemically inert coated aluminum end plates for AEM electrolyzer stacks:

Size Thickness to Span Ratios to Prevent Bowing: Specify minimum plate thicknesses of 35 mm to 60 mm (depending on active cell area) using certified 6061-T6 or 5083 alloy to ensure stack center deflection remains under 0.05 mm under full tie-rod preload.

Mandate Complete Dielectric & Alkali-Resistant Coating Specifications: Require cross-linked epoxy-ceramic or fluoropolymer formulations certified for continuous immersion in 60°C to 80°C dilute KOH with dielectric breakdown strength exceeding 10 kV/mm.

Enforce 100% Spark Testing on Sealing Interfaces: Require factory quality certificates confirming high-voltage holiday testing across all internal fluid ports and O-ring grooves to guarantee zero pinholes before stack assembly.
