Why do Military Satellite Communication Trailers Require High-EMC Shielding Coated Aluminum Enclosures?

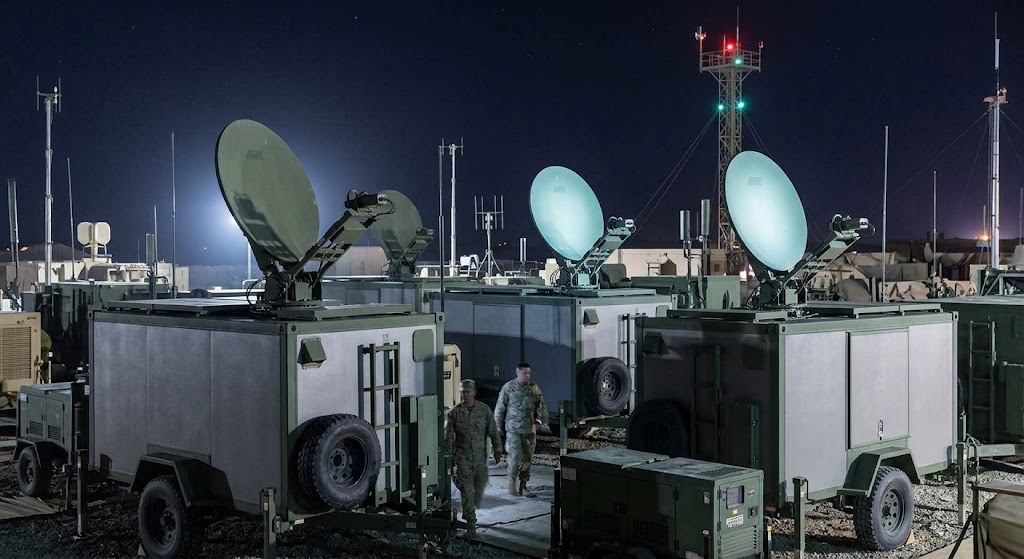

Mobile Military Satellite Communication (SatCom) trailers operate as tactical C4ISR (Command, Control, Communications, Computers, Intelligence, Surveillance, and Reconnaissance) hubs on modern battlefields. These units process high-bandwidth encrypted data feeds, multi-band RF satellite signals (X-band, Ku-band, Ka-band), and tactical line-of-sight communications. However, they must operate in extremely hostile electromagnetic environments characterized by high-power Radar transmissions, friendly multi-spectral emissions, radio-frequency interference (RFI), and directed energy or Electronic Warfare (EW) jamming threats.

Additionally, military SatCom electronics must survive severe High-Altitude Electromagnetic Pulse (HEMP) events and meet strict TEMPEST security requirements to prevent unintended intelligence leakage via compromised electromagnetic emanations. High-EMC shielding coated aluminum enclosures—combining high-conductivity structural aluminum alloys (5000 / 6000 series) with conductive chromate-free conversion coatings and specialized conductive powder/liquid paints—provide a critical electromagnetic barrier. They deliver high EMI attenuation ($>80 dB - 100 dB across 10 kHz - 18 GHz), continuous low-resistance electrical grounding, and rugged environmental protection for sensitive military communication hardware.

Broadband Electromagnetic Interference (EMI) & RFI Hazards

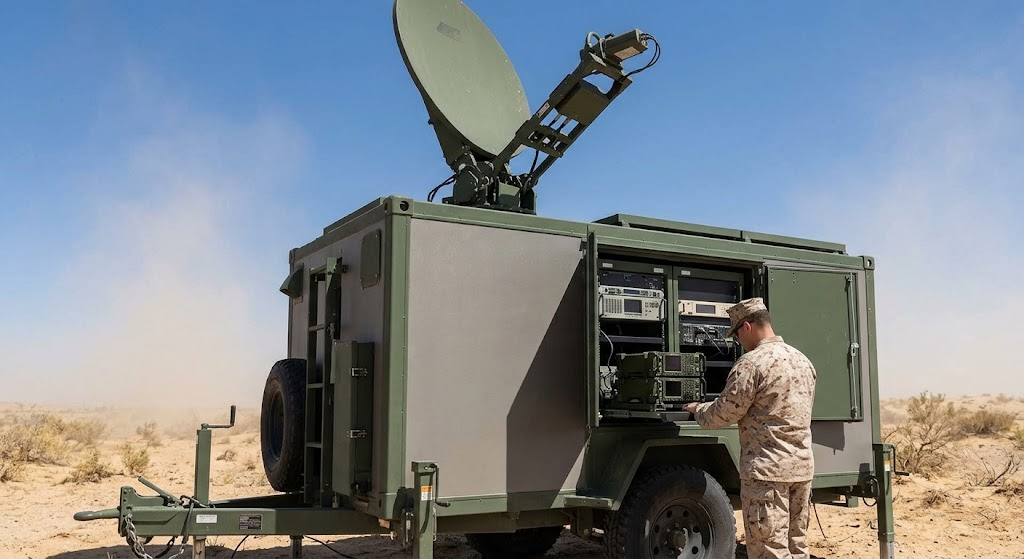

Tactical military trailers house high-density RF power amplifiers, signal processors, and satellite modems operating in close proximity. Unshielded enclosures suffer severe operational degradation:

In-Band Interference & Noise Floor Elevation: Unshielded RF leakage elevates receiver noise floors, causing packet loss, signal dropping, and reduced satellite link margins.

Co-Location Interference: High-power radar emitters and adjacent radio transmitters induce transient voltage spikes in unshielded signal cabling and chassis frames.

TEMPEST Eavesdropping & HEMP Protection Requirements

Modern near-peer military operations require strict emission security and pulse hardening:

TEMPEST Eavesdropping Security: Unshielded processor clocks, high-speed display buses, and data lines emit unintentional compromising electromagnetic signals. Opposing intelligence forces can intercept and reconstruct sensitive tactical data from miles away using high-gain directional antennas.

HEMP Transient Mitigation: High-Altitude Electromagnetic Pulse events generate extreme E1 phase electric field rises (~ 50 kV/m in nanoseconds). Enclosures must provide high shielding effectiveness to prevent microchip gate-oxide breakdown and physical circuit destruction

Technical Validation & Performance Standards

The performance matrix below compares high-EMC shielding coated aluminum enclosures against standard industrial enclosures for military SatCom applications:

Key Professional Advantages in Tactical SatCom Trailer Integration

Defense Against Electronic Warfare & Jamming

Front-End Receiver Protection: Prevents high-power tactical EW jammers from overloading delicate low-noise block downconverters (LNBs) and satellite modems inside the trailer.

Elimination of Self-Interference: Isolates internal high-frequency digital clock lines, preventing noisy onboard computers from degrading weak downlink signals received from geostationary or LEO satellites.

View More >>

Tactical Mobility & All-Weather Environmental Durability

Corrosion Resistance Against Harsh Field Conditions: Conductive conversion coatings combined with weather-resistant tactical topcoats withstand marine salt fog, high humidity, diesel fumes, and de-icing chemicals.

Decontamination & CARC Compatibility: The coated aluminum surface withstands harsh chemical washdowns (such as DS2 decontaminants) required after exposure to chemical, biological, radiological, or nuclear (CBRN) threats.

View More >>

Long-Term Reliability & System Modular Maintenance

Galvanic Corrosion Mitigation: Using silver-plated or nickel-filled conductive coatings matched to aluminum substrate potentials prevents galvanic corrosion along EMI gasket flange seams.

Modularity & Rapid Field Assembly: Lightweight aluminum construction simplifies rack mounting, modular enclosure swaps, and rapid field repairs during military deployments.

View More >>

Structural Mechanics of Marine & Aerospace Aluminum

SatCom trailer enclosures require lightweight construction without sacrificing structural rigidity during off-road transport:

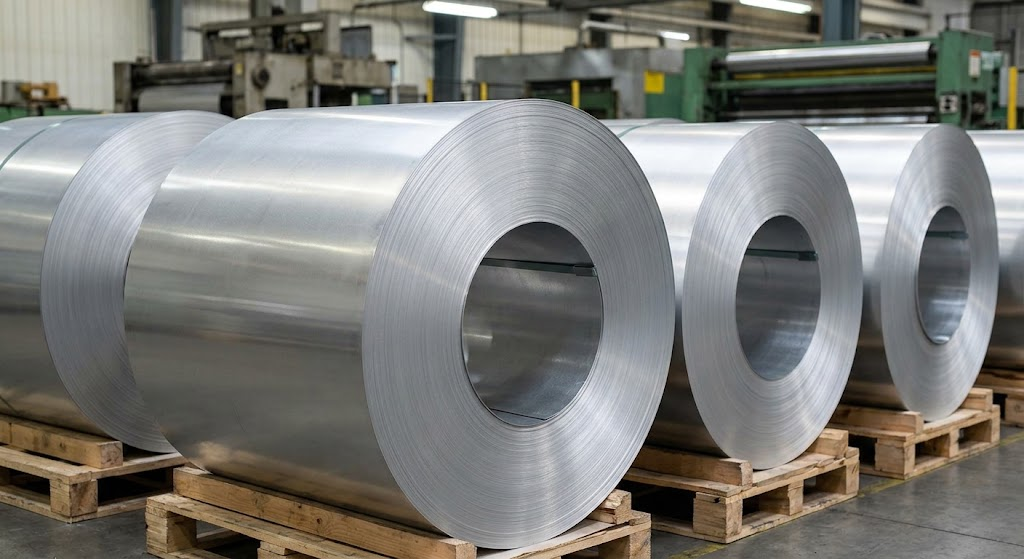

5052-H32 / 6061-T6 Structural Core: Offers high strength-to-weight ratio, high yield strength ($>240 MPa), and high intrinsic electrical conductivity (~ 40% - 50% IACS), making it ideal for forming lightweight Faraday cages.

Mobility Overhead Reduction: At a density of 2.70 g/cm³, aluminum keeps total trailer weight within air-transportability limits (C-130 / C-17 load requirements) and reduces towing vehicle fuel consumption.

Conductive Surface Finish & Coating Chemistry

Standard non-conductive paints or anodized layers break electrical continuity, rendering an enclosure useless for EMC shielding. High-EMC enclosures utilize specialized multi-layer finishing systems:

Chromate-Free Conductive Conversion Film (Trivalent Chromium / Zirconium Passivation): Applied directly to raw aluminum, this micro-thin conversion layer provides low contact resistance (≤ 2.5 mΩ/sq) while protecting the metal against interfacial corrosion.

Conductive Polyurethane / Epoxy Powder Systems: Formulated with microscopic conductive fillers (nickel, silver-plated copper, or carbon nanotube matrices) dispersed throughout the resin binder.

Mating Surface Shielding: Gasket contact flanges and panel joints are masked during non-conductive painting or finished exclusively with conductive conversion coatings to maintain continuous metal-to-metal electrical contact with beryllium-copper (BeCu) or wire-mesh EMI gaskets.

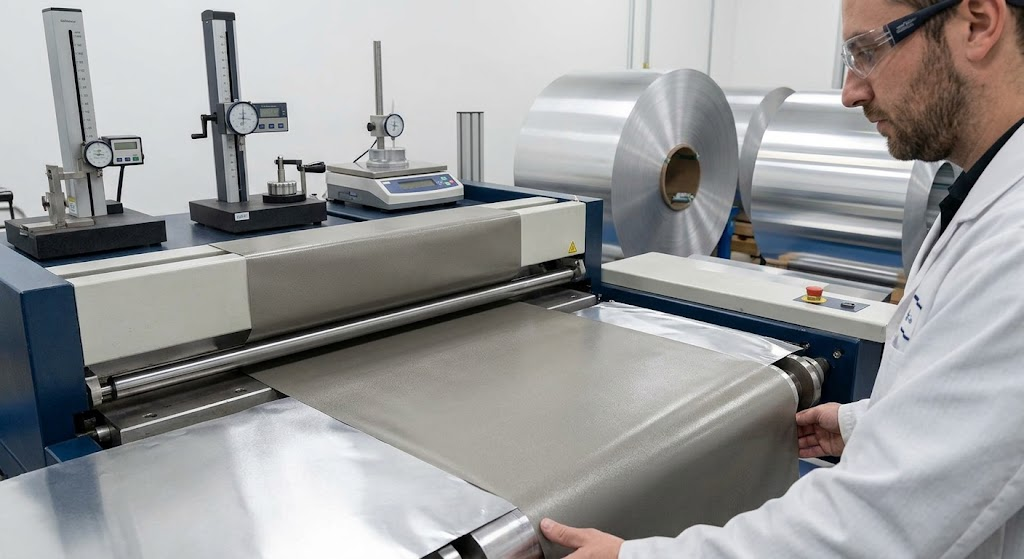

Pretreatment & Conductive Conversion Passivation

Automated Acid Etching & Degreasing: Removes surface oxides and oils to achieve a pristine, uniform aluminum surface profile for chemical bonding.

Trivalent Chromium Pretreatment (TCP): Deposits a conductive chemical film compliant with MIL-DTL-5541 Type II Class 3, ensuring ultra-low electrical contact resistance for joint grounding.

Precision Masking & Dual-Coating Application

High-Precision Robotic Masking: Critical Faraday flange mating surfaces, grounding bosses, and gasket channels are precision-masked to prevent non-conductive topcoats from contaminating contact zones.

Electrostatic Conductive Paint Application: Conductive primers and tactical topcoats (such as CARC - Chemical Agent Resistant Coating) are applied under strict Dry Film Thickness (DFT) controls (50μm - 75μm) to guarantee chemical durability without impeding conductivity.

Quality Assurance & EMC Shielding Audits

Four-Point Probe Resistance Verification: Every production enclosure undergoes surface contact resistance testing to confirm resistance stays below strict military thresholds (≤ 2.5 mΩ).

Over-the-Air Shielding Effectiveness Auditing: Enclosures are tested inside anechoic chambers to confirm compliance with MIL-STD-285 / IEEE-299 shielding requirements across 10 kHz to 18 GHz.

FAQ

Q1:Why can't standard anodized aluminum be used for military EMC enclosures?

A:Anodizing creates an aluminum oxide layer (Al₂O₃) that is electrically insulating. Insulated panels break electrical continuity across seams, preventing the enclosure from forming a continuous Faraday cage and destroying its EMI shielding performance.

Q2:How does a conductive coating improve TEMPEST security in military SatCom trailers?

A:Conductive conversion coatings maintain seamless electrical contact along panel joints, door seams, and cover plates. This blocks unintended electromagnetic emissions generated by internal digital circuitry, preventing adversary intelligence from eavesdropping on confidential signals.

Q3:What is the difference between MIL-DTL-5541 Class 1A and Class 3 conversion coatings?

A:Class 1A is a thicker conversion coating engineered primarily for maximum corrosion protection where low electrical resistance is not required. Class 3 is a micro-thin coating specifically engineered for electrical contact resistance (≤ 2.5 mΩ/sq), making it the mandatory standard for EMC shielding seams.

Q4:How do conductive coated aluminum enclosures withstand High-Altitude Electromagnetic Pulses (HEMP)?

A:They act as a continuous conductive Faraday shield. When a high-energy 50 kV/m HEMP pulse impacts the enclosure, the high electrical conductivity of the aluminum core and conductive seam coatings reflects and dissipates the surge energy to ground before it can penetrate and destroy internal electronics.

Q5:Will conductive paints on aluminum flanges corrode due to galvanic reactions with EMI gaskets?

A:Not if properly specified. Galvanic corrosion occurs when metals with widely different electrochemical potentials touch in humid conditions. Using nickel-filled or silver-plated copper conductive coatings matched to the electrochemical potential of aluminum and beryllium-copper gaskets prevents galvanic corrosion.

Conclusion

High-EMC shielding coated aluminum enclosures are indispensable for military satellite communication trailers, providing essential protection against electromagnetic threats, securing TEMPEST data, and ensuring reliable tactical communications.

To optimize material selection for tactical SatCom trailer enclosures:

Specify MIL-DTL-5541 Type II Class 3 Conductive Conversion Pretreatment: Ensure all mating flanges, grounding points, and interior chassis seams maintain low surface contact resistance (≤ 2.5 mΩ).

Mandate MIL-STD-188-125-1 HEMP & TEMPEST Shielding Compliance: Verify that enclosure designs achieve ≥ 90 dB shielding effectiveness across 10 kHz - 18 GHz.

Select High-Strength Marine Alloy Core (5052-H32 or 6061-T6): Combine structural aluminum alloys with Chemical Agent Resistant Coatings (CARC) over conductive conversion layers to ensure maximum mobility and field durability.
