Why are European Greenhouse Builders Replacing Galvanized Steel with Light-Weight Coated Aluminum Channels?

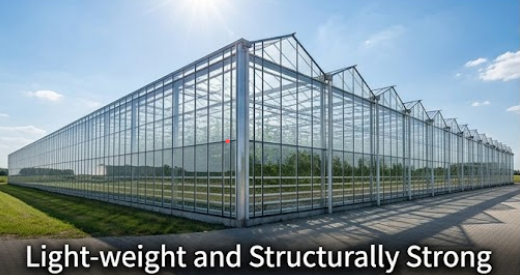

High-tech commercial greenhouse construction across Europe—particularly in Venlo-style facilities in the Netherlands, Spain, and Germany—is undergoing a major structural evolution. Modern commercial growers require ultra-wide structural spans, optimized solar light transmission, integrated condensate drainage, and precise climate control to maximize crop yields year-round.

While galvanized steel has historically served as the primary structural frame material, its heavy mass, susceptibility to white rust, high thermal bridging, and thick structural profiles restrict overall operational efficiency. Lightweight coated aluminum channels (utilizing structural 6000 series alloys with high-durability polyester/FEVE powder coatings) offer a far superior alternative. By reducing structural deadweight, slimming structural profile widths to boost light transmission, and delivering zero-maintenance corrosion resistance in warm, humid microclimates, coated aluminum channels are fast becoming the structural standard across modern European greenhouse projects.

Structural Mechanics of 6000-Series Magnesium-Silicon Alloy

Modern greenhouse roof gutters, ridge beams, and glazing bar channels require exceptional flexural rigidity and wind/snow load resistance:

6063-T6 / 6005A-T6 Structural Alloy Substrate: Delivers elevated yield strength (>215 MPa) and high elastic modulus, supporting heavy snow accumulation and thermal curtain suspension loads.

Optimized Extrusion Geometry: Aluminum's extrusion flexibility allows complex structural geometries—integrating glass-retention grooves, condensation channels, and thermal breaks into a single monolithic profile that steel cannot match.

Powder Coating & Thermosetting Polymer Chemistry

Extruded aluminum channels are protected using advanced thermosetting architectural coatings:

Architectural Polyester / FEVE Powder Systems: Formulated with cross-linked polymers that resist UV photodegradation, maintaining high gloss and color stability under continuous sunlight.

White Reflective Pigmentation: High-reflectance white topcoats reflect stray light back into the greenhouse interior, preventing thermal absorption into structural channels.

Technical Validation & Performance Standards

The performance matrix below compares lightweight coated aluminum channels against traditional hot-dip galvanized steel in commercial greenhouse applications:

Key Professional Advantages in European Commercial Greenhouses

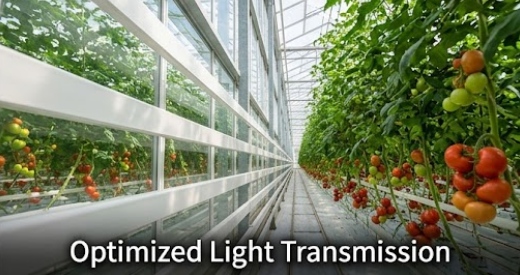

Higher Crop Yields Through Increased Light Transmission

The "1% Light = 1% Yield" Rule: In European winter climates, every additional percentage of solar light directly boosts crop photosynthesis. Slimmer aluminum profiles increase total indoor light transmission by 3% - 6%, significantly increasing tomato, cucumber, and pepper yields.

White Reflective Coating Geometry: Powder-coated white channels bounce internal ambient light back onto the upper crop canopy rather than absorbing solar radiation.

View More >>

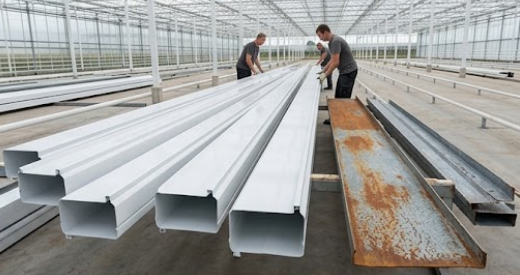

Reduced Structural Deadweight & Fast Modular Assembly

Easier Foundation Engineering: Reducing roof framing weight by over 60% simplifies structural foundation design, lowering steel pile costs and overall civil engineering overhead.

Precision Snap-Fit Construction: Extruded aluminum channels allow precision snap-fit rubber gaskets and glass mounting clips, drastically reducing on-site construction labor hours across multi-hectare Venlo projects.

View More >>

Long-Term Lifecycle Cost Optimization

Elimination of Maintenance & Painting: Coated aluminum profiles eliminate the need for mid-life rust scraping or recoating, providing a maintenance-free service life exceeding 30 years.

Complete Recyclability: At the end of the greenhouse service life, structural 6000-series aluminum retains high scrap value and can be recycled with minimal energy consumption.

View More >>

Electrochemical Mechanics Against White Rust & Condensation

European commercial greenhouses operate at continuous humidity levels (75% - 90% RH) with aggressive condensation cycles:

While galvanized zinc coatings eventually develop "white rust" (ZnCO₃) under stagnant condensation, coated aluminum provides an impermeable barrier:

Passivated Surface Boundary: The native aluminum oxide layer (Al₂O₃), reinforced by an inorganic conversion coating, prevents moisture and chemical ions from contacting the metal core.

Fertilizer & Acidic Vapor Inertness: Resists chemical degradation from sulfur burners, carbonic acid (H₂CO₃) from CO₂ enrichment, and liquid foliar nutrient sprays.

Chromate-Free Zirconium/Titanium Pretreatment: Nano-scale chemical pretreatment (20 nm - 40 nm) guarantees permanent paint adhesion (Class 0 Cross-Hatch), preventing edge delamination.

Integrated Condensate Drainage Dynamics

Capillary Moisture Control: Custom-extruded aluminum profiles feature built-in secondary condensation gutters that route water droplets away from crops, eliminating mold risks (e.g., Botrytis) without requiring additional plastic cladding clips.

Surface Preparation & Nano-Conversion Pretreatment

Alkaline Etching & Acid Cleaning: Extruded 6000-series channels pass through automated dip-tank lines to remove die lubricants and native non-uniform oxide films.

Zr/Ti Chemical Passivation: A chromate-free zirconium-titanium oxide layer is deposited, raising surface energy (≥ 54 dynes/cm) for permanent coating adhesion.

Automated Electrostatic Powder Coating Operations

Multi-Axis Robotic Spray Application: Electrostatic spray guns apply uniform architectural powder across complex extrusions, maintaining a consistent Dry Film Thickness (DFT) profile of 60μm - 80μm.

360° Profile Coverage: Guarantees complete paint coverage within narrow glazing grooves, snap-fit slots, and internal channel corners where corrosion often initiates on steel profiles.

Thermal Curing & Structural Quality Control

Convection Curing Window (180^°C - 200° C): Precise oven temperature control ensures complete polymer cross-linking without compromising the heat-treated T6 temper of the aluminum core.

Qualicoat / AAMA Compliance Audits: Every production batch undergoes cross-hatch adhesion, impact, and bend testing to ensure compliance with European architectural standards.

FAQ

Q1:Why is light transmission higher with coated aluminum channels compared to galvanized steel?

A:Aluminum can be extruded into complex, high-strength structural profiles with significantly slimmer cross-sections than steel. This reduces shadow cast on the crop canopy, allowing more solar PAR light to enter the greenhouse.

Q2:How do coated aluminum channels handle high-humidity greenhouse condensation?

A:Coated aluminum features a non-porous polymer barrier over a passivated aluminum oxide core. Unlike galvanized steel, which develops white rust under continuous dampness, coated aluminum will not rust or degrade when exposed to constant moisture.

Q3:Aren't aluminum channels more expensive than galvanized steel structural members?

A:While initial raw material costs for aluminum are higher, the overall project investment is offset by lower foundation costs, faster modular installation, reduced maintenance expenditure, higher crop yields from increased light, and high end-of-life recycling value.

Q4:Can lightweight aluminum channels support heavy European snow and crop loads?

A:Yes. Structural alloys such as 6063-T6 or 6005A-T6 provide high yield strength (>215 MPa). When engineered with internal webbing profiles, aluminum channels meet strict European structural snow and wind load requirements (EN 13031-1).

Q5:Do coated aluminum greenhouse channels require special maintenance over their lifespan?

A:No special maintenance is needed. Occasional cleaning with low-pressure water during crop transition cycles removes dust and agricultural residue, keeping the white reflective surface clean and functioning optimally for decades.

Conclusion

Lightweight coated aluminum channels provide an ideal structural material choice for European commercial greenhouses, delivering superior light transmission, complex profile integration, and long-term corrosion resistance.

To optimize structural material selection for greenhouse construction:

Specify Structural Marine Alloy & Temper (6063-T6 or 6005A-T6): Ensure the alloy specification meets European structural load-bearing standards (EN 1999 Eurocode 9).

Mandate Certified Powder Coating Quality (Qualicoat Class 1 / Class 2): Enforce architectural powder coating specifications that guarantee high UV resistance and film adhesion in high-humidity environments.

Integrate Multi-Functional Profile Design: Utilize custom extrusions that incorporate primary glass channels, rubber gasket seats, and secondary condensate drainage within a single lightweight profile.
