Why is Hydrophobic Pre-Painted Aluminum Sheet Becoming Mandatory for Offshore Wind Turbine Nacelle Cladding?

Offshore wind turbines operate under severe climatic conditions: continuous exposure to fine marine spray NaCl aerosol), violent wind turbulence, high UV irradiance, and seasonal atmospheric icing. As offshore installations move into deeper waters with higher capacity turbines (12 MW - 20 MW+ ), the nacelle—housing sensitive gearboxes, generators, and transformers—requires ultimate structural enclosure reliability.

Standard marine coatings struggle with airborne sea-salt encrustation and ice buildup, leading to mechanical weight imbalances, accelerated localized pitting, and frequent downtime. Hydrophobic pre-painted aluminum sheet combines marine-grade aluminum alloys (5000 / 6000 series) with a nano-engineered superhydrophobic fluoropolymer coating system (contact angle θ > 150°). This material system prevents water droplets from adhering, sheds salt crusts during rain cycles, and minimizes ice accretion, establishing itself as an essential standard for offshore nacelle cladding.

Structural Mechanics of the Alloy Substrate

Nacelle cladding panels require a high strength-to-weight ratio to withstand dynamic gust loading while minimizing top-tower mass:

5052 / 5083-H32 Marine Substrate: Delivers structural yield strength (>190 MPa) with high intrinsic resistance to intergranular corrosion in saline environments.

Structural Mass Savings: Replaces heavy GRP (Glass Reinforced Plastic) composite shells or marine-grade stainless steel, reducing nacelle housing weight by up to 30% - 40%.

Surface Energy & Fluoropolymer Hydrophobic Technology

The superhydrophobic topcoat relies on a dual micro-nano textured surface modified with low-surface-energy fluoro-monomers:

Ultra-High Water Contact Angle (θ > 150°): Drops of sea spray retain spherical geometry and roll off at minimal tilt angles (<5°).

Polyurethane/FEVE Hybrid Matrix: Covalently cross-linked fluoropolymer chains ensure the hydrophobic nano-structures resist severe UV degradation, wind-borne particle abrasion, and chemical weathering.

Technical Validation & Performance Standards

The performance matrix below outlines laboratory testing standards for hydrophobic pre-painted aluminum nacelle panels:

Key Professional Advantages in Marine Wind Engineering

Prevention of Nacelle Weight Overload & Dynamic Imbalance

Mitigation of Heavy Ice Accumulation: Ice shear adhesion strength is reduced by over 80%, allowing wind shear and turbine vibration to shed ice naturally before dangerous weight builds up on the nacelle roof.

Top-Tower Mass Reduction: Lower structural panel mass (2.73 g/cm³) decreases the dynamic bending moment on the tower base and monopile foundation during extreme sea states.

View More >>

Reduced Maintenance & O&M Cost Optimization

Elimination of Offshore Washing Schedules: Self-cleaning hydrophobic properties drastically reduce manual cleaning and salt-washing cycles carried out by offshore rope-access technicians.

Extended Enclosure Lifespan: Protects internal power electronics from salt-laden humidity, extending overall nacelle housing operational life to 25 - 30 years.

View More >>

Superior Aesthetic & Thermal Management Flexibility

Solar Heat Reflectivity Options: Formulated with Cool Roof IR-reflective pigments to lower internal nacelle enclosure temperatures, reducing cooling loads on generator heat exchangers.

High Chemical Resistance: Unaffected by hydraulic oil leaks, bird droppings, or harsh marine atmospheric pollutants.

View More >>

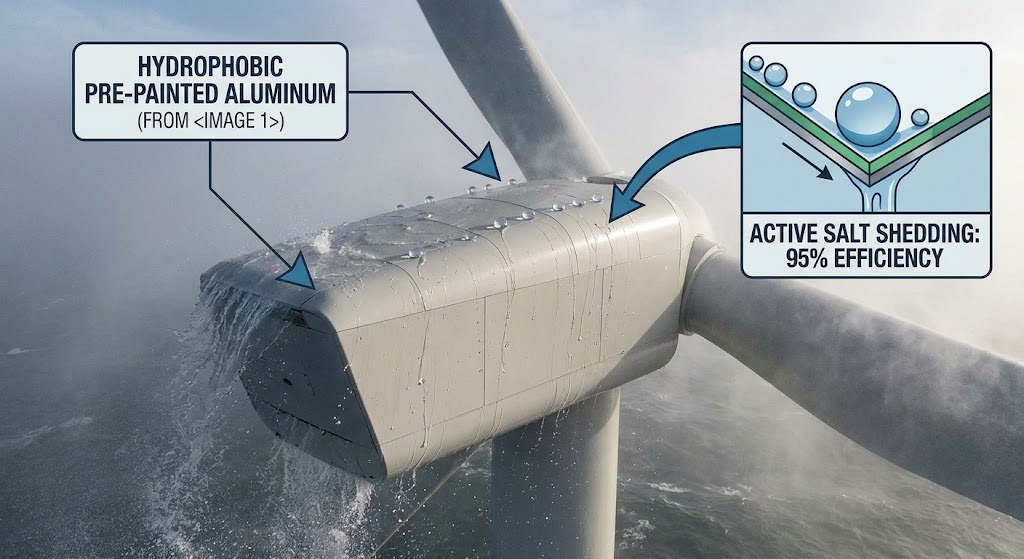

The Electrochemical Mechanics of Salt Removal & Anti-Pitting Performance

In traditional nacelles, marine moisture accumulates in microscopic crevices, evaporating into dense salt crusts that accelerate pitting corrosion:

The hydrophobic surface blocks this reaction by preventing liquid film formation:

Moisture Repellency: Drops containing dissolved chloride ions (Cl⁻) roll off before contact can induce chemical oxidation.Self-Cleaning Rain Cycles: Rainwater rolls across the surface, picking up micro-crystalline salt deposits to prevent localized acidification in surface fissures.

Chromate-Free Zirconium/Titanium Pre-treatment: Forms an inorganic nano-layer (20 nm - 40 nm) beneath the primer, preventing moisture migration beneath the paint film.

Sub-Film Creep Prevention

Interfacial Polymer Adhesion: The flexible epoxy primer (10μm - 15μm) forms strong chemical bonds with the conversion layer, eliminating lateral moisture migration and sub-film filiform creep at panel overlaps.

Surface Preparation & Nano-Conversion Pretreatment

Alkaline Degreasing & Acid Micro-Etching: Continuous aluminum coil undergoes multi-stage cleaning to remove rolling lubricants and native non-uniform oxide films, creating an ideal bonding surface.

Zr/Ti Pretreatment Passivation: A chemical conversion layer is applied to achieve high surface tension (≥ 54 dynes/cm) prior to primer application.

Precision Continuous Roll Coating Dynamics

Dual-Reverse Roll Coater: Applies a flexible, corrosion-inhibiting primer followed by a specialized hydrophobic FEVE topcoat (25μm - 30μm).

Dry Film Thickness (DFT) Control: Closed-loop gauge sensors maintain a total film thickness profile of 35μm ± 2μm for uniform water repellency.

Thermal Curing & Quality Control Standards

Peak Metal Temperature (PMT) Control: Catenary ovens heat the coil to a PMT window of 240°C - 248°C, ensuring complete cross-linking without damaging the micro-hydrophobic surface features.

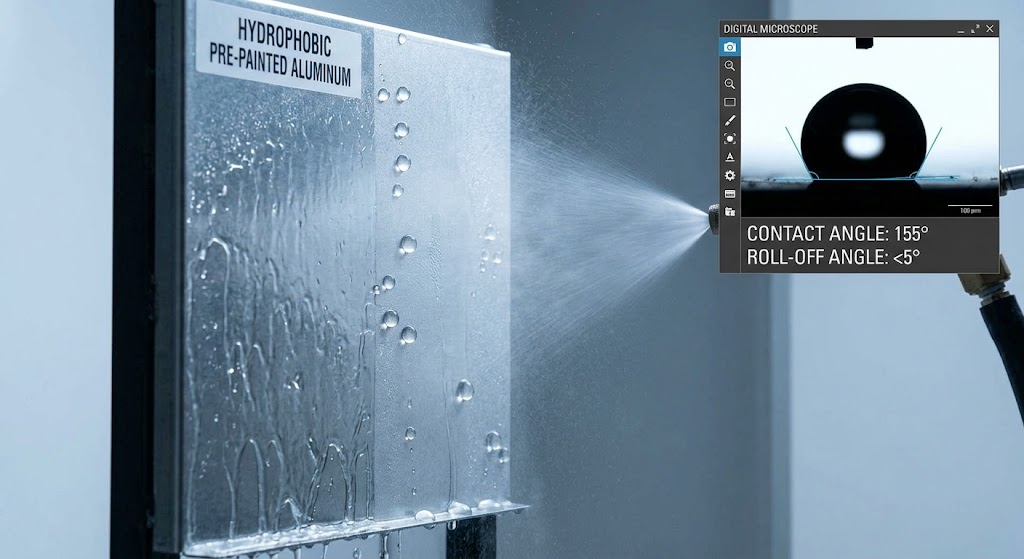

Contact Angle Optical Audit: Online goniometer systems verify that every batch achieves a water contact angle >150° prior to coil tension rewinding.

FAQ

Q1:Why is hydrophobic aluminum preferred over GRP (fiberglass) for offshore nacelles?

A:Hydrophobic pre-painted aluminum offers higher impact strength, non-combustibility, superior weight reduction, complete recyclability, and eliminates the risk of resin degradation or osmosis blistering under continuous saltwater exposure.

Q2: How does the hydrophobic surface prevent salt accumulation on nacelles?

A:Because water drops cannot spread out on the high-contact-angle surface (θ > 150°), airborne ocean spray forms tight spheres that roll off immediately, picking up loose salt particles before they can dry into hard crusts.

Q3: Does the hydrophobic coating lose its water-repellent properties under harsh UV exposure?

A:High-grade hydrophobic coatings utilize an FEVE fluoropolymer or silicone-modified polyurethane matrix that resists UV breakdown, maintaining high water contact angles throughout extended operational life cycles.

Q4:Can hydrophobic pre-painted aluminum sheets be bent and formed into nacelle contours?

A:Yes. The coating system is engineered with balanced flexibility (1T - 2T bend rating), allowing automated press-braking, roll-forming, and panel curving without micro-cracking or losing surface hydrophobicity.

Q5:How does this material reduce offshore operation and maintenance (O&M) costs?

A:By preventing salt encrustation and heavy ice accumulation, the material eliminates the need for manual offshore surface cleaning and mitigates corrosion-related nacelle maintenance, saving substantial helicopter and vessel support costs.

Conclusion

Hydrophobic pre-painted aluminum sheet represents an optimal material choice for offshore wind turbine nacelles, delivering reliable anti-icing, self-cleaning, and corrosion-resistant performance in extreme marine conditions.

To ensure optimal material selection for offshore wind projects:

Specify Marine Aluminum Core (5052-H32 or 5083-H116): Ensure the substrate selection delivers sufficient yield strength and intrinsic marine corrosion resistance.

Mandate Certified Hydrophobic Parameters (Contact Angle } >150°): Require verification that the surface retains its low-energy roll-off angle even after UV and abrasion exposure testing.

Verify Salt Spray & Ice Shear Standards: Enforce a minimum 4,000-hour ASTM B117 salt spray certification and an ice adhesion shear strength benchmark below 20 kPa.
