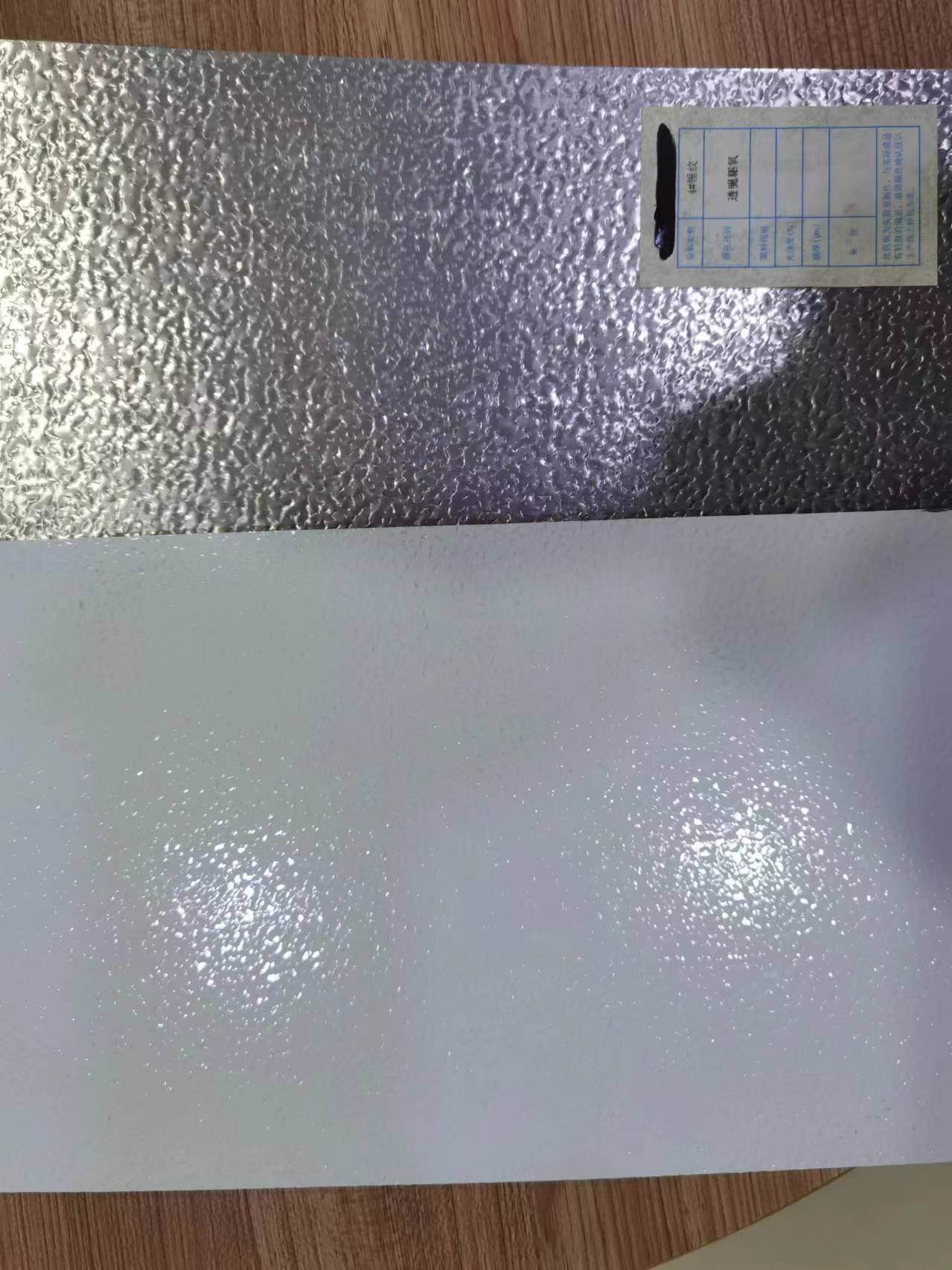

For Automative Painted Embossed Aluminum Heat Shields Sheet

The embossed aluminum heat shield constitutes a particular kind of aluminum sheet that features raised hemispherical patterns. Generally, it is fabricated from 1000 series pure aluminum, namely 1050, 1060, and 1100. This material exhibits remarkable workability, allowing for effortless shaping and manipulation. Its formability is also outstanding, enabling it to be molded into diverse configurations with ease. Moreover, it possesses an impressively high reflectivity, being capable of reflecting radiant heat up to a staggering 1090°C. These exceptional qualities combine to make it a prime and highly suitable option for applications centered around chassis heat management.

Specs of embossed aluminum heat shield sheet:

Property of embossed aluminum heat shield

Surface treatment method: the surface is spherically embossed, and then anodized.

Automotive Industry

• Engine Compartment:

  It is installed around the engine to protect other components from the high heat of the engine. It can reflect and block the radiant heat of the engine, reducing the temperature of the surrounding parts and prolonging their service life. For example, it can prevent the wiring harness from being damaged by high temperatures, reducing the risk of short circuits and malfunctions.




• Exhaust System:

  Placed near the exhaust pipe, it can effectively block the heat of the exhaust pipe. This helps to reduce the heat transfer to the vehicle body and the ground, improving driving safety and preventing potential fire hazards. It also helps to maintain a relatively stable temperature in the vehicle interior, improving the comfort of passengers.




Aerospace Field

• Aircraft Engines:

  It is used in the engine nacelle and other parts to protect the surrounding structures and equipment from high temperatures. In the process of aircraft flight, the engine generates a large amount of heat. The embossed aluminum heat shield can reflect and insulate heat, ensuring the normal operation of other components around the engine and improving the overall reliability and safety of the aircraft.




• Spacecraft:

  In spacecraft, it is used to protect the internal equipment and structure from the high temperature environment during launch and flight. For example, during the re-entry of a spacecraft into the atmosphere, the embossed aluminum heat shield can withstand high temperatures and protect the spacecraft and astronauts inside.




Electronic Equipment

• Data Centers:

  Installed on the cabinets and heat sinks of servers and other equipment, it can reflect and dissipate heat, improving the heat dissipation efficiency of the equipment. This helps to maintain the normal operating temperature of the electronic components, reducing the occurrence of malfunctions and extending the service life of the equipment.




• Power Electronics Devices:

  Such as in inverters and converters, the embossed aluminum heat shield can block the heat generated by the components and guide the heat to the heat dissipation device. This ensures the stable operation of the power electronics devices and improves their conversion efficiency.




Building Industry

• Roofing and Wall Insulation:

  Applied to the roof and exterior walls of buildings, it can reflect solar radiation and reduce heat transfer into the building. This helps to lower indoor temperatures in summer, reducing the energy consumption of air conditioning systems and improving the energy efficiency of buildings.




• Chimney and Flue Insulation:

  Used around chimneys and flues to prevent heat from spreading to the surrounding structures. This enhances fire safety and reduces heat loss, improving the overall energy efficiency of the building's heating system.




Can embossed aluminum heat shields be customized to specific requirements?

The thickness range of embossed aluminum heat shields can vary depending on different standards and applications.

Generally, the thickness of embossed aluminum heat shields is between 0.1mm and 6mm.

The following are some specific thickness ranges based on different sources:

• 0.2mm - 1.8mm: For embossed aluminum heat shields made of 1050, 1060, and 1100 alloys, the thickness can be in the range of 0.2mm - 1.8mm, with coil thickness typically between 0.7mm - 1.5mm.

• 0.3mm - 3.5mm: Sheets with alloys like 1050, 1050A, 1100, 1060, 1070, 3003, and 5052 usually have a thickness range of 0.3mm - 3.5mm, and the coil thickness is also within this range.

• 0.2mm - 2.0mm: Aluminum embossed sheets for heat shields made of alloys such as 1060, 1050, 3003, and 5052 can have a thickness range of 0.2mm - 2.0mm, with a width of 40mm - 1200mm and a length of 400mm - 1000mm.

Welcome to enquiry us with your needs on the painted aluminum coil or aluminum sheet.
