How Prepainted Aluminium Trim Coil Reduces Installation Time for Window & Door Casings

Introduction

For contractors, installers, and fabricators in the construction and remodeling industry, time on site is money. Every hour spent painting, waiting for coatings to cure, or reworking poorly finished trim adds labor cost and delays project handover. This is precisely why prepainted aluminium trim coil has become the go-to material for window and door casings, fascias, drip edges, soffits, and flashings across North America, Europe, and beyond.

By shifting the finishing process from the job site to the factory, prepainted aluminium trim coil eliminates on-site painting, reduces waste, and allows installers to cut, bend, and fasten finished trim in a single pass. In this article, we break down exactly how prepainted aluminium trim coil cuts installation time — and why it outperforms bare aluminum, wood, and vinyl for exterior trim applications.

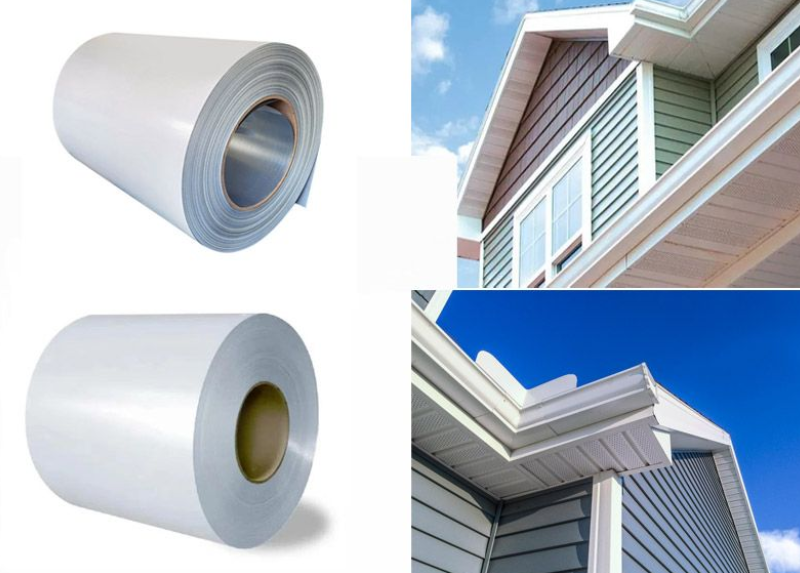

What Is Prepainted Aluminium Trim Coil?

Prepainted aluminium trim coil — also called color coated aluminum fascia coil or painted aluminum soffit coil — is a factory-coated aluminum coil specifically manufactured for exterior trim and cladding. The aluminum substrate (typically alloy 3105 or 3003 in H24 temper) is first cleaned, pretreated, then roller-coated with a high-quality polyester (PE) or PVDF paint system on a continuous coating line — ensuring a uniform, consistent, and durable finish before the material ever reaches the job site.

At Dingang, our prepainted aluminium trim coil is supplied in standard widths of 355mm and 609mm (14" and 24"), thicknesses of 0.4mm and 0.5mm, on a 300mm inner diameter core — dimensions specifically chosen to match common trim brake and slitter equipment used by installers worldwide.

→ View Dingang Color Coated Aluminum Trim Coil — Specs & Inquiry

5 Ways Prepainted Aluminium Trim Coil Cuts Installation Time

1. No On-Site Painting — Eliminate an Entire Work Step

The single biggest time savings comes from removing painting from the job site entirely. With bare aluminum or wood trim, installers must: prime the surface, apply the first coat, wait for it to dry, apply a second coat, and wait again — often requiring a separate return visit. Prepainted coil arrives with a factory-cured finish that needs no additional coating. Cut it, bend it, fasten it — done.

Time saved per window/door opening: Typically 30–60 minutes of painting and drying time. On a 50-window project, that translates to 25–50 hours of labor eliminated — plus no weather-related painting delays.

2. Field-Formable on Standard Trim Brakes

Prepainted aluminium trim coil is designed to be bent on-site using a standard sheet metal brake (trim brake). The H24 temper and 0.4–0.5mm thickness offer the ideal balance: stiff enough to hold a crisp, straight edge, yet ductile enough to form clean 90° bends, hemmed edges, and custom profiles without cracking the paint. This means installers can fabricate custom casings, brick mold wraps, and drip caps on the spot — no need to pre-order custom extrusions or wait for shop fabrication.

3. Standard Widths Match Common Trim Dimensions

Dingang supplies trim coil in 355mm (14") and 609mm (24") widths — the industry-standard sizes that align with most window and door casing depths, fascia board widths, and drip edge profiles. Because the coil is already the right width, installers spend less time ripping material to size and more time installing. For custom widths, our coil can be slit on-site or pre-slit at the factory to your exact specification.

4. Lightweight = Faster Handling & Fewer Workers

Aluminum trim coil weighs approximately one-third as much as steel and far less than wood or composite trim. A single worker can carry, position, and install a full coil or pre-cut lengths without assistance — reducing the crew size needed on site and speeding up the installation rhythm. Lighter material also means faster fastening: standard trim nails or self-tapping screws penetrate aluminum quickly and cleanly.

5. Consistent Color = No Patchwork or Touch-Ups

Factory coating ensures color and gloss consistency across the entire coil and across multiple coils from the same production batch. Unlike field painting — where touch-ups, shade variations, and overspray marks are common — prepainted coil delivers a uniform finish that needs no correction. Installers don't waste time buffing out paint runs, masking overspray, or returning to fix mismatched sections.

Prepainted Aluminium vs. Traditional Trim Materials

Common Applications for Prepainted Aluminium Trim Coil

The versatility of prepainted aluminium trim coil makes it suitable for virtually every exterior trim detail on a residential or commercial building:

• Window and door casings — wraps around wood or composite frames for a maintenance-free finish

• Window sills and brick mold — custom-bent to match any profile

• Drip caps and drip edges — directs water away from windows and roof edges

• Fascias and soffits — covers eaves and rafter tails, ventilated or solid

• Porch posts and columns — wraps for a clean, painted look without maintenance

• Louvers and gable vents — fabricated into decorative and functional vent covers

• Flashings — step flashing, valley flashing, and counter-flashing for roof/wall intersections

• Channel letter and signage backing — pre-finished for commercial sign fabrication

Key Specifications (Dingang Standard)

Pro tip for installers: Always order trim coil with a protective film on the painted side. The film stays on during cutting, bending, and installation, then peels off to reveal a scratch-free finish — eliminating yet another common source of rework and callbacks.

Why Source Prepainted Aluminium Trim Coil from Dingang?

With 22+ years of manufacturing experience, eight automatic roller coating lines, and an annual deep-processing capacity of over 20,000 tons, Dingang supplies prepainted aluminium trim coil to contractors, distributors, and fabricators across 100+ countries. Our coil is engineered for installer productivity:

• Factory-cured PE/PVDF coating — consistent color, no on-site painting

• H24 temper, 0.4–0.5mm — optimally formable on standard trim brakes

• Industry-standard 355mm / 609mm widths — matches common trim dimensions

• Custom color matching — RAL, Pantone, or customer-supplied samples

• Protective film — optional, for scratch-free installation

• OEM / private label — custom packaging and branding for distributors

• Fast lead times & global shipping — reliable supply for high-volume projects
