Color Coated Aluminum Trim Coil Prepainted Aluminum Fascia Coil for Window Door Wrapping Roof Drip Edge

1. Core Advantages

1. Specialized for exterior trim：Designed specifically for window door wrapping, fascia board, drip edge and exterior wall trim, perfect size and thickness for on-site bending and installation.

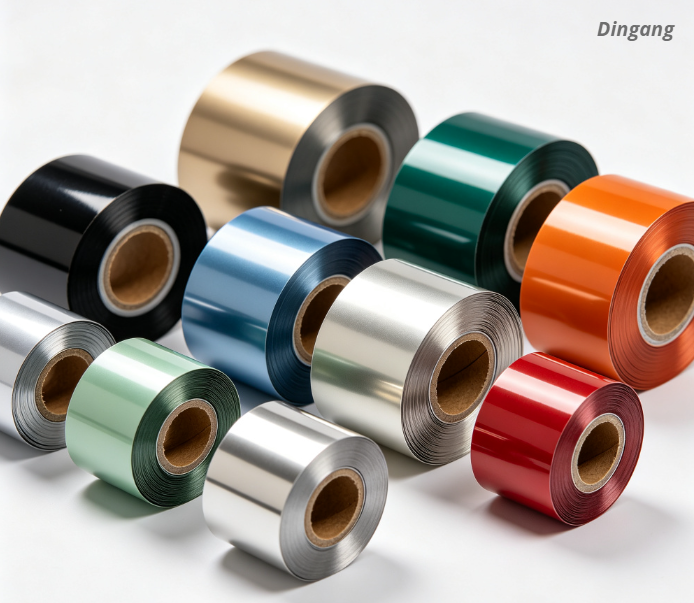

2. Rich standard colors：20+ popular standard colors in stock, including white, brown, black, bronze, grey, blue, red, etc. Custom color matching available for large quantity orders.

3. Super weather resistance：High quality PE/PVDF coating, anti-UV, anti-fade, anti-rust, 10-25 years service life outdoors, no need for painting and maintenance after installation.

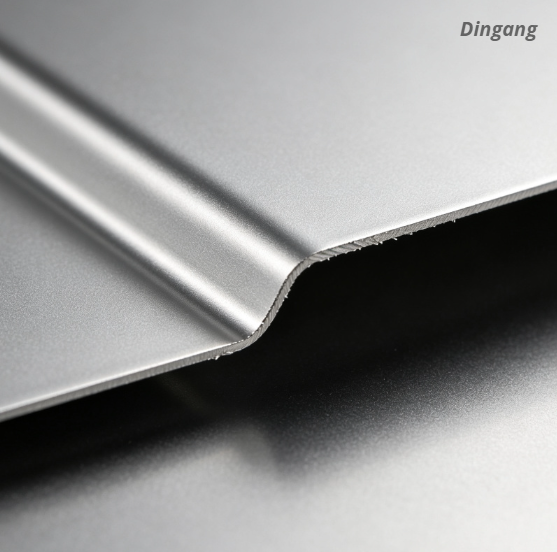

4. Excellent formability：Good flexibility, easy to bend, cut and shape on site with simple tools, no special equipment required, save installation labor cost.

5. Standard small roll package：50ft, 100ft standard length small roll, light weight, easy to transport and carry, suitable for contractors and builders.

6. Cost effective solution：Replace wood and steel trim material, no rot no rust, long service life, lower total cost of ownership. Light weight reduce building load.

2. Production Process

Wide prepainted aluminum coil raw material → precision slitting into narrow trim width → constant tension rewinding into small size coil → edge burr inspection → protective film lamination → individual plastic film wrapping → carton box packing → pallet stacking for export.

Full automatic slitting and rewinding line ensures smooth edge and tight winding, no scratch between coil layers.

3. Standard Technical Parameters

• Base alloy: 1060, 3003 aluminum

• Standard thickness: 0.3mm, 0.4mm, 0.5mm, 0.6mm

• Standard width: 12", 16", 24" (305mm, 406mm, 610mm)

• Standard length: 50ft, 100ft per roll

• Coating type: PE Polyester standard; PVDF Fluorocarbon for coastal areas

• Coating thickness: PE 18-25μm; PVDF 25-40μm

• Surface: Glossy / Matte optional

• Colors: 20+ standard RAL colors, custom color available

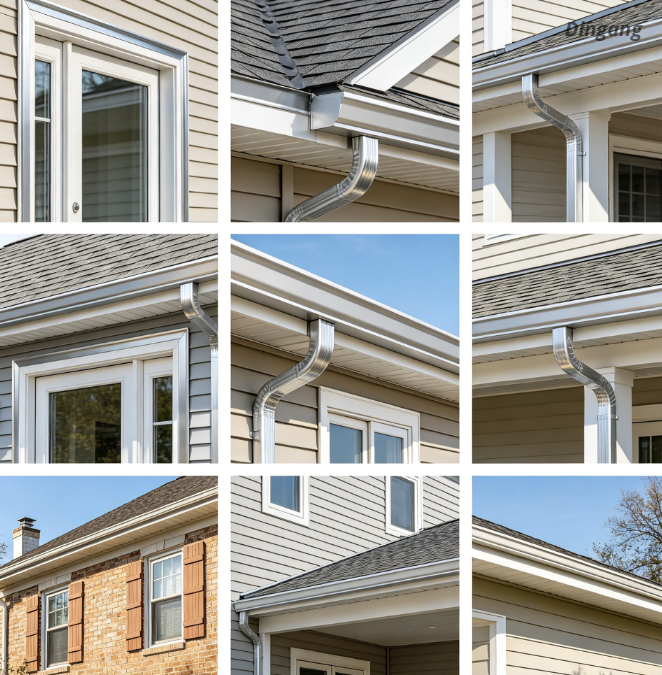

4. Main Application Fields

1. Window & door industry: Window frame wrapping, door frame cladding, exterior door trim, window sill edge

2. Roofing system: Fascia board, soffit panel, drip edge, rake trim, gutter accessory

3. Exterior wall: Wall edge trim, siding accessory, corner trim, window surround

4. Commercial building: Storefront trim, shopping mall exterior decoration, office building facade trim

5. Residential renovation: Old house exterior renovation, replace rotten wood trim, maintenance-free decoration

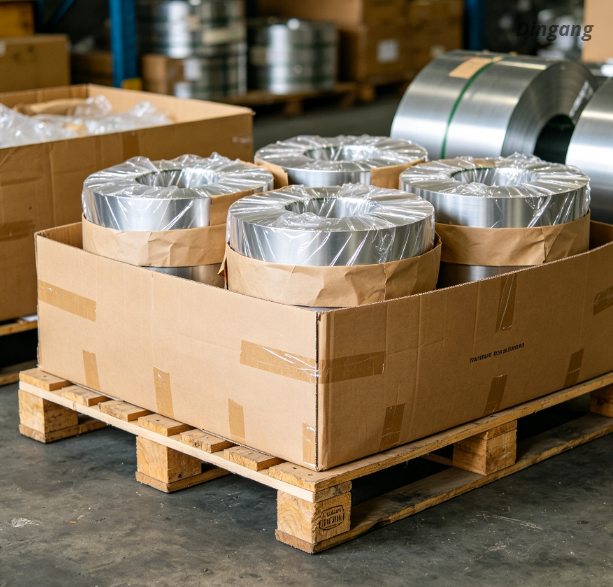

5. Export Packaging Standard

Each trim coil individually wrapped with transparent plastic film + protective paper; multiple rolls packed in strong export carton box; cartons stacked on fumigated wooden pallet, fixed with steel strapping, whole pallet wrapped waterproof plastic film. Standard package fits 20GP/40GP container loading. Each roll and carton marked clear label including color, size, length, weight and batch number. Fumigation certificate provided for customs clearance.

6. Inspection & After-sales Service

Triple strict inspection before delivery: coating thickness & adhesion test, color difference comparison, dimension tolerance check, surface defect inspection. Full set documents provided: coating performance report, MTC mill test certificate, MSDS, commercial invoice & packing list. If any quality problem found within 7 working days after receiving goods, send photos & video evidence, we will respond within 24 hours and provide re-production, supplementary shipment or reasonable compensation solutions.

FAQ

Q1: What are the most popular sizes of aluminum trim coil?

A: Most popular sizes: 0.019" (0.48mm) thickness, 12" and 24" width, 50ft and 100ft length, standard for North America market.

Q2: Can aluminum trim coil be bent on site without special tools?

A: Yes, our trim coil has good flexibility, can be easily bent and formed with simple hand tools, suitable for on-site installation by contractors.

Q3: How many colors do you have in stock? Can you match custom color?

A: We have 20+ standard colors in stock, including white, brown, black, bronze, grey, etc. Custom color matching available for orders over 5 tons.

Q4: Is aluminum trim coil suitable for coastal salty environment?

A: Standard PE coating for normal area; upgrade PVDF fluorocarbon coating for coastal and industrial areas, better anti-salt spray performance, longer service life.

Q5: What's the package for export? How many rolls in one container?

A: Each roll individually packed, multiple rolls in carton, then on wooden pallet. About 20-25 tons can be loaded in one 20GP container, depending on size and thickness.
