How to Achieve 0T–2T Bending Without Paint Cracking in Pre-Painted Aluminum

For roll-forming plant managers, architectural fabricators, and metal stamping engineers, forming pre-painted aluminum coil into tight profiles without micro-cracking, crazing, or paint flaking is a core manufacturing challenge. Tight bends—specifically 0T to 2T radius bends—are routinely required in architectural standing seams, metal roofing flashings, rain gutters, composite panels, and appliance enclosures.

When pre-coated aluminum is bent over a sharp radius, the outer paint film undergoes severe tensile strain. If the coating elongation capacity is lower than the strain generated by the outer metal radius, the paint layer suffers micro-fractures, exposing the underlying metal substrate to corrosion and aesthetic failure. Achieving defect-free pre-painted aluminum 0T bending requires a precise combination of flexible resin chemistry, ductile substrate selection, controlled curing temperatures, and optimized press brake tooling.

The Physics & Mechanics of T-Bend Ratings in Coated Aluminum

T-bend testing evaluates coating flexibility and adhesion per ASTM D4145 or EN 13523-7.

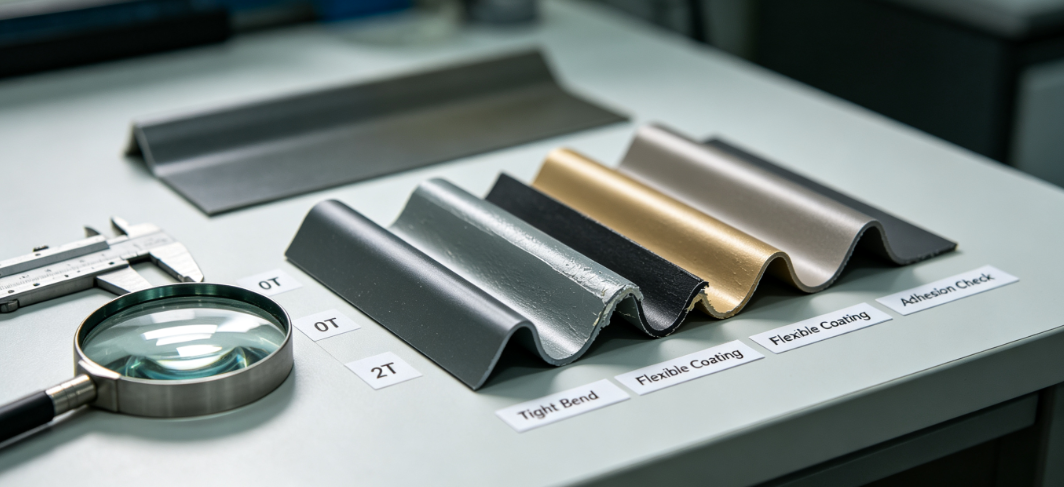

Defining 0T, 1T, and 2T Bending Radius Metrics

0T Bend: The metal is folded completely flat back onto itself with zero internal gap radius (R = 0). The outer paint film experiences maximum elongation.

1T Bend: The metal is bent around an internal mandrel equal to one thickness (1t) of the sheet metal.

2T Bend: The metal is bent around an internal mandrel equal to two sheet thicknesses (2t).

Mechanics of Outer-Radius Tensile Elongation & Micro-Cracking Thresholds

For a 0T bend (r = 0), theoretical surface strain reaches 100% at the extreme outer edge. If the cured paint film and chemical conversion pretreatment cannot sustain this localized strain, micro-cracks form along the bend apex.

T-Bend Performance Matrix: Alloy, Temper, Coating & Radius Calibration

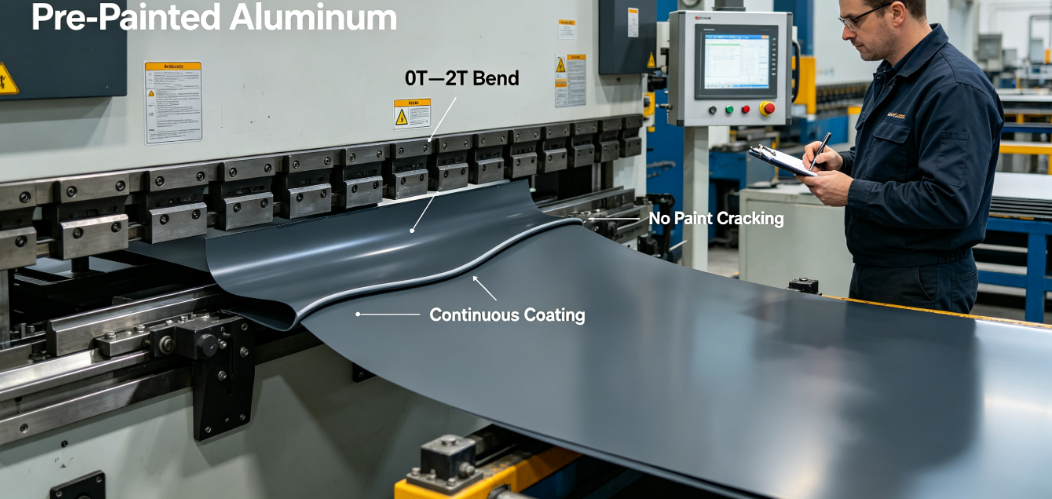

Press Brake & Roll Forming Operational Protocols

Even with high-grade pre-painted coil stock, incorrect shop floor forming techniques can cause paint failure.

Tooling Radii, Die Selection, and Protective Polyfilm Application

Polished Tooling Surfaces: Press brake punches and roll-forming dies must be polished and free of metal burrs or galling.

Protective PE Film (PE Polyfilm): Applying a 50μm - 80μm low-tack protective film buffers the paint surface against mechanical die friction, distributing strain evenly across the bend zone.

View More >>

Ambient Temperature Controls: Why Warm Bending Prevents Paint Crazing

Polymer coatings become brittle at low temperatures. Forming pre-painted coil in unheated workshops during winter (< 15°C) significantly increases the risk of paint crazing.

Best Practice: Ensure ambient workshop and material temperatures are maintained at 20°C - 25°C before bending. Warming the coil slightly softens the resin matrix, raising its elongation capacity for 0T bends.

View More >>

Speed Dynamics: Controlling Bending Rate to Allow Strain Relaxation

High-impact, instantaneous press brake stamping concentrated at a single point induces severe localized strain. Using CNC press brakes with controlled ram speeds allows the polymer chains time to relax and flow during forming.

View More >>

Resin Chemistry: PVDF, High-Durability Polyester (HDP), Polyurethane (PU), and PE

Fluorocarbon (PVDF / Kynar 500): Offers strong weather resistance and good elongation when blended with flexible acrylic co-resins (70% PVDF 30% Acrylic), achieving reliable 0T - 1T flexibility.

Flexible Polyurethane (PU) / Polyamide-Modified Coatings: Excellent impact resistance and flexibility, frequently rated for 0T deep-drawing and roll-forming.

High-Durability Polyester (HDP) & Modified PE: Formulated with flexible linear polyester chains and long-chain crosslinkers to achieve 1T - 2T flexibility without sacrificing surface hardness (2H pencil hardness).

Glass Transition Temperature (T��) and Curing Optimization (PMT Control)

The resin's Glass Transition Temperature (T��) dictates polymer chain mobility:

Over-Curing (Excessive Peak Metal Temp - PMT): Creates an overly dense cross-linked network, rendering the paint brittle and prone to cracking during 0T bending.

Under-Curing: Leaves unreacted solvent traps and weak chemical bonds, leading to paint peeling or tape-off adhesion failure during forming.

Optimal PMT Window: Operating within strict curing temperatures (220°C - 249°C depending on resin system) ensures complete curing while maintaining maximum film elasticity.

Pre-Treatment Chemistry & Conversion Layer Integrity

To prevent interfacial delamination during severe bending, the aluminum surface must undergo zirconium/titanium chromate-free conversion pretreatment. This microscopic layer creates covalent bonds between the raw aluminum oxide layer and the flexible epoxy primer (5μm - 8μm dry film thickness).

Temper Selection: Balancing Yield Strength and Elongation ('O' vs. 'H14' vs. 'H24')

Fully soft 'O' temper offers maximum ductility for complex stampings. However, for roll-forming and architectural profiles, strain-hardened tempers like H14, H24, or H44 are widely used. The substrate must retain sufficient uniform elongation (δ₅ ≥ 8 - 12%) to prevent localized necking at the bend line.

Alloy Ductility: 3003, 3105, 5052, and 1100 Performance Comparison

Alloy 1100 / 1050 (Pure Aluminum): Extremely high strain elongation (> 20%). Easily achieves 0T bending, but offers lower mechanical yield strength.

Alloy 3003 / 3105 (Mn-Alloyed): The industry standard for pre-painted building sheets and gutters. Provides a balanced combination of formability, grain structure stability, and medium strength for 0T - 1T forming.

Alloy 5052 (Mg-Alloyed): High structural strength and marine corrosion resistance. Requires controlled grain size management to achieve 1T - 2T bends without surface "orange peel" roughening.

FAQ

Q1:What is the primary cause of paint cracking during a 0T bend on pre-painted aluminum?

A:The primary cause is insufficient paint film elongation relative to the extreme tensile strain on the outer radius, often exacerbated by an over-cured (brittle) resin layer, low ambient forming temperatures, or an overly hard aluminum substrate temper.

Q2:How does ambient temperature affect the T-bend performance of pre-painted coil stock?

A: Cold temperatures (< 15°C) drop the polymer coating below its glass transition temperature (T), making it stiff and brittle. Warming the material to 20°C - 25°C increases polymer chain mobility, allowing the paint to stretch smoothly during 0T - 1T bending.

Q3:Which paint system is best for severe roll-forming and 0T flat-folding applications?

A:Flexible Polyurethane (PU) or modified high-durability polyesters (HDP) and 70% PVDF systems engineered with flexible crosslinkers offer the best balance of elongation, adhesion, and surface hardness for 0T applications.

Q4:Can 5052-H32 pre-painted aluminum achieve a 0T bend without cracking?

A:While 5052-H32 offers strong mechanical properties, its work-hardened state makes 0T bends difficult without localized substrate micro-fracturing. For tight 0T - 1T bends, Alloy 3003-H14, 3105-H24, or soft 5052-O temper is recommended.

Q5:How does Changzhou Dingang Metal Material Co., Ltd. (China) ensure 0T bendability for customer orders?

A:Dingang Metal Material Co., Ltd. formulates specialized paint and primer systems matched to specific alloy tempers. Every production lot undergoes internal T-bend testing (ASTM D4145), cross-hatch adhesion testing, and MEK rub resistance testing prior to issuing a Certificate of Analysis (CoA).

Conclusion

Achieving tight 0T - 2T bends on pre-painted aluminum requires balancing resin elasticity, curing control, substrate ductility, and shop-floor forming practices. By specifying high-elongation coating formulations, maintaining proper workshop forming temperatures, and partnering with experienced coil coating manufacturers, fabricators can produce defect-free, paint-crack-resistant metal profiles.
