Technical Properties of Aluminum Foil Facings in Insulation Systems

In modern thermal envelope design, choosing the right facing material is crucial for long-term system efficiency. While plastic films like PE or PET are sometimes considered for cost reasons, they cannot replace aluminum foil in high-performance insulation systems. Plastic membranes lack the structural heat-reflection capabilities of aluminum foil and deteriorate rapidly under thermal exposure and UV degradation, leaving buildings vulnerable to heat gain and moisture accumulation.

Understanding the critical technical properties of aluminum foil facings ensures optimal performance and durability in commercial and industrial applications.

1. Critical Technical Metrics to Look For

To evaluate aluminum foil facing quality, specification engineers focus on three core performance parameters:

Emissivity Rate (ε ≤ 0.05): Pure aluminum foil features an extremely low thermal emissivity rating (typically ≤ 0.05), meaning it reflects over 95% of radiant heat energy. In contrast, plastic films absorb and re-radiate infrared heat into the building interior.

Tensile Strength & Burst Resistance: High-grade insulation facings (often reinforced with fiberglass scrim or kraft paper) deliver high tensile strength and puncture resistance. This prevents tearing during mechanical installation over structural purlins or around sharp duct corners.

Vapor Permeability (Zero-Perm Moisture Barrier): Aluminum foil boasts a near-zero water vapor transmission rate (WVTR). It effectively blocks atmospheric moisture migration, preventing pore-space condensation that degrades substrate insulation values.

2. Compatibility with Insulation Substrates

Aluminum foil facings act as a versatile performance multiplier when laminated to standard core insulation materials:

Glass Wool & Rock Wool: Foil facings add vital structural integrity and moisture-proofing to fibrous blanket/board insulation, preventing sag and thermal bridging caused by humidity absorption.

XPS & Polyurethane (PUR/PIR) Boards: Rigid foam boards laminated with aluminum foil achieve superior R-values at thinner profiles while providing two-sided vapor barrier protection in cold storage and flat roof assemblies.

3. Installation Best Practices: The Critical Air Gap

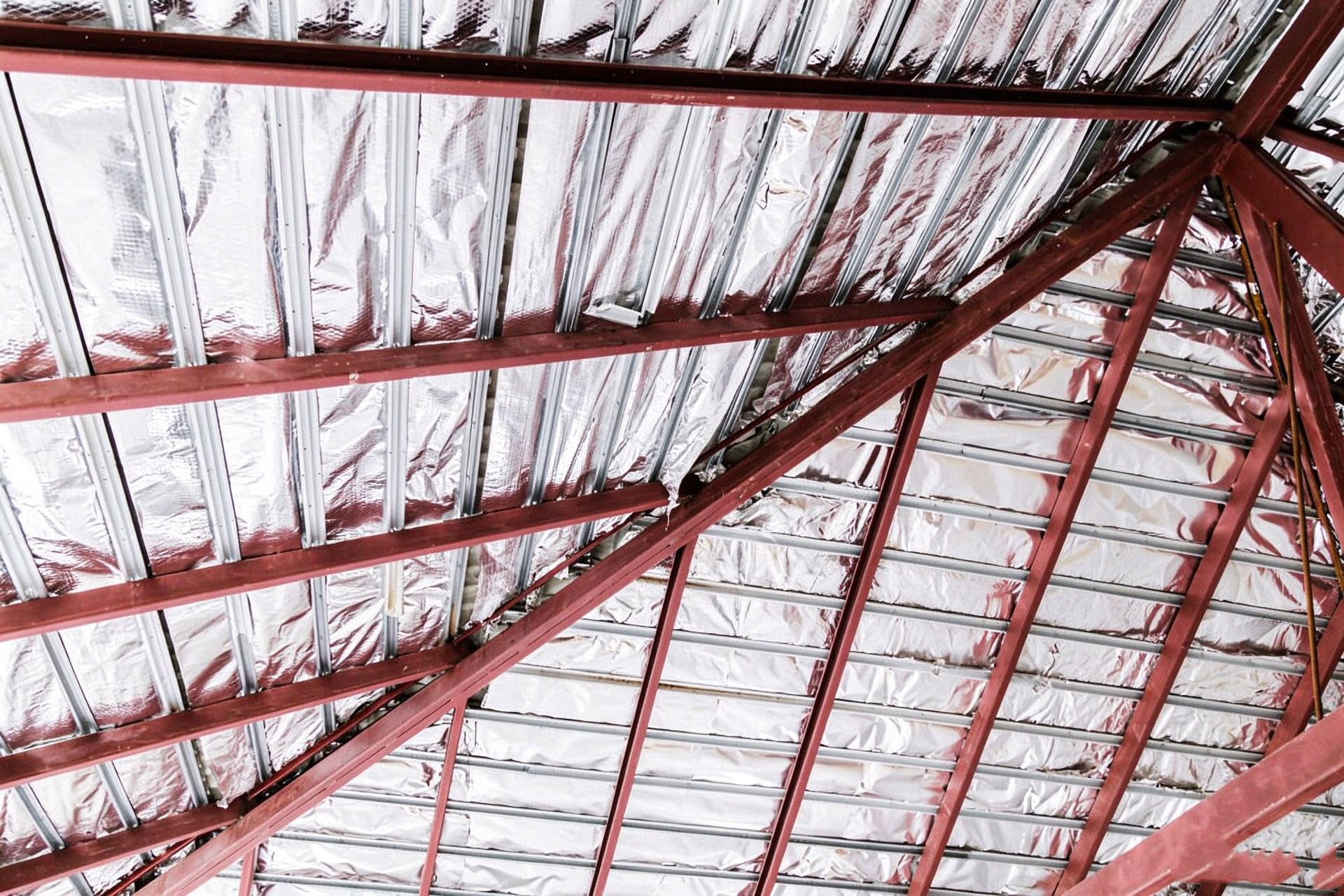

To fully unlock the radiant barrier potential of aluminum foil facings, installers must maintain a clear air gap of at least 19–25 mm (3/4 to 1 inch) directly facing the reflective aluminum surface. Without an adequate air gap, heat transfers directly via conduction rather than radiation, drastically reducing thermal reflection effectiveness.

Conclusion

Aluminum foil facings provide an essential combination of low emissivity, mechanical durability, and zero vapor permeability that plastic alternatives cannot match. Selecting the right foil specification protects insulation cores, optimizes HVAC efficiency, and ensures long-term building envelope integrity.
