8011 O Plain Aluminum Foil Roll 7-25 Micron for Insulation Facing Lamination

Surface Finish: Mill Finish, One Side Bright / One Side Matte

Core Material: Steel / Aluminum / Paper Core

Supply Ability: 200,000 Tons / Year

Packaging: Standard Seaworthy Wooden Case / Eye-to-Sky or Eye-to-Wall Pallet Packaging

Applications: Raw Material for FSK Facing, Foil Laminated Woven Fabric, Glass Wool / Rock Wool Facing, Radiant Barrier Manufacturing

Availability:

Quantity:



Inquire Add to Basket

Product Description

8011 O Plain Aluminum Foil Roll 7-25 Micron for Insulation Facing Lamination

1. Product Overview & Key Features

Our 8011-O Plain Aluminum Foil Jumbo Rolls are specifically engineered as high-grade raw materials for building insulation facing, radiant barriers, and vapor retarders. Produced under strict quality control, our aluminum foil provides smooth surface tension, zero oil contamination, and consistent gauge tolerance—making it ideal for high-speed lamination with glass wool, rock wool, PE foam, kraft paper, and woven fabrics (FSK facing).

Key Performance Advantages:

High Thermal Reflectivity: Reflects over 95% of radiant heat energy (ε ≤ 0.05).

Zero Permeability Vapor Barrier: Provides 100% moisture, oxygen, and light protection.

Superior Surface Quality: Clean surface with controlled wettability, perfectly suited for water-based or hot-melt adhesive lamination.

Optimal Mechanical Strength: Excellent tensile strength and elongation for tear-free high-speed processing.

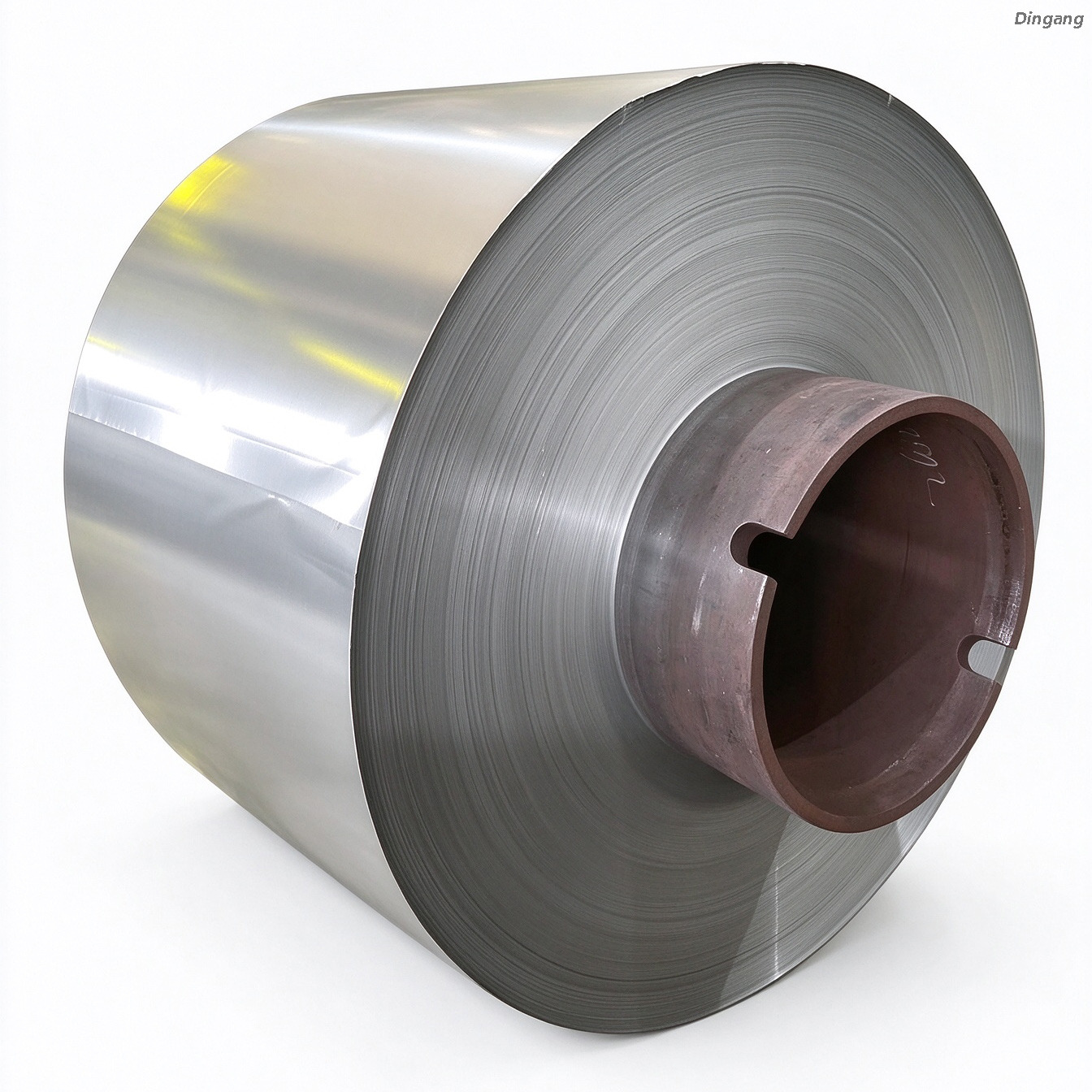

High-purity 8011-O plain aluminum foil jumbo rolls ready for export.

2. Technical Specifications & Parameters

Item	Technical Specification / Standard
Alloy & Temper	8011-O / 8079-O / 1100-O (Soft Temper)
Thickness	7 Micron (0.007mm) – 25 Micron (0.025mm)
Thickness Tolerance	± 3%
Width Range	300 mm – 1600 mm (Standard: 1200mm, 1230mm, 1250mm)
Surface Finish	One Side Bright / One Side Matte (or Both Sides Bright)
Tensile Strength	≥ 80 MPa
Elongation	≥ 1.5%
Wettability	Grade A / Grade B
Core ID	76 mm (3 inches) / 152 mm (6 inches) — Steel, Aluminum, or Heavy Paper Core
Standard Compliance	ASTM B209, EN 546, GB/T 3198

3. Product Application Scenarios

This plain aluminum foil is widely supplied to global insulation manufacturers and converters for producing:

FSK Facing (Foil-Scrim-Kraft): Laminated with fiberglass scrim and kraft paper for glass wool blankets.
Reflective Bubble Insulation: Laminated with PE bubble sheets for radiant roof barriers.
Woven Fabric Lamination: Combined with PE/PP woven fabric for heavy-duty building wrap and roof underlayment.
HVAC Duct Insulation: Raw material for aluminum foil tape, duct wrap, and flexible air duct insulation.

4. Packaging & Sea Freight Logistics

To guarantee zero damage, oil contamination, or oxide spots during ocean transportation, all rolls are packed according to international export standards.

Packaging Type: Seaworthy Wooden Cases / Wooden Pallets.

Eye-to-Sky (Vertical) Packing

Eye-to-Wall (Horizontal) Packing

Protective Layers: Wrapped in plastic film, anti-rust paper, silica gel desiccant, and reinforced with steel belts.

Loading Port: Shanghai Port / Ningbo Port, China.

Container Capacity: Approx. 20–24 Metric Tons per 20ft Container (FCL).
