3003 vs 3105 Prepainted Aluminium Coil | EN 612 Guide for Gutters & Downpipes

A gutter coil may look flawless while still on the pallet yet develop failures once fed into the roll‑former. Common field issues include edge wave, inconsistent feeding, paint cracking over tight bending radii, batch‑to‑batch colour deviation, and surface marks induced by poor coil winding. For rainwater‑system fabricators, selecting the right alloy is only the starting point.

Both AA3003 and AA3105 are widely adopted for gutters, downpipes and roofline components. Belonging to the aluminium‑manganese alloy family, they deliver sound corrosion resistance and are available in formable tempers. Their practical performance differences become critical when manufacturers seek to balance production‑line speed, profile stiffness and forming reliability.

Coated Aluminium Applications in Roof Drainage Systems

This alloy series can be processed into a full range of building drainage parts:

‑ Half‑round and box‑style gutters

‑ Round, square and rectangular downpipes

‑ Elbows and offset fittings

‑ Outlets, stop ends and connector covers

‑ Fascia covers, copings and flashings

‑ Colour‑matched roofline accessories

As noted by the European Coil Coating Association, prepainted metal is extensively used for gutter and downpipe manufacturing. A properly formulated internal‑side coating can further extend service life. It is also recommended to adopt consistent coated material across roofing, cladding and rainwater components to achieve uniform weathering performance and colour consistency.

AA3003: The Reliable Forming‑Grade Alloy

AA3003 is preferred when high ductility and trouble‑free roll forming are top priorities. With suitable tempers, it performs excellently for curved gutter profiles and downpipes requiring multiple forming stations. It also serves well for components that undergo post‑roll‑forming operations such as folding, seaming and local shaping.

For manufacturers switching suppliers, AA3003 is often the easier grade for production trials, as existing tooling and profile designs are well‑adapted to its forming characteristics.

Key reasons to specify AA3003:

‑ Stable roll‑forming performance for standard gutter geometries

‑ Good resistance to general atmospheric corrosion

‑ Well‑balanced ductility and finished‑profile stability

‑ Broad availability in standard building‑product tempers

AA3105: For Enhanced Structural Stiffness

In addition to manganese, AA3105 incorporates magnesium. It is selected where higher mechanical strength is required while maintaining acceptable formability. It works well for downpipes, box‑shaped profiles and long‑length components demanding shape retention and handling rigidity.

Nevertheless, temper must match tool geometry. Switching to higher‑strength material without production‑line trials risks spring‑back defects or coating stress cracking at tight folds. Buyers shall compare not only alloy grades but also mechanical property ranges and real‑world profile test outcomes.

Key reasons to specify AA3105:

‑ Elevated stiffness for selected profile designs

‑ Reliable continuous roll‑forming performance with properly‑selected tempers

‑ Suitable for outdoor‑exposed building‑envelope components

‑ Consistent colour‑coated supply for harmonised roof‑system projects

3003 vs 3105: How Manufacturers Make the Selection

Choose AA3003 for profiles with sharp curves, processes sensitive to spring‑back, or projects prioritising forgiving formability. Opt for AA3105 when finished parts require higher rigidity, or if it is the pre‑validated grade for your existing production line.

Material selection cannot rely solely on datasheet parameters. Share component drawings, quantity & severity of forming stations, seam construction details and existing temper requirements with your supplier. A practical trial coil delivers far more actionable insights than generic “gutter‑grade” product descriptions.

PE, HDP or PVDF: Coating‑System Selection

Coating specification shall match local climate conditions, target colour and commercial positioning of finished gutter products.

‑ Polyester (PE): Cost‑efficient for standard residential and light‑commercial drainage systems. Offers rich colour options and favourable forming performance when engineered for roll‑forming processes.

‑ High‑Durability Polyester (HDP): Ideal for projects requiring improved outdoor weathering without upgrading to fluoropolymer coatings.

‑ PVDF: Recommended for harsh‑exposure exterior projects, high‑UV environments or strict long‑term colour‑retention requirements. Final performance depends on the complete coating system — pretreatment, primer, topcoat, curing regime and back‑coat, rather than resin type alone.

Do not overlook the reverse side of gutter coil. Condensation and trapped moisture will attack inner surfaces. Back‑coat type and thickness must be clearly defined within purchase orders instead of relying on unspecified factory defaults.

What DIN EN 612 Means for Coil Buyers

DIN EN 612:2005 specifies requirements for bead‑stiffened eaves gutters and seamed metal rainwater pipes. It applies to finished gutter and downpipe end‑products, and cannot replace purchasing specifications for incoming aluminium coil raw material.

European buyers can reference supplementary standards:

‑ EN 1396 for coil‑coated aluminium sheet and strip

‑ EN 573‑3 for aluminium chemical composition

‑ EN 485 series for wrought aluminium sheet and strip

‑ EN 13523 series for coating‑performance testing

In practice, gutter manufacturers shall inform coil suppliers of target finished‑product standards, and clearly define incoming‑material properties to meet those requirements.

Dingang Gutter‑Grade Coil Supply Portfolio

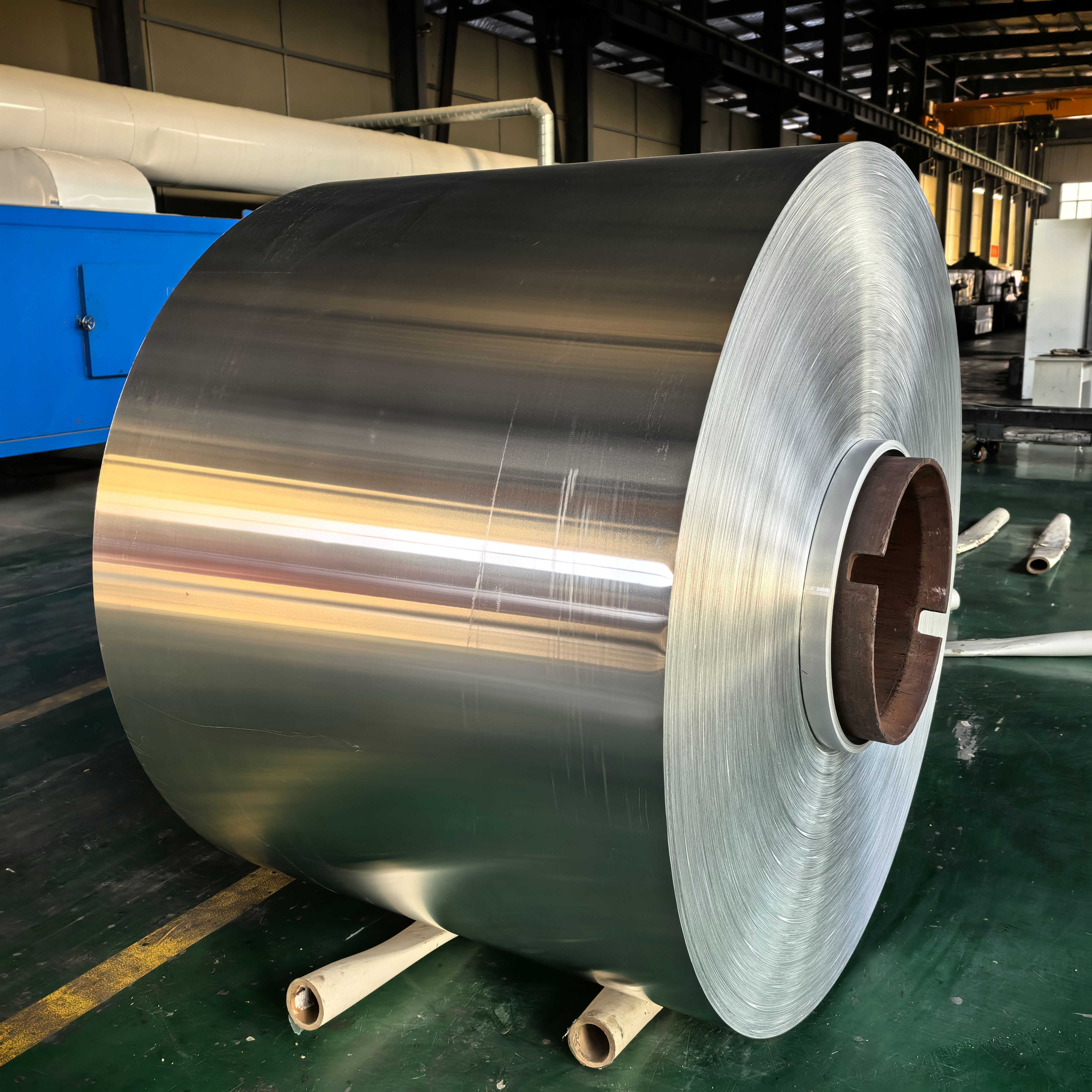

Dingang provides AA3003 colour‑coated aluminium coil and AA3105‑H24 coated aluminium coil dedicated to gutter fabrication.

Available project parameters:

‑ AA3003 / AA3105 aluminium substrates

‑ Formable tempers custom‑matched to target profiles

‑ Metal thickness: 0.3 – 1.2 mm (subject to project evaluation)

‑ PE / HDP / PVDF coating per agreed technical specification

‑ Matte, semi‑gloss and glossy surface finishes

‑ RAL, Pantone or sample‑based colour matching

‑ Full‑width parent coils or custom‑slit strips for production lines

‑ Protective packaging: eye‑to‑wall or eye‑to‑sky coiling orientations

Above items represent our available product platform rather than universal gutter specifications. Final tolerances, coating thickness and acceptance criteria shall be stipulated on purchase orders and validated against approved reference samples.

Five Critical Checks When Validating New Coil Material

1. Run material up to full normal line speed; avoid evaluation based only on short hand‑fed test samples.

2. Inspect tight bends and seams under magnification for coating cracking or delamination.

3. Measure profile dimensions and spring‑back at the start, mid‑run and end of each trial batch.

4. Verify colour and gloss against approved master samples under standardised lighting conditions.

5. Inspect inner surfaces, slit edges, coil telescoping and packaging after transportation.

FAQ

Q: Is 3003 softer than 3105?

Generally speaking, AA3003 is specified for easier forming, while AA3105 delivers higher strength. Temper status and actual mechanical‑property ranges outweigh alloy grade alone; always compare full‑set specifications.

Q: Is PVDF mandatory for all European gutter applications?

No. Polyester‑coated solutions are widely deployed for European gutter systems. PVDF or other high‑durability coatings are justified by exposure classification, colour‑retention targets or finished‑product warranty requirements.

Q: Can Dingang supply small custom‑slit coils for gutter roll‑forming machines?

Dingang supplies full‑size parent coils as well as custom‑slit narrow strips. Please provide required strip width, inner diameter, maximum outer diameter, coil weight and winding orientation for slitting‑and‑packaging confirmation.

Q: Can your coil certification prove my finished gutters satisfy EN 612?

The finished‑gutter manufacturer holds full responsibility for end‑product compliance. Our team can supply incoming‑material certificates and test reports to support your internal product validation.

Request Your Line‑Trial Proposal

Submit your gutter / downpipe drawings, existing alloy‑temper grade, thickness, strip width, target colour, coating system and annual consumption volume to Dingang. Our technical team will assess your application and deliver a custom trial‑coil proposal for your production line.
