AA8011 O Color Coated Aluminum Foil for Chocolate Wrapping

AA8011 O Color Coated Aluminum Foil for Chocolate Wrapping

AA8011 O color coated aluminum foil is a soft, fully annealed foil developed for chocolate, candy and confectionery wrapping. The O temper provides high flexibility and useful dead-fold performance, allowing the foil to conform around bars, pralines, chocolate balls and irregular confectionery shapes with limited spring-back.

Standard thickness ranges from 0.008 mm to 0.020 mm (8–20 μm), with widths from 200 mm to 1300 mm and customized slitting available. Surface options include colored lacquer, glossy or matte finish, embossing and custom printing according to the finished packaging design.

For chocolate that directly contacts the foil, the food-contact face, coating or lacquer system should be specified separately from the decorative outer surface. Applicable food-contact documentation can be confirmed according to the exact coating formulation, intended food, contact conditions and destination-market requirements.

Request a Chocolate Foil Quote Request Color & Embossing Samples

Why Use AA8011 O Foil for Chocolate Wrapping?

Fully Annealed O Temper

O temper means the foil is supplied in a fully annealed, soft condition. This provides the flexibility required for folding, wrapping and twisting around confectionery products while reducing spring-back compared with harder foil tempers.

Dead-Fold and Twist-Wrap Performance

Soft aluminum foil can retain folds and twists after wrapping, which is useful for chocolate balls, pralines, candies, nougat and other products that rely on mechanically retained wrapping rather than a heat-sealed package.

Actual machine performance depends on foil gauge, coating, embossing depth, roll tension, winding quality and wrapper design, so high-speed packaging lines should be validated using production samples.

Metallic Barrier Layer

Aluminum foil provides strong protection against light and can provide very low moisture-vapor and gas transmission when the foil remains continuous and undamaged. Finished barrier performance is affected by foil thickness, pinholes, creases, perforations, seals and any converting damage introduced during printing or wrapping.

Premium Decorative Appearance

Gold, silver and custom colors can create a metallic package appearance that is particularly suitable for chocolate, seasonal confectionery and gift products. Matte, glossy and embossed surfaces can be combined with printed branding according to the approved artwork and coating structure.

Technical Parameters

Technical note: Mechanical values and pinhole limits vary significantly with foil thickness. Critical confectionery applications should define thickness tolerance, pinhole inspection method, tensile properties, elongation and surface requirements in the purchase specification.

Send Your Thickness, Width & Color Requirements

Food-Contact and Decorative Coating Structure

Decorative Outer Surface

The outside surface can be finished with gold, silver or custom colors and can incorporate printing, logo artwork, matte or glossy appearance and embossing. The coating should be selected for good adhesion to the foil and compatibility with folding, twisting and packaging-line handling.

Food-Contact Inner Surface

When the inner face directly contacts chocolate or confectionery, that surface should use a bare-foil or specifically qualified food-contact lacquer configuration according to the ordered packaging structure.

A generic term such as PE, polyester or colored coating does not by itself establish food-contact suitability. The exact formulation and intended contact conditions should be reviewed before production.

Single- and Double-Side Coating Options

Single-side decorative coating is suitable when the colored face remains outside the package. Double-side coating can be discussed where both surfaces require treatment, provided that the surface intended for direct food contact uses an appropriate qualified coating system.

Chocolate and Confectionery Wrapping Applications

Chocolate Bars and Blocks

Soft 8011-O foil can wrap chocolate bars and molded blocks closely, providing a metallic inner or outer wrapper with strong light protection and a premium appearance.

Chocolate Balls, Pralines and Truffles

O-temper foil is suitable for wrapping rounded and irregular confectionery because the soft foil conforms closely to product contours. Embossed or printed finishes can be used to create distinctive premium packaging.

Twist-Wrapped Candy and Confectionery

Where the package design relies on twisting at one or both ends, soft foil provides useful dead-fold retention. Final twist performance should be verified using the actual foil gauge, coating and packaging machine speed.

Chocolate Gift Box Liners and Decorative Inserts

Gold, silver, matte and embossed foil can be used as decorative liners or inserts in confectionery gift packaging where metallic appearance and barrier properties are required.

Custom Printed Brand Packaging

Custom logo, pattern and color development can be discussed for private-label chocolate and confectionery programs. Artwork, print colors, repeat length and print-registration requirements should be confirmed before mass production.

Color, Printing and Surface Finish Options

Gold, Silver and Custom Colors

Metallic gold, silver and other custom colors can be developed according to an approved physical sample or packaging design. Batch color tolerance should be defined where brand color consistency is critical.

Matte and Glossy Finishes

Glossy surfaces emphasize metallic brightness, while matte finishes provide a softer premium appearance. Required gloss should be approved together with the final color because gloss level affects the visual impression of the package.

Embossed Aluminum Foil

Embossing can add texture, reduce the visibility of minor handling marks and create a distinctive tactile finish. Emboss depth should be balanced with foil thickness and wrapping performance.

Custom Printing

Printed logos, patterns and branding can be developed subject to artwork approval and printing capability. Ink and over-lacquer selection should be compatible with the intended packaging process and food-contact configuration.

Barrier Performance and Pinhole Control

Light Protection

Continuous aluminum foil is opaque and provides strong light shielding, which is useful for products sensitive to light exposure. Finished packaging performance still depends on seams, folds and the complete wrapper design.

Moisture and Oxygen Barrier

Undamaged aluminum foil provides very strong resistance to water vapor and gas transmission. At very low foil gauges, pinholes and converting damage can influence the effective barrier, so critical packaging specifications should define acceptable pinhole limits and finished-pack performance.

Pinhole Inspection by Thickness

Pinhole requirements should be set according to foil thickness and the agreed inspection method. A universal zero-pinhole statement is not appropriate across the entire 8–20 μm range because pinhole occurrence becomes more critical as foil gauge decreases.

Requirements for Automatic Wrapping Lines

Consistent Gauge and Web Behavior

Stable foil thickness and roll condition help maintain web tension and feeding consistency on automatic wrapping equipment. Tight thickness, width and winding requirements should be stated when line speed and registration accuracy are critical.

Core Size and Winding Direction

Packaging converters should specify core inner diameter, maximum roll diameter, roll weight and winding direction according to their unwinding and wrapping equipment. These details should be confirmed before production.

Machine Trial Before Large-Volume Production

For new foil gauges, coatings, embossing patterns or high-speed packaging lines, trial rolls are recommended to evaluate feeding, twisting, folding, print registration and surface durability before volume production.

Quality Control for Chocolate Wrapping Foil

• AA8011 alloy and O-temper verification

• Thickness and width measurement

• Roll appearance and winding inspection

• Pinhole inspection according to agreed gauge and method

• Color and gloss comparison against approved sample

• Coating or lacquer adhesion inspection where specified

• Embossing and print appearance inspection where applicable

• Tensile and elongation testing where specified

• Food-contact documentation review for the ordered contact-side coating system

Request Technical Data & Trial Samples

Food-Contact Documentation

For direct chocolate contact, buyers should identify the destination market and intended food-contact conditions before ordering. Documentation should apply to the exact foil, lacquer, ink or coating system supplied rather than to the AA8011 alloy designation alone.

For US projects, the regulatory status of the relevant food-contact substances and intended use conditions should be confirmed. For EU supply, the finished food-contact material should meet the applicable requirements for its intended use and be supported by the necessary traceability and compliance documentation.

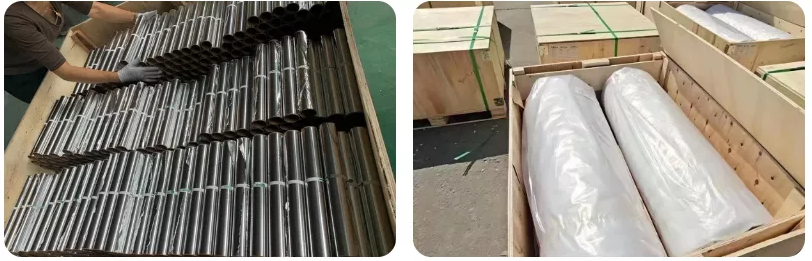

Export Packaging

Finished aluminum foil can be packed using moisture-resistant wrapping and export-grade wooden pallets. Horizontal or vertical pallet configuration can be selected according to roll dimensions, handling requirements and customer instructions.

Packaging should protect roll edges, foil surfaces and winding integrity from moisture, impact and movement during sea transportation and inland delivery.

Information Required for a Quotation

For accurate pricing and technical review, please provide foil thickness, width, roll or sheet format, color, matte or glossy finish, printing requirement, embossing requirement, quantity and destination.

For automatic packaging lines, also provide core ID, maximum roll OD or roll weight, winding direction and packaging-machine speed where available. If the foil directly contacts chocolate, please identify the food-contact side and required market documentation.

Get a Custom Chocolate Foil Proposal

FAQ

Why is O temper used for chocolate wrapping foil?

O temper is fully annealed and soft, giving the foil high flexibility and low spring-back. This helps it fold and conform around chocolate, candies and irregular confectionery shapes.

What thickness is available for chocolate wrapping?

The current product range is 8–20 μm. The appropriate gauge depends on product shape, wrapper design, required barrier, embossing and packaging-machine conditions.

Is 8 μm aluminum foil guaranteed to have zero pinholes?

A universal zero-pinhole guarantee should not be assumed for every ultra-thin foil. Pinhole limits should be specified according to foil thickness, inspection area and test method, particularly at lower gauges.

Can the colored surface directly contact chocolate?

Only when the exact color coating or lacquer is specifically suitable for the intended food-contact conditions. A common configuration uses the decorative color on the outside and a separately specified food-contact surface on the inside.

Can custom colors, logos and patterns be produced?

Yes. Custom colors, logos, patterns and decorative printing can be discussed according to approved artwork, printing capability and order requirements.

Can the foil be embossed?

Yes. Embossed finishes are available for decorative confectionery packaging. Emboss pattern and depth should be matched to foil thickness and wrapping performance.

Is AA8011 O foil suitable for high-speed wrapping machines?

8011-O is widely used for flexible packaging because of its soft forming behavior. Actual high-speed performance depends on thickness, roll quality, coating, embossing, core size, web tension and the individual packaging line. Trial rolls are recommended for new specifications.

Does aluminum foil extend chocolate shelf life?

Aluminum foil can contribute strong light, moisture and oxygen protection, but finished shelf life depends on the complete packaging structure, seals, storage temperature, chocolate formulation and distribution conditions.

What food-contact documents can be provided?

Available documentation depends on the exact aluminum foil, ink, lacquer or coating system ordered and the target market. Please provide the destination country and intended contact conditions during technical confirmation.

What information is needed for accurate pricing?

Please provide thickness, width, roll or sheet format, color, printing or embossing requirement, food-contact configuration, core size where applicable, quantity and destination.

Request an AA8011 O Chocolate Wrapping Foil Quote

If you manufacture chocolate, candy or confectionery packaging, send us your required foil gauge, width, color, printing, embossing, roll format and food-contact requirements. Our technical sales team can review the specification and prepare a quotation and sample proposal.
