Can Roller-Coated High-Reflectivity Aluminum Panels Lower Launch Costs for LEO Satellites?

The rapid expansion of Low Earth Orbit (LEO) megaconstellations—spanning satellite internet, climate monitoring, and orbital defense networks—has shifted space hardware manufacturing from bespoke aerospace craftsmanship to high-volume industrial production. For satellite operators and constellations, launch cost is directly proportional to payload mass and volume. Every kilogram of payload structural mass removed translates directly into lower launch vehicle requirements or increased capacity for revenue-generating electronics.

Roller-coated high-reflectivity aluminum panels (3000 and 5000 series aluminum alloys coated with specialized high-reflectivity, space-grade fluoropolymer or inorganic ceramic coatings) offer an actionable route to lowering LEO satellite launch costs. By replacing heavy multi-layer insulation (MLI) blankets, hand-applied optical solar reflectors (OSRs), and heavy composite backing structures with continuous, ultra-lightweight roll-coated sheets, satellite engineers achieve substantial mass savings, accelerated assembly times, and passive thermal control.

The Payload Mass-to-Cost Direct Relationship

Launching hardware into LEO (altitudes between 300 km and 1,200 km) incurs high launch costs per kilogram. Reducing the structural dry weight of secondary enclosures, thermal shields, and chassis panels yields immediate financial benefits:

Mass-to-Orbit Ratio: Saving 10 kg - 20 kg per satellite in a 500-satellite constellation translates to thousands of kilograms in reduced launch payload, allowing operators to pack more satellites into a single rocket fairing.

Thermal Shock in LEO Orbit: LEO satellites experience rapid orbital periods (~ 90 minutes), cycling between severe solar irradiance (1,361 W/m²) and deep space cold (-120°C to +120°C) over 15 times a day.

Comparison: Quartz OSR / MLI Stack vs. Roller-Coated Reflective Aluminum Panel

LEO Satellite Panel Materials

The matrix below compares traditional satellite surface thermal materials against roller-coated high-reflectivity aluminum panels:

Key Professional Advantages in Spacecraft Optical Payloads

Direct Launch Cost Reduction via Mass Optimization

Component-Level Weight Reduction: Replacing heavy quartz tiles, adhesive backing, and multi-layer thermal wraps with a 0.8 mm roller-coated aluminum sheet cuts thermal panel mass by up to 35% - 50%.

Payload Capacity Expansion: Mass savings on outer structural panels directly increase the allowable weight for operational payloads, including phased-array antennas, high-capacity batteries, and propulsion fuel tanks.

View More >>

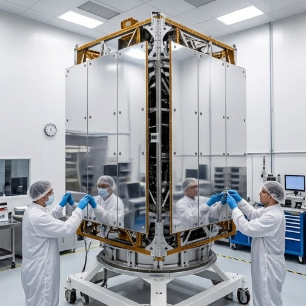

Streamlined Assembly for Industrialized Satellite Manufacturing

Elimination of Manual Bonding Processes: Bonding thousands of fragile quartz OSR tiles onto satellite panels requires hundreds of technician hours under high cleanroom overhead. Roller-coated aluminum panels arrive ready for direct CNC shearing, bending, and immediate fastener integration.

Rapid Constellation Deployment: Factory-scale coil coating supports automated stamping workflows, reducing satellite chassis integration timelines from weeks to days—a vital advantage for companies deploying hundreds of LEO satellites annually.

View More >>

Space-Grade Thermal Performance & Outgassing Safety

Zero Molecular Contamination (ASTM E595): With TML < 1.0% and CVCM < 0.01%, the cured roll-coating releases no organic volatiles in the orbital vacuum, protecting sensitive optical sensors, star trackers, and solar cell glass from molecular fogging.

Passive Orbital Temperature Regulation: High reflectivity combined with strong thermal emissivity maintains satellite bus temperatures within safe operational windows (-10^°C to +45°C), eliminating the mass, cost, and complexity of active fluid cooling systems.

View More >>

Optical Performance Matrix (aₛ / ε Control)

Low Solar Absorptance (aₛ < 0.15): Sub-micron barium sulfate (BaSO₄) or titanium dioxide (TiO₂) ceramic nanoparticles embedded in fluoropolymer matrices reflect over 88% of incoming solar radiation (250 nm - 2500 nm).

High Infrared Emissivity (ε > 0.85): High hemispherical emissivity allows the satellite panel to radiate internally generated electronics heat into deep space, maintaining stable operational temperatures for lithium-ion batteries and transceivers.

Low Earth Orbit Environmental Resilience

Atomic Oxygen (AO) & Solar UV Immunity: Low Earth Orbit contains reactive atomic oxygen created by solar UV photodissociation of O₂. The fluoropolymer/ceramic matrix forms a protective shield that resists AO erosion and prevents optical yellowing under far-UV radiation.

Substrate Passivation & Micro-Refining

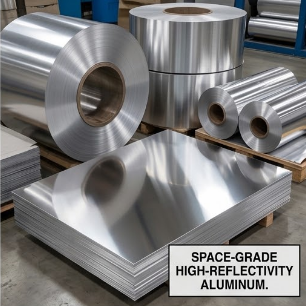

Alkaline Cleaning & Micro-Etching: Aerospace-grade 3003-H14 or 5052-H32 aluminum alloy coils (0.5 mm - 1.2 mm thickness) undergo multi-stage continuous degreasing and mild acid etching to strip non-uniform oxides and optimize surface energy.

Titanium-Zirconium Non-Chromate Conversion: A nano-scale conversion layer (15 nm} - 30 nm) is chemically deposited to establish covalent bonding interfaces, preventing sub-film corrosion and guaranteeing coating adhesion under thermal shock.

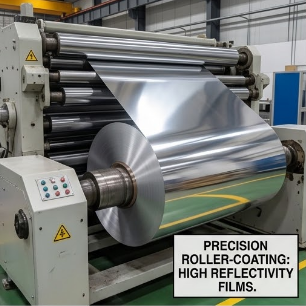

Continuous High-Speed Reverse Roll Coating & Curing

Cleanroom Enclosed Liquid Application: The specialized high-reflectivity fluoropolymer formulation is applied via precision reverse roll coaters inside a Class 10,000 cleanroom environment. Film thickness is maintained at 18μm ± 1μm across the entire coil width.

Controlled Catenary Oven Curing (240°C - 260°C PMT): Precision thermal curing cross-links the coating matrix, resulting in a flexible, non-porous finish capable of undergoing zero-radius T-bends (0T - 1T) without micro-fissuring.

Vacuum Outgassing Certification, Precision Shearing & Packaging

ASTM E595 Vacuum Outgassing Compliance: Finished production lots undergo thermal-vacuum testing (10⁻⁵ Torr at 125°C for 24 hours) to verify compliance with space contamination limits: Total Mass Loss (TML < 1.0%) and Collected Volatile Condensable Material (CVCM < 0.01%).

Cleanroom Shearing & Protective Lamination: Sheets are slit to precise panel dimensions, laminated with low-tack protective PE film, and sealed in double-layer anti-static vacuum bags for cleanroom satellite integration.

FAQ

Q1:How do roller-coated aluminum panels lower satellite launch costs?

A:Roller-coated aluminum panels lower launch costs primarily through mass reduction. Replacing heavy multi-layer insulation (MLI) and glass OSR tiles with lightweight pre-coated aluminum sheets reduces overall dry mass, lowering launch costs per satellite or allowing more satellites to fit on a single launch vehicle.

Q2:Can roll-coated coatings withstand the atomic oxygen (AO) present in Low Earth Orbit?

A:Yes. Space-grade fluoropolymer and inorganic ceramic coatings are specifically engineered to resist atomic oxygen degradation and high-intensity solar UV exposure, maintaining structural bond and optical reflectance over 5 to 10-year LEO mission lifespans.

Q3:Does the coating crack or flake when the aluminum sheet is bent or stamped?

A:No. Unlike post-spray liquid coatings or brittle glass tiles, continuous roll coatings undergo high-temperature curing that provides exceptional flexibility (0T - 1T T-bend capability). Panels can be stamped, bent, or CNC-machined without cracking or delamination.

Q4:How does the thermal performance of roller-coated aluminum compare to traditional MLI blankets?

A:While MLI blankets excel at multi-layer insulation in deep space, roller-coated high-reflectivity panels (aₛ < 0.15, ε > 0.85) offer superior external solar rejection and direct structural heat radiation in LEO, while eliminating the high labor costs and mass of MLI installation.

Q5:Are roller-coated aluminum panels compliant with NASA and ESA cleanroom outgassing standards?

A:Yes. Space-grade roller-coated aluminum sheets are fully tested and certified under ASTM E595 and NASA SP-R-0022A standards, meeting Total Mass Loss (TML < 1.0%) and Collected Volatile Condensable Material (CVCM < 0.01%) requirements.

Conclusion

To maximize launch cost savings and thermal performance when designing LEO satellite structures with roller-coated high-reflectivity aluminum:

Select High-Purity Marine/Aerospace Alloys: Use 5052-H32 aluminum for primary structural panels requiring higher yield strength and vibration fatigue resistance, or 3003-H14 for lightweight secondary thermal shields and electronic enclosures.

Mandate Low Absorptance Thresholds (aₛ < 0.15): Require coating manufacturers to submit spectral reflectance curves covering 250 n - 2500nm wavelengths to verify high solar energy rejection.

Enforce Vacuum Outgassing Audits (ASTM E595): Require batch-specific ASTM E595 certification confirming CVCM < 0.01% to ensure complete safety for payload optics and sensitive electronics.
