Can High-Rigidity 5754 Coated Aluminum Strips Maximize Payload Limits on 6-Axis Cobot Arms?

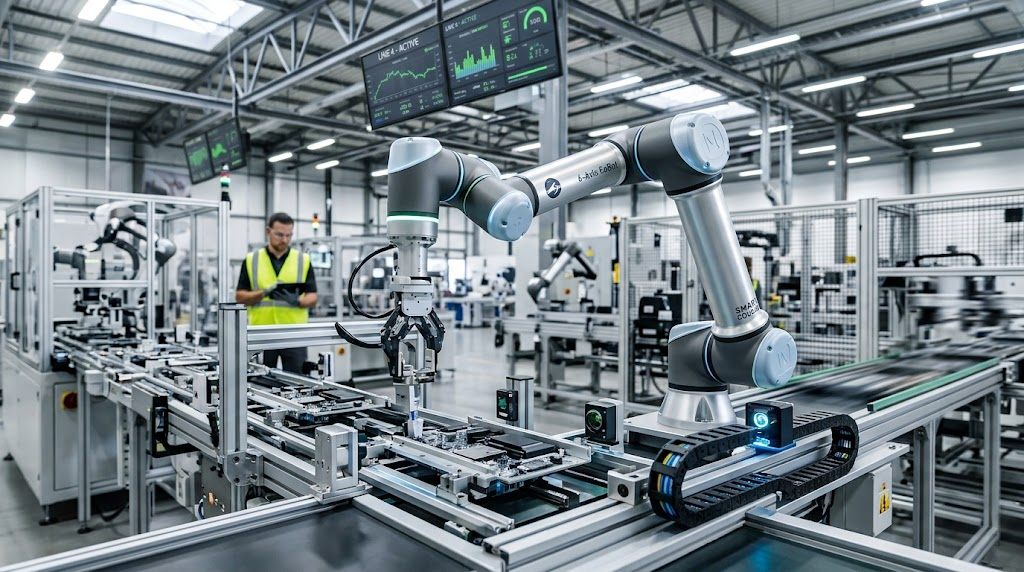

Across smart manufacturing floors, automotive assembly cells, semiconductor cleanrooms, and automated CNC machine-tending stations worldwide, 6-axis collaborative robots (cobots) are revolutionizing industrial automation. Unlike caged, stationary industrial robots, cobots operate directly alongside human workers, requiring sensitive torque sensors, collision-detection algorithms, and nimble joint responsiveness.

However, cobot engineering teams face a fundamental mechanical barrier: the payload-to-weight ratio.

In a standard 6-axis articulated cobot, every gram of deadweight added to link arm casings, joint covers, and wire-routing channels reduces the robot’s usable payload capacity at the end-of-arm tooling (EOAT). Traditional manufacturing materials create serious compromises on the factory floor:

Cast or stamped structural steel adds massive rotational deadweight. Excess arm mass forces joint servo motors and harmonic reducers to operate near their thermal limits during high-acceleration pick-and-place cycles, triggering safety shutdowns, causing path-tracking overshoot, and requiring engineers to downgrade a nominal 10kg-rated arm down to 7kg or 8kg in high-speed applications.

Fiber-reinforced composites (carbon fiber/glass fiber) reduce weight but present steep cost penalties, slow multi-hour autoclave cycle times, and splinter into dangerous, non-repairable shards during workshop collisions.

Uncoated or post-sprayed aluminum sheets require cumbersome multi-stage off-line liquid painting or powder-coating queues, leaving soft edges prone to chipping, surface scratches, and corrosion in oily machining environments.

High-rigidity 5754 coated aluminum strip delivers the definitive, shop-floor-proven solution. Combining a magnesium-strengthened, strain-hardened aluminum alloy core with factory-applied, scratch-resistant thermoset polymer or polyurethane-ceramic barrier finishes, this material slashes arm casing deadweight by over 65% compared to steel, increases payload-to-weight efficiency, eliminates post-stamping paint booths, and drives assembly scrap rates down to industry-leading levels.

Structural Mechanics for High-Acceleration Cobot Links

Collaborative robot arms demand low mass paired with high flexural rigidity to maintain sub-millimeter precision under rapid directional reversals:

Magnesium Solid-Solution Toughness (5754 Alloy): Containing 2.6% to 3.6% magnesium, 5754 provides natural structural resilience and high work-hardening capacity without requiring heat treatment. It delivers certified yield strength between 130 MPa and 190 MPa, preventing arm casing panels from oil-canning or warping during aggressive acceleration cycles.

Slashing Rotational Inertia: The torque required to accelerate a cobot joint scales directly with the square of the distance from the pivot axis. By replacing steel with 2.68 g/cm³ aluminum strip, deadweight along Link 2, Link 3, and wrist axes is cut by two-thirds. This massive inertia reduction frees up torque capacity for actual workpiece payloads, enabling faster cycle times and crisper trajectory control.

Vibration Damping and Harmonic Absorption: Soft alloys bend, while brittle alloys ring like a bell. The balanced crystalline structure of 5754-H22 naturally dampens mechanical vibrations generated by internal cycloidal reducers, preventing sensor resonance and ensuring smooth joint motion.

Factory Coil Coating vs. Off-Line Batch Painting

Consistent Factory-Applied Film: Continuous roller coating applies a uniform 25 µm to 35 µm polymer shield across the entire strip width, holding tight thickness tolerances (±1.5 µm) that eliminate the runs, sags, and uneven weight distribution of manual spray booths.

Scratch-Resistant, Tactile Industrial Finish: Formulated with micro-ceramic or textured polyurethane additives, the pre-coated finish achieves high surface hardness (≥ 2H to 3H pencil hardness), resisting tool drops, grease smudges, and repeated human handling during teach-pendant programming.

Technical Validation & Practical Performance

Sovereign Manufacturing Vision & B2B Commercial Payoff

Fueling National Smart Automation Leadership

Accelerating Domestic Cobot Production: Across industrial nations, building sovereign automated manufacturing is essential to overcoming demographic labor shortages and safeguarding supply chains. Utilizing mass-produced, high-precision pre-coated aluminum strip gives cobot builders a reliable, domestic raw material pipeline, accelerating factory ramp-up schedules and eliminating reliance on overseas composite molders.

Expanding Global Export Competitiveness: Slicing enclosure manufacturing costs while boosting payload ratings helps cobot manufacturers deliver higher performance at competitive price points, securing major global export contracts in automotive, electronics, and precision metalworking markets.

View More >>

Factory Floor Economics: High Stamping Yields and Zero Paint Queues

Bypassing the Paint Shop Bottleneck: Moving formed link covers through an off-line spray paint booth creates days of scheduling delays, parts-handling scrap, and paint-run rejections. Pre-coated 5754 strip allows stamped parts to move directly from the press to final arm assembly, cutting production lead times by 3 to 5 days.

Extended Tooling Life: 5754-H22 shears and draws cleanly, reducing punch wear and extending stamping die service life by up to four times compared to stamping stainless steel.

View More >>

Long-Term Fleet Reliability & Low Warranty Overhead

Infinitely Recyclable Clean Metal: Aluminum is an infinitely recyclable green metal requiring only 5% of the energy needed for primary smelting during secondary refining. Deploying recyclable aluminum delivers a low-embodied-carbon structural platform that aligns with international corporate ESG mandates.

Maintenance-Free Field Service: The wear-resistant, chemical-proof coating maintains its adhesion, color, and surface protection across decades of grueling shop-floor service, eliminating customer complaints about peeling paint and reducing warranty claims.

View More >>

Stopping the Failure Chain of Overweight Cobot Arms

In high-throughput manufacturing cells, running overweight cobot arms triggers an expensive chain of field failures:

Inertial Heat Spikes in Joint Servos: Moving heavy steel link covers forces harmonic drive motors to draw maximum current on every reversal. Heat builds up rapidly within enclosed joint housings, causing servo winding temperatures to spike past 85°C.

Automated Thermal Derating & Cycle Slowdowns: Built-in safety algorithms detect elevated motor temperatures and automatically derate operational acceleration, slowing down line throughput by 15% to 30% to prevent motor burnout.

The 5754-H22 Strip Advantage: Swapping to lightweight aluminum casings removes kilograms of reciprocating deadweight. Joint motors operate cooler, eliminating thermal throttling, extending gearbox grease life, and maintaining peak cycle speeds across 24/7 production shifts.

Immunity to Cutting Fluids and Factory Chemical Washdowns

Immunity to CNC Coolants and Hydraulic Mists: Cobots operating in machine-tending environments face continuous exposure to water-soluble cutting oils, metal chips, and degreasing agents. Marine-grade 5754 aluminum paired with thermoset coil coatings provides complete barrier isolation, preventing the bubbling, flaking, and corrosion pitting common to painted steel.

Cleanroom Compliance: The cured, non-flaking coating will not shed microscopic paint particles during arm articulation, qualifying cobots for stringent ISO Class 5 and 6 semiconductor and medical cleanroom environments.

Tension-Leveling & Surface Passivation

Zero Residual Internal Stress: Master coils pass through multi-roll tension-leveling lines to eliminate edge waves, coil crossbow, and residual rolling stresses. The slit strip uncoils with precision flatness, ensuring clean tracking in automated progressive stamping dies.

Automated Nano-Ceramic Passivation: Strips undergo continuous alkaline cleaning to strip rolling oils, followed by an inorganic titanium-zirconium conversion wash that raises surface wetting tension above 56 dynes/cm, ensuring covalent paint adhesion during sharp forming operations.

High-Precision Roll-to-Roll Coating & Color Management

Cleanroom Reverse-Roll Application: Primer and topcoats are applied in an enclosed cleanroom line, maintaining tight color and gloss uniformity across multiple production lots.

Controlled Curing Curves: Computer-monitored catenary ovens achieve complete polymer cross-linking without over-baking or reducing the work-hardened H22 temper of the underlying aluminum alloy.

Rotary Carbide Slitting & Zero-Defect Forming Audits

Mirror-Finish Carbide Slitting: Coils are slit to precision widths with rotary carbide knives, keeping edge burr heights strictly below 4% of metal thickness to eliminate tear notches that could cause edge splitting during deep stamping.

1T Cold-Bend & Hemming Verification: Production witness coupons undergo 1T 180° hem-bend testing and draw-bead forming audits, confirming that curved arm shells and mounting flanges can be bent without paint micro-cracking, crazing, or edge delamination.

FAQ

Q1:How does using 5754 aluminum increase the payload capacity of a 6-axis cobot?

A:A cobot's payload limit is governed by the torque limits and heat dissipation of its joint motors. Aluminum has approximately one-third the density of steel (2.68 g/cm³ vs. 7.85 g/cm³). Replacing steel link covers and brackets with 5754 aluminum removes kilograms of non-functional deadweight from the moving arm, allowing that saved torque to be redirected into lifting heavier workpieces.

Q2:Why is 5754-H22 preferred over 6061-T6 for cobot link casings?

A:While 6061-T6 has higher static yield strength, it is brittle and prone to micro-cracking when stamped into tight, curved arm fairings or hemmed flanges. 5754-H22 is work-hardened and partially annealed, providing excellent flexural toughness and elongation (≥ 12%) that absorbs high-acceleration dynamic shocks without cracking.

Q3:Will stamping curved cobot link shells crack or peel the pre-applied coating?

A:No, provided factory pre-coated coil stock certified for 1T bending is specified. The thermoset polymer coating stretches along with the ductile aluminum substrate during deep stamping and press-brake forming, leaving clean edges without peeling, flaking, or micro-cracking.

Q4:How does coated aluminum handle CNC coolant and oil splashes in machine shops?

A:Marine-grade 5754 aluminum is naturally corrosion-resistant. Combined with a factory-applied, cross-linked thermoset barrier coating, the material is completely impervious to water-soluble cutting oils, synthetic lubricants, and industrial degreasers, preventing blistering and paint peeling over decades of use.

Q5:Can the pre-coated aluminum surface survive accidental bumps and collisions?

A:Yes. 5754-H22 provides a high yield strength (up to 190 MPa) that resists everyday denting. In the event of an accidental collision with a machine fixture, the ductile aluminum core absorbs energy through controlled elastic-plastic deformation, cushioning internal harmonic drives and joint encoders from shock.

Conclusion

To successfully integrate high-rigidity 5754 coated aluminum strips into 6-axis cobot arm production:

Specify Certified 5754-H22 Temper on Purchase Orders: Avoid uncertified commercial grades or soft architectural alloys; require mill test certificates confirming tensile strength between 220 MPa and 270 MPa, yield strength between 130 MPa and 190 MPa, and elongation ≥ 12% for the optimal balance of rigidity and formability.

Lock in Rotary Carbide Burr-Free Edge Specifications: Ensure purchasing agreements mandate rotary carbide knife slitting with edge burr heights held strictly below 4% of strip gauge to prevent edge micro-cracks during stamping.

Mandate Pre-Coated 1T Bend Certified Stock: Ensure coil suppliers provide certified test reports confirming that pre-painted sheets can undergo 1T 180° hem-bending and deep-draw forming without paint crazing or edge delamination.
