How Do Space-Grade Ceramic Lacquers Prevent Surface Blistering Under Intense 24/7 Concentrated Solar Rays?

From orbital solar power stations (Space-Based Solar Power, SBSP) and satellite thermal radiators to terrestrial Concentrated Solar Power (CSP) tower reflectors, optical structures must endure continuous, intense solar flux exceeding 50 to 100 suns. Under this unrelenting 24/7 concentrated radiation, surface temperatures oscillate violently between extreme thermal peaks (+250°C to +350°C) and cryogenic shadow cold (-150°C), bathed continuously in vacuum ultraviolet (VUV) radiation and atomic oxygen.

Conventional organic paints, architectural fluoropolymers, and standard reflective films fail quickly under these severe conditions. Entrapped solvent micro-droplets, volatile plasticizers, and organic polymer backbones break down photochemically under hard UV rays. This degradation triggers internal gas expansion that forces the coating away from the metal substrate, creating catastrophic surface blistering, peeling, optical haze, and hazardous vacuum outgassing. Conversely, machining solid polished refractory metals or sputtering optical multi-layer stacks onto heavy quartz substrates carries prohibitive costs, extreme payload penalties, and fragile workshop handling risks.

Space-grade ceramic-lacquered aluminum provides an advanced, industrial-scale material solution. By combining high-reflectivity, high-purity aluminum coil and sheet substrates (1000 and 5000 series) with liquid-ceramic polysilazane and inorganic silica-alumina hybrid barrier matrices, this material completely eliminates volatile organic outgassing, stops solar-induced blister formation, and reduces optical collector manufacturing costs by over 50% compared to silvered glass or titanium assemblies.

Structural Aluminum Alloys as Orbital & Solar Radiators

Concentrated solar collectors and spacecraft radiators require rapid thermal heat dissipation paired with dimensional stability under intense solar radiation:

High-Purity 1085 and 5052 Structural Substrates: High-purity aluminum alloys deliver exceptional bulk thermal conductivity (180 W/m·K to 220 W/m·K)—over twelve times higher than stainless steel and titanium. This thermal conductivity spreads localized solar flux hot spots rapidly across the panel, preventing concentrated thermal stress points from developing.

Thermal Shock and Fatigue Resilience: High-purity structural aluminum maintains high elongation and ductility through continuous day-night cycling, flexing elastically under severe temperature swings (+350°C down to -150°C) without micro-cracking or warping out of optical parabolic alignment.

Massive Payload Optimization: Aluminum’s low density (2.70 g/cm³) delivers significant weight savings. In orbital solar missions where every kilogram launched costs thousands of dollars, replacing heavy glass or steel assemblies with thin-gauge ceramic-coated aluminum cuts payload mass by more than half, enabling larger reflective collection areas per launch.

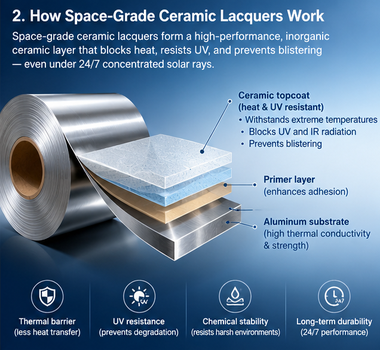

Space-Grade Polysilazane & Liquid-Ceramic Barrier Formulation

Standard polymer paints rely on carbon-carbon bonds that degrade rapidly under hard ultraviolet light. Space-grade ceramic lacquers utilize molecularly engineered inorganic networks:

Cross-Linked Silicon-Nitrogen-Oxygen Architecture: Liquid polysilazane resins cure into a dense, quartz-like ceramic network. This inorganic molecular backbone is impervious to ultraviolet photolysis, preventing the chemical bond cleavage that causes yellowing, hazing, and chalking in organic paints.

Sub-Micron Thickness with High Flexibility: Unlike thick, brittle industrial ceramic coatings, advanced liquid-glass lacquers achieve full barrier density at film thicknesses of only 2 to 5 microns. This thin profile bends and flexes smoothly with the underlying aluminum substrate without cracking.

Technical Validation & Practical Performance

Sovereign Technological Vision & B2B Commercial Payoff

Fueling National Aerospace & Solar Energy Sovereignty

Enabling Domestic Space-Based Infrastructure: The commercial space race is expanding from low Earth orbit toward permanent lunar bases, orbital communications constellations, and space-based solar power grids. Replacing heavy, imported glass assemblies and rare metals with mass-producible, high-precision coated aluminum gives aerospace companies a scalable domestic supply chain.

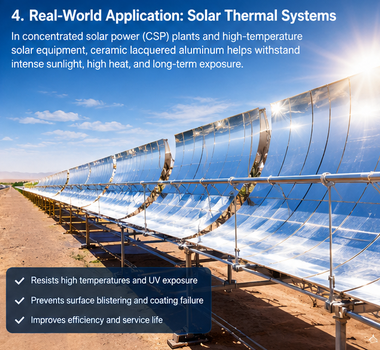

Accelerating Grid-Scale Concentrated Clean Energy: Modern nations are deploying gigawatt-scale Concentrated Solar Power (CSP) facilities in high-irradiance desert zones to provide 24/7 baseline renewable power. Slicing collector material and foundation weights by more than half lowers levelized electricity generation costs, making solar thermal power competitive with fossil baseload generation.

View More >>

Factory Floor Economics: Zero-Scrap Forming and Elimination of Batch Curing

Bypassing In-House Vacuum Chamber Coating: Traditional optical reflector fabrication requires complex, batch-based vacuum deposition (PVD) chambers that create multi-week production bottlenecks. Pre-lacquered ceramic aluminum arrives ready to fabricate, moving directly onto roll-forming lines and CNC laser cutters to shorten assembly lead times.

Elimination of Breakage Scrap: Handling thin silvered glass mirrors in assembly plants results in 5% to 10% scrap from handling fractures and edge chipping. High-ductility aluminum sheet forms cleanly without shattering, cutting workshop material scrap rates to under 1%.

View More >>

Long-Term Orbital Reliability & True Maintenance-Free Service

Infinitely Recyclable Green Metal: Aluminum is an infinitely recyclable material requiring only 5% of the energy needed for primary smelting during secondary refining. Utilizing recyclable aluminum delivers a low-carbon structural platform that aligns with international sustainability standards.

Decades of Maintenance-Free Outdoor Service: The diamond-hard, chemically inert ceramic surface sheds desert dust during rain washdowns and resists micro-sand abrasion. This durability ensures optical systems maintain high specular reflectivity over 25 to 30 years of field life without requiring mirror replacement.

View More >>

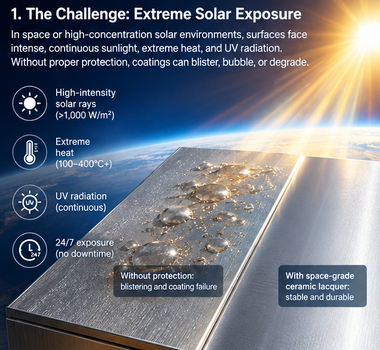

The Mechanics of Photothermal Blistering Under Concentrated Solar Flux

In high-flux solar installations, surface blistering follows a destructive degradation sequence:

Sub-Surface Gas Pocketing in Conventional Coatings: Standard industrial coatings contain trace trapped casting solvents, moisture, and uncross-linked monomers. Under intense concentrated sunlight, radiant heat rapidly vaporizes these volatile species within the coating layer.

Pressure Buildup & Micro-Cavitation: Because the surface layer acts as a barrier, expanding vapors cannot escape cleanly. Trapped micro-bubbles expand, exerting localized upward pressure that tears the coating away from the metal interface, forming visible blisters.

The Space-Grade Ceramic Defense: Ceramic lacquers cure via condensation reactions that leave zero solvent residuals or extractable volatiles behind. The resulting coating is fully inorganic and breathable on a nanometer scale, preventing pressure buildup and keeping the reflective surface flat and blister-free under continuous 24/7 exposure.

Deep Vacuum Outgassing & Atomic Oxygen Shielding

Strict Vacuum Cleanliness: In space or vacuum-sealed solar receiver tubes, outgassed volatile organic compounds (VOCs) condense onto sensitive optical lenses, photovoltaic cells, and sensors. Space-grade ceramic lacquers easily pass ASTM E595 outgassing standards, guaranteeing Total Mass Loss (TML) below 1.0% and Collected Volatile Condensable Material (CVCM) below 0.10%.

Atomic Oxygen (AO) Erosion Immunity: In low Earth orbit (LEO), atomic oxygen rapidly erodes organic materials. The silica-like surface of ceramic lacquer forms an oxidized barrier that is chemically non-reactive to atomic oxygen, maintaining surface gloss over decades of flight.

Continuous Substrate Micro-Etch & Silane Pretreatment

Multi-Stage Ultrasonic Vapor Degreasing: Aluminum coil stock passes through continuous solvent-free cleaning lines to eliminate rolling oils, leaving a chemically pure surface free of organic residue.

Organosilane Molecular Passivation: An inorganic nanometer-scale conversion layer is deposited continuously, raising surface wetting tension above 58 dynes/cm. This layer creates covalent metallosiloxane bonds (Si-O-Al) between the aluminum metal and the ceramic topcoat, preventing delamination during rapid thermal cycling.

Cleanroom Precision Roll-to-Roll & Robotic Spray Coating

ISO Class 5 Cleanroom Application: Ceramic lacquers are applied in cleanroom environments via precision reverse micro-gravure roll coaters (for continuous foil and thin coil) or multi-axis robotic atomizers (for formed sheets). This process prevents airborne dust particles from creating pinholes or focal scatter points.

Closed-Loop Laser Thickness Verification: In-line optical interferometry tracks dry film thickness in real time across the full strip width, holding tolerances strictly within ±0.3 microns to ensure uniform optical reflectivity and consistent bend ductility.

Thermal Curing & Thermal-Vacuum Cycling (TVAC) Audits

Computer-Controlled Curing Profiles: Coated material passes through multi-zone catenary ovens with precise temperature ramping, driving full inorganic cross-linking without compromising the temper or flatness of the aluminum base metal.

TVAC & Solar Simulating Quality Audits: Production lots undergo rigorous 500-cycle Thermal-Vacuum (TVAC) testing (-150°C to +300°C at deep vacuum) alongside continuous Xenon-arc concentrated solar exposure, validating zero blistering, zero micro-cracking, and zero specular gloss degradation.

FAQ

Q1:Why do standard industrial and architectural coatings blister under concentrated solar rays?

A:Standard coatings contain organic polymer chains and microscopic trace solvents. Under intense concentrated solar radiation (temperatures exceeding 150°C to 200°C), UV energy breaks chemical bonds while radiant heat vaporizes internal volatiles. Trapped within the paint film, these expanding vapors push the coating away from the metal, forming unsightly blisters and causing flaking.

Q2:How does a ceramic lacquer stop outgassing in high-vacuum space environments?

A:Space-grade ceramic lacquers cure via inorganic chemical condensation that cross-links into a solid silicon-oxygen-nitrogen matrix containing zero plasticizers, oils, or organic solvents. As a result, there are no volatile organic compounds to outgas under deep vacuum, preventing lens fogging and sensor contamination.

Q3:Can ceramic-lacquered aluminum sheets be stamped or bent without the coating chipping off?

A:Yes. Unlike thick thermal-spray ceramic coatings that are brittle and shatter under tension, space-grade liquid ceramic lacquers are applied as an ultra-thin (2 to 5 micron) film. When paired with high-adhesion silane molecular pretreatments, the coating flexes smoothly with the aluminum substrate, withstanding 1T bends and high-speed CNC roll forming without edge cracking.

Q4:Is ceramic-lacquered aluminum durable enough to survive desert sandstorms in terrestrial CSP plants?

A:Yes. The cured polysilazane ceramic surface achieves a high surface hardness (exceeding 8H to 9H pencil hardness), providing strong resistance to airborne desert dust abrasion. The slick, low-surface-energy finish also reduces dust accumulation, allowing panels to clean easily during standard wash cycles.

Q5:How does switching from glass mirrors to coated aluminum lower total project costs?

A:Coated aluminum cuts reflective panel weight by more than 75% compared to thick glass mirrors. This reduction allows structural engineers to design lighter support pylons, drive motors, and foundations for tracking solar fields, while also eliminating the 5% to 10% material scrap caused by glass breakage during transport and assembly.

Conclusion

To eliminate blistering and maximize optical efficiency in high-flux solar and aerospace hardware:

Specify Inorganic Polysilazane / Ceramic-Hybrid Chemistry: Ensure purchasing contracts mandate 100% volatile-free, inorganic ceramic lacquers certified to ASTM E595 vacuum outgassing requirements, strictly avoiding organic-solvent formulations.

Match Substrate Alloy and Temper to Forming Needs: For high-draw parabolic concentrator dishes, specify 1085-O or 5052-O fully annealed temper; for self-supporting flat radiator panels, specify work-hardened 5052-H32 or H34 to guarantee structural flatness under wind loads.

Mandate Pre-Coated Coil Delivery with 1T Bend Certification: Require your supplier to provide factory-applied, cleanroom-cured coils certified for 1T cold bending to ensure edge shearing and roll forming proceed without micro-cracking along cut margins.
