What is Degreasing Grade A? Why Clean Surface Matters for Coated Packaging Foil

For C-suite executives, global procurement directors, and chief packaging engineers in the food, pharmaceutical, and technical conversion industries, raw material purity is the foundation of product quality. In continuous converting operations—such as lacquering, heat-seal coating, or extrusion laminating—even microscopic surface contamination can lead to catastrophic adhesive failure, delamination, and product recalls.

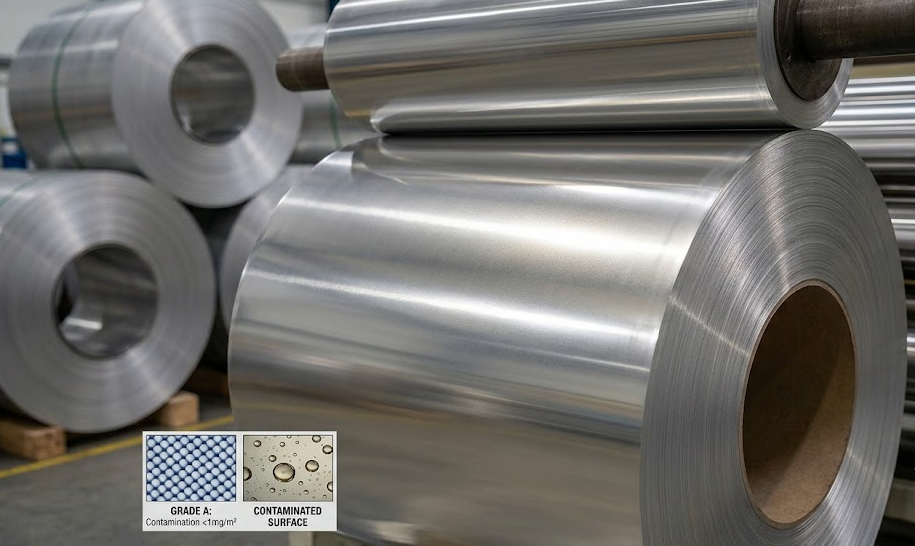

The industry benchmark for substrate purity is Degreasing Grade A (also known as Brush Water Grade A or Water Wettability Grade A). This technical specification certifies that aluminum foil is completely free of rolling oils, organic residues, and contaminants, providing a high-energy surface required for pristine coating adhesion and regulatory safety.

The Critical Surface Requirements for Advanced Converting

High-speed coating and laminating lines operate under strict mechanical tolerances. Undetected surface oil on raw aluminum foil disrupts chemical bonding, resulting in costly material scrap.

Residual Rolling Oils as a Primary Cause of Coating Defects

During the cold-rolling process, high-viscosity lubricants and rolling oils are used to reduce aluminum foil to light gauges (down to 0.006mm - 0.08mm). If these organic hydrocarbons are not thoroughly purged during annealing or chemical cleaning, a thin, hydrophobic film remains on the metal surface.

Defining Surface Cleanliness: Why Bare Metal Quality Dictates Coating Success

When functional polymers, epoxy-phenolic resins, or polyurethane adhesives are applied to contaminated foil, the organic oil acts as a barrier to chemical bonding. Achieving Degreasing Grade A ensures the metallic surface is chemically receptive, allowing liquid coatings to wet out evenly without crawling, cratering, or micro-bubbling.

Degreasing Grade Standards & Coating Adhesion Matrix

Core Industrial Applications Requiring Degreasing Grade A Foil

Specifying Degreasing Grade A aluminum foil is critical across demanding manufacturing sectors:

Food Packaging: Retort Pouches, Dairy Lidding, and Lacquered Trays

High-temperature sterilization (121°C - 131°C) places extreme stress on flexible packaging laminates. Retortable pouches, heat-sealable yogurt cup lids, and lacquered food containers require Grade A foil to guarantee that heat-seal resins and barrier primers retain bond strength without delaminating under steam pressure.

View More >>

Pharmaceutical Packaging: Cold-Formable Foil (OPA/Alu/PVC) & Blister Stock

Cold-formable aluminum-plastic laminates undergo extreme deep-drawing to form tablet cavities. If oil residues weaken the bond between the aluminum foil and the outer OPA (oriented polyamide) or inner PVC films, the layers will delaminate during punching, exposing sensitive drugs to moisture and oxygen.

View More >>

Technical Electronics: Battery Pouch Foils & Flexible Shielding Laminates

Lithium-ion battery pouch materials (aluminum-plastic films) require maximum bond strength between the aluminum core and polypropylene outer layers to withstand corrosive liquid electrolytes. Grade A foil ensures zero organic contamination, protecting internal cell chemistry.

View More >>

ASTM B479 / Standard Testing Standards and Surface Tension Thresholds

Per international specifications (including ASTM B479 and GB/T 3198), water wettability is evaluated by spraying distilled water onto the uncoiled foil surface:

Grade A (Wettability Grade A): Distilled water spreads completely across the foil surface in a continuous, unbroken film without forming separate droplets or retracting from edges. This indicates a high surface energy of ≥ 72 dyn/cm.

Grade B: Water forms continuous sheets initially, but breaks into droplets within a short time frame (30-72 dyn/cm).

Grade C: Water immediately beads up into discrete droplets due to heavy oil contamination (<30 dyn/cm).

Thermal Annealing Degreasing vs. Continuous Chemical Cleaning Systems

Achieving Grade A cleanliness requires specialized thermal or chemical degreasing:

High-Temperature Thermal Annealing: In soft ('O' temper) foils, master rolls undergo extended baking in oxygen-controlled furnaces (300°C - 400°C). This vaporizes residual rolling oils, leaving a dry, fully annealed aluminum oxide surface.

Chemical Degreasing & Acid/Alkali Wash: For hard ('H' temper) foils where high heat would alter mechanical properties, continuous strip lines pass through alkaline cleaning baths, deionized water rinses, and hot-air dryers to scrub away oils mechanically and chemically.

Interfacial Adhesion, Delamination Risk, and Mechanical Anchor Dynamics

Coating materials (such as epoxy, primer, or polyurethane adhesives) must form polar bonds with the thin natural aluminum oxide (Al₂O₃) film. When oil is present, it acts as a weak boundary layer. Under stress, deep drawing, or thermal expansion, coatings applied over oil will separate from the substrate, causing package delamination.

Eliminating Pinholes, Fish-Eyes, Blistering, and Coating Voids

During high-temperature baking (such as curing heat-seal lacquers at 200°C), volatile residual rolling oils beneath the wet coating layer vaporize. This outgassing forces gas bubbles through the curing polymer film, creating fish-eyes, micro-pinholes, and surface craters. Grade A foil eliminates outgassing defects, ensuring a pinhole-free barrier film.

Regulatory Compliance: Zero Organic Residue, Migration Control, and Food/Pharma Safety

In food and pharmaceutical applications, unburned rolling oils represent an unacceptable source of contamination. Residues contain aromatic and aliphatic hydrocarbons that can migrate into packaged products, causing off-flavors, odors, and regulatory non-compliance under FDA 21 CFR 175.300 and EU No 10/2011 standards.

FAQ

Q1:How is Degreasing Grade A verified on the factory floor?

A:Verification is performed via the Water Wettability Test (distilled water spray per ASTM B479) or Dyne Pen Testing (ISO 8296). On Grade A foil, distilled water forms an uninterrupted, continuous film across 100% of the tested surface, achieving a surface tension of ≥ 72 dyn/cm.

Q2:Can Degreasing Grade A be achieved on hard ('H' temper) aluminum foil?

A: Yes. While soft ('O' temper) foil is degreased naturally during high-temperature annealing, hard temper foils are processed through continuous chemical degreasing lines using alkaline cleaning, deionized water washing, and forced hot-air drying to remove rolling oils without softening the metal.

Q3:What happens if a converter applies solvent-based lacquers over Grade C aluminum foil?

A:Solvent-based coatings may appear to cover oil-contaminated foil initially, but high-temperature baking will vaporize the underlying oil. This causes pinhole formation, fish-eyes, reduced bond strength, and localized delamination during downstream converting.

Q4:Does Degreasing Grade A affect the shelf life of un-coated aluminum foil rolls?

A:Grade A foil has no oil layer to attract moisture or ambient dust. However, because it has a clean surface, it must be stored in humidity-controlled environments with moisture-proof packaging (such as VCI paper and desiccants) to prevent moisture condensation and surface oxidation (white rust).

Q5:Is Degreasing Grade A mandatory for food-contact packaging?

A:Yes. Food safety regulations (including FDA 21 CFR and EU No 10/2011) mandate that food-contact materials must not transfer unapproved substances into food. Rolling oil residues contain hydrocarbons that can migrate into food, making Grade A clean foil an industry requirement for direct food contact.

Conclusion

Specifying Degreasing Grade A aluminum foil is essential for high-performance coating, printing, and lamination. Eliminating surface oil ensures maximum coating adhesion, prevents structural delamination, and guarantees regulatory compliance across food, pharmaceutical, and high-tech packaging supply chains.
