Why Is 1060 Anodized Mirror Aluminum Sheet Preferred in Spacecraft Optical Payloads?

Spacecraft optical payloads—including Earth observation cameras, astronomical spectrometers, star trackers, and laser communication terminals—operate in the harsh vacuum of low Earth orbit (LEO) and deep space. In these environments, optical systems face severe radiation, extreme thermal cycling (-120°C to +150°C), orbital atomic oxygen (AO) erosion, and strict cleanroom contamination thresholds.

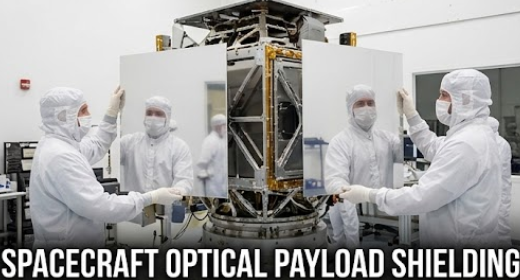

To maintain light path clarity, low stray light interference, and precise thermal control without adding unnecessary mass, payload engineers rely on specialized materials. 1060 anodized mirror aluminum sheets (99.6% ultra-pure aluminum with electro-polished mirror coatings and hydrothermally sealed anodic oxide layers) have become a preferred material for internal baffle structures, stray light suppression shields, spectral calibration targets, and reflective housing enclosures.

The Deep Space Optical Environment

Optical instruments onboard satellites must perform flawlessly for years without physical maintenance in extreme vacuum and radiation conditions:

Stray Light & Thermal Radiation Control: Uncontrolled reflections inside optical tubes cause stray light noise, obscuring low-contrast space targets. Highly specular mirror surfaces bounce unwanted off-axis thermal and solar energy directly out of the optical path.

Molecular Outgassing & Optical Contamination: In a vacuum, standard paints, adhesives, or impure metals outgas organic molecules. These volatiles condense onto cold optical lenses and mirrors, degrading light transmission permanently.

Comparison: Structural Alloy vs. 1060 Anodized Mirror Aluminum Sheet

Spacecraft Material Comparison

The matrix below compares structural materials against 1060 anodized mirror aluminum sheets for spacecraft optical payloads:

Key Professional Advantages in Spacecraft Optical Payloads

ASTM E595 Zero Outgassing & Molecular Lens Fogging Protection

Cleanroom Thermal-Vacuum Compliance: The fully hydrated boehmite (AlOOH) anodic seal contains zero volatile organic binders or processing solvents. Passing ASTM E595 tests (Total Mass Loss, TML < 1.0%, Collected Volatile Condensable Material, CVCM < 0.01%), it guarantees zero organic outgassing in high-vacuum space environments ($10⁻⁶Torr).

Prevention of Cryogenic Lens & Detector Contamination: Eliminating molecular outgassing prevents condensable films from depositing onto cold optical components (such as focal plane arrays cooled to <77K or fused silica lenses), preserving optical transmission over multi-year missions.

View More >>

Ultra-Pure Lattice Physics for High Specular Reflectance & Low Stray Light

Homogeneous Aluminum Lattice (99.6% Al Purity): Free from second-phase intermetallic inclusions (e.g., FeAl₃, Mg₂Si) common in 6000/7000 series alloys, electro-brightened 1060 mirror aluminum prevents micro-pitting and surface haze (Ra < 0.01μm).

High Specular Reflectivity (>88% - 95%): Achieves total specular optical reflectance up to 95% across UV-Vis-NIR spectra. This directs off-axis solar and thermal energy out of optical tubes, minimizing stray light noise and improving signal-to-noise ratios (SNR) in space cameras and spectrometers.

View More >>

Superior Thermal Homogeneity & Atomic Oxygen (AO) Passivation

Elimination of Thermal Gradients (~ 230 W/m·K): In the vacuum of space, heat transfer relies on conduction and radiation. High bulk thermal conductivity rapidly evens out thermal gradients across optical baffles during orbital eclipse transitions (-120°C to +150°C), preventing structural warping and focus drift.

Atomic Oxygen (AO) Immunity in Low Earth Orbit (LEO): The dense, inorganic aluminum oxide film (Al₂O₃, -5μm) acts as an inert barrier against high-energy atomic oxygen flux (E ≈ 5eV) in LEO, preventing underlying metal degradation and optical performance loss.

View More >>

Ultra-Pure Substrate Advantage (1060 Alloy)

1060 aluminum contains 99.6% pure aluminum, minimizing intermetallic compounds (like FeAl₃ or Mg₂Si) present in structural alloys:

Elimination of Surface Micro-Haze: During chemical and electrochemical brightening, intermetallic particles etch at different rates than the aluminum matrix, causing light scattering (haze). 1060's ultra-pure lattice allows a smooth mirror finish (Ra < 0.01μm).

High Thermal Conductivity (~ 230 W/m·K): Higher purity yields superior bulk thermal conductivity compared to 6061 (~ 167 W/m·K) or 7075 (~ 130 W/m·K), eliminating localized thermal hotspots on optical frames.

Anodic Film Formation & Hydrothermal Sealing

Optically Transparent Oxide Layer (Al₂O₃): A precise 3μm - 8μm anodic coating is electrochemically grown. The transparent oxide protects the reflective mirror surface from atomic oxygen (AO) degradation without lowering optical reflectance.

Vacuum Sealing Protocol: Complete hydrothermal sealing closes microscopic oxide pores, trapping zero processing chemicals and meeting NASA/ESA outgassing standards (Total Mass Loss TML < 1.0%, Collected Volatile Condensable Material CVCM< 0.01%).

Substrate Micro-Refining & Chemical Brightening

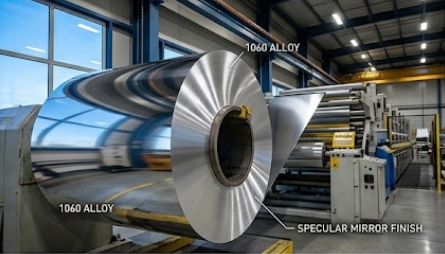

Multi-Stage Acid Deoxidization: 1060 aluminum coils (99.6% pure Al) undergo multi-stage alkaline cleaning to strip surface contaminants, followed by acid deoxidization to expose a homogeneous metallic lattice.

High-Current Electrochemical Mirror Polishing: Coils pass through chemical brightening baths under precise DC current density. Controlled micro-dissolution removes microscopic peak asperities, achieving a specular mirror gloss >850 GU at 60° (Ra < 0.01μm).

Continuous Coil Anodizing & DI Water Hydrothermal Sealing

Precision Anodic Layer Growth (Al₂O₃): Anodizing current density and electrolyte temperature are dynamically controlled to grow a 3μm - 5μm optically transparent ceramic oxide film (± 0.2μm thickness tolerance), avoiding optical thin-film interference fringes.

Ultra-Pure Deionized Water Hot Sealing (>98°C): Sealed in ultra-pure DI water to hydrate the porous amorphous oxide into crystalline boehmite (AlOOH). This completely closes micropores, eliminating chemical entrapment.

Class 100 Cleanroom Processing, Outgassing Audit & Vacuum Packaging

Class 100 Cleanroom Precision Slitting: Mirror plates are sheared in cleanrooms using carbide tooling to maintain edge burrs under ≤ 3μm, preventing particulate shedding inside space optical assembly bays.

ASTM E595 Vacuum Outgassing Certification & Double Packaging: Every production lot is tested under high vacuum (10⁻⁵ Torr) at 125°C for 24 hours to verify outgassing metrics (TML < 1.0%, CVCM < 0.01%). Sheets are wrapped in dust-free paper, double-bagged in anti-static PE film, and vacuum-sealed.

FAQ

Q1:Why is 1060 aluminum preferred over 6061 aluminum for mirror optical sheets?

A:1060 aluminum contains 99.6% pure aluminum with minimal alloying elements. 6061 contains silicon, magnesium, and copper, which form intermetallic inclusions that cause light scattering (haze) during polishing and lower overall specular reflectivity.

Q2:Does the anodic oxide coating peel off in the vacuum of space?

A:No. Anodizing is an electrochemical conversion process that grows the aluminum oxide layer (Al₂O₃) directly out of the aluminum substrate. It is integrated into the metal and cannot peel or delaminate under thermal cycling or vacuum conditions.

Q3:How does 1060 anodized mirror aluminum handle space radiation and atomic oxygen?

A:The inorganic aluminum oxide coating (Al₂O₃) is completely inert to atomic oxygen (AO) erosion and resistant to deep-space ultraviolet (UV) radiation, protecting the reflective surface from degradation over long missions.

Q4:What outgassing standard must mirror aluminum meet for space optical payloads?

A:Space-grade mirror aluminum must meet NASA SP-R-0022A and ASTM E595 standards: Total Mass Loss (TML) under 1.0% and Collected Volatile Condensable Material (CVCM) under 0.01% to prevent molecular contamination of optics.

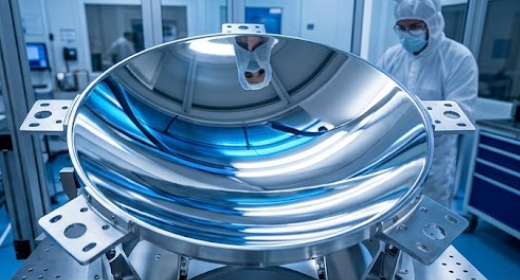

Q5:Can 1060 anodized mirror aluminum sheets be formed into curved optical baffles?

A:Yes. 1060 aluminum exhibits high ductility in soft tempers (O or H12/H14), allowing it to be bent or rolled into curved light baffles and reflectors without cracking the thin anodic layer (3μm - 5μm).

Conclusion

1060 anodized mirror aluminum sheets offer an ideal combination of optical reflectance, low outgassing, high thermal conductivity, and environmental stability for spacecraft optical payloads.

To optimize material selection for satellite optical housing design:

Specify 1060 Alloy (99.6% Minimum Purity): Avoid 6000 or 7000 series alloys for reflective surfaces, as intermetallic phases reduce specular reflectance.

Mandate Outgassing Certification (ASTM E595): Require suppliers to provide ASTM E595 test certificates confirming Total Mass Loss (TML) <1.0% and Collected Volatile Condensable Material (CVCM) <0.01%.

Control Anodic Layer Thickness (3μm - 5μm): Specify precise anodic film thickness tolerances to maintain high surface hardness (>300 HV) while avoiding optical interference or reduced reflectivity.
