Why are Smart Factory Designers Choosing Embossed Coated Foil for Acoustic Sensor Protection?

Modern Industry 4.0 smart factories rely on ultrasonic and acoustic micro-sensors to continuously monitor machinery health, detect compressed air leaks, and diagnose early bearing friction before catastrophic mechanical failure occurs. However, installing sensitive acoustic transducers directly into noisy, high-vibration factory environments presents severe engineering challenges: ambient structural noise generates internal casing resonance, industrial oil mist corrodes sensor membranes, and airborne electromagnetic interference (EMI) degrades low-amplitude acoustic signals.

Transitioning from flat metallic foils or rigid polymer caps to embossed coated aluminum foil (0.03 mm–0.15 mm, 1000/8000-series alloys with functional polymer coatings) offers a specialized solution. The three-dimensional embossed pattern disrupts standing acoustic waves, damps structural vibration, and provides localized fluid protection without dampening target high-frequency ultrasonic signals.

Structural Resonance & Internal Reflection Distortion

Acoustic sensors deployed on industrial CNC machines, motor housings, and robot joints operate under high acoustic noise:

Internal Housing Resonance: Flat metallic covers reflect incoming sound waves back onto the transducer diaphragm, creating standing waves and phase distortion that mask subtle ultrasonic fault signatures (20 kHz - 100 kHz).

Vibration-Induced Microphonics: Machine vibration transmitted through standard sensor housings introduces low-frequency microphonic noise, reducing signal-to-noise ratio (SNR).

Oil Mist Penetration & EMI Contamination

Unprotected sensor housings encounter severe environmental pollution:

Flat Metallic Shield vs. Embossed Coated Aluminum Foil

Membrane Fouling: Industrial lubricants, coolants, and airborne particulates clog acoustic ports, causing signal attenuation and sensor drift.

Electromagnetic Interference (EMI): High-voltage variable frequency drives (VFDs) and welding equipment generate intense electromagnetic noise that disrupts unshielded micro-sensor circuits.

Technical Specification Matrix: Acoustic Protection Materials

The table below compares technical properties of protective materials used in acoustic sensor housings:

Performance Advantages in Smart Factory Acoustic Sensors

Elimination of Internal Echoes & Higher Signal Clarity

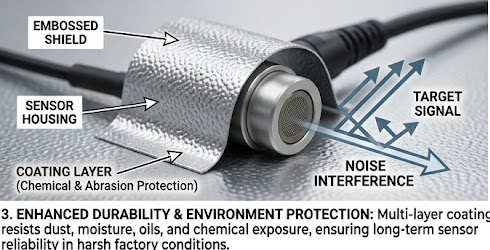

Acoustic Scattering Geometry: The 3D embossed pattern scatters reflected acoustic waves across multiple angles, preventing internal resonance and standing-wave interference inside the sensor cavity.

Ultrasonic Bandwidth Clarity: High acoustic transparency across 20 kHz - 100 kHzfrequencies ensures early detection of micro-frictional bearing spikes and high-pressure gas leaks.

View More >>

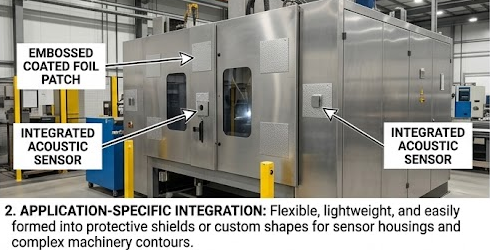

Vibration Damping & Micro-Mechanical Resilience

Structural Stiffness Without Mass: The micro-embossed dimple structure increases flexural rigidity without increasing foil gauge or overall housing mass.

Resonance Damping: The combination of an elastic polymer coating and a textured aluminum core absorbs high-frequency machine vibration, lowering microphonic noise floor interference.

View More >>

Chemical Protection & Integrated EMI Shielding

Resistance to Cutting Coolants: The cross-linked polymer coating shields the underlying foil from pitting caused by alkaline cutting fluids, acidic condensate, and synthetic greases.

Faraday Cage Continuity: The conductive aluminum layer creates a continuous electrical ground shield, blocking high-frequency electromagnetic noise generated by nearby motors, VFDs, and power lines.

View More >>

Foil Substrate Selection: 1235 & 8011 Alloys

Selecting high-purity aluminum foil ensures high ductility, thermal stability, and acoustic transmission:

1235-O Soft Annealed Foil: High aluminum content (≥ 99.35%) offers high elongation (≥ 12%) and low yield strength, allowing deep embossing without micro-tearing or structural springback.

8011-O Temper Alloy: Features added iron and silicon content to deliver higher tensile strength (Rₘ≥ 95 MPa) while preserving formability for micro-stamped acoustic covers.

Protective & Damping Polymer Coatings

Acoustic-Neutral Polymer Lacquers: Ultra-thin (2μm - 8μm) epoxy, polyurethane, or modified acrylic coatings protect against chemical corrosion without adding deadweight that restricts acoustic wave transmission.

Dielectric & Oleophobic Topcoats: Prevents oil accumulation on the sensor face, allowing fluid droplets to bead and roll off without blocking sound entry ports.

Substrate Pre-Cleaning & Lacquer Pre-Treatment

Surface Degreasing & Chemical Cleaning: Raw aluminum foil undergoes complete thermal and chemical degreasing to eliminate rolling lubricants, creating an ultra-clean base for coating adhesion.

Continuous Precision Roll Coating: Reverse roll-coating lines apply a uniform primer and functional lacquer, followed by controlled thermal curing to achieve complete resin cross-linking.

Precision Micro-Embossing

Stuccos, Orange Peel, and Diamond Texturing: The lacquered foil passes between matched male-female steel embossing rollers under high pressure, imprinting a uniform 3D texture (50μm - 250μm relief height).

Work-Hardening Optimization: Controlled embossing increases the structural stiffness of thin foil while retaining sufficient flexibility for three-dimensional sensor capping.

Micro-Slitting, Stamping & Dust-Free Packaging

Burr-Free Micro-Slitting: Rotary carbide knives shear the foil into precision widths with edge burrs maintained strictly under 5% of total gauge, eliminating short-circuit risks in compact housing assemblies.

Cleanroom Spooling & Sealed Packaging: Processed coils are wound under dust-controlled conditions, vacuum-sealed with desiccants in VCI anti-corrosion film, and packed in wooden crates for safe global transport.

FAQ

Q1:How does embossing improve acoustic performance compared to flat aluminum foil?

A:Flat foil acts as a acoustic mirror, reflecting sound waves back toward the transducer and creating internal resonance. Embossed patterns scatter sound waves in multiple directions, diffusing reflections and eliminating standing waves that distort sensor readings.

Q2:Does the embossed coating impede high-frequency ultrasonic signal detection?

A:No. Thin polymer coatings (2μm - 8μm) applied to light gauge aluminum foil (30μm - 100μm) maintain high acoustic transmission across ultrasonic bands (20 kHz - 100 kHz), allowing target diagnostic frequencies to pass through clearly.

Q3:Will the polymer coating delaminate from the foil during the embossing process?

A:No. High-quality pre-coated foil uses flexible, thermally cured lacquers engineered to stretch alongside the metal during cold embossing, maintaining Grade 0 cross-hatch adhesion without flaking, crazing, or peeling.

Q4:How does embossed aluminum foil provide EMI shielding for micro-sensors?

A:The continuous aluminum core provides bulk electrical conductivity, acting as a Faraday cage that attenuates high-frequency electromagnetic interference from nearby industrial motors, power electronics, and wireless radios.

Q5:What protective packaging is required to protect embossed foil coils during international transit?

A:Embossed foil spools are vacuum-sealed inside heavy-duty PE bags with moisture-absorbing desiccants, protected with shock-absorbing foam inserts, wrapped in anti-corrosion VCI paper, and secured inside non-fumigation wooden crates to prevent crush damage to the 3D texture.

Conclusion

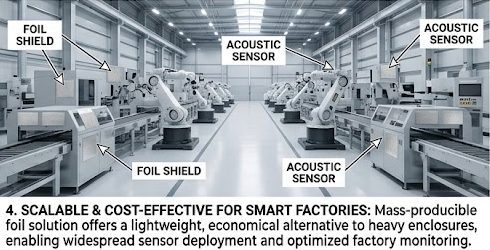

Specifying embossed coated aluminum foil for acoustic sensor housings provides superior signal clarity, vibration damping, and chemical defense in demanding Industry 4.0 factory environments.

To optimize material selection for your acoustic sensor protective housing project:

Specify Alloy & Temper for High Formability: Choose 1235-O or 8011-O annealed soft foils to allow deep embossing and smooth three-dimensional forming over micro-sensor heads.

Select Functional Polymer Coating Chemistry: Mandate chemical-resistant epoxy or polyurethane lacquers with verified Grade 0 cross-hatch adhesion to resist cutting fluids and humidity.

Optimize Embossing Pattern for Target Frequencies: Select dimple or stucco relief heights (50μm - 200μm) that diffuse target acoustic wavelengths without restricting ultrasound transmission.
