Why is Hydrophilic Coated Aluminum Foil Becoming Essential for Liquid-Cooled AI Server Fins?

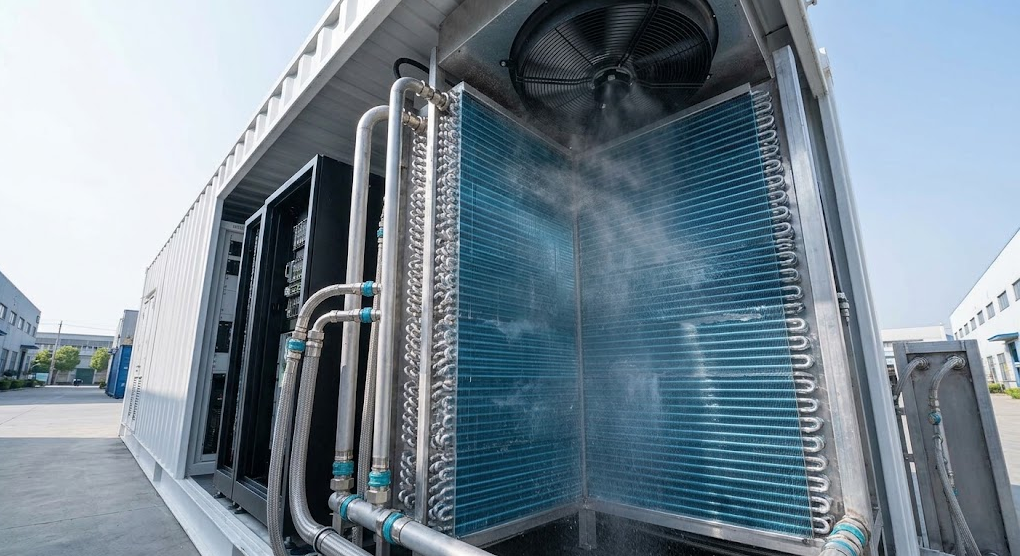

High-density artificial intelligence (AI) server racks powered by next-generation GPUs generate unprecedented thermal flux, pushing traditional air-cooling architectures beyond their physical limits. To manage these immense heat loads, hybrid liquid-cooling systems—such as Rear Door Heat Exchangers (RDHx) and Liquid-to-Air (L2A) sidecars—rely on ultra-efficient air-to-liquid heat exchanger radiator cores.

Utilizing hydrophilic coated aluminum foil (0.09 mm - 0.15 mm) as the primary fin material ensures rapid condensate drainage, prevents micro-channel air-bridging, maximizes effective heat transfer surface area, and protects server radiator cores from airborne corrosion in continuous data center environments.

Unprecedented Thermal Flux & Moisture Dynamics in AI Racks

Modern AI server racks equipped with high-TDP accelerators (700W - 1200W+ per chip) generate extreme localized heat loads requiring liquid-to-air cooling systems:

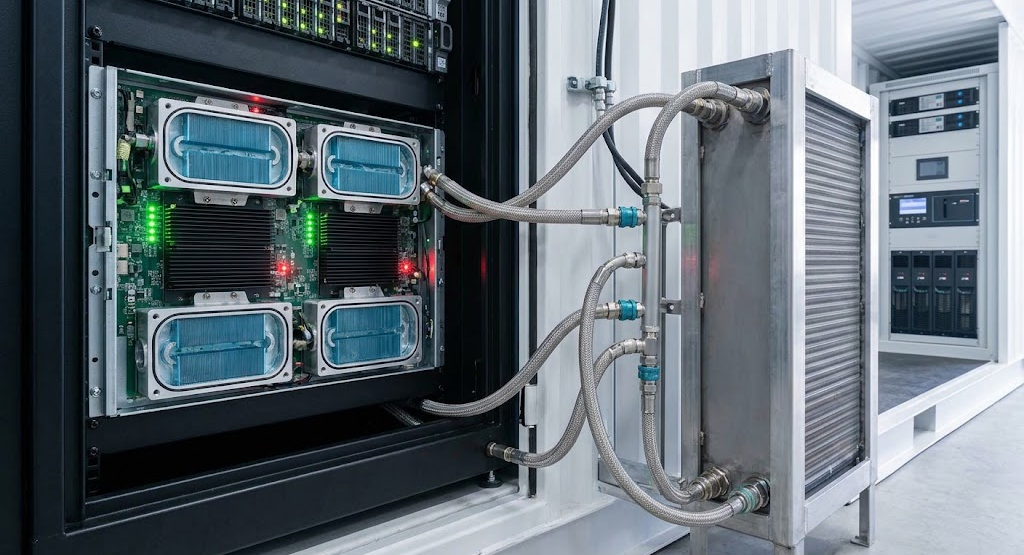

Hybrid Cooling Architectures: Coolant distribution units (CDUs) circulate liquid through cold plates, while secondary air-to-liquid radiator matrices dissipate remaining ambient heat back into the room.

Dew Point & Condensation Risks: Cold liquid circulating through radiator fins under varying data center relative humidity levels causes ambient moisture to condense rapidly on fin surfaces.

Micro-Channel Water-Bridging & Thermal Resistance Escalation

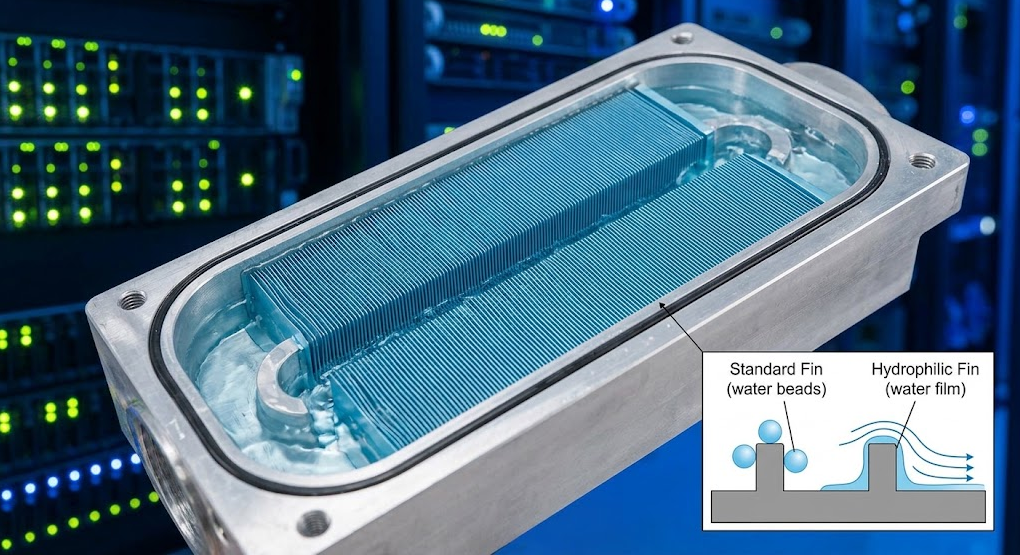

In bare (uncoated) aluminum radiator fins, surface tension causes condensed moisture to bead up into distinct spherical droplets:

Air Channel Blockage: Spherical water beads bridge adjacent fin gaps (1.0 mm - 1.5 mm), severely restricting airflow velocity and increasing fan static pressure demand.

Thermal Boundary Insulation: Trapped droplet clusters form stagnant water pockets that act as insulating thermal barriers, degrading air-to-liquid heat exchanger efficiency by up to 20 - 30%.

Technical Specification Matrix: Hydrophilic Foil for Server Liquid Cooling

The table below outlines key technical parameters for hydrophilic coated aluminum foil engineered for AI server radiator and liquid-cooling heat exchanger fins:

Performance Advantages in Data Center Liquid-Cooling Radiators

Lower Fan Power Consumption & Static Air Pressure Drop

Eliminating droplet bridging across narrow radiator fin channels directly improves cooling fan efficiency:

Air Resistance Reduction: Hydrophilic film-wise drainage reduces static pressure drop across liquid-cooling radiator cores by 15 - 25%.

Fan Energy Savings: Lower static pressure allows cooling fans to operate at reduced RPMs, cutting auxiliary rack fan power consumption and lower overall PUE (Power Usage Effectiveness).

View More >>

Maximized Effective Heat Exchange Surface Area

Continuous Air Contact: Preventing static water accumulation keeps fin surface areas exposed to moving air, maximizing air-side convective heat transfer coefficients (hₐ).

Rapid Thermal Stabilization: Smooth liquid drainage prevents localized thermal dead zones, ensuring stable coolant return temperatures to the CDU.

View More >>

Long-Term Corrosion Prevention & Data Center Reliability

Prevention of White Rust: Specialized barrier primers prevent raw aluminum contact with moisture and airborne pollutants, eliminating oxide scaling.

Reduced Maintenance Downtime: Cleaner fin cores require less frequent air-flushing and cleaning cycles, lowering operational overhead for data center managers.

View More >>

Organic-Inorganic Hybrid Hydrophilic Coatings

To ensure long-term thermal performance, server radiator fins utilize advanced hydrophilic chemical coatings applied via coil coating processes:

Silicate & Silica-Polymer Matrix: Combines inorganic silica nanoparticles with modified acrylic/epoxy binders to achieve permanent water-wetting properties.

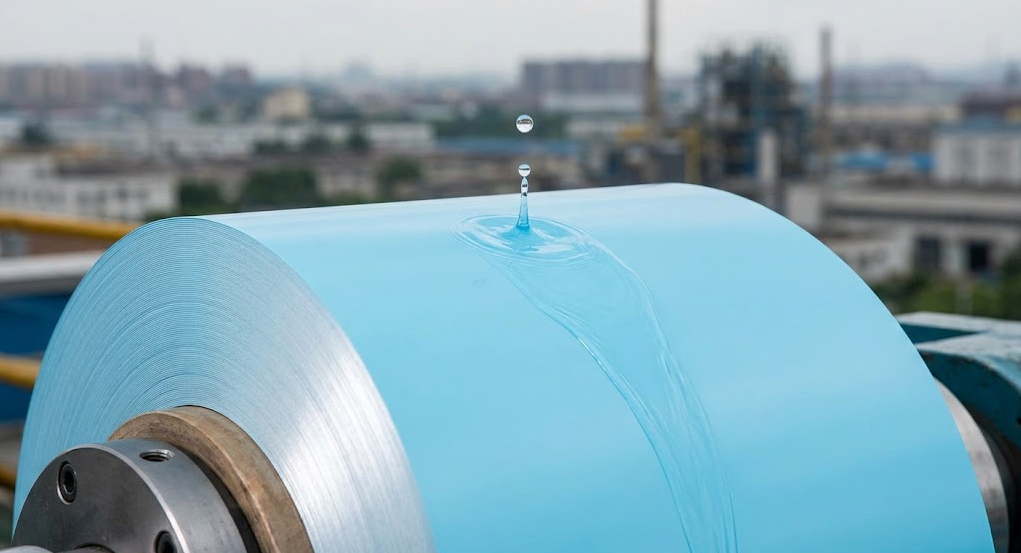

Ultra-Low Contact Angle (≤ 10°): Drops of water instantaneously spread across the coated foil surface, converting high-drag droplets into a low-profile continuous liquid sheet that slides off rapidly under gravity.

Anti-Corrosion Protection & Thin-Film Thermal Efficiency

Chromate-Free Epoxy Primer: Protects the underlying aluminum alloy substrate against oxidation, passing strict neutral salt spray (NSS) testing (≥ 500 hours).

Negligible Thermal Impedance: The hydrophilic coating is applied at an ultra-thin dry film thickness (1.0μm - 2.5μm), ensuring high corrosion resistance without adding thermal resistance.

Precision Continuous Coil Coating & Thermal Curing

Double-Sided Reverse Roll Coating: Hydrophilic liquid coatings are applied simultaneously to both sides of the foil web under continuous digital coat-weight monitoring.

Multi-Zone Oven Curing: The web passes through flotation curing ovens (220°C - 280°C) to achieve complete crosslinking, eliminating VOCs and residual odor.

High-Speed Rotary Slitting & Louvered Fin Stamping

Precision Burr-Free Slitting: Coated coils are slit into narrow widths with clean edges to prevent flaking or particulate contamination during fin pressing.

High-Speed Progressive Stamping: The hydrophilic foil is fed into progressive stamping dies to produce complex louvered fin geometries without cracking or peeling the coating.

Substrate Selection, Cold Rolling & Degreasing

Alloy Selection: 8011 or 1100 series soft and half-hard tempers (H22/H24) are selected for formability and thermal conductivity (≥ 200 W/m·K).

Ultra-Flat Cold Rolling: Aluminum ingots are rolled to precision fin foil thicknesses (0.09 mm - 0.15 mm) with tight gauge tolerances (± 0.003 mm).

Chemical Cleaning: The foil web undergoes alkaline degreasing and water washing to ensure an oil-free surface for maximum coating adhesion.

FAQ

Q1:What is the main difference between hydrophilic foil and standard bare aluminum foil in server radiators?

A:Bare aluminum foil causes condensed moisture to bead into droplets, bridging adjacent fin gaps and restricting airflow. Hydrophilic coated foil causes moisture to spread into a thin, continuous liquid layer that drains rapidly, lowering static pressure drop and improving thermal performance.

Q2:Does the hydrophilic coating degrade over time in continuous liquid-cooling operations?

A:High-quality silicate-polymer hydrophilic coatings are thermally cured (> 220°C) to form crosslinked molecular bonds with the aluminum substrate, maintaining contact angles below 15° even after thousands of hours of continuous condensation exposure.

Q3:How does hydrophilic aluminum foil lower data center PUE (Power Usage Effectiveness)?

A:By preventing water-bridging between fins, air resistance across radiator cores is reduced by 15 - 25%. Radiator fans require less electrical power to move air through the heat exchanger, directly lowering overall facility PUE.

Q4:Can hydrophilic coated aluminum foil be stamped into louvered fin geometries without coating flaking?

A:Yes. Quality hydrophilic coatings feature high flexibility and adhesion (Grade 0 cross-hatch rating), allowing high-speed progressive stamping and louver forming without peeling, cracking, or flaking.

Q5:What alloy is best suited for AI server liquid-cooling radiator fins?

A:Alloys 8011 in H22/H24 tempers are commonly specified due to their combination of thermal conductivity (≥ 200 W/m·K), tensile strength for die pressing, and corrosion resistance.

Conclusion

Specifying hydrophilic coated aluminum foil for AI server liquid-cooling radiator fins enables thermal engineers to optimize heat dissipation while minimizing fan power draw.

To optimize material selection for your server cooling system:

Select Substrate Thickness by Fin Density: Use 0.09mm – 0.11mm foil for compact fin matrices (1.0 mm - 1.2 mm spacing); specify 0.12mm – 0.15mm foil for high-velocity radiator cores.

Mandate Verified Contact Angle & Salt Spray Ratings: Ensure specified coatings achieve an initial contact angle of ≤ 10° and pass a minimum of 500 hours of NSS testing.

Partner with Certified Coil Coating Specialists: Work with experienced producers like Changzhou Dingang Metal Material Co., Ltd. to secure precision-slit, ready-to-press hydrophilic aluminum foil.
