How to Prevent Sea-Water Corrosion and White Rust During Marine Transit of Aluminum Coils

For supply chain directors, ocean freight forwarders, and quality assurance executives in the global metal trading sector, preserving surface quality during long-haul ocean transit is a primary operational objective. Transporting aluminum coils across maritime routes exposes cargo to extreme relative humidity, salt-laden sea air, and wide ambient temperature fluctuations.

When moisture condenses between tightly wound aluminum coil wraps, it triggers localized electrochemical reactions. This results in severe surface oxidation known as white rust (aluminum hydroxide formation) and salt-water pitting corrosion. Preventing white rust and sea-water corrosion during aluminum coil ocean transit requires a multi-layered barrier system combining active Vapor Corrosion Inhibitor (VCI) chemistry, heavy desiccants, and strict container loading protocols.

The Electrochemistry of Ocean Freight Corrosion & White Rust

Aluminum inherently forms a thin, protective aluminum oxide (Al₂O₃) passivation film when exposed to clean air. However, ocean transit environments create conditions that break down this protective layer.

Moisture Condensation, Dew Point Crossing, and Thermal Cycling

During maritime transit—especially when passing through tropical zones or seasonal shifts—ship holds experience daily temperature swings. When the ambient temperature inside a freight container drops below the dew point of the trapped air, water vapor condenses directly onto the cold metal surfaces.

Capillary action draws condensed water between the tightly wound laps of the aluminum coil. Deprived of free oxygen inside the tight wraps, the aluminum cannot repair its natural oxide film, causing rapid chemical oxidation:

Salt-Spray Exposure, Chloride Ion Passivation Breakdown, and Al(OH)₃ Formation

Failing to test peel strength leads to batch-level package defects. Uncalibrated sealing jaws or variable coating weights can create weak spots that cause product spoilage, costly recalls, and lost customer confidence.

Ocean Transit Protection Matrix: Packaging Materials vs. Environmental Hazards

Container Loading & Ship Hold Logistics Protocols

Proper packaging must be combined with disciplined container loading and ocean freight logistics to ensure cargo arrives intact.

Container Inspection: Floor Moisture Content, Door Seals, and Vent Taping

For Full Container Loads (FCL):

Container Floor Moisture Test: Inspect timber container floors using a pin-type moisture meter. Wood moisture content must be below 14%; damp floors release moisture during transit, creating heavy container sweat.

Water-Tightness Check: Inspect rubber door gaskets for cracks or gaps, and perform a light-leak test from inside the closed container.

Tape Container Side Vents: Seal internal container air vents with waterproof tape to prevent moist sea air from entering during transit.

View More >>

Cargo Hold Ventilation & Moisture Dew-Point Monitoring

When shipping via breakbulk ocean vessels, ship crews must monitor hold temperatures and operate forced ventilation systems to keep air temperatures above the cargo dew point, preventing "cargo sweat."

View More >>

Eye-to-Sky vs. Eye-to-Side Stowage: Load Distribution & Wooden Skids (FSC / ISPM 15)

Coils are stowed based on processing requirements:

Eye-to-Sky (Vertical Bore): Mounted on flat wooden pallets, offering high stability for narrow slitted coils.

Eye-to-Side (Horizontal Bore): Mounted in contoured wooden cradles, preferred for heavy master coils (> 5 metric tons). Heavy-duty steel strapping and timber chocks must anchor the cradles to container tie-down rings to eliminate movement during high seas.

View More >>

The High Financial Cost of Cargo Damage: Claims, Rejections, and Scrap

Receiving a sea-corroded aluminum shipment creates significant financial losses across the supply chain:

Total Cargo Rejection: Whole container loads can be rejected by downstream converters due to surface staining.

Costly Marine Insurance Claims: High claim ratios drive up marine cargo insurance premiums and lead to lengthy legal audits.

Production Line Shutdowns: Manufacturing plants face raw material shortages while waiting for replacement coils.

Vapor Corrosion Inhibitor (VCI) Barrier Films & Active Chemistry

VCI films release microscopic protective vapors within the sealed package. These non-toxic chemical vapor molecules volatilize and settle across the entire aluminum surface—including between tightly wound wraps—forming a monomolecular protective shield that blocks oxygen and moisture reactions.

Desiccant Loading Metrics & Equilibrium Relative Humidity (ERH) Control

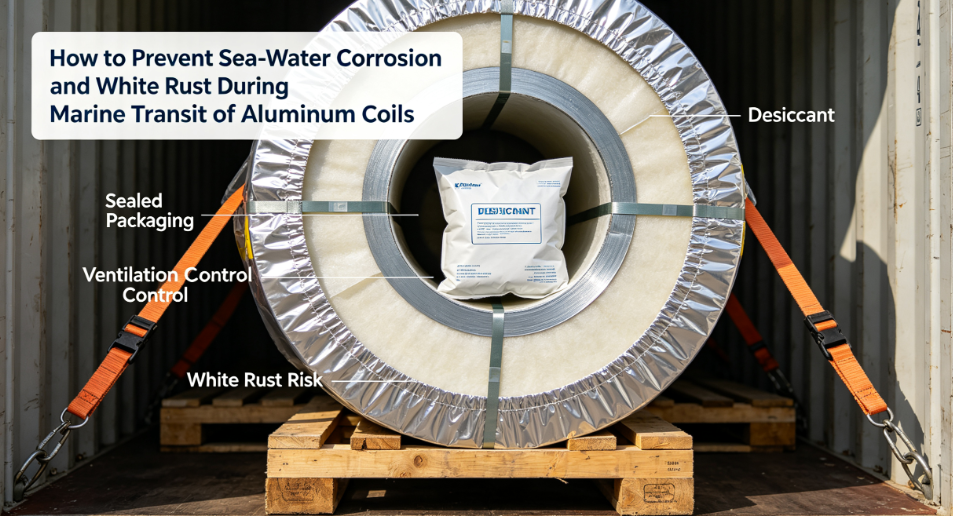

Active calcium chloride (CaCl₂) or silica gel desiccant packs must be placed inside the core bore and around the outer circumference of the coil before sealing.

Recommended Desiccant Dosage: 1.5 kg - 2.5 kg of high-absorption desiccant per metric ton of aluminum cargo.

Target Relative Humidity: Maintain internal packaging humidity below 40% RH, well below the critical dew-point threshold for white rust formation.

Heavy-Duty Outer Packaging: HDPE Wrapping, Steel Edge Guards, and Ocean Cradles

Laminated Barrier Foil / HDPE Wrap: Heat-sealed plastic or aluminum laminate film provides an airtight outer envelope.

Inner & Outer Steel/Plastic Edge Protectors: Heavy-duty radial edge guards shield coil corners from mechanical impacts during crane lifts.

Hardboard Radial Wraps: Corrugated hardboard covers the outer and inner circumferences to cushion against transit vibrations.

ISPM 15 Fumigated Wooden Skids: Solid wooden cradles, treated per ISPM 15 standards, secure coils against shifting inside ocean containers.

Cleanroom Packaging Controls & Global Export Compliance

Operating under ISO 9001, ISO 14001, and strict HACCP hygiene management systems, Changzhou Dingang Metal Material Co., Ltd. (China) ensures every shipment meets international entry and food-contact standards (FDA 21 CFR and EU No 10/2011). Coils are wrapped inside dust-free cleanrooms using VCI barrier films, high-capacity desiccant packs, galvanized steel edge guards, and solid fumigated wooden cradles (eye-to-sky / eye-to-side) engineered to survive demanding ocean transit.

FAQ

Q1:What is white rust, and how quickly can it form on aluminum coils during shipping?

A:White rust is aluminum hydroxide (Al(OH)₃), a white oxidation deposit formed when condensed water is trapped between tightly wound aluminum layers without free airflow. In high-humidity tropical sea routes (RH > 85%), white rust can begin forming within 48 to 72 hours of dew-point crossing.

Q2:Why is oiling aluminum coil stock not enough to prevent sea-water corrosion?

A: While slushing oils provide temporary boundary protection during domestic transit, salt-laden marine environments easily penetrate thin oil films. Heavy sea-water humidity and chloride ions emulsify standard oils, making air-tight VCI barrier packaging and desiccants essential for marine export.

Q3:How do I calculate the required desiccant weight for a 20ft ocean container of aluminum coils?

A:For standard metal exports in a 20ft container, use 1.5kg - 2.5 kg of calcium chloride desiccant per metric ton of metal, or hang 4 to 6 continuous 1 kg container desiccant poles along the interior container walls to capture ambient sweat.

Q4:Should container side vents be left open or taped shut when shipping aluminum coils?

A:Container side vents should be taped shut with waterproof tape. Leaving vents open permits continuous exchange with humid, salt-rich ocean air, overwhelming internal desiccants and accelerating corrosion.

Q5:Can white rust on imported aluminum coils be cleaned or restored?

A:Light surface oxidation can sometimes be removed using mechanical buffing or acid-wash pickling baths. However, severe white rust causes deep pitting that permanently ruins surface aesthetics, paint adhesion, and anodizing quality, typically requiring metal re-melting.

Conclusion

Preventing sea-water corrosion and white rust requires a complete protective strategy, combining active chemistry with robust physical packaging. By implementing VCI barrier films, high-absorption desiccants, steel edge protection, and strict container loading standards, global metal buyers and converters can protect their cargo value and ensure flawless material performance upon arrival.
