Which Alloy And Hardness State Should Be Preferred for Colored Aluminum Circles Specially Used for Kitchen Utensils?

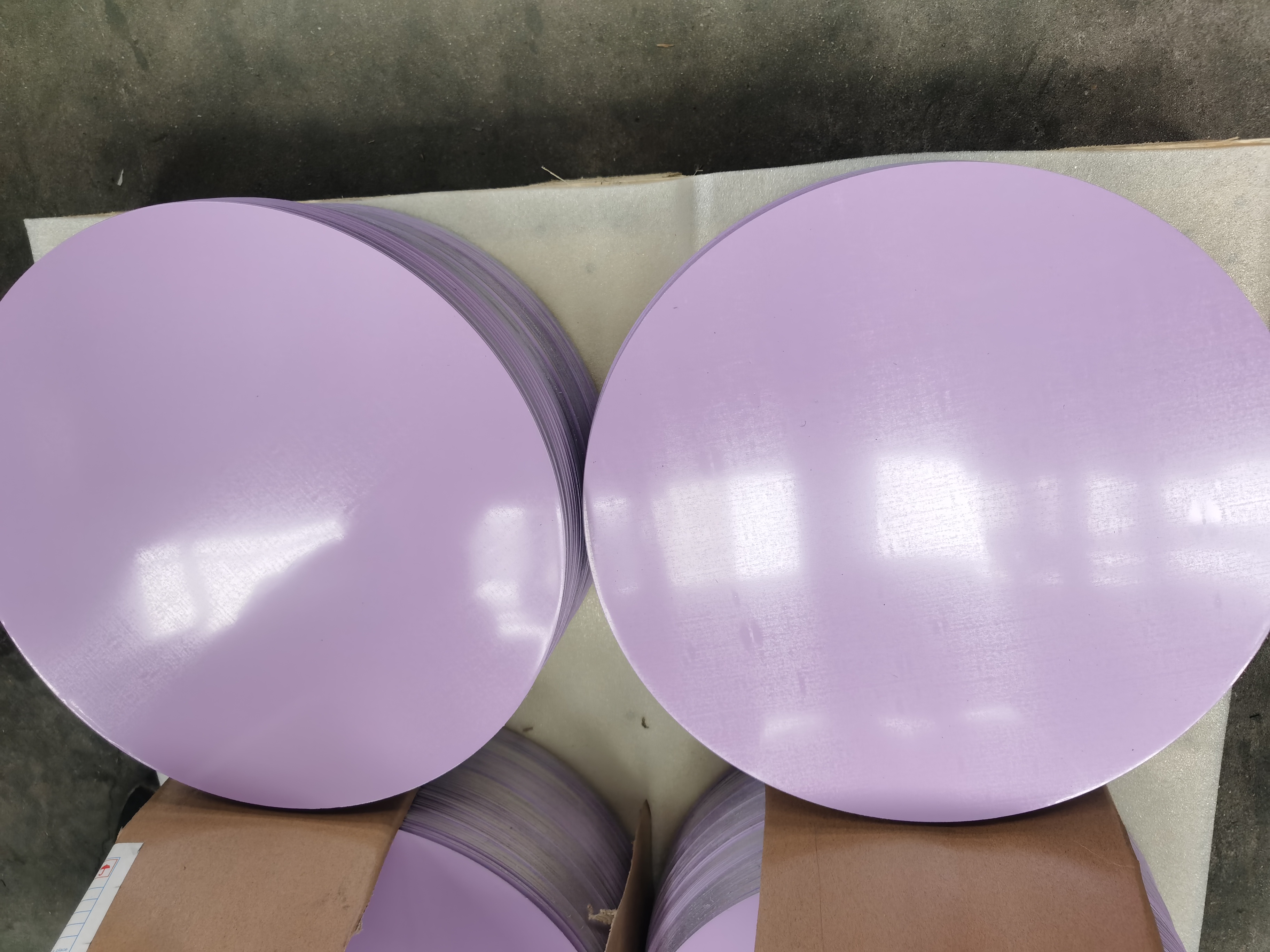

Colored aluminum circles, also known as color-coated aluminum discs, are core blank materials for manufacturing non-stick frying pans, colored soup pots, baking trays and other household kitchen utensils. Unlike ordinary industrial aluminum discs, they require dual compliance with food contact safety standards, durable colored surface coating adhesion, excellent deep drawing formability and long-term anti-corrosion performance in humid, acidic and greasy kitchen environments. Improper selection of aluminum alloy grades and hardness tempers will lead to common defects such as coating peeling, pot body wrinkling, bottom denting and metal ion precipitation during long-term cooking. This article analyzes mainstream aluminum alloys and hardness states on the market and clarifies the optimal matching scheme for kitchen-specific colored aluminum circles.

1. Screening Standards for Kitchen-Grade Colored Aluminum Circle Alloys

Three non-negotiable indicators govern alloy selection for cookware-use colored aluminum circles: first, compliance with FDA 21 CFR 175.300 and EU 10/2011/EU food contact regulations to avoid harmful element precipitation when contacting tomato sauce, vinegar and high-temperature grease; second, stable surface uniformity compatible with polyester (PE) and PVDF color coating processes; third, balanced thermal conductivity matching daily cooking heating demands. Three alloy series are widely applied in the cookware industry: 1xxx pure aluminum series, 3xxx aluminum-manganese alloy series and individual 5xxx aluminum-magnesium alloys.

1.1 1060 Pure Aluminum Alloy: Choice for Light-Duty Household Colored Cookware

The 1060 alloy with 99.6% minimum aluminum purity is the most cost-effective option for shallow-drawn colored kitchen utensils such as thin baking trays and small milk pots. It delivers a thermal conductivity of 237 W/(m·K), the highest among cookware aluminum alloys, enabling 15% faster uniform heating than 3xxx alloys and reducing local overheating that damages surface color coatings. Its ultra-pure grain structure ensures consistent color rendering after roller coating and curing, eliminating mottled color deviation in batch production. However, 1060 has low tensile strength, making it prone to permanent dents under external impact, so it cannot be used for thick-walled deep-drawn cookware like woks.

1.2 3003 Aluminum-Manganese Alloy: Industry Universal Preferred Alloy

3003 aluminum alloy containing 1.0% manganese is the dominant alloy for mainstream colored aluminum circles for kitchen utensils, occupying over 75% of global cookware blank supply. Compared with 1060, manganese element improves tensile strength by 30% and intergranular corrosion resistance by 45%, effectively resisting corrosion caused by repeated cleaning with alkaline detergent and acidic food residues. It retains 92% of 1060’s thermal conductivity, sufficient for daily stir-frying and stewing scenarios. More critically, 3003 has stable deep-drawing ductility: it avoids edge cracking and coating delamination during multi-step stamping for curved wok bodies, a common failure of 1060 during deep drawing. Meanwhile, its surface roughness after rolling perfectly matches primer bonding requirements for PE color coatings, with coating peeling resistance passing 500-hour neutral salt spray tests.

1.3 5052 Aluminum-Magnesium Alloy: Niche High-End Scenario Selection

5052 alloy features the highest strength and corrosion resistance but is not recommended for conventional colored kitchen utensils. Its magnesium component causes inconsistent color absorption during color coating curing, resulting in faint chromatic aberration on curved pot surfaces. In addition, its poor ductility increases stamping scrap rates by nearly 20%. It is only suitable for special outdoor kitchen colored cookware exposed to high salt and humid coastal environments.

2. Optimization of Hardness Temper Matching for Colored Aluminum Circles

Aluminum hardness states (tempers) directly determine formability before coating and scratch resistance after coloring. Four mainstream tempers (O, H12, H14, H16) are tested for colored cookware production, with distinct applicability differences.

2.1 O Temper (Fully Annealed): High-Risk Elimination for Color Coating

O temper aluminum circles have Brinell hardness below 28 HB and maximum ductility for ultra-deep drawing. Nevertheless, the soft grain structure leads to surface micro-scratches during automated color coating transmission. These tiny scratches will be amplified after color curing, destroying decorative appearance. Moreover, O-temper pot bodies are prone to bottom bulging under long-term stove heating, so they are completely excluded for colored coated products despite excellent forming performance.

2.2 H14 Temper: Optimal Hardness for Conventional Colored Cookware

Matched with 3003 alloy, H14 temper with Brinell hardness ranging from 40 to 45 HB achieves the best balance across all performance dimensions. From the forming perspective, it supports drawing depth up to 3.2 times the blank diameter without wrinkling or cracking, covering all conventional wok, soup pot and frying pan forming requirements. From the coating perspective, its moderate surface hardness resists roller extrusion scratches during high-speed color coating production, maintaining intact uniform color surfaces. In service, H14-temper colored aluminum cookware has 3H surface coating scratch resistance, capable of resisting daily friction with wooden and silicone spatulas without color peeling. For 1060 alloy used for thin baking trays, H12 temper (32-38 HB) is the substitute choice to avoid excessive hardness-induced cracking in shallow stamping.

2.3 H16/H18 Hard Tempers: Limited Specialized Use

H16 and H18 tempers with hardness above 55 HB provide excellent dent resistance but suffer from insufficient ductility. They can only be applied to non-deep-drawn flat colored kitchen accessories such as pot lids and heat insulation trays. Attempts to form deep curved cookware with H16/H18 always cause coating cracking synchronous with aluminum substrate fracture.

3. Comprehensive Selection Conclusion and Industrial Verification

Combining food safety, decorative appearance, processing yield and long-term service durability, the universal priority scheme for colored aluminum circles for daily kitchen utensils is 3003 alloy with H14 temper. For lightweight thin-wall colored baking utensils with low strength demands, the alternative scheme is 1060 alloy with H12 temper. Special coastal anti-corrosion colored cookware can adopt 5052-H14 with customized color coating surface pretreatment to offset chromatic aberration defects.

Industrial data from Chinese aluminum blank manufacturers show that adopting 3003-H14 colored aluminum circles reduces post-production coating failure rates by 62% and after-sales dent complaints by 71% compared with traditional 1060-H12 materials. All qualified products under this combination pass dual food safety and color aging tests, with color fading resistance exceeding 5 years under normal household use.

4. Supplementary Matching Notes

All preferred alloy and temper combinations must match low-temperature curing color coatings. High-temperature curing processes will cause internal stress release in H14-temper aluminum substrates, leading to subtle pot body deformation. Additionally, colored aluminum circles for induction cooktop compatible cookware should retain the 3003-H14 standard without hardness adjustment, as excessive hardness weakens magnetic induction thermal conduction efficiency.
